When exploring CNC control systems for metalworking applications, it’s essential to understand the specific uses of the DELEM DA-66S Profile-60S. This advanced system plays a crucial role in enhancing the efficiency and precision of press brakes, making it a vital component in industrial automation.

If you’re curious about how the DELEM DA-66S Profile-60S can optimize your operations, I’ll explain its functions and benefits, helping you make informed decisions for your workflow. Whether you’re upgrading your equipment or delving into the details of CNC control systems, this article will provide the insights you need.

Understanding the Profile-60S System Requirements

Before diving into the functionality of the DELEM DA-66S Profile-60S, it’s important to understand the system requirements that allow it to run smoothly. The Profile-60S requires an IBM-compatible PC with a minimum screen resolution of 1920×1080, powered by Windows 10 and video drivers supporting OpenGL V3.3 or higher. Additionally, a free USB port is necessary for installation purposes.

How to Install DELEM DA-66S Profile-60S Software

Installing the DELEM DA-66S Profile-60S software is straightforward, and I’ll guide you through the steps required to get it up and running.

Step 1: Prepare Your Installation Media

Insert the Profile-60S installation stick into a USB port. Follow the on-screen instructions to download the necessary installation files to your computer.

Step 2: Initiate the Installation Process

A ‘welcome’ window offers to install the Profile-60S software. Proceed by clicking ‘Next.’ If necessary, manually start the setup by locating the ‘Delem.Profile-60S.setup.Vx.y.z.exe’ file on the installation stick.

Step 3: Accept the Software License Agreement

On the next window, the license for using Profile-60S is displayed. Read this license carefully. Select ‘I accept…’ to accept the terms of this license or leave it at ‘I do not accept…’. to abort the installation. If you have accepted the license, click ‘Next’ to continue the installation.

Step 4: Configure Installation Settings

Decide on the folder name and location where Profile-60S will be installed. The default path is ‘C:\Program Files (x86)\Delem\Profile-60S’. You can change this easily by clicking the ‘Browse’ button and changing the path. Click “Install’ to start the actual installation of the software.

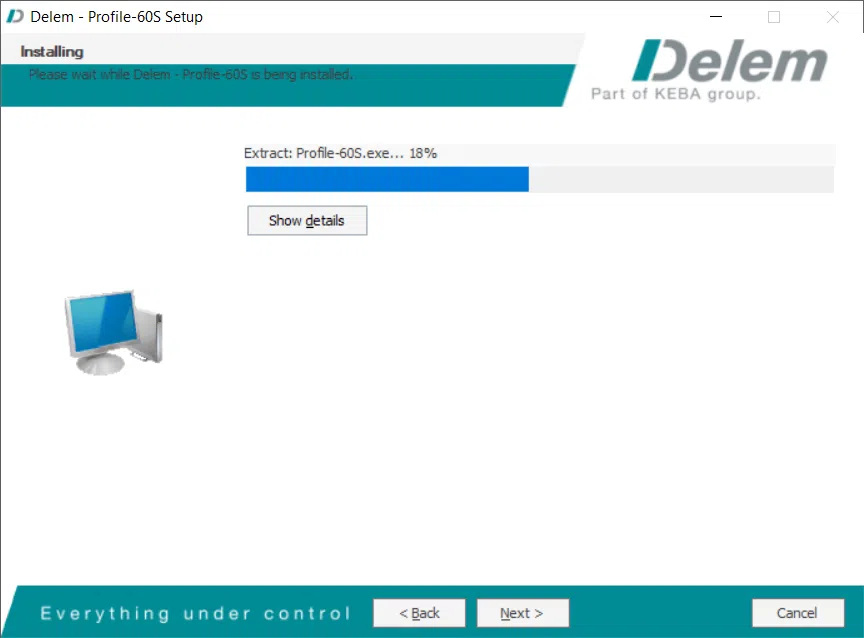

Step 5: Complete the Installation

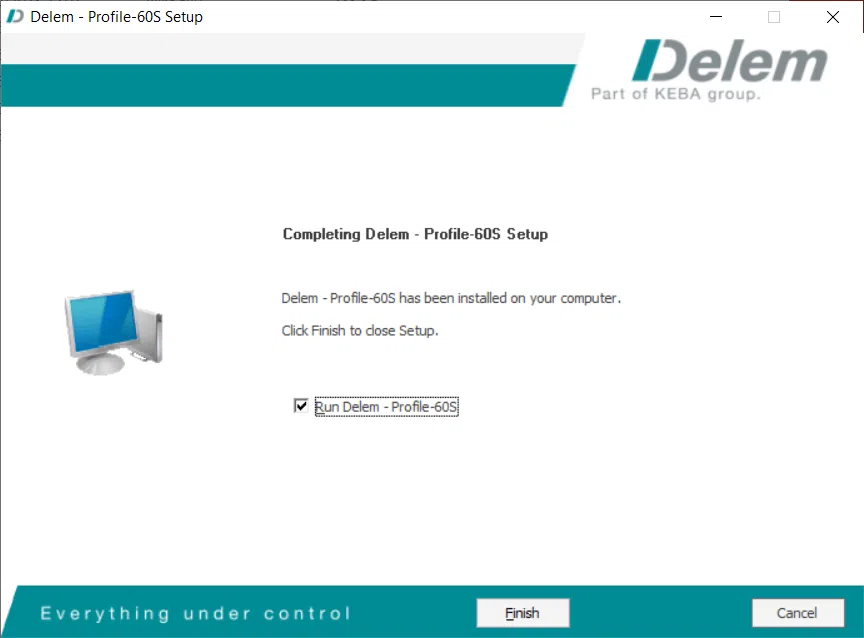

Finish the setup by allowing the installation program to copy files to your hard disk. Once completed, press ‘Finish’ to finalize the installation, with no need to reboot your PC.

Teraz możesz już korzystać z Profile-60S. Jeśli klucz sprzętowy USB jest podłączony do komputera, Profile-60S zostanie uruchomiony. W przypadku braku klucza sprzętowego USB zostanie wyświetlony komunikat o błędzie.

Po instalacji domyślnej na pulpicie systemu Windows pojawią się następujące ikony:

Program instalacyjny dodał również nową pozycję o nazwie Delem (jeśli nie wprowadzono żadnych zmian w instalacji) w menu Start systemu Windows. W tym menu wyświetlane są następujące pozycje:

Profil-60SOprogramowanie Profile-60S

Profil-60S instrukcje:Instrukcje obsługi sterownika DA-60S

Operating the DELEM DA-66S Profile-60S

Now that the Profile-60S is installed, you can explore its operational features.

Profile-60S Workflow Overview

Profile-60S is designed for a seamless workflow, from selecting existing products to creating new ones. Mode selection keys at the bottom guide the process, starting with the ‘Products’ mode on the left. Built-in Help and the operation manual offer guidance for programming products, included with the software’s installation.

Profile-60S offers advanced features over DA-60S, such as:

• The ‘machine library’ button to modify machine data to align with machine control settings.
• Printing selected products in ‘Products’ mode via the ‘print’ button.
• Transferring generated products and tooling in ‘Transfer’ mode to a hard disk, USB device, or network location.

Machine Library Management

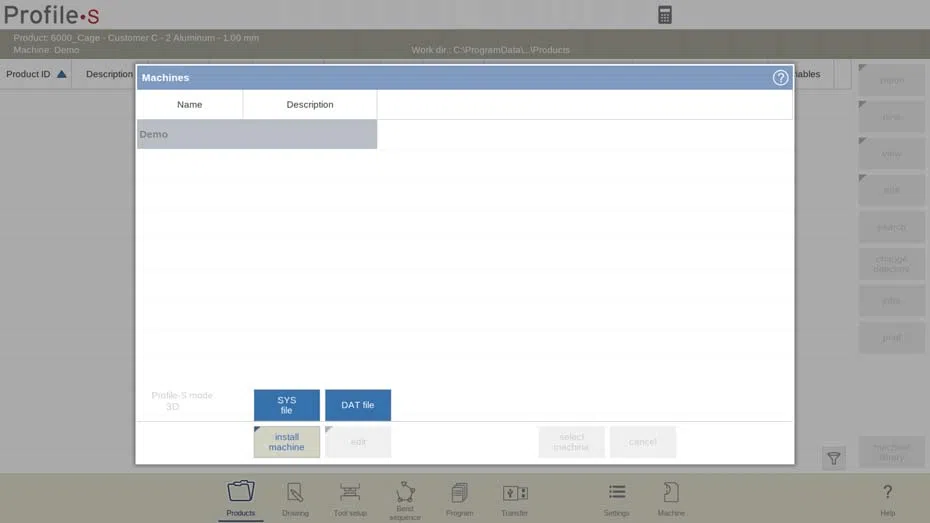

Synchronization between Profile-60S and machine controls is crucial for compatibility. In Profile-60S, use the ‘machine library’ to add multiple machines, supporting all production floor machines with one programming station. To add a machine, click ‘machine library’ in Products mode and select ‘install machine’.

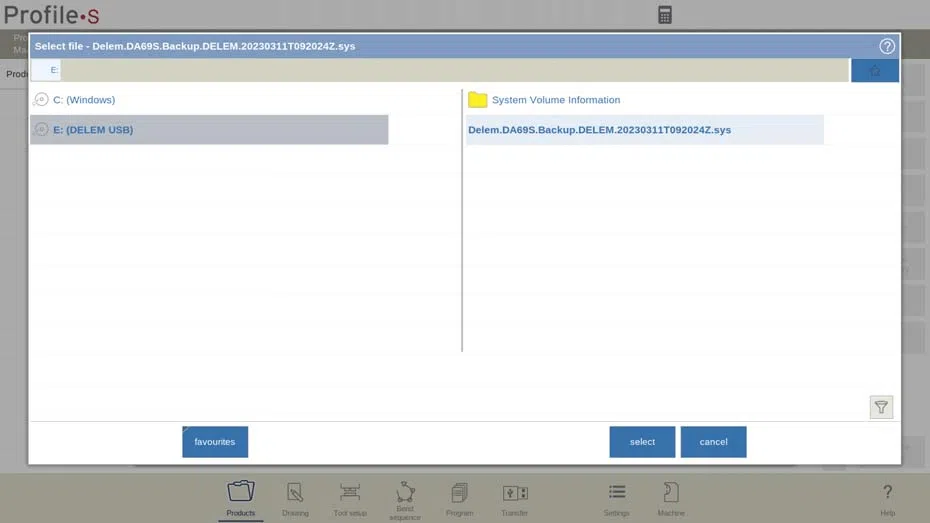

To create a SYS file on a DA-60S control, choose ‘backup system’ in Machine mode. A .dat file is generated and copied to a USB stick, then loaded into Profile-60S during installation. The machine’s name in Profile-60S matches the control’s name but can be changed if needed.

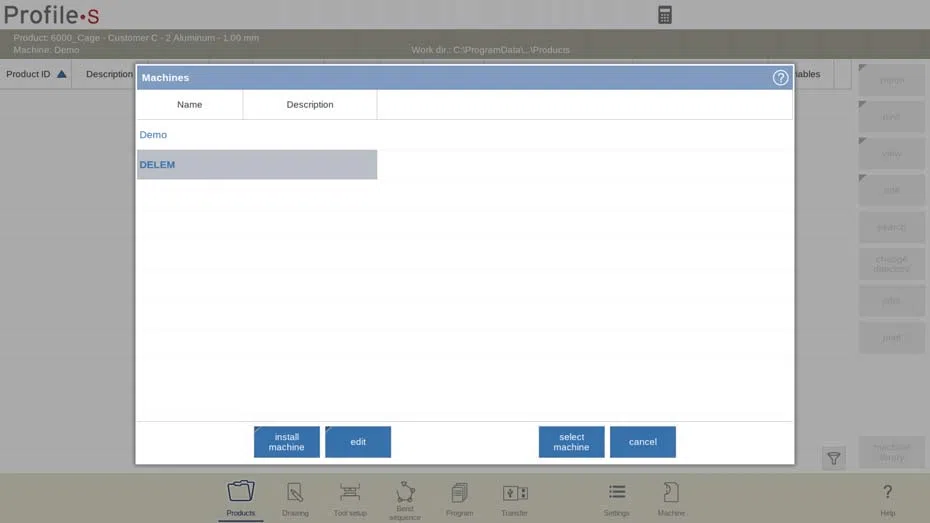

You can switch and edit machines using ‘select machine’ and ‘edit’ options.

Print (Profile-S2D and Profile-S3D only) and Transfer Capabilities

Profile-60S provides robust print and transfer functions. Products can be printed directly from the ‘Products’ mode, and data can be transferred to USB or network locations, allowing for efficient program sharing and implementation.

When pressing the button ‘print’ the standard Windows printer menu is opened to select the desired printing device and printer settings.

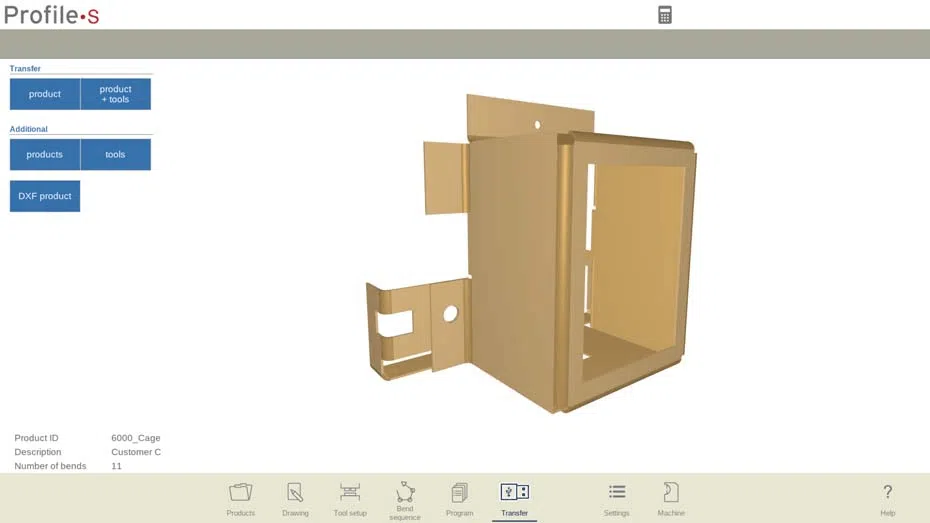

Po zakończeniu projektowania produktu i generowania programu CNC dane te można przesłać w trybie przesyłania np. na urządzenie pamięci USB.

W tym trybie są 3 opcje:

produkt: Kopiuj dane programu do określonego katalogu.

produkt + narzędzia: Kopiuj dane programu i dane użytych narzędzi do określonego katalogu.

DXF produkt: Eksportuj produkt, uwzględniając odliczenia zagięć, jako kontur w pliku DXF i skopiuj go do określonego katalogu (tylko Profile-S2D i Profile-S3D).

Ponadto można przenieść także inne produkty poza wybranym produktem, a także inne narzędzia.

Key Combinations

The following key combinations are possible:

<alt> + <enter>

To enable/disable full screen mode.

<F11>

To disable/enable the Windows title bar and Windows frame.

Często zadawane pytania (FAQ)

Wniosek

In conclusion, understanding the uses of the DELEM DA-66S Profile-60S is crucial for maximizing the functionality of your press brakes and enhancing the overall efficiency of your metalworking processes. By integrating this advanced CNC control system, you can achieve higher precision and smoother operations.

If you’re considering an upgrade or need further assistance, our team is here to help. Feel free to reach out for more information or explore our documentation for additional insights into optimizing your industrial automation setup.
