If you’re curious about the key features of the DELEM DA-53T Operation, you’re in the right place. In this article, I’ll outline the main aspects of this advanced control system, designed to enhance the precision and efficiency of your metalworking processes. Whether you’re a seasoned professional or new to the industry, understanding the capabilities of the DELEM DA-53T Operation will provide you with the insights needed to optimize your production. Let’s explore what makes this control system a standout choice for modern press brake operations.

User-Friendly Interface and Navigation

Touchscreen Display

The DELEM DA-53T Operation includes a high-quality touchscreen display, making navigation simple and improving the operator’s interaction with the machine. The interface is designed for clarity, allowing operators to easily manage and execute tasks.

The precise appearance of your control may differ.

Front control elements

The Start and Stop button, integrated in the touch screen user interface:

USB connectors

Operation and programming modes

Главный экран элемента управления выглядит следующим образом:

Depending on the navigation button which is active, the screen will differ. The above main screen will appear having the Products function active. Just by tapping the various modes, the specific mode will be selected.

The structure of the main screen is as follows:

Титульная панель

In the top the title panel is always shown. In this area you can find logo information, which product is loaded and (when activated) the service row. Also machine indicators can be found here.

Информационная панель

In the information panel all functions and visualisation related to the selected modus are displayed and can be found.

Панель управления

Панель управления является частью информационной панели и представляет собой место, где находятся элементы управления, связанные с информационной панелью.

Панель навигации

The Navigation panel is the area where all the major modes can be found. This area is always visible. The controls, large buttons with icons, can be used to directly switch from one mode to the other.

Navigational Modes:

Getting started

To create a precise bend program using the ДЕЛЕМ ДА-53Т Operation, follow these streamlined steps:

1. Initiate a New Program: Navigate to the Products mode and select New Program to start.
2. Set Basic Properties: Input the program’s essential details and confirm by pressing Accept.
3. Настройка инструмента: The system automatically proceeds to Tool-setup. Here, select or modify the tooling as needed, and then proceed to the Program menu.
4. Program Bend Parameters: In the Program menu, specify the parameters for the initial bend. Use the Add Bend function to include additional bends as required.
5. Start Production: Tap Auto and hit Start to begin producing the programmed product.

These steps facilitate the DELEM DA-53T Operation, allowing for independent parameter adjustments for each bend and efficient production.

Modifying a program

The DELEM DA-53T Operation is equipped with a versatile Program menu that allows access to numerical programming and the current product’s values.

Through this menu, users can modify existing programs efficiently. It also offers the ability to select independent bend steps, along with monitoring and adjustment of programmed values when necessary.

Axes positions are dynamically calculated based on the specific machine configuration, ensuring precise and effective operation.

Меню «Авто» и «Ручное», режимы производства

A product program can be executed via the Auto mode. In Automatic mode, a complete program can be executed bend after bend. In the Auto mode the Step mode can be selected to have each bend started separately.

The Manual mode of the control is an independent production mode. In this mode, one bend can be programmed and executed. It is typically used to test the behaviour of the bend system.

Резервное копирование данных, внешнее хранилище

Both product and tool files can be stored externally. These files can be stored on a USB stick. This facilitates a back-up of important data and the possibility to exchange files between Delem controls.

Средства программирования

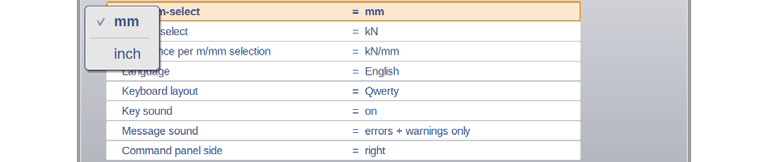

Функциональность списка

The DELEM DA-53T Operation lets you manage parameters easily. Some parameters have a fixed set of values. Just tap on the parameter line to view options and select your desired value.

To cancel and close the listbox without changing the parameter, simply tap outside the box. This ensures smooth adjustments within the DELEM DA-53T Operation.

Parameter zoom functionality

The parameter zoom function is integral to the DELEM DA-53T Operation, promoting better concentration on parameter adjustments. When you select a parameter such as force in Program mode, the associated lines will enlarge, allowing for more accurate fine-tuning. This zooming in on key parameters ensures that operators can focus on the details that matter most.

When you choose another parameter, the previous one minimizes and returns to its standard view, while the newly selected parameter becomes the focus.

Навигация

В некоторых режимах экраны программы разделены на вкладки.

Вкладки можно легко выбирать, просто нажимая на них. Если вкладка видна не полностью или совсем не видна, просто перетащите строку вкладок по горизонтали, чтобы «вытянуть» нужную вкладку в поле зрения и выбрать её.

Ввод и редактирование текста

Курсор можно использовать для ввода определённого значения или текста в существующее поле ввода. Для этого просто коснитесь нужного места. Появится курсор, и ввод будет добавлен.

Ввод буквенно-цифровых символов и специальных символов

Alphanumeric and Special Character Use

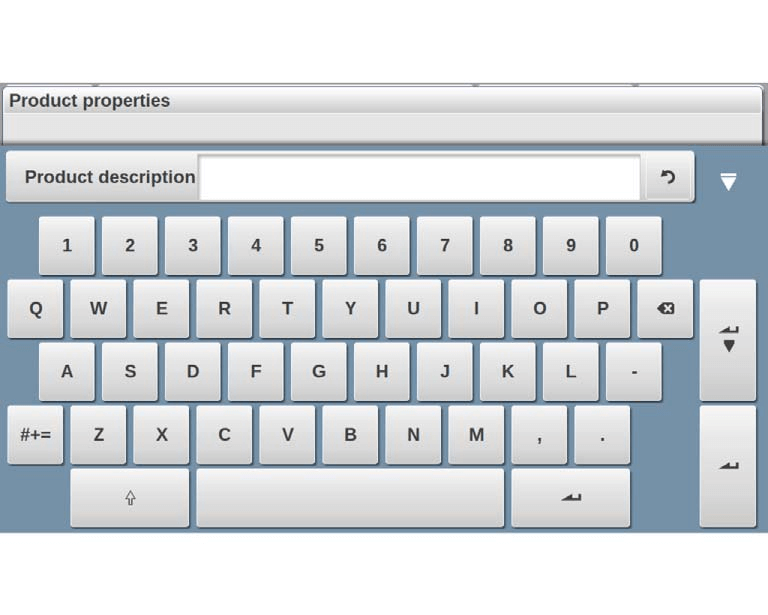

The DELEM DA-53T features a comprehensive on-screen keyboard that supports both letters and special characters. Numeric fields automatically exclude non-numeric options, while full keyboard access is available for alphanumeric entries.

Доступ к специальным символам

Easily input characters like ?, %, and - via a special character button on the keyboard’s lower-left side, enhancing the DELEM DA-53T’s ease of use.

Extended Character Set Support

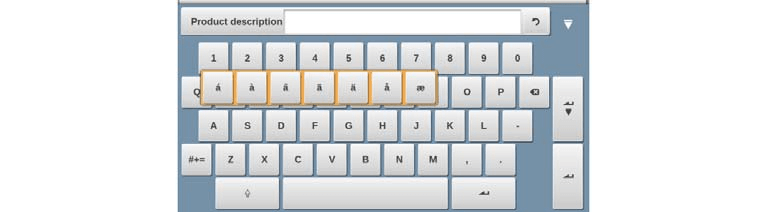

For accented characters (e.g., á, à, â), hold down a base letter. This feature ensures the DELEM DA-53T Operation meets diverse input requirements.

Messages centre

The DELEM DA-53T Operation features an intuitive message management system to streamline communications from the PLC, Safety systems, and the Sequencer.

Message Display and Management

Messages sent to the ‘Message Centre’ are signaled by an icon in the top row next to symbols like the keylock. You can tap this icon to temporarily remove messages for uninterrupted programming, and tap again to view them.

New Message Notifications

When new messages arrive in the background, the Message Centre icon shows an indicator, ensuring you are promptly notified of any updates or alerts.

Функция блокировки клавиатуры

The DELEM DA-53T Operation includes a keylock function to safeguard products and programs by preventing unauthorized changes.

Control Locking Levels

• Program Lock: Allows only product selection and execution in Automatic mode, restricting program modifications.
• Machine Lock: Completely locks the machine, preventing usage of the control.

Activating and Deactivating Locks

To activate a lock, tap the lock symbol on the screen. Entering a specific code will enable either the grey Program Lock or the red Machine Lock. Lock symbols next to parameters indicate active restrictions. Unlock by tapping the lock symbol and entering the appropriate code; lock indicators will then disappear.

Customizing Codes

Codes can be personalized as needed. The Installation manual provides instructions for managing codes, offering users control over system security settings.

Ручное позиционирование

The DELEM DA-53T Operation system offers a user-friendly interface for axis positioning in both manual and automatic modes. A slider at the bottom of the screen allows control over the axis movement speed, with the axis stopping once the slider is released. Buttons at each slider end enable precise position adjustments. An auditory beeper provides feedback during axis movement, enhancing operational awareness.

Software Compatibility

The DELEM DA-53T Operation is designed to be compatible with various software solutions, allowing for enhanced control and flexibility. This compatibility maximizes the system’s efficiency and potential for customization.

The version of the software in your control is displayed at the System Information tab in the Machine menu.

Пример номера версии:

• В 1.2.3

• V обозначает версию

• V 1.xx — это номер основной версии.

• V x.2.x — это номер младшей версии

• V xx3 — номер версии обновления

The major version number increases with new major features that may alter normal operations. The minor version number increases with features and enhancements that maintain existing operations. The update version number is used for corrections in the current software version.

Часто задаваемые вопросы (FAQ)

Заключение

In summary, the DELEM DA-53T Operation is designed with user-friendly interfaces, advanced functionality for precise programming, and flexible settings that accommodate various production needs. Its prominent features include a well-structured main screen, intuitive navigation, and customizable settings for both machine and user preferences. These aspects ensure that operators can efficiently manage and execute metalworking tasks with precision and ease.

To maximize the DELEM DA-53T Operation’s full potential, it’s important to familiarize yourself with its features and understand how they contribute to improved efficiency and productivity. If you have any questions or require further assistance, please do not hesitate to contact our team. Additionally, you can access more detailed documentation and resources on our website to enhance your understanding and proficiency with the DELEM DA-53T Operation.
