1600T12000 Tandem Giant CNC Press Brake For Light Pole Production

5 27 Reviews

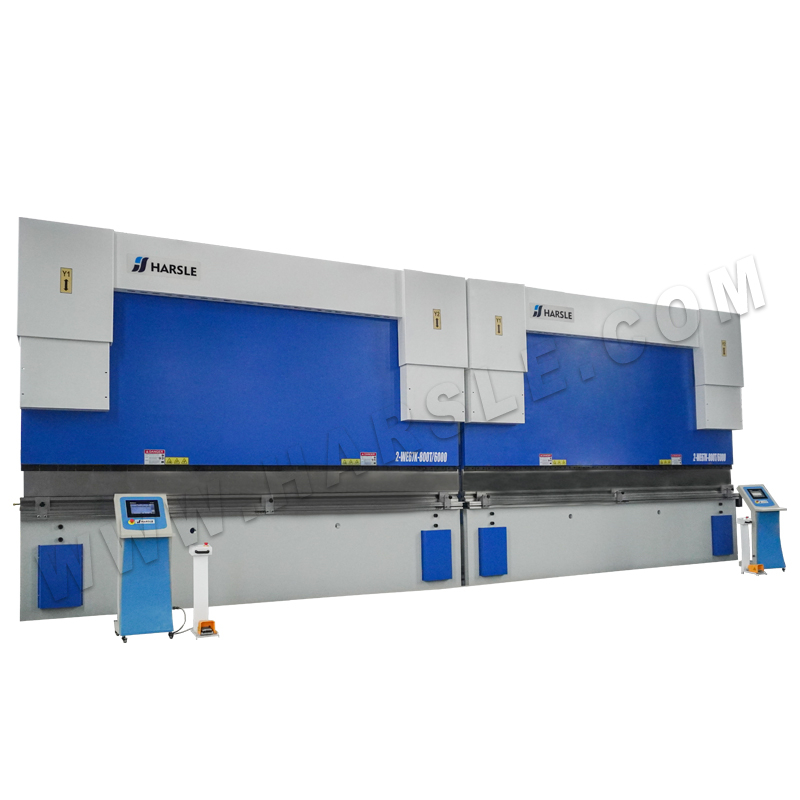

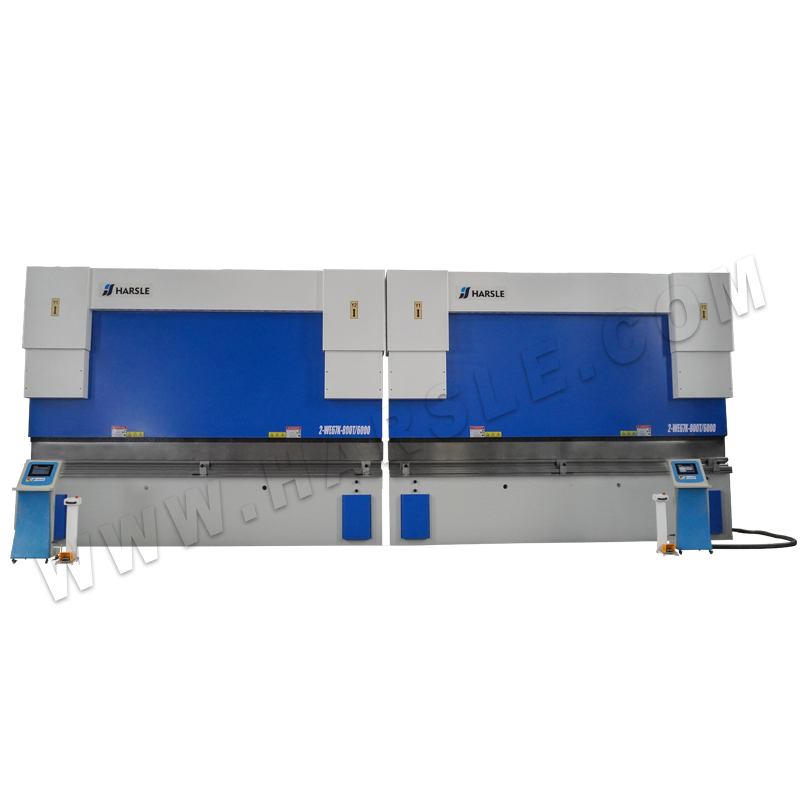

1600T12000 Tandem Giant CNC Press Brake. Also known as a Synchronized Hydraulic Press Brake System, for large-size bending applications such as light pole production, HARSLE press brakes can be connected in a tandem press brake configuration (two connected machines). Here comes the HARSLE WE67K-1600T12000 giant press brake which is connected by two WE67K-800T6000 press brakes.
  • WE67K



Product Description

Giant CNC Press Brake

1600T12000 Tandem Giant CNC Press Brake. With the tandem press brake, you can either control all machines with one CNC controller or each machine independently, enhancing versatility & productivity.

The major asset of these machines lies in the bend angle accuracy along the entire bending length thanks to the combination of the electric dynamic crowning system and the CNC servo control. The backgauge photoelectric protection also provides sufficient protection for the safe operation of the machine. HARSLE is committed to providing innovative solutions for high-precision processing.

Main Features

● The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the CNC press brake.

● WE67K Series CNC press brake is redesigned based on users’ preference to increase productivity and keep the costs at minimum level with high bending accuracy and low-cost maintenance.

● High quality and repetitive bending accuracy is obtained by using synchronized cylinder and proportional valves

● Bending angle calculation and back gauge position calculation can be achieve by inputting metal sheet material information, sheet size and punch and die size.

● Crowning system can work with CNC controller automatically to achieve higher bending accuracy and linearity. Hydraulic crowning and motorized crowing system are optional.

● CNC back gauge with several axes can work with different shape work-pieces well.

Technical Parameters

1Nominal ForceKN16000
2Bending lengthmm12000
3Poles Lengthmm4900
4Throat depthmm600
5Slider Travelmm400
6Die Loading Heightmm600
10DimensionLength (mm)6500*2
Width (mm)2750
Height (mm)5300

Product Detaisl

Giant CNC Press BrakeGiant CNC Press BrakeGiant CNC Press BrakeGiant CNC Press BrakeGiant CNC Press BrakeGiant CNC Press Brake
