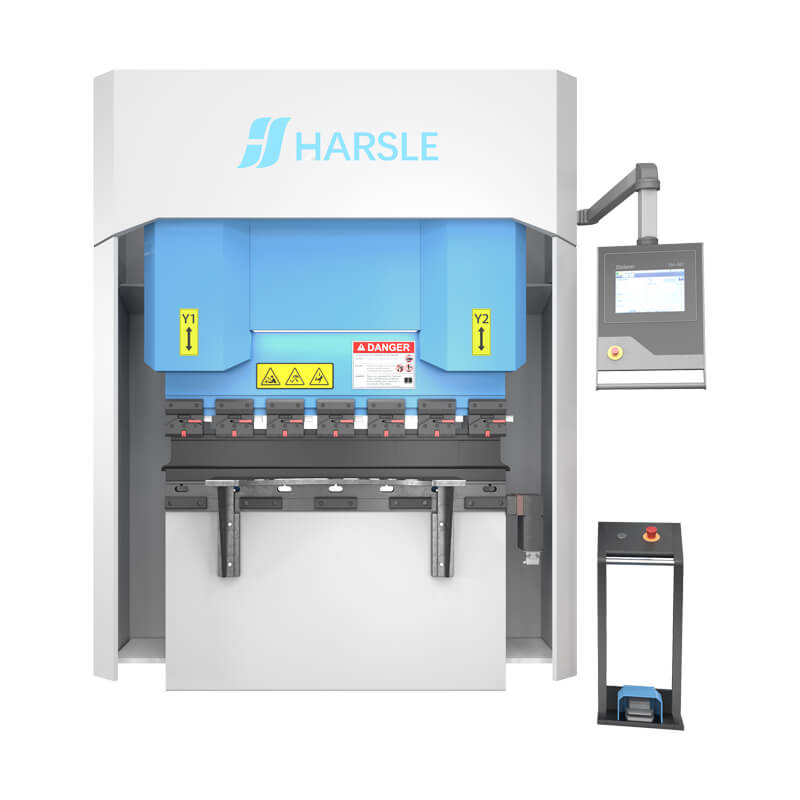

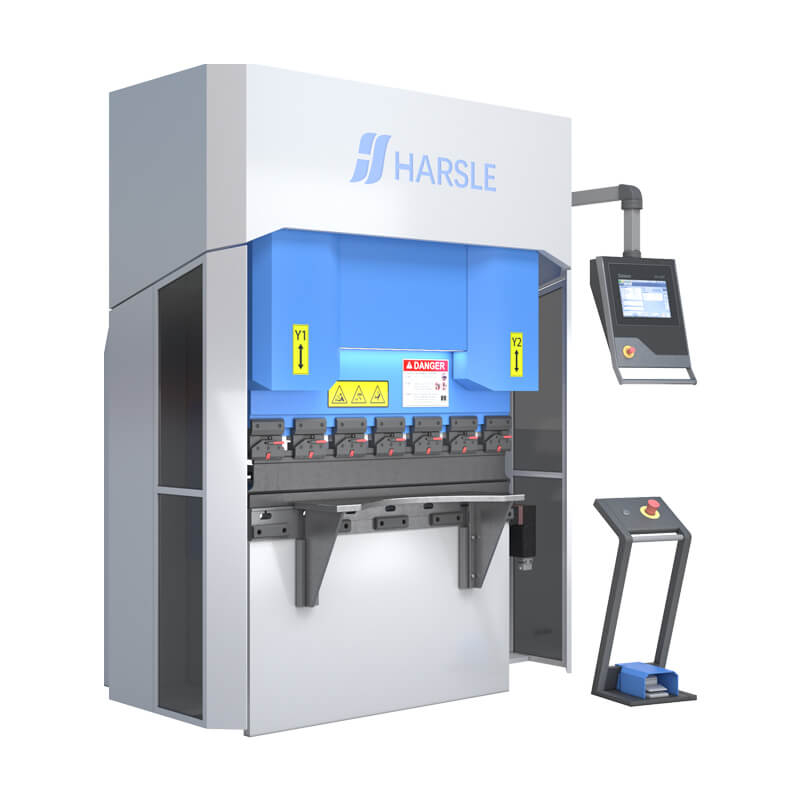

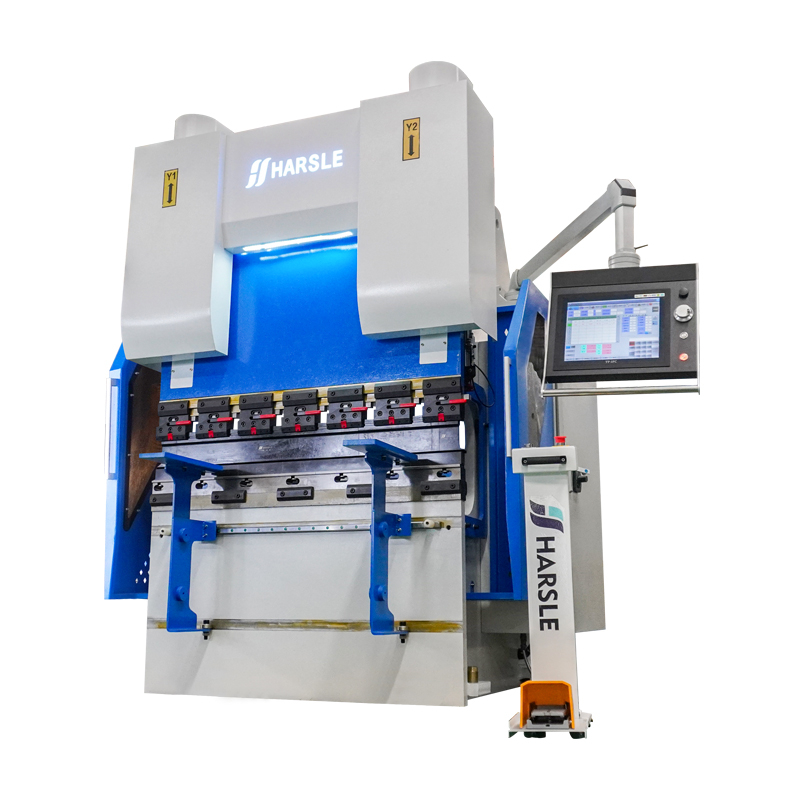

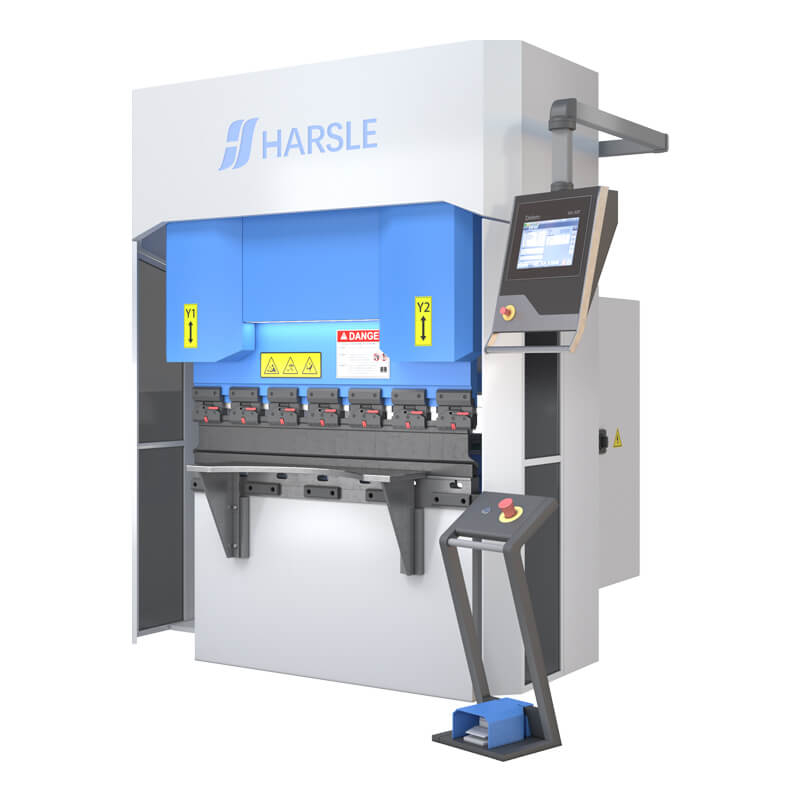

Full Electric Servo Press Brake Machine

5 80 Reviews
  • eBend

  • HARSLE

Availability:
Quantity:

Product Description

bending machineelectric bending machinesmall electric bending machinesmall electric bending machine

Specification

ModeEP-35T1250EP-43T2000EP-65T2500
Bending Capacity35T43T65T
Y-axis Servo Motor6.5KW7.5KW15KW
Bending Length1250mm2000mm2500mm
Column Pitch1130mm1400mm2100mm
Throat Depth410mm410mm410mm
Daylight470mm470mm470mm
Slider Inclination±30mm±30mm±30mm
Y Rapid Speed135mm/s180mm/s160mm/s
Y Working Speed50mm/s50mm/s50mm/s
Y Retrack Speed135mm/s180mm/s165mm/s
X Rapid Speed500mm/s500mm/s500mm/s
R Rapid Speed200mm/s200mm/s200mm/s
Z1/Z2 Rapid Speed400mm/s400mm/s400mm/s
Y-axis±0.01mm±0.01mm±0.01mm
X-axis±0.02mm±0.02mm±0.02mm
R-axis±0.1mm±0.1mm±0.1mm
Z1/Z2-axis±0.1mm±0.1mm±0.1mm
Y Stroke200mm200mm200mm
X Stroke500mm500mm500mm
R Stroke140mm140mm140mm
Z1/Z2 Stroke400mm600mm900mm
Controller SystemSL100-P4/6SL100-P4/6SL100-P4/6
Installed capacity15kVA15kVA25kVA
Dimension1475x1358x2439mm2020x1388x2439mm2520x1700x2664mm
Weight3000kg3300kg5100kg
