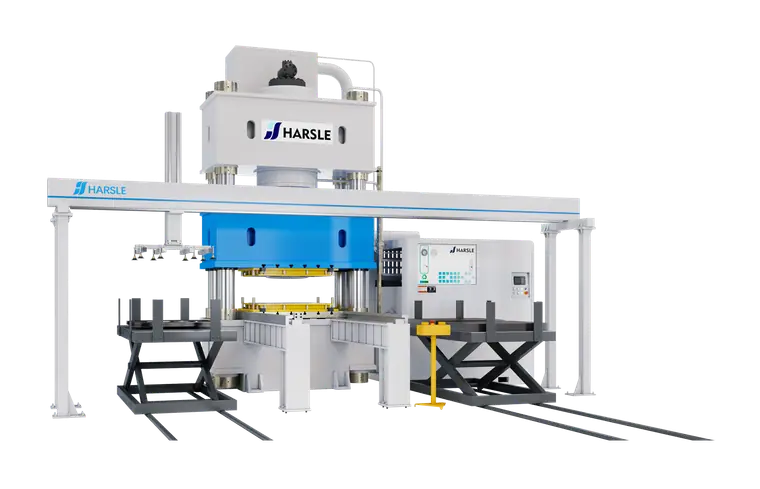

Hydraulic Press

Hydraulic press machine is a versatile and robust machine that has been widely used for various manufacturing and fabrication processes. The machine works on the principle of fluid mechanics and uses hydraulic fluid to exert pressure and perform the intended operation. The hydraulic press has been instrumental in the development of various industries, such as automobile, aviation, and construction, among others. It comprises a hydraulic cylinder, pump, accumulator, and control valve. The hydraulic cylinder is the primary component of the machine and is used to apply pressure on the workpiece. The pump is used to generate the hydraulic fluid pressure that is required to operate the machine. The accumulator is used to store the hydraulic fluid and provides a reserve supply in case of a sudden drop in pressure. The control valve regulates the flow of hydraulic fluid to the cylinder, enabling the operator to control the pressure applied to the workpiece. It is capable of performing a wide range of operations, such as forging, stamping, punching, bending, and extrusion, among others. The machine can handle materials ranging from soft metals like aluminum to hard metals like steel and titanium. The hydraulic press can be customized to suit the specific needs of the manufacturing process, and the pressure exerted by the machine can be adjusted to suit the hardness and thickness of the workpiece. It is highly efficient and cost-effective, and its versatility makes it ideal for use in a wide range of industries. The machine is capable of producing high-quality products with consistent accuracy and repeatability, which is critical in mass production. Additionally, the hydraulic press machine can be automated and integrated into a production line, reducing the need for manual labor and increasing production efficiency. It is also highly durable and reliable, and its maintenance is relatively simple and straightforward. The machine is designed to withstand high pressure and heavy loads, making it ideal for use in harsh working environments. Furthermore, the hydraulic press machine is designed with safety in mind, and various safety features, such as emergency stop buttons, pressure relief valves, and anti-tilt protection, ensure that the machine operates safely and reduces the risk of accidents. HARSLE is a professional manufacturer for Hydraulic press including C frame type, Four-column type, deep-drawing press, hydroforming press, and other customized presses. They are widely used in the field of cutting, stamping, bending, punching, forming, dreep-drawing, curling, etc.

CONTACT US

Get in Touch
If you have any questions, please contact us, we will get back to you as soon as possible
阿斯达是===RUpfALcqNKOg
MNpAUKDMfYAg BIpgQetNHmWj
GET SOCIAL
E-MAIL
WHATSAPP
​​​​​​​+86-18052080815
ADDRESS
​​​​​​​Mingjue Industrial Park, Lishui, Nanjing, Jiangsu, China

Hydraulic Press Blog

"Revolutionary Hydraulic Press Machine Brings Power and Precision to Industrial Applications"

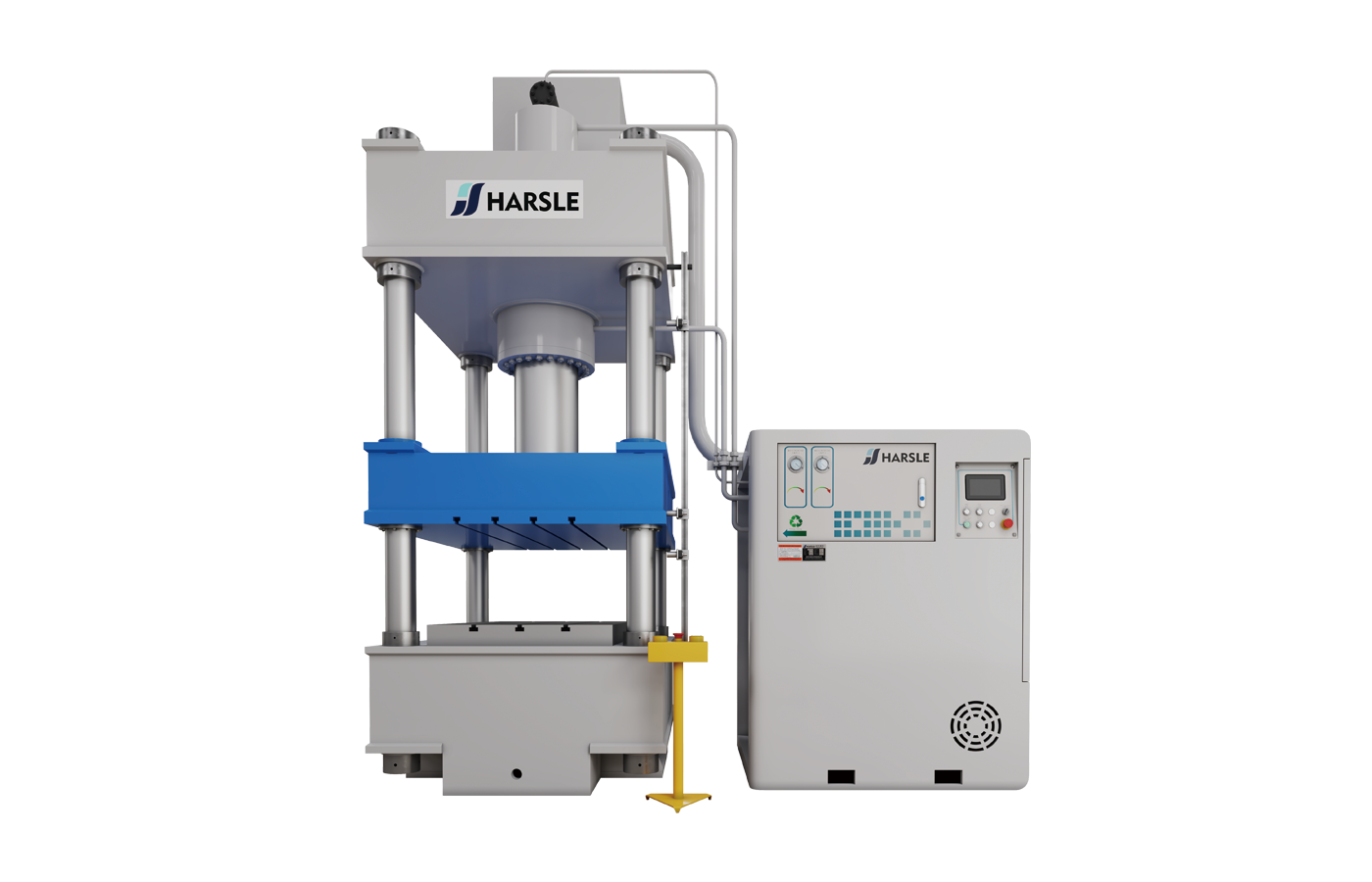

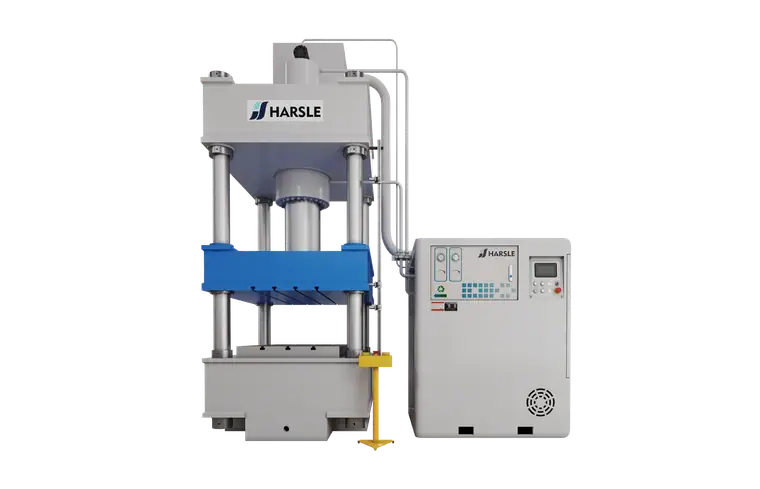

Y27-400T Deep Drawing Hydraulic Press for Wheelbarrow Body Forming
This article mainly introduces the Y27-400T deep drawing hydraulic press machine and how to operate it. HARSLE Y27-400T deep-drawing hydraulic press adopts a three-beam and four-column structure, which is mainly composed of the machine body, hydraulic system
August 05, 2022
The Maintenance Guide of Hydraulic Press
Hydraulic press, also known as oil pressure, is a kind of machinery that uses liquid static pressure to process metal, plastic, rubber, wood, powder and other products. It is commonly used in pressing process and press forming process, such as: forging, stamping, cold extrusion, straightening
June 20, 2023
Vibration phenomena and elimination strategies of Y27 double-action hydraulic press
Double-action hydraulic press has low energy consumption, high efficiency and novel style. Equipped with safety protection device, automatic counting function, two-speed control of movable beam: no-load fast, work-in slow speed against the mold, stretching.
February 26, 2021

Hydraulic Press Knowledge

"Enhance Your Manufacturing Capabilities with Durable and Reliable Hydraulic Press Equipment"​​​​​​​

Hydraulic Press FAQ

  • Q How do you care for a hydraulic press machine?

    A
    Keep the oil clean (filtered) and at the proper operating temperature. Replace the hydraulic fluid if it smells burnt. Monitor the condition of seals, replace if necessary, and keep polished parts (e.g. cylinder rods and shafts) clear and free of abrasives.
  • Q How does a hydraulic press multiply the force?

    A
    A liquid is not compressible .
    When you press with a plunger diameter 10mm. in a closed and filled up wilt a liquid (eg hydtaulic oil) and move the small plunger 100mm. You have a (pipe) connection to a bigger cylinder with plunger diameter 100mm. Than the this bigger plunger will move only 1mm. however the mechanical force will be 100x as strong (friction not taken into account)
    The oil pressure (force) is in ratio to the surface of the plunger (10x diameter = 100x surface/force).
    If you close the pipe by a one direction shutter valve, you can repeat the pump movement and every stroke the big (100mm) plunger will move 1 mm. with 100 fold force.
  • Q How do hydraulic presses work?

    A
    Hydraulic systems work on the Pascal's Principle.
    Pascal’s principle states that a pressure change occurring anywhere in a confined in-compressible fluid is transmitted throughout the fluid such that the same change occurs everywhere.
    Hydraulic systems use an in-compressible liquid to transmit force from one location to another through the liquid medium.
    Pascal's law can be stated as when there is an increase in pressure at any point in a confined fluid, there is an equal increase at every other point in the container.
    Mathematically, We can write,
    P1=P2 (since the pressures are equal throughout).
    Since pressure equals force per unit area, then it follows that
    F1A1=F2A2
    It can be shown by substitution that the values shown above are correct, 1 pound / 1 square inches = 10 pounds / 10 square inches
    Because the volume of fluid pushed down on the left side equals the volume of fluid that is lifted up on the right side, the following formula is also true.
    V1=V2
    by substitution,
    A1×D1=A2×D2
    A  = cross sectional area
    D  = the distance moved or A1A2=D2D1
    This system can be thought of as a simple machine (lever), since force is multiplied.The mechanical advantage can be found by rearranging terms in the above equation to
    Mechanical Advantage(IMA)  =D1D2   =A2A1
    For the sample problem above, the IMA would be 10:1 (10 inches/ 1 inch or 10 square inches / 1 square inch).
  • Q What is the function of a hydraulic press machine?

    A
    The hydraulic press is composed of two hydraulic cylinders of different sizes, which are filled with water or oil. Water filling is called "hydraulic press"; Oil filled is called "oil press". There is a sliding piston in each of the two hydraulic cylinders. If a certain value of pressure is added to the small piston, according to Pascal's law, the small piston transmits this pressure to the large piston through the pressure of the liquid and pushes the large piston up. Let the cross-sectional area of the small piston be S1 and the downward pressure on the small piston be F1. Therefore, the small piston pair can be transmitted in all directions by the liquid with constant size ". The pressure on the large piston must also be equal to P. If the cross-sectional area of the large piston is S2, the upward pressure cross-sectional area generated by pressure P on the large piston is a multiple of the cross-sectional area of the small piston. From the above formula, if a small force is added to the small piston, a large force will be obtained on the large piston. In practice, a hydraulic press can be used to press plywood, extract oil, extract heavy objects, forge steel, etc.

  • Q How many types of hydraulic presses are there?

    A
    According to the structural form, it is mainly divided into:
    Four column, single column (type C), horizontal, vertical frame, universal hydraulic press, etc.

    It is mainly divided into:
    Metal forming, bending, stretching, blanking, powder (metal, non-metal) forming, press fitting, extrusion, etc.

    Hot forging hydraulic press:
    Large forging hydraulic press is a forging equipment that can complete various free forging processes. It is one of the most widely used equipment in the forging industry. At present, there are 800t, 1600t, 2000t, 2500t, 3150T, 4000t, 5000t and other series of forging hydraulic presses.

    Four column hydraulic press:
    The hydraulic press is suitable for the pressing process of plastic materials. Such as powder product forming, plastic product forming, cold (hot) extrusion metal forming, sheet drawing, transverse pressing, bending, turning through, correction and other processes.

    Four column hydraulic press can be divided into four column two beam hydraulic press, four column three beam hydraulic press, four column four beam hydraulic press, etc.

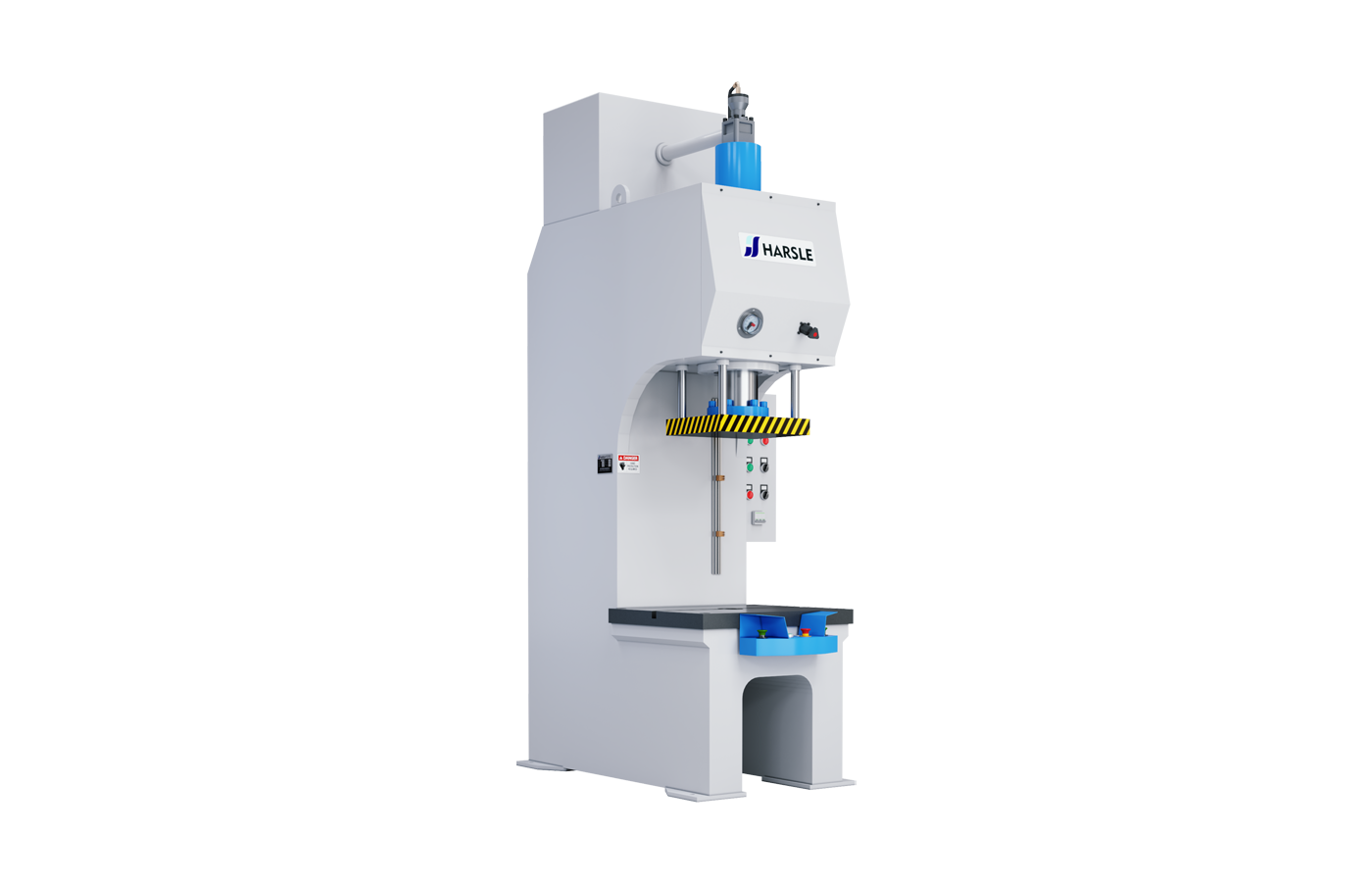

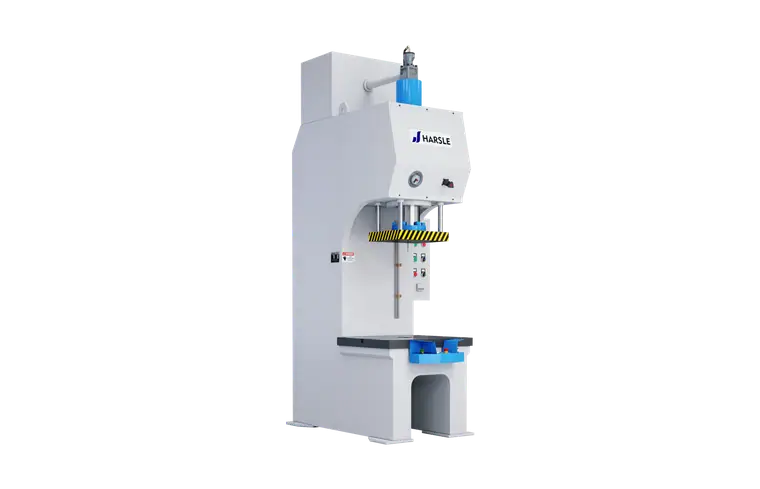

    single column hydraulic press:
    The working range can be expanded, the hydraulic cylinder stroke can be lengthened (optional) by using three-sided space, the maximum expansion is 260mm-800mm, and the working pressure can be preset; the heat dissipation device of the hydraulic system.

    Gantry hydraulic press:
    The machine parts can be assembled, disassembled, straightened, calendered, stretched, bent and punched, so as to truly realize multi-purpose of one machine. The worktable of the machine can move up and down, the size expands the opening and closing height of the machine, and the use is more convenient.

    Double column hydraulic press:
    This series of products are suitable for press fitting, bending and shaping, embossing and indentation, flanging, punching and shallow stretching of small parts; Molding and other processing technologies of metal powder products. It adopts electric control, with inching and semi-automatic circulation, can maintain pressure and delay, and has good slider guidance, convenient operation, easy maintenance, economy and durability. According to the needs of users, thermal instrument, ejector cylinder, stroke digital display, counting and other functions can be added.
  • Q How does a hydraulic press machine work?

    A
    The areas of the large and small plunger are S2 and S1, and the forces on the plunger are F2 and F1. According to Pascal principle, the pressure of closed liquid is equal everywhere, that is, F2 / S2 = F1 / S1 = p; F2=F1(S2/S1)。 It indicates the gain effect of hydraulic pressure. Like mechanical gain, the force increases, but the work does not gain. So, the moving distance of large plunger is S1 / S2 times that of small plunger.

    The basic principle is that the oil pump transmits the hydraulic oil to the integrated cartridge valve block, distributes the hydraulic oil to the upper or lower chamber of the oil cylinder through each one-way valve and overflow valve, and makes the oil cylinder move under the action of high-pressure oil Hydraulic press is a device that uses liquid to send pressure. Pascal's law follows when liquid transfers pressure in a closed container. The hydraulic transmission system of four column hydraulic press composed of power mechanism, control mechanism, actuator, auxiliary mechanism and working medium. The power mechanism usually adopts the oil pump as the power mechanism, which is generally an integral oil pump. To meet the requirements of the movement speed of the actuator, one or more oil pumps selecting. Gear pump for low pressure (oil pressure less than 2.5MP); vane pump for medium pressure (oil pressure less than 6.3mp); plunger pump for high pressure (oil pressure less than 32.0mp). Pressure processing and forming of various plastic materials, such as extrusion, bending and deep drawing of stainless steel plate and cold pressing of metal parts. At the same time, it can also use for pressing powder products, grinding wheels, bakelite, and resin thermosetting products.
