Ironworker And Notcher

Notching machine is a machine tool used to cut out a specific shape or pattern from a piece of metal or other material. It can be used to produce notches, slots, or other types of cuts in materials such as steel, aluminum, and plastic. Notching machines typically use a rotating cutting tool, such as a saw blade or milling cutter, to remove material in a specific pattern. These machines are commonly used in metalworking, fabrication, and manufacturing industries to produce parts and components for various applications. Ironworker machine is a machine tool that is used to cut, bend, and punch steel and other metal materials. It typically consists of a hydraulic press and various workstations that allow the operator to perform various fabrication tasks with one machine. These tasks can include cutting, punching, bending, and shearing. The ironworker machine is commonly used in construction, manufacturing, and fabrication industries for projects such as building steel structures, making metal parts, and creating custom metal fabrication. Metal V-grooving machine is a machine tool that is used to make a V-shaped groove or channel in metal sheets or plates. This machine works by cutting a continuous V-shape into the metal material, creating a channel for folding or shaping the metal. The V-grooving machine is typically equipped with a rotary cutting tool that rotates at high speed, cutting the metal as it moves along the surface. This type of machine is commonly used in metal fabrication, metalworking, and other industries where metal is cut, bent, or formed.

CONTACT US

Get in Touch
If you have any questions, please contact us, we will get back to you as soon as possible
阿斯达是===RUpfALcqNKOg
MNpAUKDMfYAg qvUqGTjAPtrO
GET SOCIAL
E-MAIL
WHATSAPP
​​​​​​​+86-18052080815
ADDRESS
​​​​​​​Mingjue Industrial Park, Lishui, Nanjing, Jiangsu, China

Notching Machine Blog​​​​​​​

"Revolutionary Notching Machine Brings Precision and Efficiency to Manufacturing"

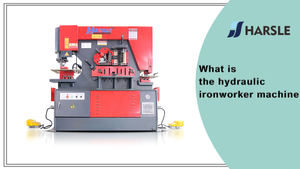

What Is The Hydraulic Ironworker Machine
The Hydraulic Ironworker Machine is a kind of machine tool equipment that integrates multiple functions such as metal cutting, punching, shearing, bending, etc. It has the advantages of simple operation, low energy consumption, and low maintenance cost.
April 28, 2023
4 Things Your Need To Know About Notching Machine
As the name suggests, the notching machine is a tool used to cut things, so what exactly is it used to cut? Generally speaking, the notching machine is mainly used for cutting metal plate materials.
May 24, 2022
Horizontal Metal Sheet full servo CNC grooving machine
This paper introduces the horizontal full servo CNC grooving machine. This machine tool adopts advanced CNC system and has novel design,It has the characteristics of high machining precision, simple operation, no noise, no vibration and so on.
December 14, 2020

Notching Machine Video

"Revolutionizing Cutting Efficiency with the Latest Notching Machine Technology"

Ironworker And Notcher FAQ

  • Q What is grooving in sheet metal?

    A
    The metal sheet slotting machine can perform V-shaped slotting on stainless steel sheets, aluminum sheets, composite aluminum sheets, copper sheets, and other metal sheets so that the radius of the edge arc of the workpiece after bending is extremely small.

    The grooving process, performed by a separate cutting machine, produces a V-cut located at the bend line. After groove-cutting, the bend can be completed at the press brake or even by hand. At the press brake, the operator can bend the grooved metal into various angles and shapes using off-the-shelf or custom tools。
  • Q What are V grooves?

    A
    A V-groove refers to the shape of the recesses visible on the face of a panel. These cuts are the result of an angular beveled edge being aligned to an opposite angular beveled edge which creates a visible and distinct V-shaped recession in the face of the panel.
  • Q What is a grooving machine used for?

    A
    The metal sheet slotting machine can perform V-shaped slotting on stainless steel sheets, aluminum sheets, composite aluminum sheets, copper sheets and other metal sheets, so that the radius of the edge arc of the workpiece after bending is extremely small, which is suitable for hotels, restaurants, restaurants, commercial buildings. , banks, airports and other places in the special needs of high-end decoration.

    The CNC slotting machine is specially used in the decoration industry of medium and high-grade building metal materials. It is a new type of product designed and manufactured for the special needs of this industry. Including CNC system.
  • Q What is the ironworker machine?

    A
    Hydraulic Ironworkers are steel plate shearers, notchers, and punchers. Because of their precision cuts, efficiency, and low waste, these machines have become indispensable in manufacturing and steel fabrication facilities, and maintenance departments. Hydraulic Ironworkers are made of heavy-gauge steel that can sustain massive forces, allowing for easier metal manipulation into desired shapes and sizes, making them indispensable and dependable industrial machinery.
    The hydraulic ironworker in China of the Q35Y series from HARSLE have higher-capacity motors and unique pumps that allow for coordinated punching and shearing of steel plates. It performs a variety of tasks, including round hole and oblong hole punching; steel plate, angle steel, C-channel, and H-beam punching; steel plate bending; angle steel shearing, notching, and bending, and more, all while adhering to all global industrial-grade standards. Hydraulic ironworkers are essential in the metal processing and manufacturing industries because they can bear massive forces and enable for quick-change coupling nut and sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, and other features. The machine's other benefits include its ease of use, great efficiency, and low maintenance costs.
  • Q What is better, to punch holes in structural steel or to drill?

    A
    To optimize the cost for a single hole, the kit for drilling is much cheaper than punching.
    To optimize for speed, punching (with the right tools) is orders of magnitude faster. (An Ironworker (machine) can punch a dozen half-inch/13mm holes in a minute.)
    To minimize deformation of the work-piece, drilling is better.
    To minimize heating of the work, e.g. to prevent work hardening, punching is better.
    If I have both a drill press and an Ironworker, I’m probably going to use the latter more than the former for structural steel. It’s so much faster. As a bonus it can also bend, shear, and notch metal too. They are great fun to use.
  • Q What is a hydraulic ironworker machine?

    A
    A hydraulic ironworker machine is a machine tool that integrates various functions such as metal shearing. punching, plate shearing. and bending. It has the advantages of easy operation, low energy consumption, and low maintenance cost. It is a modern manufacturing industry (such as Metallurgy, bridge, communication, electric power, military, and other industries) metal processing equipment of choice. The combined punching and shearing machine is divided into hydraulic combined punching and shearing machine and mechanical combined punching and shearing machine.

    The ironworker machine is mainly used for sheet metal cutting, profile cutting, punching, die-cutting and bending, and is suitable for shipbuilding, electric power, bridges, automobiles, lifting and transportation, metal structures and various mechanical processing plants.
  • Q What is a hydraulic notching machine?

    A
    Angle shears are divided into adjustable and non-adjustable. Adjustable angle range: 40°~135°. It can be adjusted arbitrarily within the angle range to achieve the ideal state.

    The main structure is made of steel plate welded as a whole, which is sturdy and durable, and only the tool equipped with the standard machine can meet the processing needs of general sheet metal processing plants. It is not necessary to make a set of molds to process a workpiece with an angle or a certain thickness like an ordinary punch, which reduces the cost of use, reduces the trouble of frequent die changing and clamping of ordinary punches, improves work efficiency, and reduces the labor intensity of workers. Reduce the risk factor of workers, while low-noise processing creates a quiet working environment for factories and workers.

    Angle shearing machine is suitable for cutting sheet metal materials, it is widely used in many fields such as automobile manufacturing plants, ship mooring, elevators, electrical equipment, pipes, cooking utensils and stainless steel products.

    The performance characteristics of the fixed angle hydraulic notching machine:
    ◎Using hydraulic drive type;
    ◎ The whole machine is an integrally welded structure of steel plate;
    ◎90° fixed shear angle;
    ◎Single-level and step-level operation function selection;
    ◎Sizing device with variable angle position;
    ◎Centralized lubrication system.

    Features of adjustable angle hydraulic notching machine:
    ◎Using hydraulic drive type;
    ◎Adjustable shear angle;
    ◎Mechanical, electrical and hydraulic interlocking shear angle adjustment mechanism;
    ◎Automatic knife edge gap adjustment device according to the thickness of the sheet to be sheared;
    ◎Single-level and step-level operation function selection;
    ◎Sizing device with variable angle position;
    ◎Centralized lubrication system.
  • Q What is an ironworker machine called?

    A
    An ironworker is a class of machine that can shear, notch, and punch holes in steel plates and profiles. The name is now used to refer to the whole class of machines (made by at least a dozen brands, including HARSLE). If there ever was a brand name, it has now become a genericized trademark.

    The combined punching and shearing machine is widely used in:
    1. Steel structure processing
    2. Elevator car and parts processing
    3. Trailer---spare tire parts, trailer hinges, hooks, inserts, tile panels
    4. Construction machinery industry---processing on a belt conveyor and mixing station
    5. Agriculture and animal husbandry machinery industry---threshing frame body, trailer body parts processing
    6. Food industry machinery - slaughtering equipment frame and parts processing
    7. High and low voltage iron tower parts processing
    8. Wind power equipment --- parts processing on stairs and pedals on wind power towers
    9. Machining --- processing of building embedded parts/conveyor brackets and other components for connection
    10. Grain machinery---grain and oil equipment, starch equipment bracket, shell, small parts processing
    11. Processing of railway wagons/automobiles and crane parts
    12. Cutting, punching and bending of channel steel, square steel, round steel, H steel, I-beam and other steels
  • Q What are the 3 main functions of the hydraulic ironworker?

    A
    Double-cylinder hydraulic punch & shear machine
    Five independent stations for punching, shearing, notching, cutting and bending
    Large punching table with multi-purpose bolster.
    Rear notching station, low power inching and adjustable stroke at punching station
    Centralized pressure lubrication system
    Electric panel with overload protection elements and integrated controls
    Safety movable foot pedal
  • Q What is a notcher machine?

    A
    Angle shearing machine is a kind of equipment for shearing metal plate. Angle shearing machine is divided into adjustable type and non adjustable type. Adjustable angle range: 40 ° ~ 135 °. It can be adjusted arbitrarily within the angle range to achieve the ideal state.
    The main structure is welded by the steel plate as a whole, which is firm and durable. Only the tools equipped with the standard machine can meet the processing needs of general sheet metal processing plants. It is not necessary to make a set of molds to process workpieces of an angle or a certain thickness like an ordinary punch, which reduces the use cost, reduces the trouble of frequent die change and clamping of an ordinary punch, improves the work efficiency, reduces the labor intensity of workers and reduces the risk factor of workers. At the same time, low-noise processing creates a quiet working environment for factories and workers.
    Angle shearing machine is suitable for shearing metal plate materials. It is widely used in many fields, such as automobile manufacturers, ship berths, elevators, electrical equipment, pipelines, cookers and stainless steel products.
