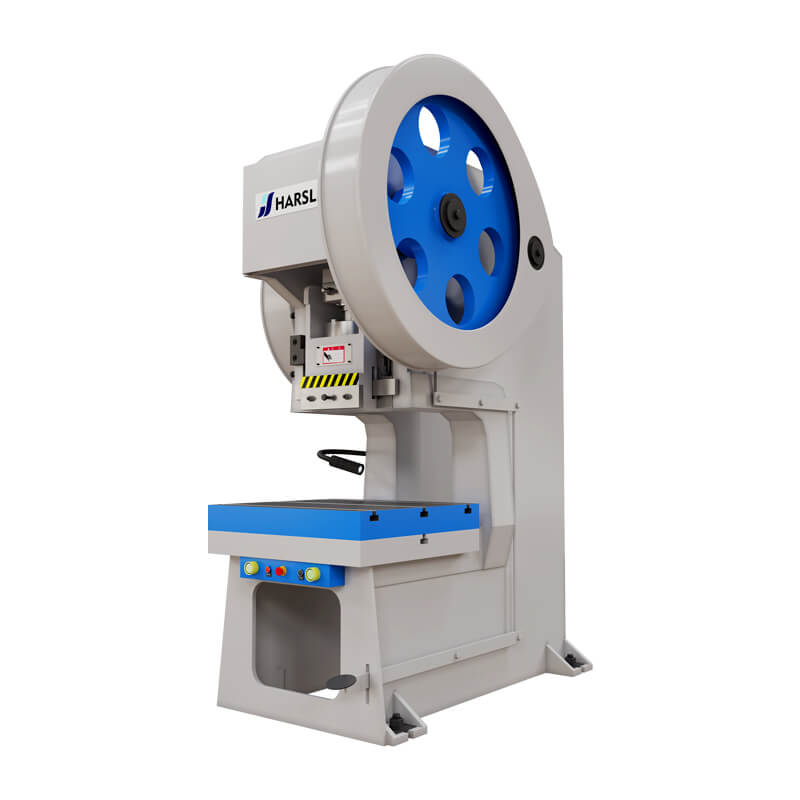

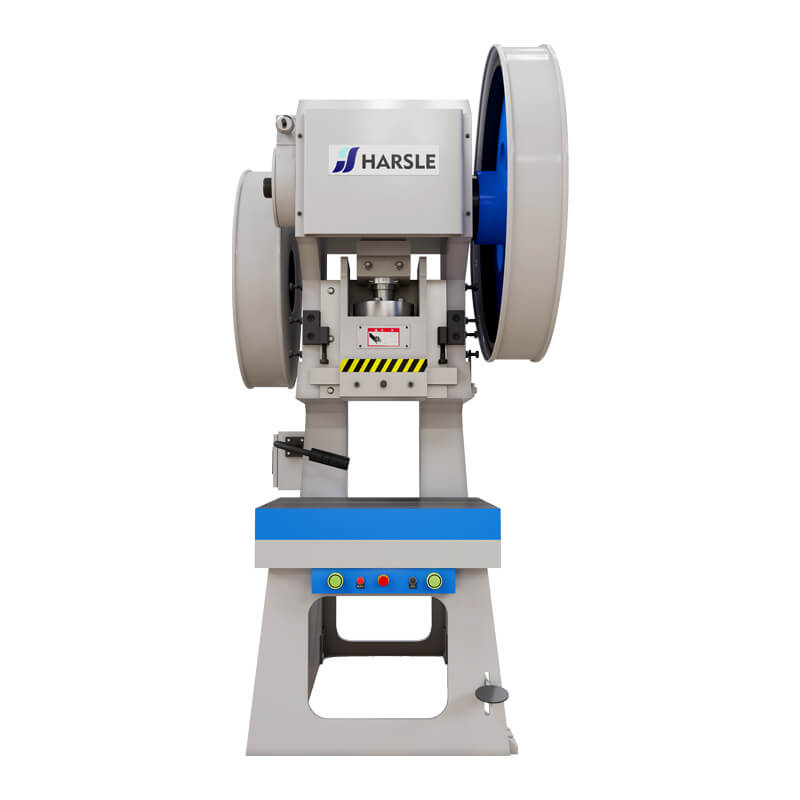

J21S Deep Throat Punching Machine

5 0 Reviews

1. Deep throat for large working area
2. Rigid rotating-key Clutch
3. High strength machine body
4. Simple structure and easy operation

  • J21S
  • HARSLE
Quantity:

Product Description

Specification

Item

Unit

J21S-10T

J21S-16T

J21S-25T

J21S-40T

J21S-63T

J21S-80T

J21S-100T

J21S-125T

J21S-160T

Nominal Force

KN

100

160

250

400

630

800

1000

1250

1600

Slide Stroke

mm

50

60

70

100

100

115

130

130

130

Number of Stroke

Times/min

140

100

70

50

50

45

38

40

35

Closed Height

mm

200

250

290

380

380

410

590

420

410

Closed Height Adjustment

mm

40

40

40

60

60

60

100

60

80

Throat Depth

mm

420

500

500

500

500

500

500

500

500

Column Distance

mm

170

200

230

320

350

360

400

430

330

Table   Size

Front and back

mm

230

280

330

420

450

500

600

650

600

Left and right

mm

370

450

530

640

700

750

900

1000

980

Slide   bottom size

Front and back

mm

100

130

170

190

220

250

280

350

340

Left and right

mm

145

180

200

250

310

300

425

380

420

Shouk   Dimension

Diameter

mm

30

35

40

50

50

60

60

70

80

Depth

mm

50

60

60

100

100

100

100

100

110

Thickness   of table

mm

30

40

45

70

80

90

100

110

110

Dimension

Front and back

mm

1200

1400

1600

1800

1900

1790

2100

2200

2100

Left and right

mm

600

780

830

1100

1200

1300

1300

1500

1600

Height

mm

1500

1720

1950

2300

2400

2600

2650

2800

2900

Motor power

Kw

1.5

2.2

2.2

3.0

4.0

7.5

7.5

11

15

Weight

kg

450

700

1400

2800

3700

4800

5900

8300

11000
