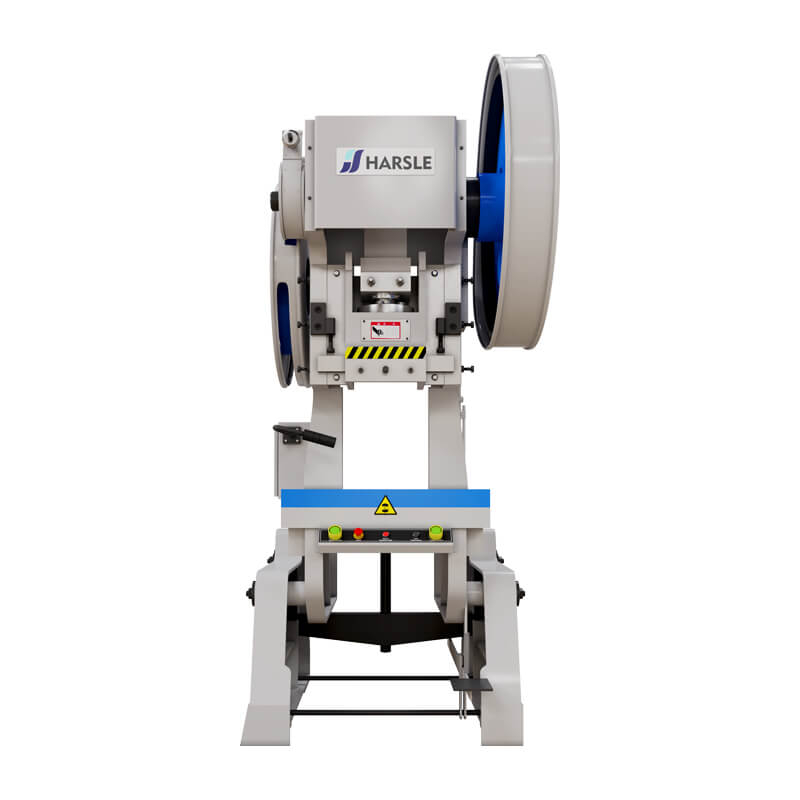

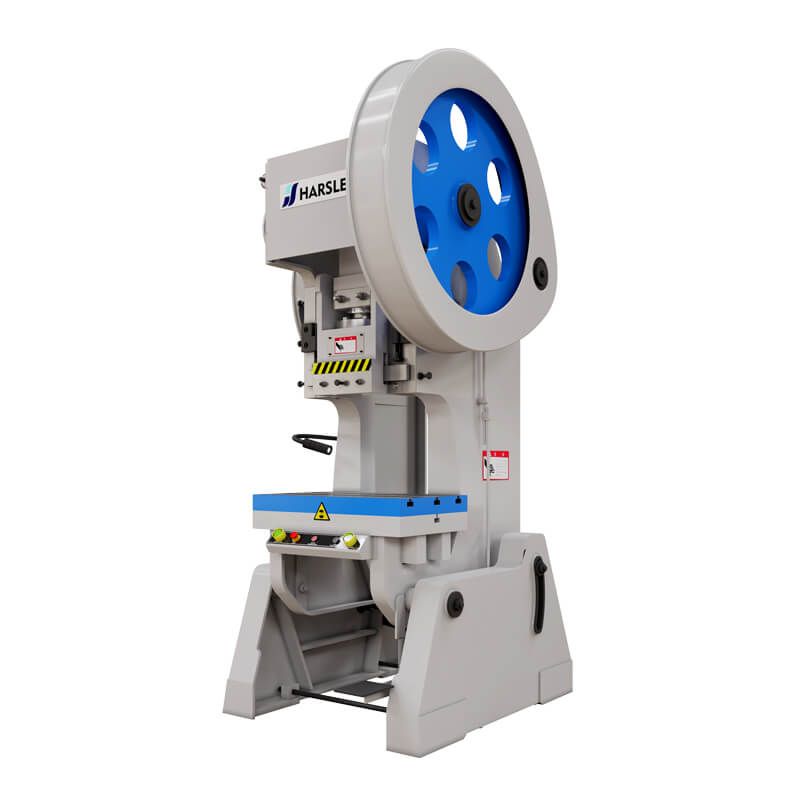

J23 Inclinable Punching Machine

5 64 Reviews
1. Inclinable working table
2. Rigid rotated key clutch
3. Easy operation and low maintenance
4. Simple structure and low noise
  • J23

  • HARSLE

Availability:
Quantity:

Features

The body of the J23 inclinable punching machine can be tilted at an angle to facilitate the sliding down of the finished press or scrap from the die, and single or continuous strokes can be obtained by means of an electrically controlled press operating mechanism. When equipped with an automatic feed mechanism, semi-automatic continuous stamping is possible. The machine is novel in design, compact in structure, good in steel, easy to use, safe and reliable in operation and suitable for all kinds of cold pressing processes.

Product Description

punch machinepunch machinepunch machine for salepunch machine for sale

Specification

Description
TypeJ23-10TJ23-16TJ23-25TJ23-40TJ23-63TJ23-80TJ21-100TJ21-125T
J21-160T
Nominal Force
kn100160250400630800100012501600
Slide Strokemm5060
70100100115130130130
Number of StrokeTimes/min14010070505045404035
Closed Heightmm200250290350380410420420410
Close Height Adjustmentmm404040606060606080
Throat Depthmm130180200250280280320320360
Column Distancemm170200
230320350360400430330
Table SizeFront and Backmm230280330420450500600650650
Left and Rightmm37045053064070075090010001100
Slide Bottom SizeFront and Backmm
100130170190220250280350340
Left and Rightmm145180200250310300325380420
Shouk Dimension
Diametermm303540505060607080
Depthmm506060100100100100100100
Thickness of Table
mm304045708090100110120
DimensionFront and Backmm7409001000140015001600180019001800
Left and Rightmm600780830110012001300130015001600
Heightmm150017201950230024002600265028002900
Motorkw1.11.52.24.05.57.57.51115
Weight
kg3507001100240031004000500073009600

J21 is for the fix table, J23 is for the inclinable table.
