Product Description

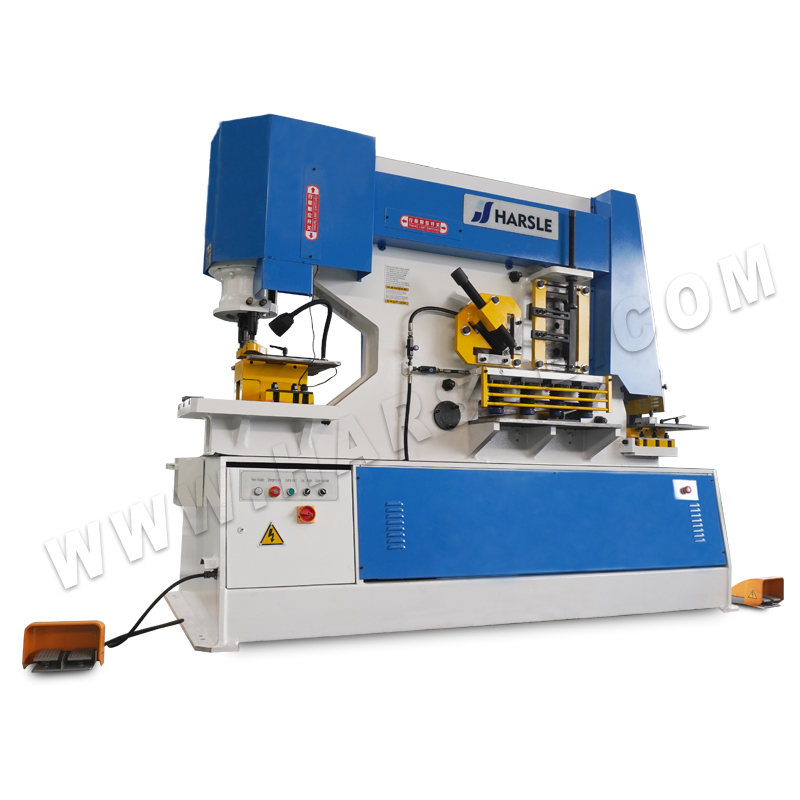

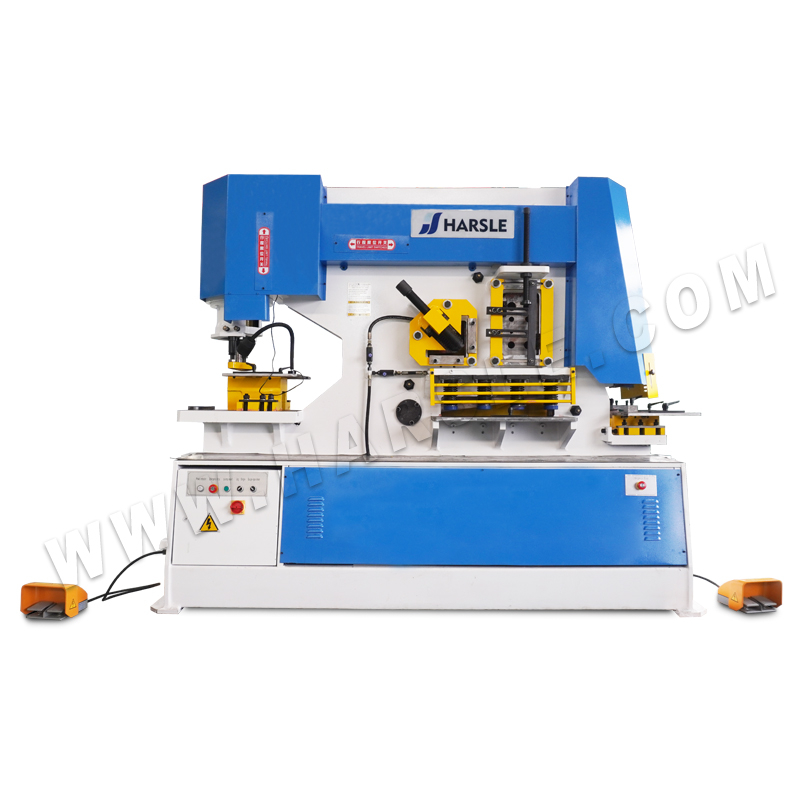

HARSLE Q35Y-30 hydraulic ironworker is a functional machine that can cut, bend, punch, shear, notch. This is wildly used in the field of the metal-working industry. please feel free to contact us to get a quote.
Main Features
● Double-cylinder hydraulic punch & shear machine
● Five independent stations for punching, shearing, notching, cutting and bending
● Large punching table with multi-purpose bolster.
● Rear notching station, low power inching and adjustable stroke at punching station
● Centralised pressure lubrication system
● Electric panel with overload protection elements and integrated controls
● Safety movable foot pedal
Technical Parameter
| No | Function | Item | Unit | Q35Y-30 |
| 1 | Shearing Plate | Angle of shearing | ° | 8° |
| Max shearing thickness | mm | 30 | ||
| Flat bar | (W*T)mm | 335×30 | ||
| 600×20 | ||||
| 2 | Shearing bar | Round steel | mm | 65 |
| Square steel | mm | 55*55 | ||
| 90° shearing of equal-angle steel | mm | 180*180*16 | ||
| 45° shearing of equal-angle steel | mm | 80*80*10 | ||
| 90° shearing of T-bar | mm | 180*180*16 | ||
| I-beam steel | mm | 280*140*10.5 | ||
| Channel steel | mm | 280*86*11.5 | ||
| 3 | Notch | Thickness | mm | 16 |
| Width | mm | 60 | ||
| Depth | mm | 100 | ||
| 4 | Punching hole | Max. punching thickness | mm | 28 |
| Max. diameter of punching | mm | 28 | ||
| Punching pressure | Ton | 160 | ||
| Depth of throat | mm | 600 | ||
| Max. length of cylinder stroke | mm | 80 | ||
| Stroke times | Times/min | 12~28 | ||
| 5 | Material strength | N/mm ² | ≤450 | |
| 6 | Motor power | KW | 11~15 | |
| 7 | Overall dimensions | L*W*H | 2680*1040*2300 | |
| 8 | Net. Weight | KG | 6800 | |
