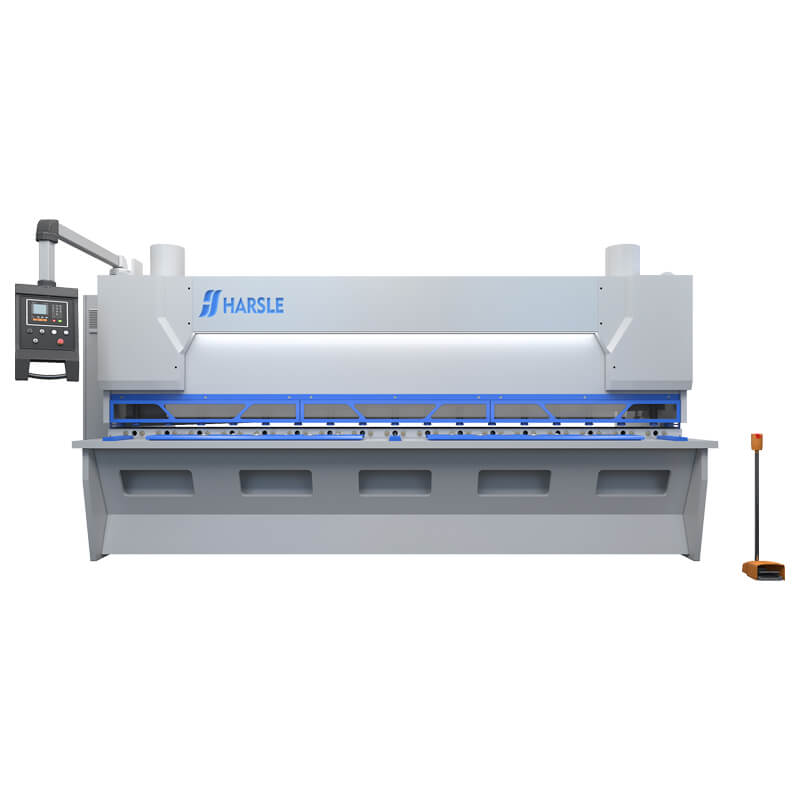

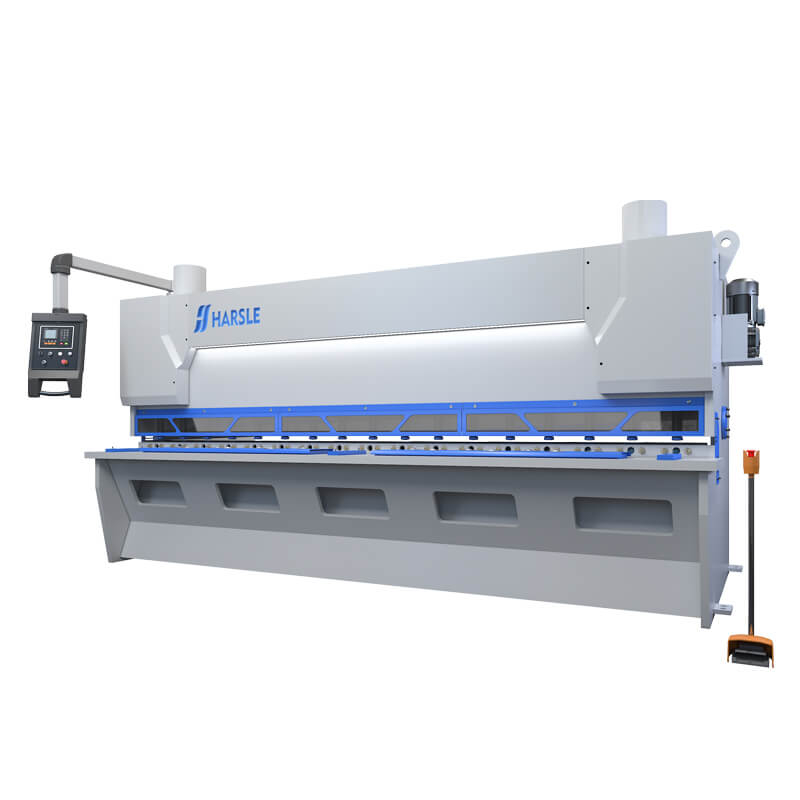

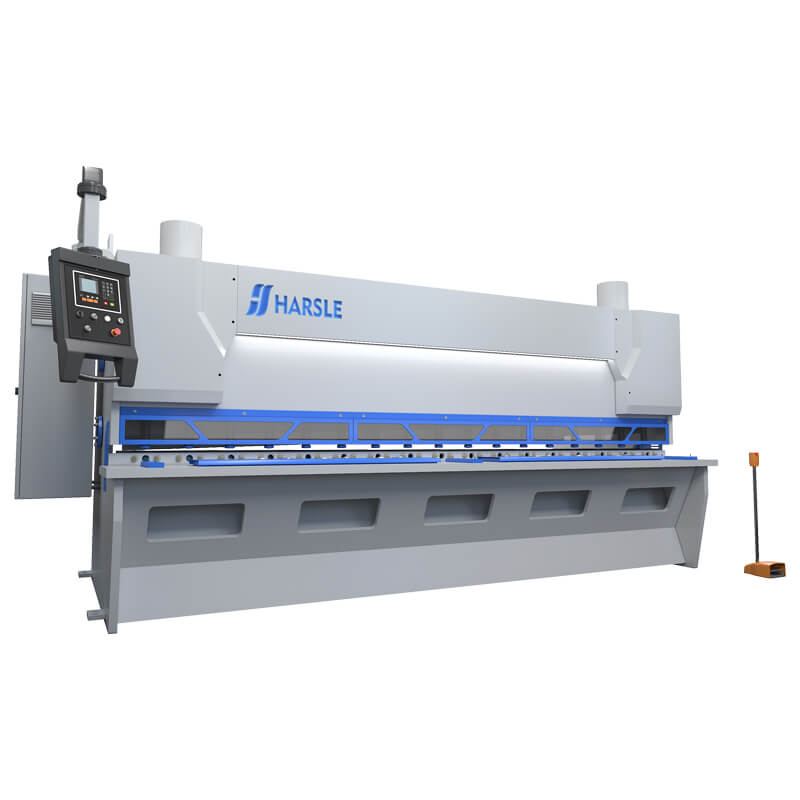

QC11K Hydraulic Guillotine Shearing Machine with E21S

5 31 Reviews

1. Quick cutting length adjustment
2. Optional CNC front feeding table
3. Optional rear pneumatic sheet supporter
4. Cutting angle and blade gap with Electric control
5. E21S with backguage sequence repeat and distance control
6. Upper and lower Guillotine shear blades with four-side cutting edges

Model:
QC11K
Brand:
HARSLE

Availability:

Quantity:


Inquire Add to Basket

Features

QC11K Hydraulic Guillotine Shearing Machine with E21S adopts all-steel welded structure and comprehensive treatment (vibration aging, heat treatment) to eliminate internal stress, with good rigidity and stability. X axis(Backgauge) and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs. Advanced integrated hydraulic system with high reliability. Three points of support rolling guide are used to eliminate the support gap and improve the shearing quality. Blade gap adjustment by hand wheel or electric, quick, accurate and convenient. Rectangular blade with all four edges, long service life. Upper blade holder with inward tilting structure, easy to drop the material and improve the accuracy of the workpiece. Segmented shearing function with light alignment.

Product Description

未标题-2_01 shearing machine guillotine shearing machine cnc guillotine shearing machine

Specification

Model	Shearing Thickness (mm)	Shearing Width (mm)	Stroke Times (cuts/min)	Back-gauge Rang (mm)	Shearing Angler（°）	Main Power (KW)	Overall Dimensions （L×W×H）(mm)
4×2500	4	2500	16~35	20~600	30’~1°30’	5.5	3200×1400×2000
6×2500	6	2500	16~35	20~600	30’~1°30’	7.5	3200×1500×2100
6×3200	6	3200	14~35	20~600	30’~1°30’	7.5	3900×1580×2150
6×4000	6	4000	10~30	20~600	30’~1°30’	7.5	4700×1650×2250
6×5000	6	5000	10~30	20~800	30’~1°30’	11	5700×1800×2380
6×6000	6	6000	8~25	20~800	30’~1°30’	11	6700×2000×2650
8×2500	8	2500	14~30	20~600	30’~2°	11	3200×1550×2150
8×3200	8	3200	12~30	20~600	30’~2	11	3950×1750×2350
8×4000	8	4000	10~25	20~600	30’~2°	11	4700×1800×2480
8×5000	8	5000	10~25	20~800	30’~2°	15	5700×1950×2600
8×6000	8	6000	8~20	20~800	30’~2°	15	6700×1980×2650
12×2500	12	2500	12~25	20~800	30’~2°	15	3250×1680×2250
12×3200	12	3200	12~25	20~800	30’~2°	15	3980×1800×2550
12×4000	12	4000	8~20	20~800	30’~2°	15	4800×1950×2650
12×5000	12	5000	8~20	20~1000	30’~2°	22	5800×2150×2700
12×6000	12	6000	6~20	20~1000	30’~2°	30	6800×2450×2900
16×2500	16	2500	12~20	20~800	30’~1°30’	22	3280×1830×2520
16×3200	16	3200	12~20	20~800	30’~1°30’	22	3950×1950×2650
16×4000	16	4000	8~15	20~800	30’~1°30’	22	4800×1970×2700
16×5000	16	5000	8~15	20~1000	30’~1°30’	30	5800×2250×2870
16×6000	16	6000	6~15	20~1000	30’~1°30’	37	6800×2450×3150
20×2500	20	2500	10~20	20~800	30°~3°	30	3400×2260×2520
20×3200	20	3200	10~20	20~800	30’~3°	30	4100×2300×2700
20×4000	20	4000	8~15	20~800	30’~3°	30	4900×2500×2880
20×5000	20	5000	8~15	20~1000	30’~3°	37	5900×2750×2980
20×6000	20	6000	6~15	20~1000	30’~3°	37	6900×2850×3200
25×2500	25	2500	8~15	20~800	30’~3°	37	3420×2400×2650
25×3200	25	3200	8~15	20~800	30’~1°30’	37	4150×2500×2750
25×4000	25	4000	6~12	20~1000	30’~1°30’	37	4900×2600×2950
30×2500	30	2500	8~12	20~1000	30’~1°30’	55	3450×2600×2750
30×3200	30	3200	8~12	20~1000	30’~4°	55	4150×2700×2850
30×4000	30	4000	8~12	20~1000	30’~4°	55	4900×2900×3100
40×2500	40	2500	4~10	20~1000	30’~4°	55	4000×2950×3150
40×3200	40	3200	4~10	20~1000	30’~4°	55	4900×3050×3680
