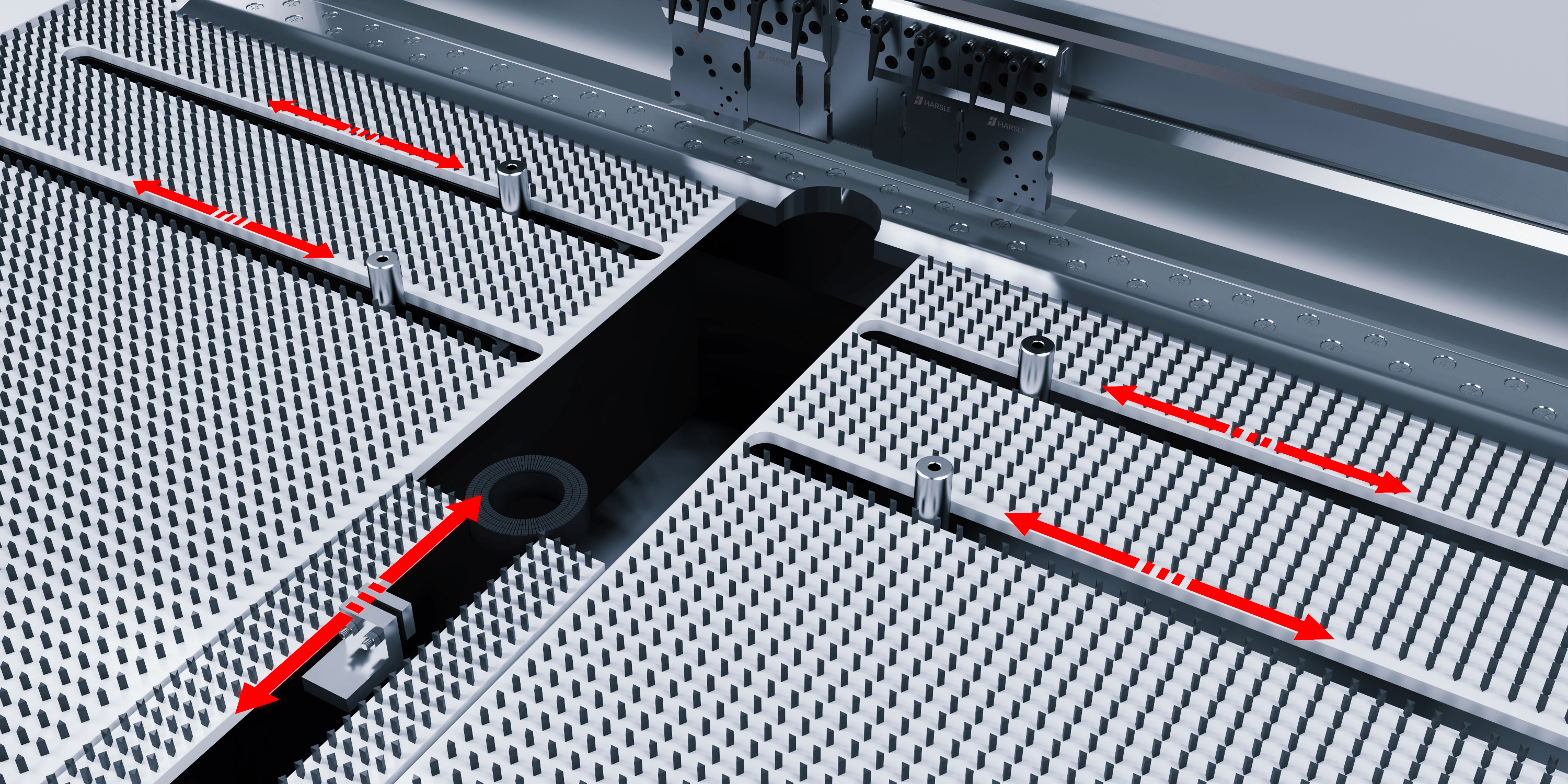

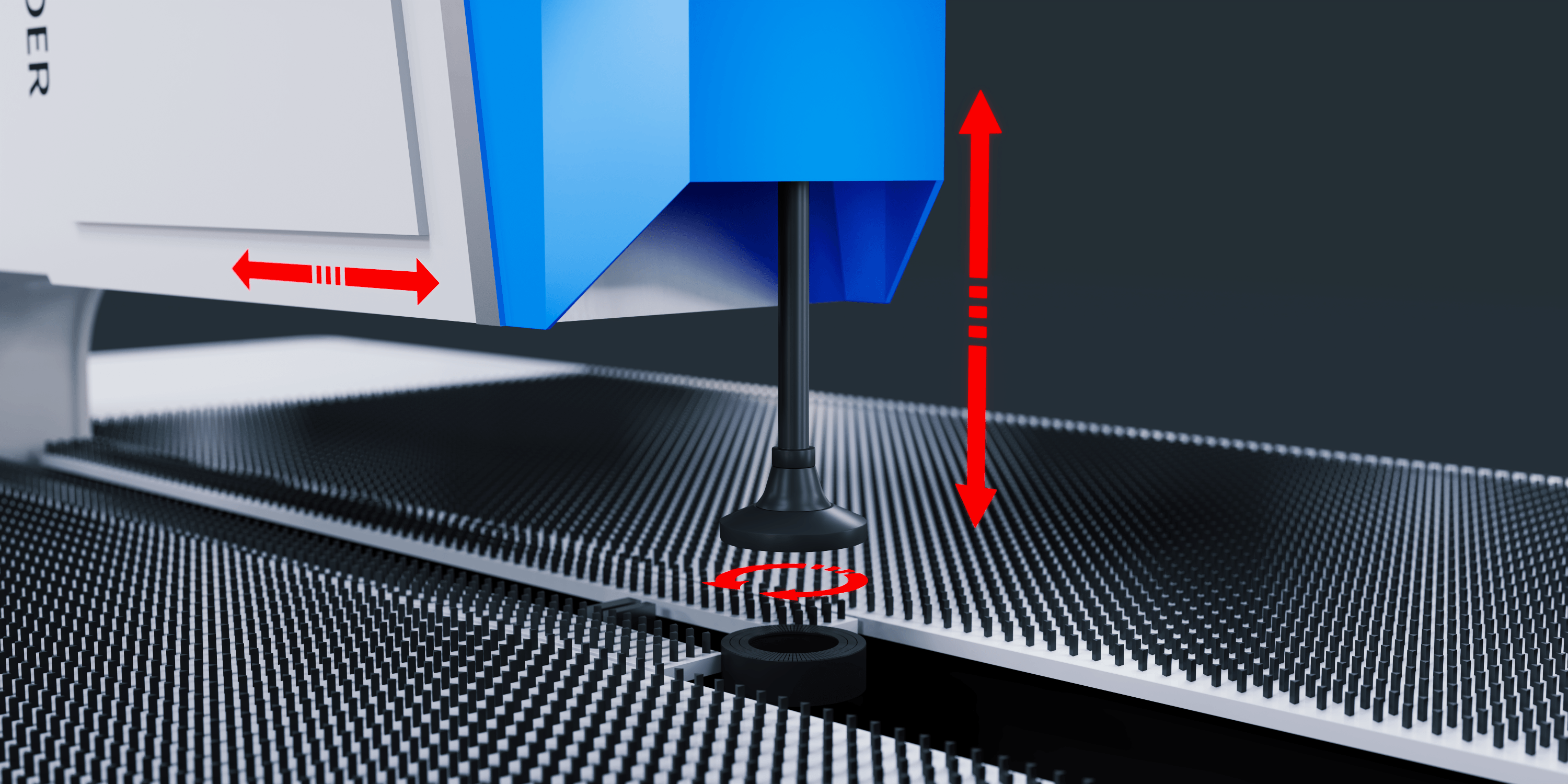

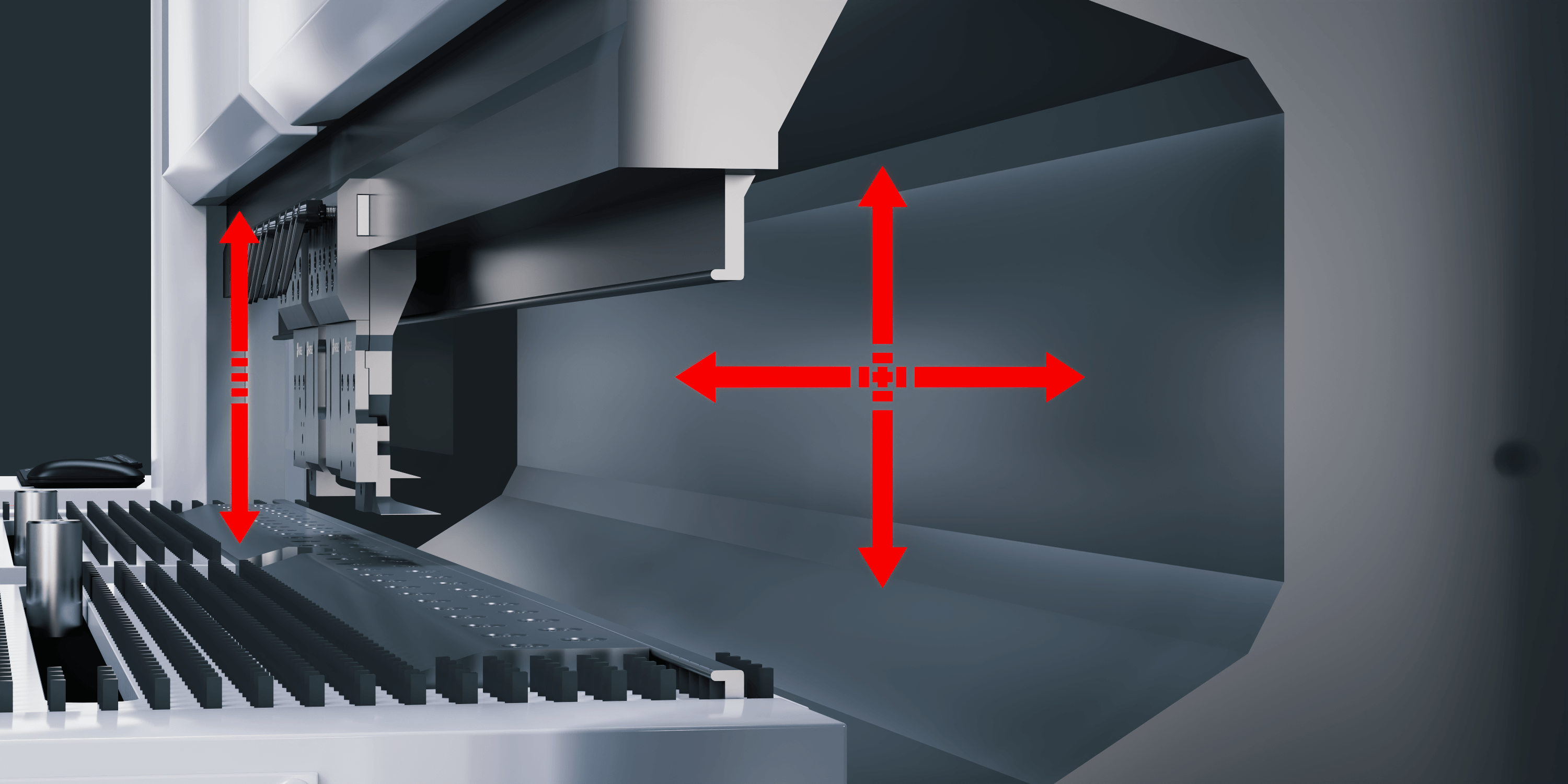

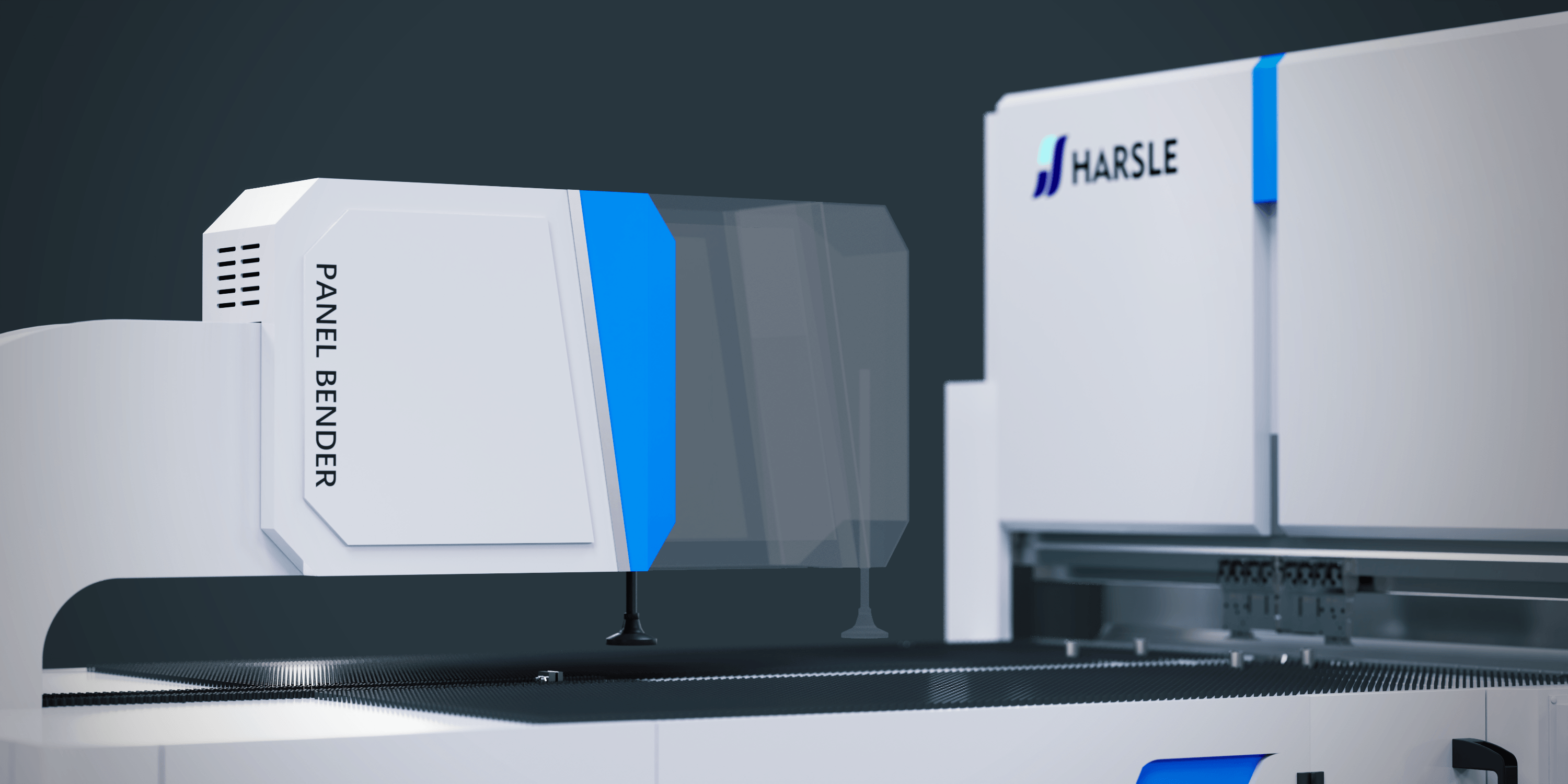

Precision Moves
CNC axes control movement with high precision, allowing for complex bends and accurate positioning across all axes. This multi-axis system provides flexibility, ensuring consistent results for intricate sheet metal designs.

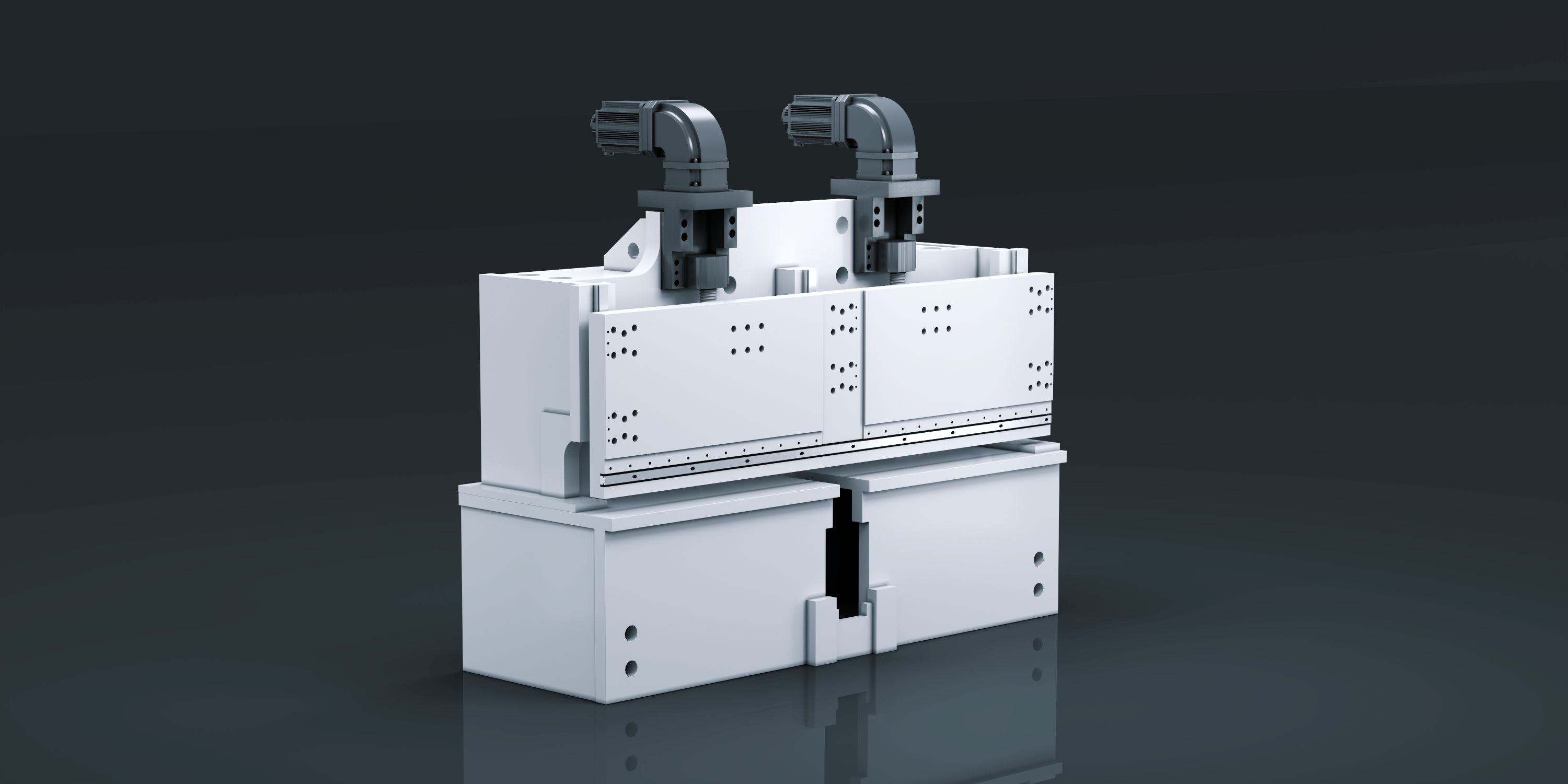

Structural Rigidity
Machine tool components like gantry beams require high rigidity to minimize deformation under load. Welded carbon steel parts, with a superior elastic modulus, allow for smaller, lighter cross-sections while maintaining strength and accuracy. Steel plates are 2.5 times stronger and have 3 times the fatigue strength of cast iron.
Avoiding Resonance
Welded parts' high elastic modulus provides greater static rigidity, reducing vibration amplitude and increasing natural frequency to avoid resonance. They are lighter than cast parts, which raises natural frequency and lowers resonance risk. Properly designed welded parts can have a natural frequency 50% higher than cast parts.
Intelligent Control
The System Controller provides an intuitive interface for managing every step of the bending process, from programming to real-time adjustments. Its intelligent features ensure precise control, enabling smooth operation and efficient production.

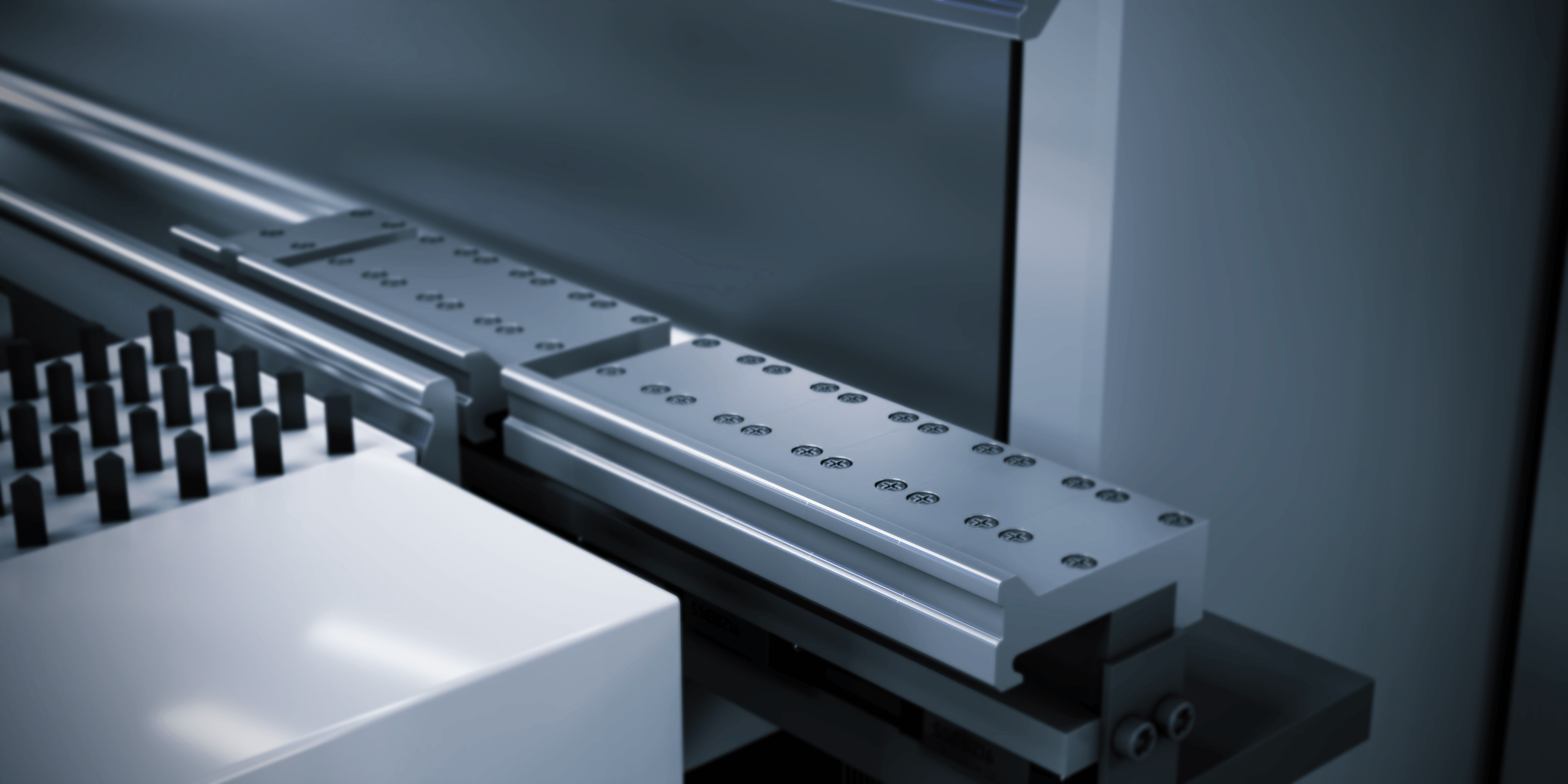

Auxiliary Bending Tooling*
The two servo motors drive the local bending toolings at both ends, and the system automatically uses the local bending blades according to the bending programming requirements of the plate, which makes the local bending of one side of the plate a reality and enriches the bending styles. The auxiliary bending tooling can be setup either automatically or manually, depending upon application needs.

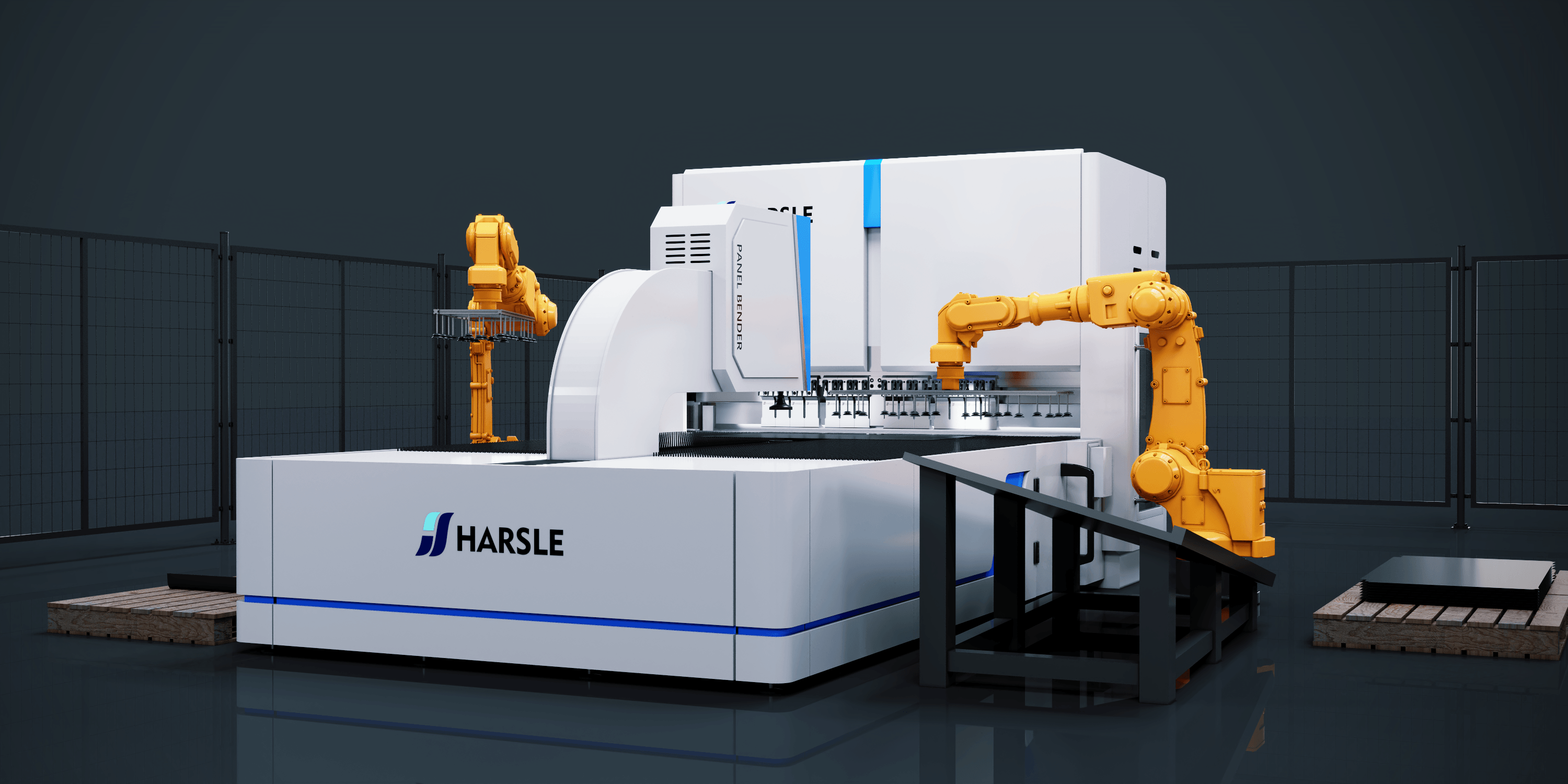

Manipulator
It handles positioning according to sheet placement and bending requirements. The manipulator uses upper and lower clamps to secure the sheet. After referencing, it determines the necessary rotation from the starting position, aligns the appropriate edge for bending, progresses through bending steps, and positions the bent sheet for evacuation.
Safety Shield
The metal safety shield effectively prevent access to moving parts, reducing the risk of injury from accidental contact or flying debris. These guards are securely fixed around the bending center worktable to ensure stability and reliability in safeguarding operators.

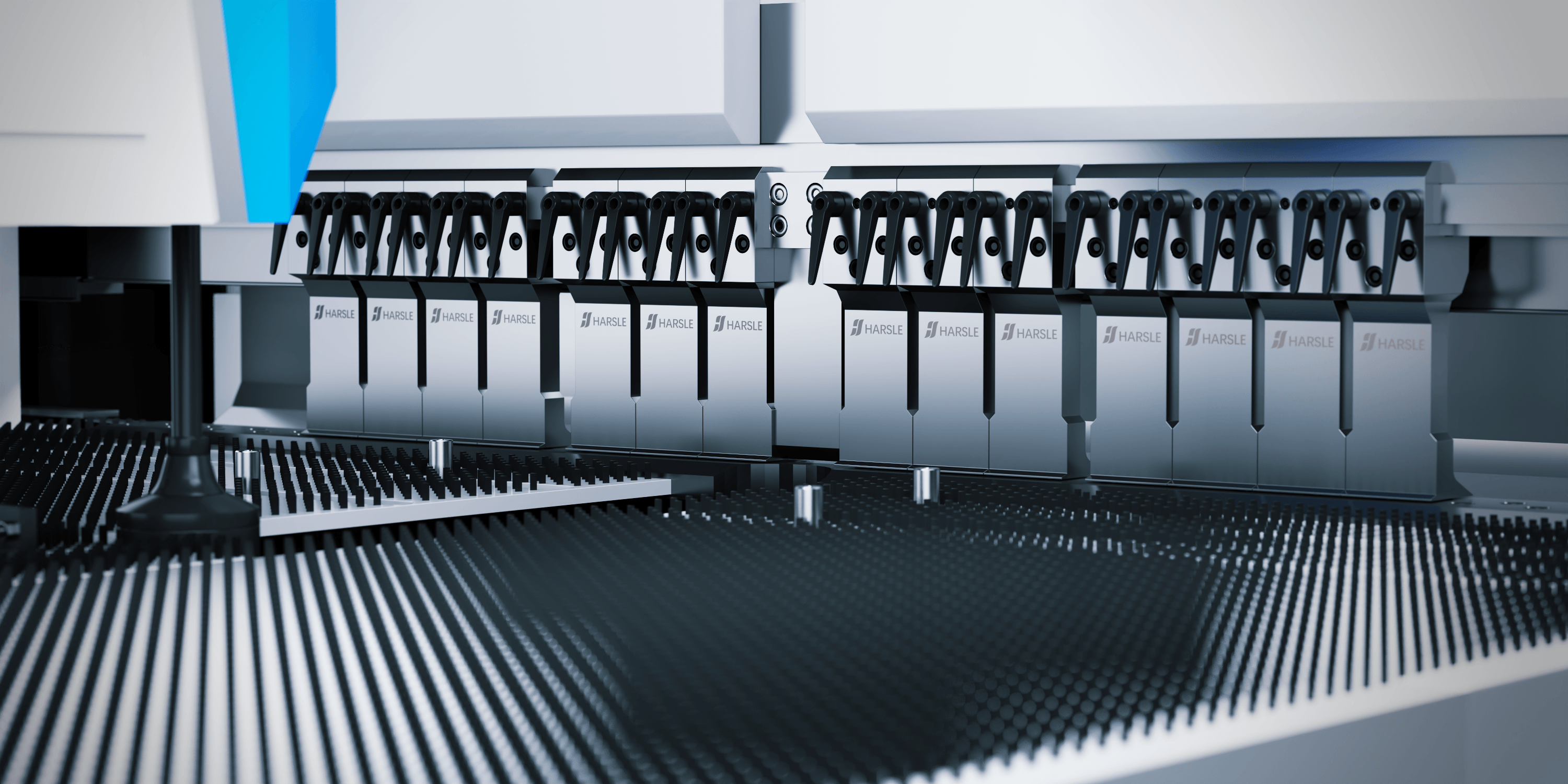

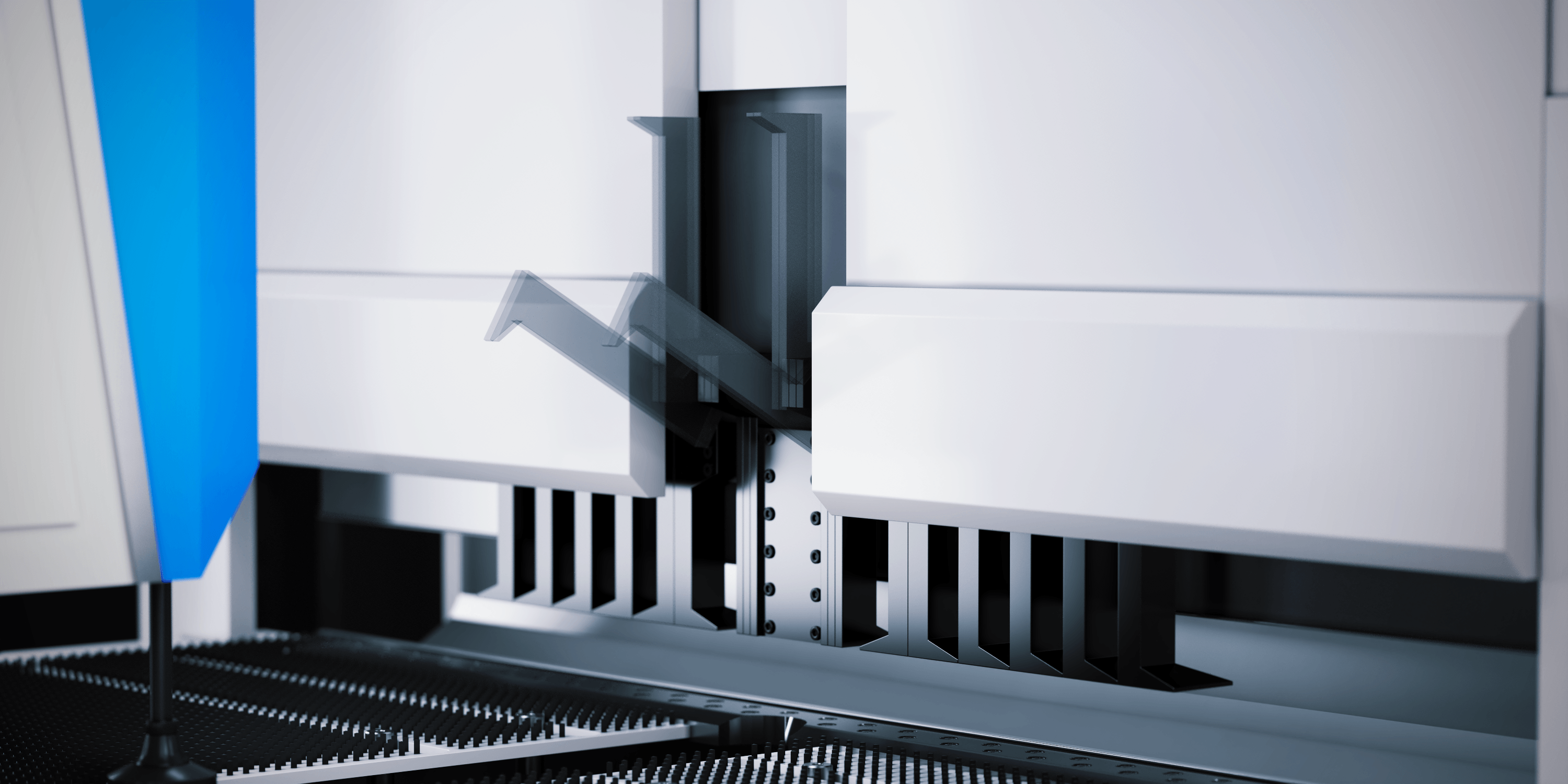

Automatic Blankholder Changer
The automatic blankholder changer boosts productivity by automating tool swaps. It minimizes downtime and manual intervention, ensuring precision while allowing quick transitions between diverse bending tasks for maximum efficiency.
Why HARSLE
Direct Manufacturer
We sell directly to you, eliminating middleman costs and providing competitive pricing.
3-Year Warranty
Enjoy a 3-year warranty with free replacement parts, ensuring peace of mind and reliability.
Multilingual Team
Our multilingual team ensures clear, efficient communication with clients worldwide.
Precision Frame
Our press brake frames are heat-treated for precision and to prevent deformation.
Quality Control
A robust quality control process ensures each machine meets stringent performance standards.
Local Support
We provide localized service in multiple countries, delivering timely and efficient support.
General FAQs

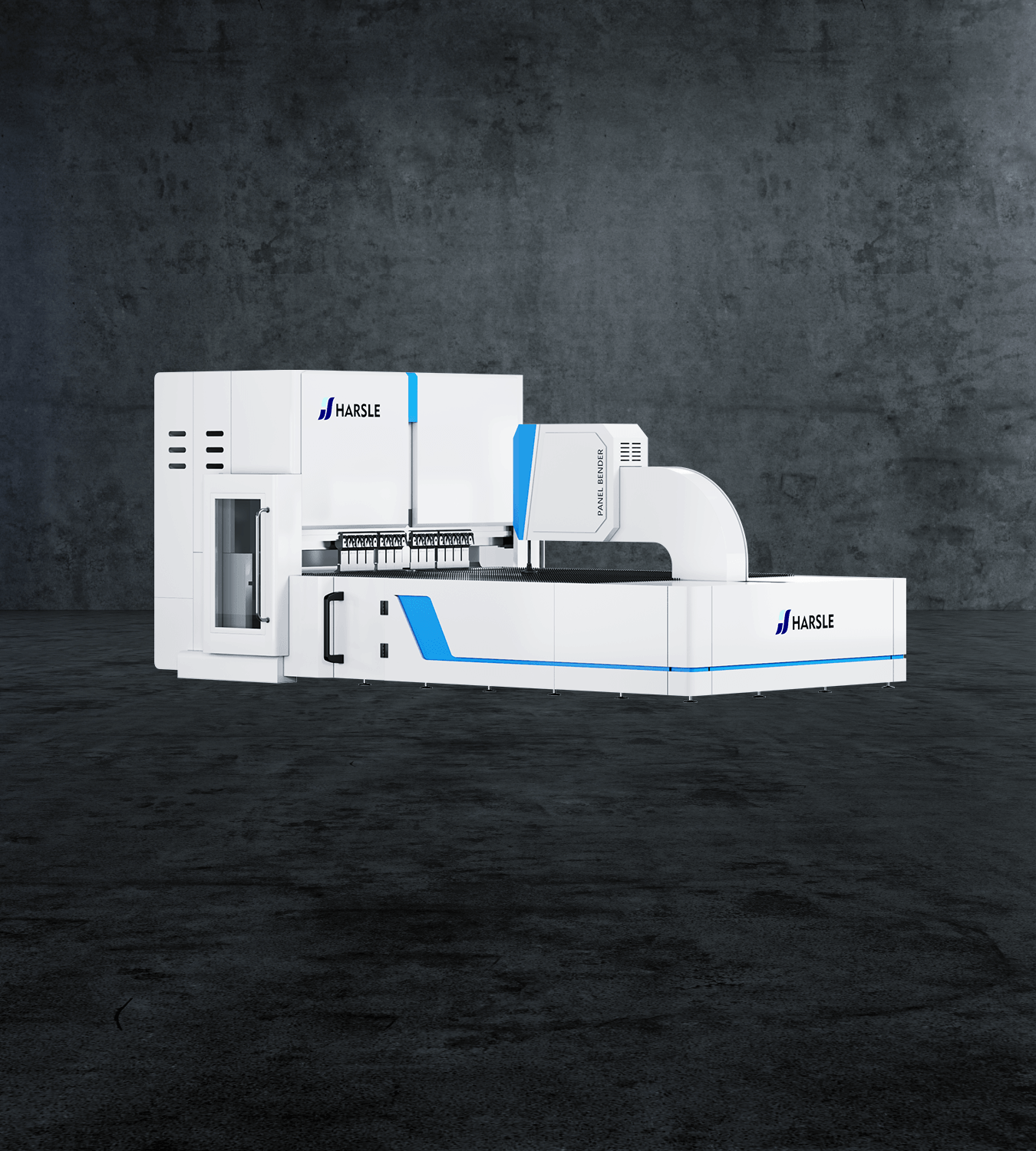

A Panel Bender is a machine designed for bending sheet metal into specific shapes and angles with high precision. It is typically used for producing components in industries like construction, automotive, and manufacturing.
When selecting a Panel Bender, consider factors like sheet metal thickness, bending capacity, automation features, and required precision. It’s important to match the machine's capabilities with your production needs.
HARSLE Panel Benders are equipped with advanced features such as multi-axis control, fast setup, and high-precision bending. These machines offer excellent flexibility and efficiency for various sheet metal applications.
Panel Benders are designed for ease of use, featuring user-friendly controls and intuitive interfaces. With proper training, operators can efficiently set up and manage bending tasks, even for complex shapes.
Panel Benders can process a variety of materials including steel, stainless steel, aluminum, and other sheet metals. The machine is versatile, handling materials of different thicknesses for different industrial applications.
Yes, HARSLE offers comprehensive training for operators. We provide both on-site and online training to ensure your team can efficiently operate the machine and maximize its capabilities.
HARSLE Panel Benders are designed for fast setup, often reducing setup time by 20-30% compared to traditional bending methods. Quick adjustments and automatic functions streamline the process.
HARSLE Panel Benders stand out for their precision, reliability, and advanced automation features. With high-quality materials, efficient design, and excellent after-sales support, HARSLE offers a cost-effective solution for your bending needs.
Regular maintenance includes checking for wear on tooling, lubricating moving parts, and inspecting the hydraulic system. HARSLE provides detailed maintenance guidelines and ongoing support to ensure optimal machine performance.
HARSLE offers extensive after-sales support, including installation, training, maintenance, and troubleshooting. Our dedicated customer service team ensures your machine operates smoothly for years to come.
Find What You Need
Find What You Need
Find What You Need
1400mm
Max. Bending Length
1250mm
Max. Bending Width
170mm
Max. Bending Height
4mm
Min. Bending Height
2mm
Min. Bending Radius
±180°
Bending Angle
44.5kw
Motor Power
10500kg
Weight
4600×2600×2400mm
Dimension
1600mm
Max. Bending Length
1250mm
Max. Bending Width
170mm
Max. Bending Height
4mm
Min. Bending Height
2mm
Min. Bending Radius
±180°
Bending Angle
61kw
Motor Power
11800kg
Weight
4800×2800×2300mm
Dimension
2000mm
Max. Bending Length
1250mm
Max. Bending Width
170mm
Max. Bending Height
4mm
Min. Bending Height
2mm
Min. Bending Radius
±180°
Bending Angle
61kw
Motor Power
14000kg
Weight
5150×3200×2300mm
Dimension
2500mm
Max. Bending Length
1250mm
Max. Bending Width
170mm
Max. Bending Height
4mm
Min. Bending Height
2mm
Min. Bending Radius
±180°
Bending Angle
68kw
Motor Power
18000kg
Weight
6100×3800×2320mm
Dimension
3000mm
Max. Bending Length
1250mm
Max. Bending Width
110mm
Max. Bending Height
4mm
Min. Bending Height
2mm
Min. Bending Radius
±180°
Bending Angle
216kw
Motor Power
26000kg
Weight
6900×4300×2800mm
Dimension
3000mm
Max. Bending Length
1250mm
Max. Bending Width
110mm
Max. Bending Height
4mm
Min. Bending Height
2mm
Min. Bending Radius
±180°
Bending Angle
216kw
Motor Power
28000kg
Weight
6900×4300×2800mm
Dimension
