DELEM Profile-T 2D/3D:

DELEM Profile-T is the market leading solution in offline programming for CNC press brakes. Completely integrated with Profile-T 3D along with SolidWorks & Autodesk Inventor providing full 3D simulation of the bending process. Utilizing either 2D or 3D geometry, Profile-T automates the sequence of operations typically done manually at sheet metal manufacturing facilities. Profile-T is the answer to typical issues that manufacturers have in their bending applications like full collision checking which ensures costly errors are eliminated prior to production, thus providing a “right first time” manufacturing approach.

The Profile-T software offers advanced programming in 2D/3D in line with the DA-Touch controller software. The steps from the start of programming to the desired program including its transfer to the control are clearly embedded in the user interface.

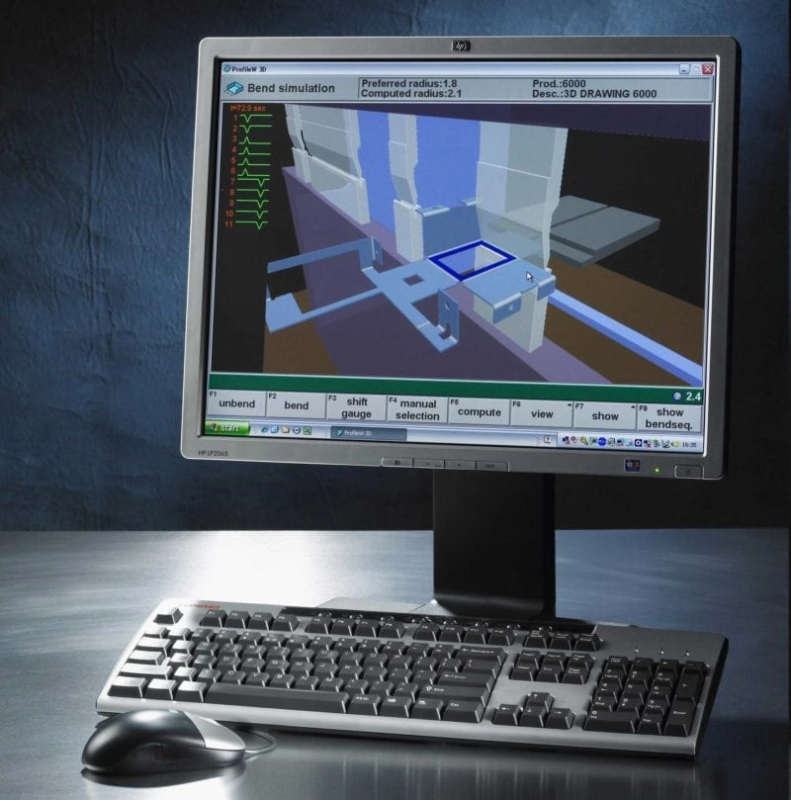

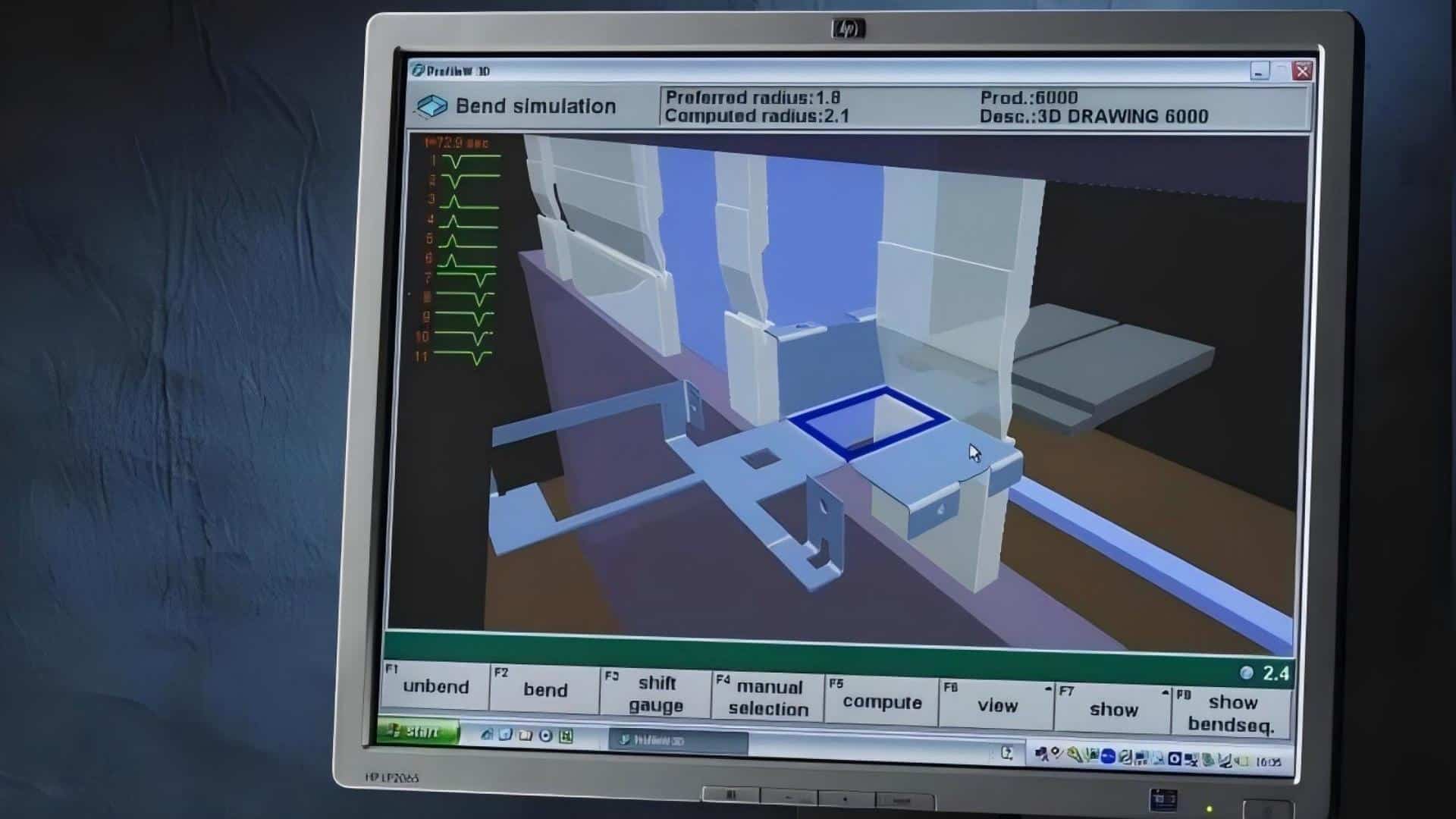

Programming the product graphically shows a true scale representation of the intended product. Realistic product visualization gives feedback on feasibility, collisions, required tools and tool adapters for production.

Standard

2D or 3D programming version

3D machine representation

X1-X2 angle programming

3D finger view

DA-Touch familiar user interface

X1-X2 angle programming

DXF import function (Profile-T3D only)

Profile-T features:

Full scale offline programming

Graphical product programming and bend sequence generation

Feasibility studies and production preparation

2D/3D automatic bend sequence calculation

Collision detection

Product sharing over Windows networking with press brake CNC

Machine setup preparation including print functionality

Production time calculation

Profile-T Download :https://www.mechstream.com/delem-profile-t-lite-offline-software/

How to Import 3D File by DELEM Profile T Offline Software.

How to Import DXF File By Profile-T 3D Offline Software
