Sheet Metal Punching: What You Need to Know?
Sheet Metal Punching is a critical technique when processing sheet metal, especially if your priority is achieving precise and efficient results. Whether you’re curious about what exactly sheet metal punching entails, how to operate punching machines correctly, or you’re seeking expert tips to improve your overall metalworking outcomes, you’re in the right place. In this article, I’ll explain the basics clearly, offer practical steps to optimize your punching operations, and address common issues you might encounter. Regardless of your experience level, this guide is designed to help you enhance both productivity and quality in your sheet metal fabrication projects.
What is Sheet Metal Punching?
Sheet metal punching is a manufacturing process used to create holes, slots, or custom shapes in metal sheets. It involves applying force using a punch press machine equipped with specially designed tools—punches and dies—to cut through metal sheets efficiently and precisely. Unlike drilling, which gradually removes material, punching creates clean, accurate cuts in a single stroke, making it ideal for large-volume operations.
Key Benefits of Sheet Metal Punching:
- High precision and consistency.
- Cost-effective for mass production.
- Minimal waste material.
How to Operate a CNC Punching Machine Effectively

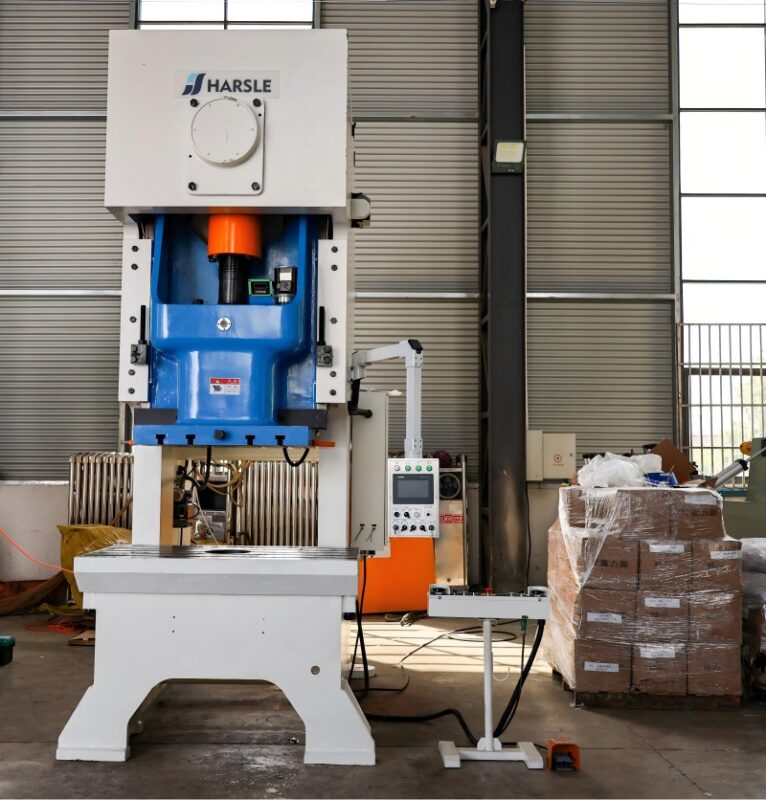

Step 1: Preparing the CNC Punching Machine
Before you begin, always ensure the CNC punching machine is in optimal condition. Inspect the machine thoroughly, checking for any loose components or damage. Verify that the area around the machine is clear from debris, tools, and materials that might hinder safe operation.

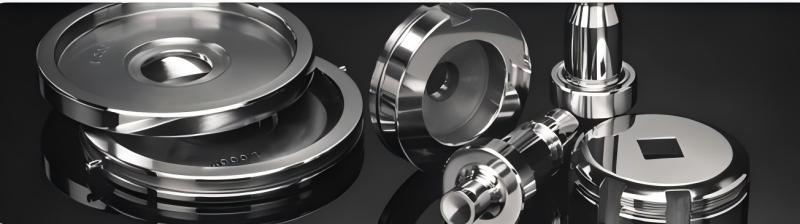

Step 2: Selecting and Installing Punch Tools
Tooling selection greatly influences your punching results. Choose punches and dies according to the metal thickness, type, and the desired shape. Ensure all tooling is sharp, free from damage, and securely mounted. Improper tooling setup can lead to tool damage and inferior punched parts.
Step 3: Programming the CNC Punch Press
Input precise punching instructions into your CNC software. Program carefully by entering specific details such as material thickness, punch dimensions, shapes, patterns, and quantity. Verify the punching program with a simulation test, ensuring accuracy before actual production starts.
Common Issues in Sheet Metal Punching and Solutions
Burr Formation on Punched Edges
Burrs can be frustrating and compromise product quality. Typically, burrs are due to worn-out or incorrect tooling. Regularly inspect and sharpen your punches and dies, or replace them if necessary. Adjusting clearance between punches and dies according to manufacturer recommendations also significantly reduces burr formation.
Misaligned or Inaccurate Holes
Inaccurate punching usually results from misaligned punches and dies or incorrect programming. Regularly calibrate the punch press and always run a small test batch before full-scale production. Consistent calibration and precise programming can drastically minimize such issues.
Excessive Noise or Vibration
Unusual noise and vibration can indicate improper machine setup or worn components. Always ensure your punch press is securely installed on a stable, level surface. Routine maintenance, including inspecting bearings, lubrication, and mechanical connections, will help maintain smooth and quiet operations.
Tips to Enhance Your Sheet Metal Punching Results
Optimize Tooling Maintenance
Regularly check your tooling for signs of wear and perform timely maintenance. Sharp tools significantly increase efficiency, reduce scrap rates, and improve the quality of finished products.

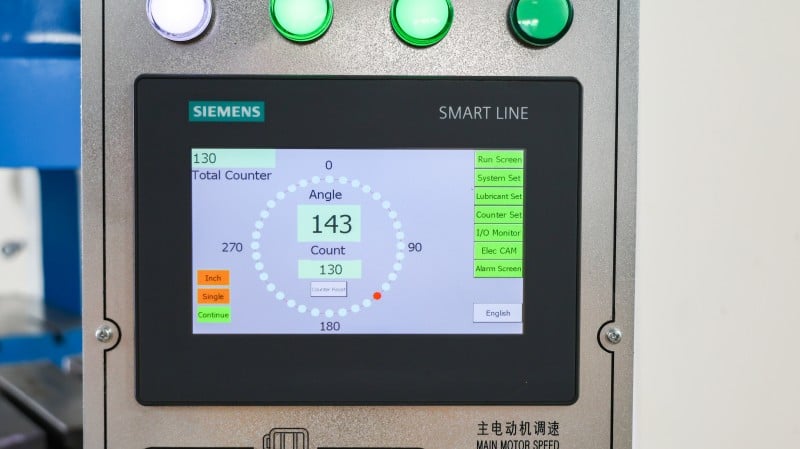

Manage Punch Press Settings
Fine-tuning punching speed, feed rate, and punch-to-die clearance helps improve the precision and cleanliness of punched holes. Experiment with settings based on material type and thickness to find the optimal configuration for your specific tasks.
Material Handling Practices
Ensure proper handling of sheet metal. Incorrect handling can lead to warping, bending, or scratching, affecting the final product’s quality. Use suitable lifting and storage equipment and handle sheets carefully.
FAQs
How do I choose the right punch and die for my job?
Selecting punch and die sets depends on material type, thickness, and the desired hole shape or size. Consult your tooling provider’s specifications and recommendations to ensure optimal results.
What thickness of metal can a standard punching machine handle?
Typically, standard CNC punching machines effectively handle sheet metals ranging from 0.5 mm up to 6 mm. For thicker metals, specialized or higher-capacity machines are recommended.
How often should I perform maintenance on my punching machine?
Routine maintenance should be performed every 250-500 operational hours. Maintenance includes inspecting tools, lubricating moving parts, checking alignment, and cleaning debris from working areas.
Conclusion
Sheet metal punching is a highly efficient, precise, and reliable method for fabricating metal components. By carefully following proper operation steps, maintaining tooling, and troubleshooting common issues, you’ll achieve superior results consistently. If you have additional questions or need professional guidance on selecting a punching machine or tooling, feel free to contact our HARSLE team. We’re always here to help you enhance your metalworking processes and achieve optimal efficiency and quality in your production.
