Bend Programming and Management

The Bend Summary Mask in ESA S860 Bend Programming provides a comprehensive overview of all bends in your current program. Organized in a user-friendly table format (similar to TRIA’s graphic interface), this mask lets you review and modify bend data efficiently.

How to enter the Bend Summary mask

To open the Bend Summary Mask en Programación de curvas ESA S860, follow these steps:

1. From the Settings Mask, presione el Menu Key.
2. Seleccionar Bend Summary (8) to open the table.

Key Features of the Bend Summary Mask

• Each column represents a bend in the program, labeled with a progressive number.
• El first column displays the description of each value.
• El selected value is highlighted in yellow for easy identification.
• Displays the program name, selected bend, y current section.
• Includes function keys:
  • [Nuevo programa] – Create a new program.
  • [Sección de cambios] – Jump to the first bend in the next section.

How to use the Bend Summary mask

Navigating the ESA S860 Bend Programming interface efficiently is key to optimizing your workflow. Here’s how to use the bend summary mask to shift selections, modify values, and switch sections seamlessly.

Shifting the Selection

To move between bends in your program:

• Prensa ◄ y ► keys to shift the selection.
• If you press ► while on the last bend, a new bend will be automatically added to the queue.
• Use the touch function (on ESA S860 Touch/S660W models) to jump to the first/last bend or switch sides of the selected bend.

Nota:

• If columns exceed the display width, hidden bends can be viewed by scrolling right, shifting columns left.
• If rows extend beyond the screen, scroll up/down to navigate through them.

Modificación de valores

To edit a value in ESA S860 Bend Programming:

1. Select the desired cell.
2. Enter the new value.
3. Prensa INGRESAR (soft keyboard on S860 Touch/S660W)—the selection will move down automatically.

Changing Sections

• Prensa [Cambiar sección] to jump to the first bend of the next section.
• If on the last section, pressing [Cambiar sección] will add a new section to the program.

How to create a new programme

Creating a new bending program in ESA S860 Bend Programming is a straightforward process. Follow these steps to set up your program efficiently:

Guía paso a paso:

1. Start a New Program
   • Presione el [Nuevo programa] key to open the Datos generales window.
2. Enter Sheet Specifications
   • Sheet Width: Input the width of the metal sheet.
   • Espesor de la chapa: Define the material thickness.
   • Material Resistance: Select based on material type:
     • Aluminio: 0–30
     • Chapa de metal: 31–50 (ideal: 42)
     • Acero inoxidable: >50
       (Note: Resistance is calculated automatically.)
3. Select Tooling
   • Morir: Choose a pre-defined die (must be drawn first).
   • Cavity: Enter the die cavity number (use 1 if single cavity).
   • Puñetazo: Select a pre-defined punch (must be drawn first).
4. Confirm & Proceed
   • Prensa [Confirmar] (or INGRESAR on touch models like S860 Touch).
   (Tip: If default data is enabled, the system skips this window and uses preset values.)
5. Enter Bend Details
   • The cursor moves to Alfa Y1—input remaining bend parameters.
6. Save the Program
   • Name your program, then confirm with [Confirmar] (or INGRESAR on touch models).

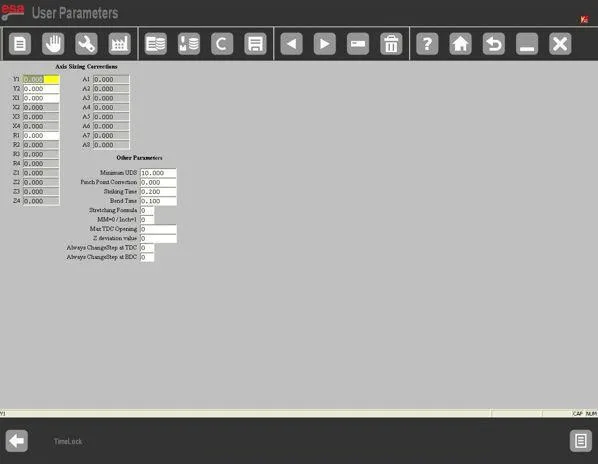

Using the “User Parameters” Mask

The ESA S860 Bend Programming system includes a “User Parameters” mask designed for operator convenience while safeguarding critical machine settings. This password-free feature allows end-users to adjust customizable parameters without accessing the main machine configurations.

How to Access User Parameters in ESA S860 Bend Programming:

1. From the Ajustes mask, press the designated key to open the menu.
2. Seleccionar “User Parameters” (4) to open the configuration window.

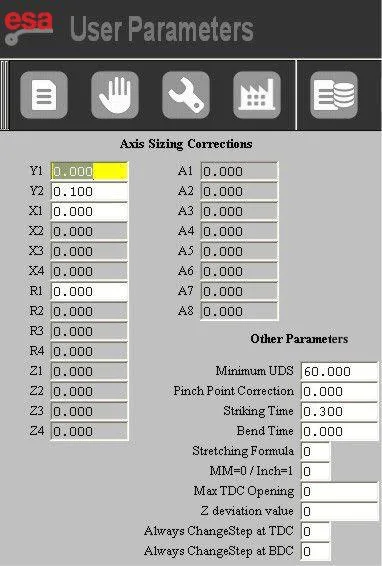

CORRECTIONS TO AXIS CALIBRATION parameters

When working with ESA S860 Bend Programming, you may need to adjust axis calibration parameters due to mechanical wear or press brake deterioration. The system allows you to modify the resetting height from factory settings to maintain precision.

Por ejemplo:

• Factory resetting heights might be 230.93 mm (Y1) y 230.09 mm (Y2).
• If corrections of -0.09 mm (Y1) y +0.1 mm (Y2) are needed, input these values in the PARÁMETROS USUARIO mask.

Notas clave:

• Factory data remains unchanged, but after calibration:
  • Año 1 will reset to 230,84 milímetros
  • Año 2 will reset to 230,19 milímetros
• Save adjustments by pressing the save key (stored in UsuarioTara.par).

Resetting Corrections

If the manufacturer updates factory parameters, the system will:

• Display a notification.
• Automatically reset corrections, reverting to the original ram axis height.

By mastering these calibration techniques in ESA S860 Bend Programming, you ensure consistent accuracy in your bending operations.

Modifying General Data

El “General Data” feature in ESA S860 Bend Programming allows you to efficiently modify bends and apply changes across your program. Here’s how it works:

After adjusting a bend, you can instantly update:

• All bends in a section with matching Y1 angles – Fine-tune specific sections while maintaining angle uniformity.

• All bends in the program – Apply changes universally for consistency.

• All bends in the section – Modify only selected segments of your program.

• All bends with matching Y1 angles – Automatically sync adjustments for identical bend angles.

How to enter the new “General Data” mask

Para acceder a la Datos generales mask in ESA S860 Bend Programming, follow these simple steps:

1. From the Ajustes mask, press the menu key.
2. Seleccionar General Data (6) to open the mask.

Key Features of the General Data Mask:

[Conf. Same Sect. Ang.] – Apply changes to bends with the same Y1 angle (current section only).

Modified Fields: User-changed values appear with reversed colors.

Auto-Recalculated Fields: Program-updated values display with a red background.

Action Buttons:

[Ignore Corr.] – Discard temporary changes.

[Confirm Program] – Apply changes to all bends in the program.

[Confirm Section] – Apply changes only to bends in the current section.

[Conf. Same Pr. Ang.] – Apply changes to bends with the same Y1 angle (entire program).

Cómo hacer correcciones al programa de plegado

The ESA S860 Bend Programming system allows you to modify bend data efficiently. Here’s how to make adjustments:

Modifying Bend Data

1. Open the General Data Mask—it displays the same parameters as the active bend.
2. Edit the required values. Changed fields will highlight in a different color for easy identification.
   • Nota: The displayed bend is a copy, not the active program bend. Changes only apply after confirmation.

Applying Changes

• [Confirm Section]: Updates all bends in the current section with the adjusted values.
• [Conf. Same Sect. Ang.]: Applies changes only to bends with matching angles in the section.
• After confirmation, fields return to their default colors.

Canceling Changes

Prensa [Ignore Corrections] to discard all edits without saving.

Navigation & Limitations

• Usar ◄ y ► arrows or manually enter Doblar y Section numbers to navigate.
• Nota: You cannot add or delete bends here—return to the Settings Mask for those actions.
