Product Description

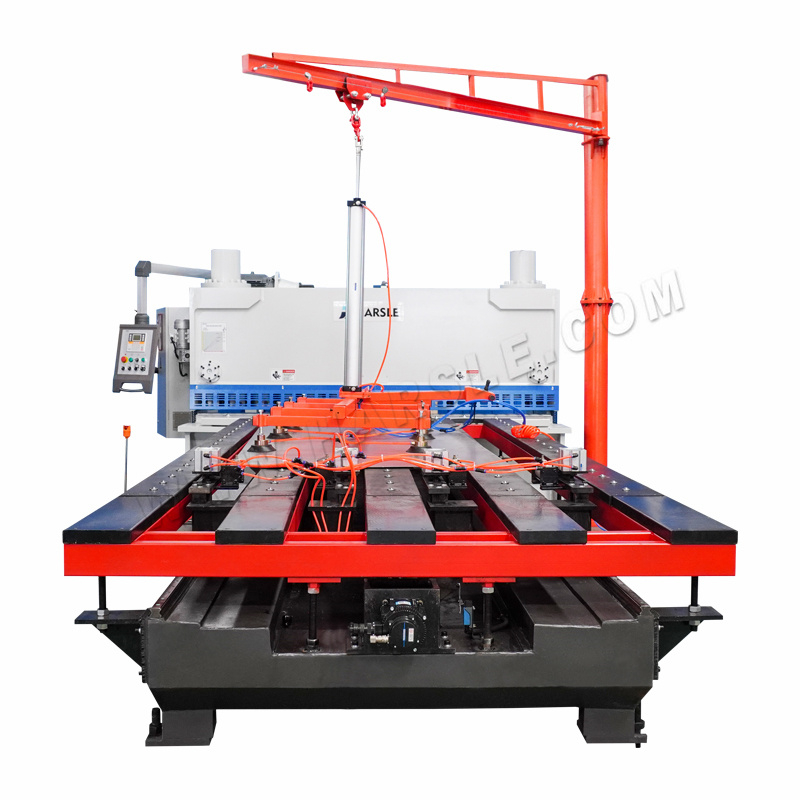

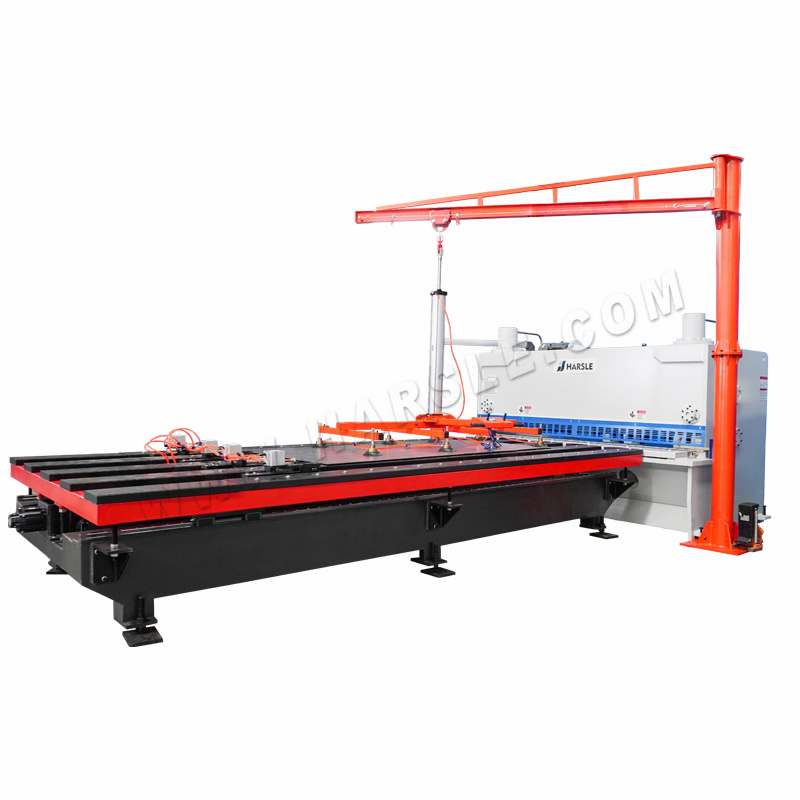

QC11K-10*2500 CNC P40 Shearing Machine with Front Feeding Table and Metal Sheet Vacuum Lifter.
Main Features
● The streamlined welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine.
● The motors for backgauge are controlled by servo motor, which can achieve high accuracy and fast speed.
● Top blade with four cutting edges and bottom blade with four cutting edges (6CrW2Si).
● Knife gap and cutting angle can be programmed by CNC Controller ELGO P40 only by inputting material thickness.
● Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders.
● Foot switch with emergency button can stop the machine immediately when accident happens.
● Multi-Language controller operational interface will be easy for customers from all over the world.
● Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily.
Technical Parameters
| No. | Item | Unit | 10*2500 | |
| 1 | Max cutting thickness | mm | 10 | |
| 2 | Max cutting length | mm | 2500 | |
| 3 | Throat depth | mm | 150 | |
| 4 | Cutting angle(adjustable) | mm | 30'-2° | |
| 5 | Cutting speed | Cutting times/minutes | 14~25 | |
| 6 | Cutting Blade | length | mm | 1300*2 |
| quantity | pcs | 2(upper)+2(bottom) | ||
| 7 | Backgauge | travel | mm | 500 |
| speed | mm/sec | 200 | ||
| accuracy | mm | ±0.01 | ||
| 8 | Front arms | length | mm | 800 |
| quantity | pcs | 3 | ||
| 9 | Spring pressure cylinder | pcs | 10 | |
| 10 | Main motor | KW | 11 | |
| 11 | Control system | / | P40 | |
| 12 | Dimension | (L*W*H)mm | 3200*1700*2150 | |
| 13 | Weight | kg | 7300 | |
