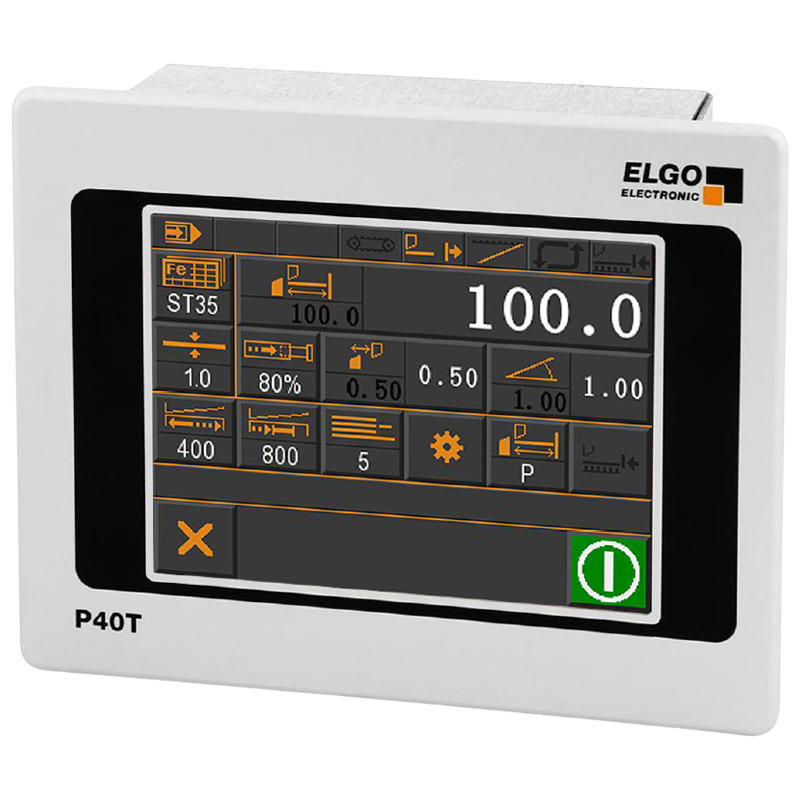

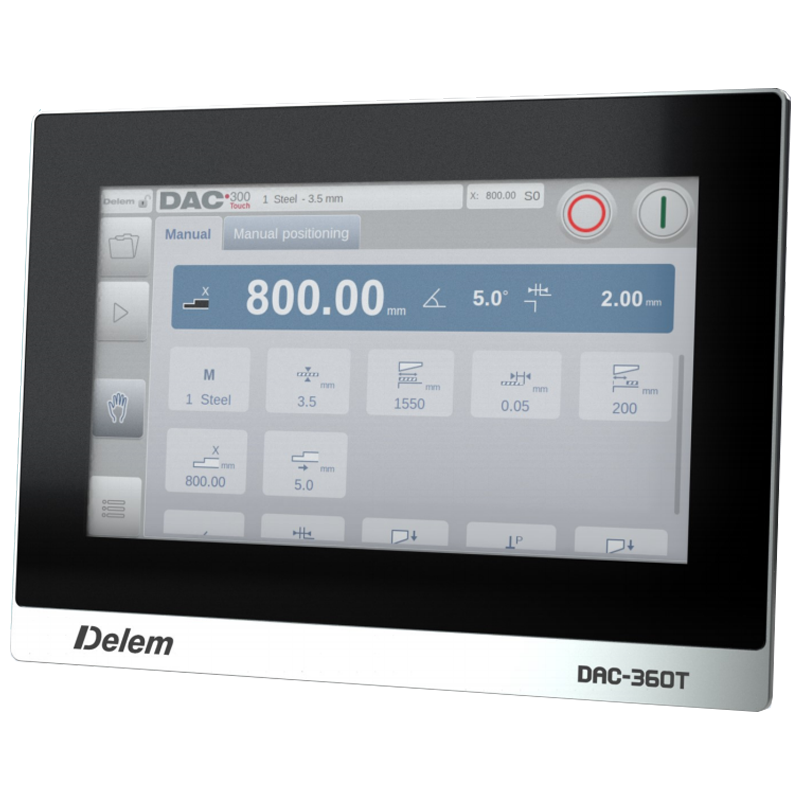

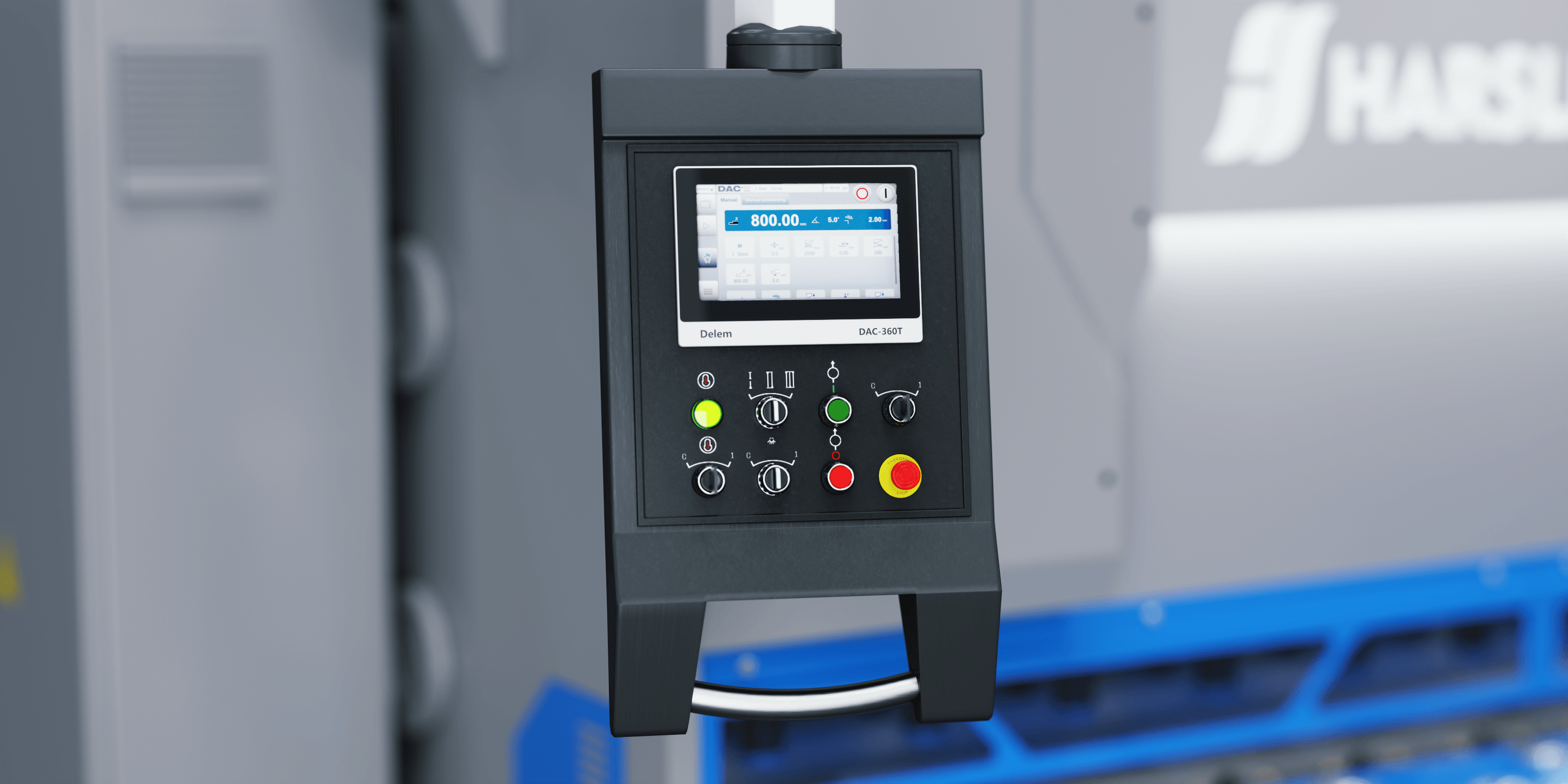

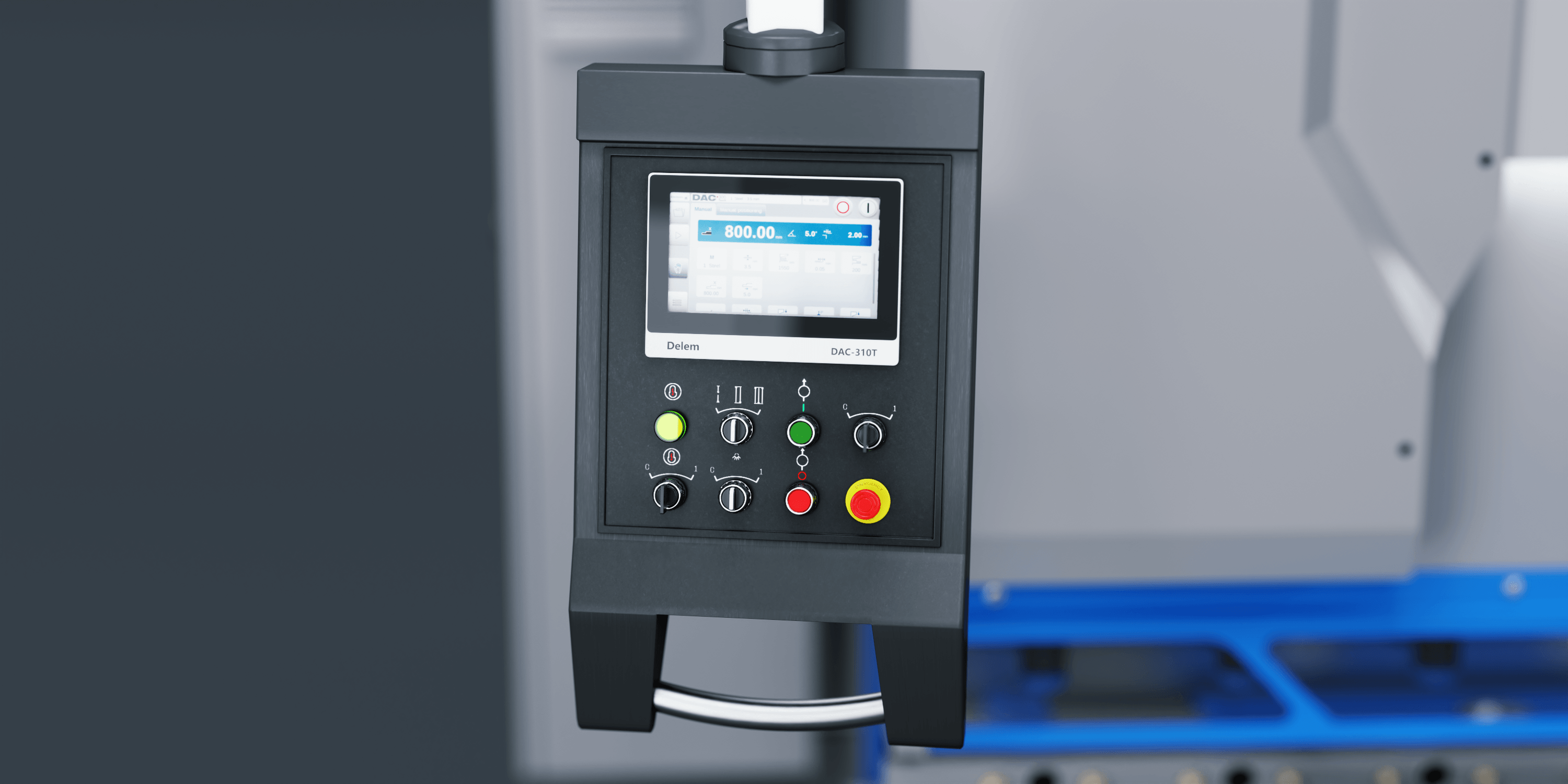

Controller System
HARSLE shearing machine supports the following controller systems, including but not limited to them. If you have special needs, we can also upgrade your controller system to a higher configuration, to meet your custom needs.
Cutting Angle Adjustment
The cutting angle can be set step by step on the controller. Depending on the material and thickness of the sheet to be cut, differernt blade clearances need to be adjusted on the machine controller.

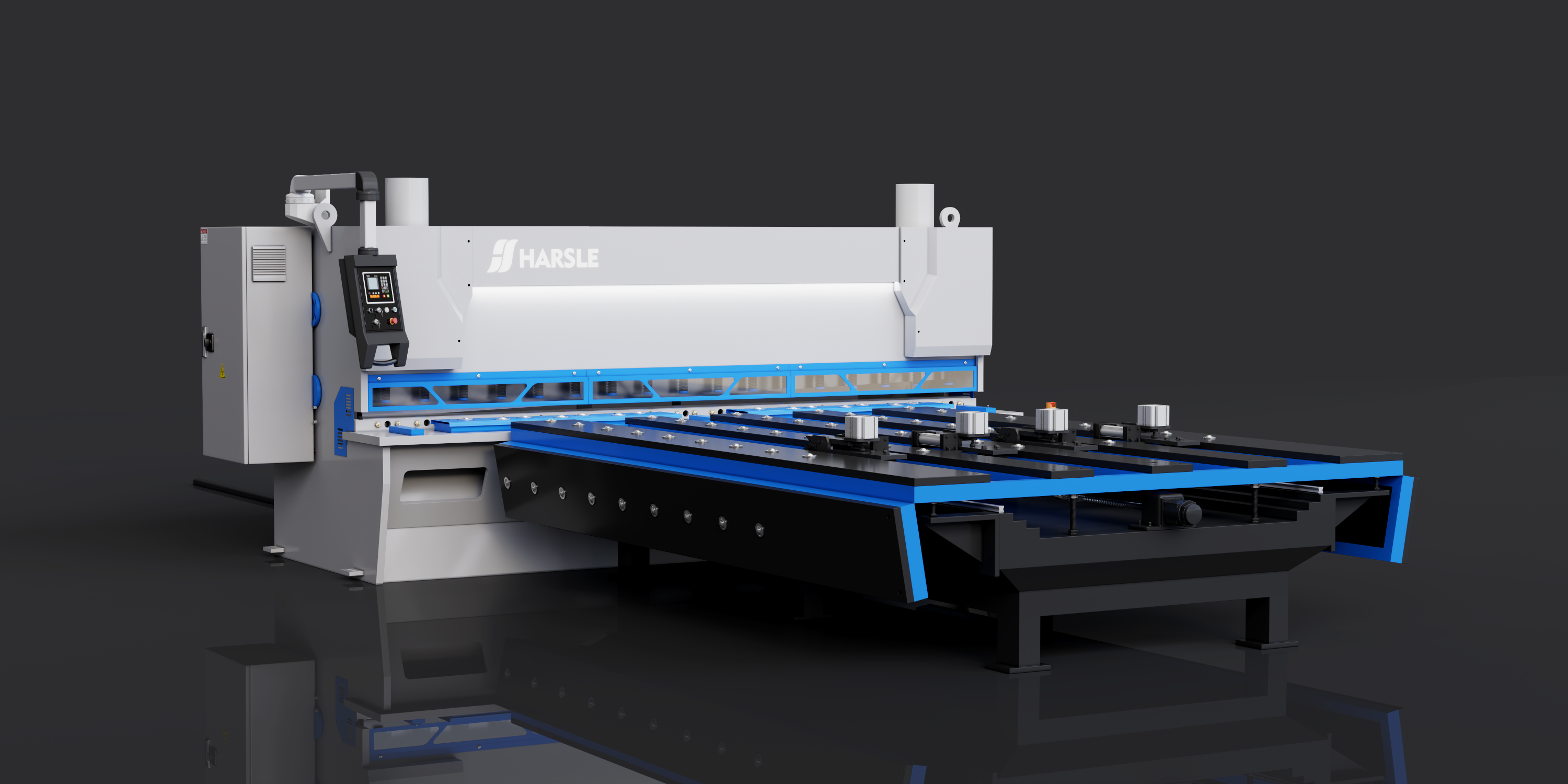

Front Feeding Table*
High-precision feeding table: double ball screw/linear guides, brush worktable, and pneumatic clamps ensure smooth, accurate, and scratch-free material handling.
Pneumatic Clamp
Extension Table
Servo Motor

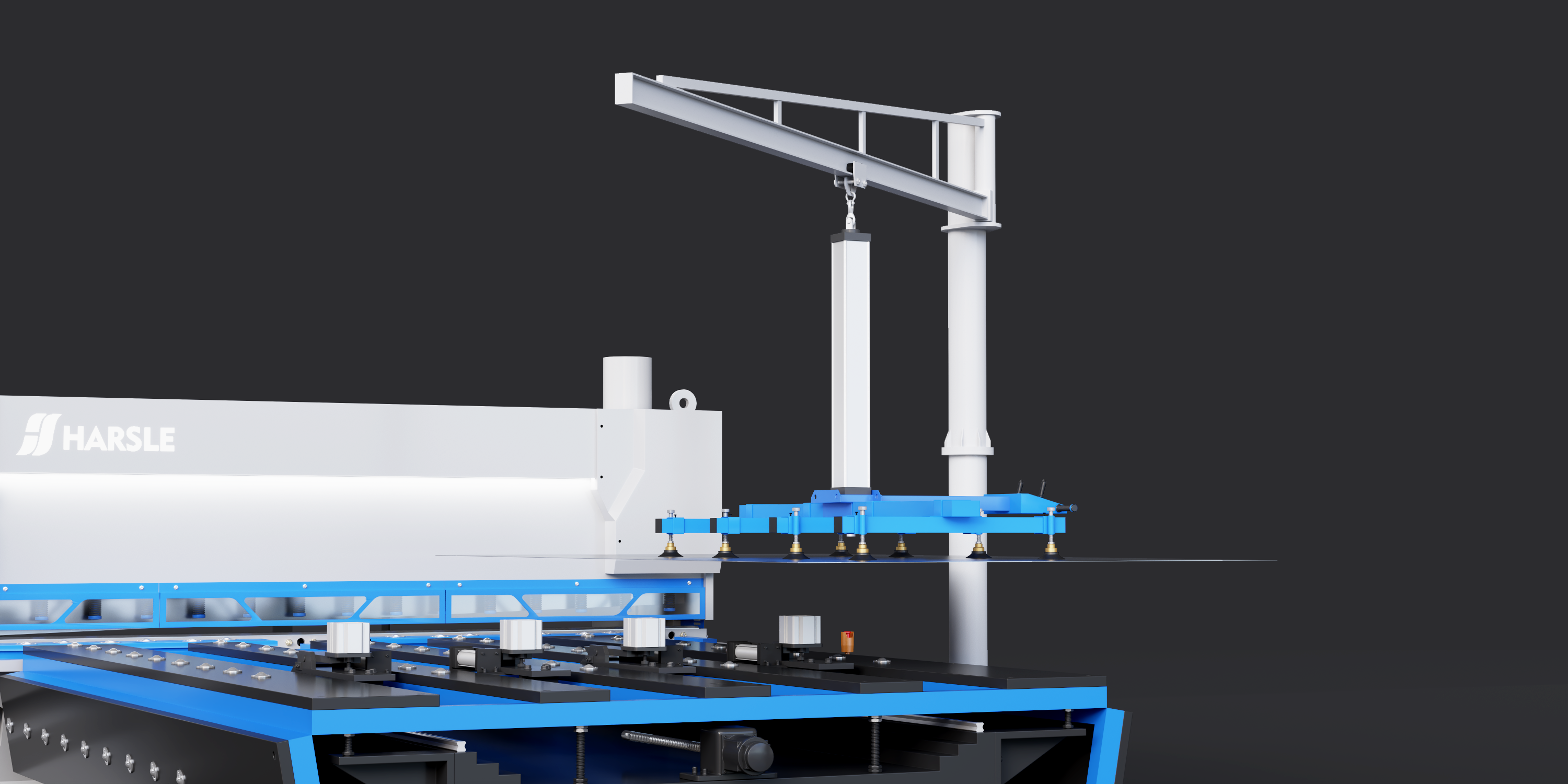

Iloader

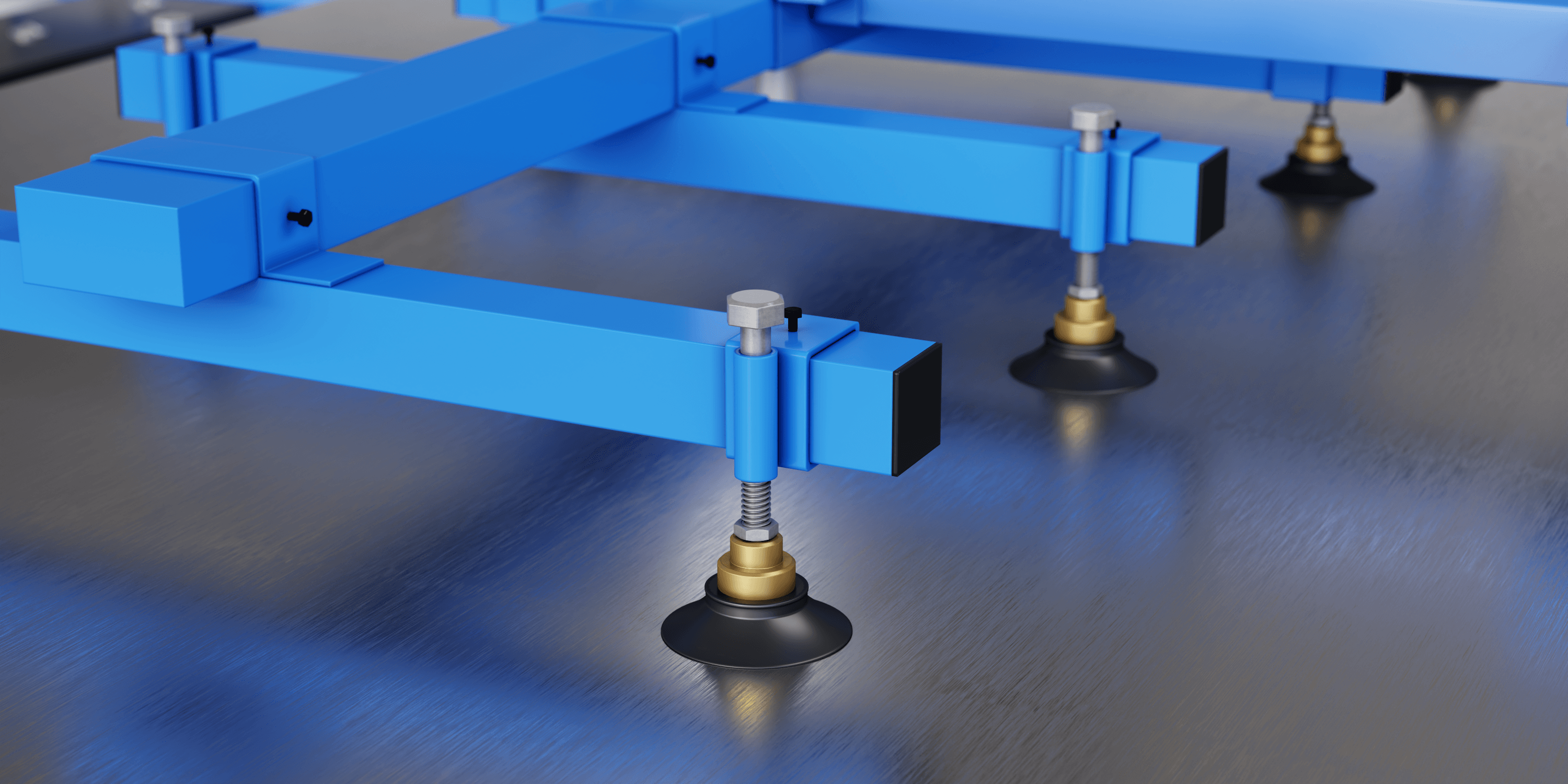

Specialized vacuum lifting device for safe and efficient handling of large/heavy sheet metal.

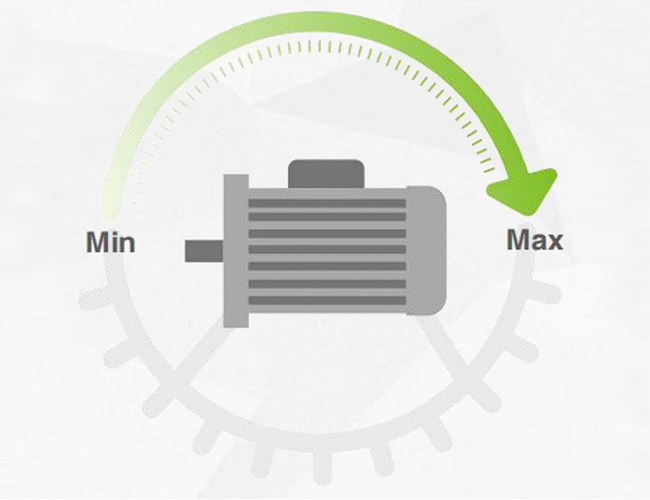

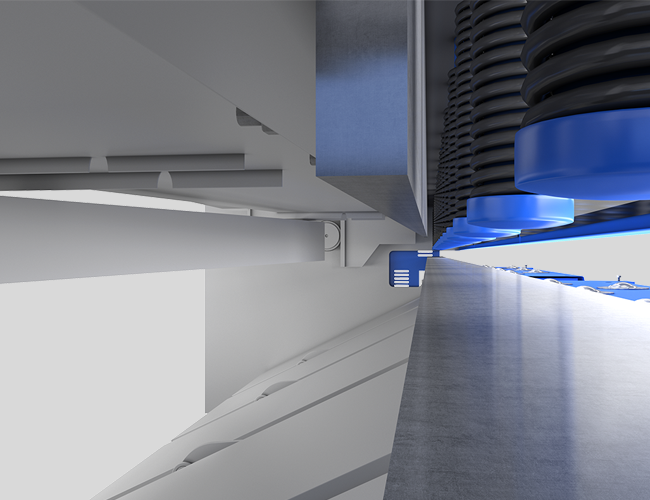

Blade Gap Adjustment
Adjustable blade gap is manually fine-tuned for material type/thickness, ensuring clean, precise cuts and preventing distortion/burrs.
Why HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Team
Our multilingual team ensures efficient.communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Local Support
We provide localized service in multiple countries, delivering timely and efficient support.
General FAQs
We offer various types of shearing machines, including hydraulic shearing machines, mechanical shearing machines, and CNC shearing machines, each designed for different applications and material thicknesses.
Our shearing machines can cut a wide range of materials, including mild steel, stainless steel, aluminum, and various alloys, depending on the model and specifications.
The maximum cutting thickness and width vary by model. Please refer to the specific machine's technical specifications for detailed information.
Yes, we offer customization options to meet specific customer requirements, including modifications in size, cutting capacity, and additional features.
Our shearing machines are equipped with safety features such as emergency stop buttons, protective guards, and overload protection systems to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer comprehensive installation services and user training to ensure that your shearing machine is installed correctly and operated efficiently.
The lead time typically ranges from 30 to 60 days, depending on the model and order specifications. We will provide an estimated delivery date upon confirmation of your order.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and the availability of spare parts to ensure the longevity of your machine.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our shearing machines.
Find What You Need
Find What You Need
Find What You Need
6mm
Max Cutting Thickness
2500mm
Max Cutting Length
120mm
Throat Depth
6-11times/min
Cutting Speed
0.5-1.5°
Cutting Angle
705mm
Worktable Height
4500kg
Weight
3200×1500×2000mm
Dimension
6mm
Max Cutting Thickness
3200mm
Max Cutting Length
120mm
Throat Depth
7-16times/min
Cutting Speed
0.5-1.5°
Cutting Angle
750mm
Worktable Height
6300kg
Weight
3900×1600×2050mm
Dimension
8mm
Max Cutting Thickness
2500mm
Max Cutting Length
120mm
Throat Depth
10-16times/min
Cutting Speed
0.5-2°
Cutting Angle
745mm
Worktable Height
5600kg
Weight
3200×1600×2150mm
Dimension
8mm
Max Cutting Thickness
3200mm
Max Cutting Length
120mm
Throat Depth
10-15times/min
Cutting Speed
0.5-2°
Cutting Angle
800mm
Worktable Height
7000kg
Weight
3950×1700×2250mm
Dimension
10mm
Max Cutting Thickness
2500mm
Max Cutting Length
120mm
Throat Depth
10-16times/min
Cutting Speed
0.5-2°
Cutting Angle
760mm
Worktable Height
6500kg
Weight
3200×1700×2200mm
Dimension
10mm
Max Cutting Thickness
3200mm
Max Cutting Length
120mm
Throat Depth
9-15times/min
Cutting Speed
0.5-2°
Cutting Angle
800mm
Worktable Height
8300kg
Weight
3650×1800×2300mm
Dimension
