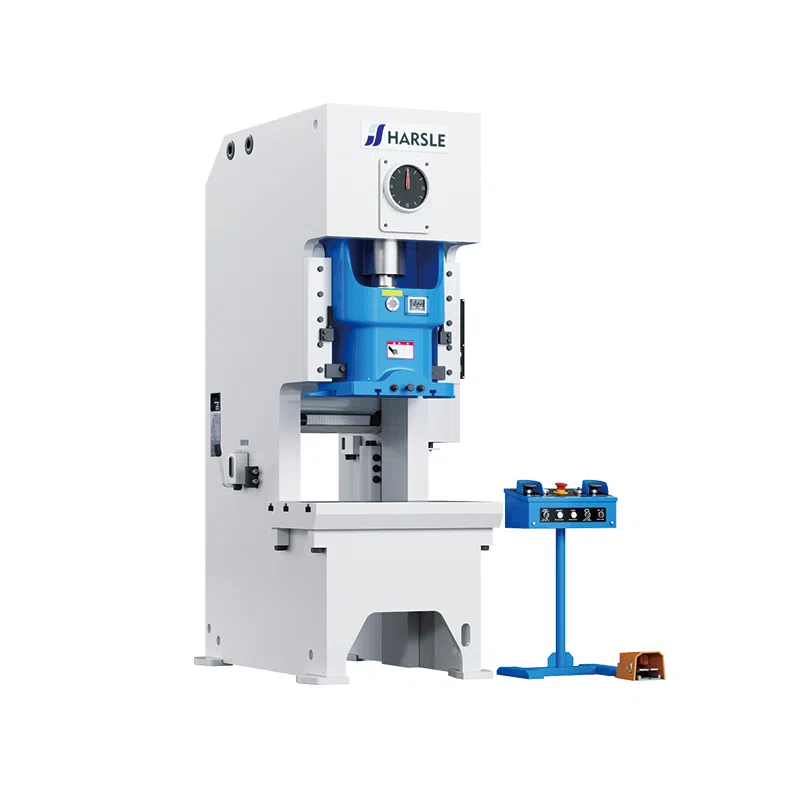

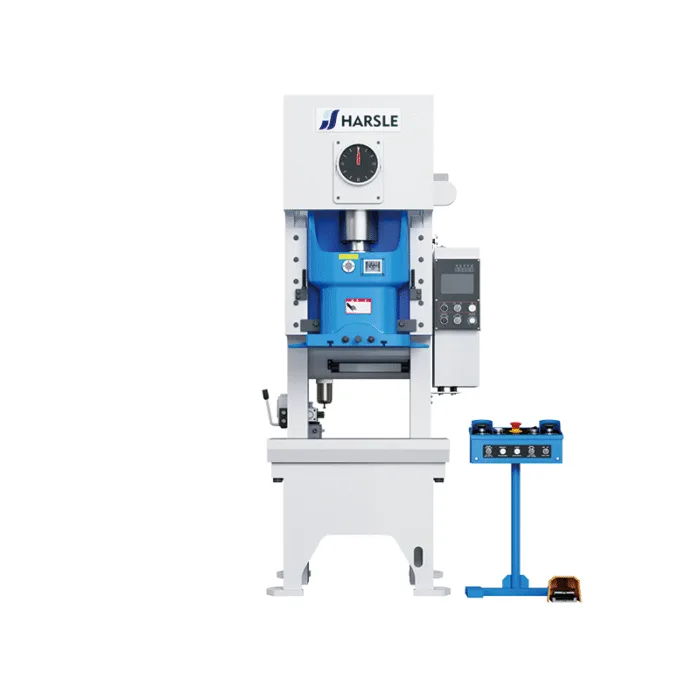

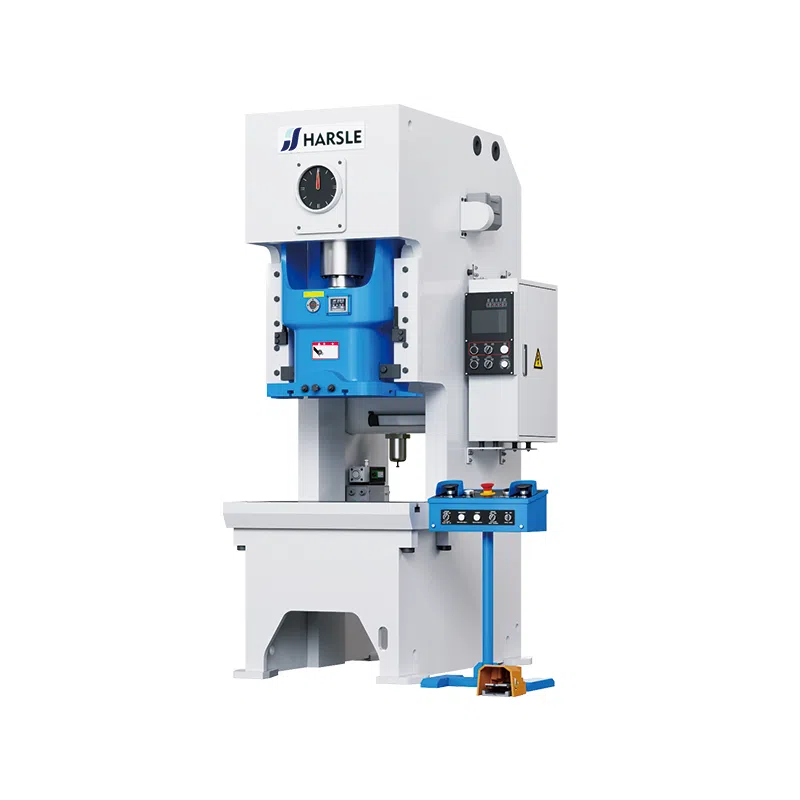

Compact 25 Ton Pneumatic Punch Press for Sale
The HARSLE 25 Ton Pneumatic Punch Press is designed for high-efficiency metal stamping operations. With its compact footprint and fast cycle speed, itโs ideal for sheet metal processing in industrial applications. Featuring durable structure, low noise, and customizable tooling options, this press delivers consistent results and long-term reliability. Whether you’re producing tags, enclosures, or brackets, this pneumatic press ensures precise punching with minimal maintenance.
100 in stock
JH21 Pneumatic Punching Machine
| Item | Unit | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-100 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 |
| Nominal Capacity | KN | 250 | 450 | 600 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 |
| Nominal | mm | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 6.5 | 7 | 8 |
| Slide Stroke | mm | 80 | 120 | 140 | 160 | 160 | 180 | 200 | 220 | 220 | 220 | 250 |
| Slide Strokes Per Minute(Fixed) | Times/min | 100 | 80 | 70 | 60 | 55 | 50 | 45 | 45 | 30 | 30 | 30 |
| Slide Strokes Per Minute(Variable) | Times/min | 60-120 | 50-95 | 45-85 | 40-75 | 35-65 | 35-65 | 30-55 | 30-55 | 20-35 | 20-35 | 20-35 |
| Maximum Die Set Height | mm | 250 | 270 | 300 | 320 | 335 | 350 | 400 | 450 | 500 | 500 | 550 |
| Die Height Adjustment | mm | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 110 | 120 | 120 | 120 |
| Throat Depth | mm | 210 | 225 | 270 | 310 | 330 | 350 | 400 | 430 | 450 | 450 | 490 |
| Distance Between Uprights | mm | 450 | 515 | 560 | 610 | 670 | 670 | 736 | 910 | 980 | 980 | 1050 |
| Slide Bottom Size(LxR) | mm | 360 | 410 | 480 | 540 | 620 | 620 | 700 | 880 | 950 | 950 | 1020 |
| Slide Bottom Size(FxB) | mm | 250 | 340 | 400 | 460 | 520 | 520 | 580 | 650 | 700 | 700 | 750 |
| Shank Hole Size(Dia) | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Shank Hole Size(Depth) | mm | 65 | 60 | 70 | 65 | 90 | 90 | 100 | 100 | 130 | 130 | 130 |
| Bolster Size(LxR) | mm | 720 | 825 | 930 | 950 | 1060 | 1100 | 1175 | 1390 | 1500 | 1540 | 1700 |
| Bolster Size(FxB) | mm | 400 | 440 | 520 | 600 | 640 | 680 | 760 | 840 | 880 | 880 | 950 |
| Blanking Hole Diameter | mm | 150 | 150 | 150 | 180 | 180 | 200 | 220 | 250 | 270 | 270 | 290 |
| Bolster Thickness | mm | 80 | 110 | 130 | 140 | 145 | 155 | 165 | 180 | 190 | 190 | 210 |
| Overall Dimensions(FxB) | mm | 780 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1100 |
| Overall Dimensions(LxR) | mm | 1500 | 1585 | 1540 | 1765 | 2000 | 2040 | 2305 | 2600 | 2660 | 2720 | 2850 |
| Overall Dimensions(Height) | mm | 945 | 1075 | 1200 | 1200 | 1300 | 1320 | 1420 | 1540 | 1640 | 1680 | 1750 |
| Distance Between Foundation Bolts(FxB) | mm | 2120 | 2390 | 2570 | 2725 | 3010 | 3035 | 3215 | 3800 | 3850 | 3850 | 4140 |
| Distance Between Foundation Bolts(LxR) | mm | 980 | 1075 | 1100 | 1210 | 1365 | 1430 | 1665 | 2020 | 2100 | 2140 | 2185 |
| Motor | KW | 690 | 760 | 840 | 920 | 1020 | 1040 | 1140 | 1360 | 1460 | 1500 | 1570 |
| Weight๏ผApproximate๏ผ | Kg | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Mpa | / | 2450 | 3550 | 5150 | 6450 | 8650 | 9550 | 13600 | 19200 | 23200 | 26600 | 29500 |
9
People watching this product now!
Description
The HARSLE 25 Ton Pneumatic Punch Press is a powerful and reliable solution for high-speed metal punching. Designed for industrial applications, this press offers a perfect combination of precision, durability, and efficiency. Its pneumatic drive system allows for smooth operation with reduced vibration and noise, ensuring a comfortable and safe working environment.
Key Features:
-
25 Ton Capacity: Provides sufficient punching force for a wide range of sheet metals, including steel, aluminum, and copper.
-
Pneumatic Operation: Enables high-speed repetitive punching with minimal operator fatigue, suitable for mass production.
-
Sturdy Construction: Made from high-grade materials to ensure long service life and stable performance under heavy-duty usage.
-
Compact Design: Saves valuable factory floor space while offering easy integration into existing production lines.
-
Custom Tooling Options: Supports a wide range of dies and punches to meet different manufacturing requirements.
This machine is ideal for fabricators looking to increase productivity without compromising accuracy. It is widely used in manufacturing sectors such as automotive parts, electronic enclosures, appliance housings, and signage. HARSLE provides global support, short lead times, and custom branding to help your business grow with confidence.
WHAT WE OFFER
Product Features Overview
Lubrication System
Automated lubrication system ensures continuous operation, reducing wear and extending machine life.
Pressure Reducing Valve
Precision pressure control enhances operational safety and maintains optimal performance under varied loads.
Pressure Switch
Reliable pressure switch for accurate monitoring, providing safety and stability during high-force operations.
Overload Protector
Built-in overload protector safeguards components, minimizing the risk of damage from excess force.
Wet Friction Clutch-Brake
Wet-type friction clutch-brake offers smooth, noise-free engagement, ensuring responsive and safe stopping.
PLC
Advanced PLC control system enables precise operation, improving efficiency and reducing operator intervention.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. Weโre proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Rated 5 out of 5
Exceptional Quality and Performance!
Weโve been using HARSLEโs punching machine for three years and are extremely satisfied with its performance, quality, and outstanding customer service.
Peru
★★★★★ Rated 5 out of 5
Outstanding Service Every Time!
Weโve used HARSLEโs punching machine for three years and are highly satisfied with its quality and excellent after-sales service.
USA
Most Popular Questions
We offer various types of punching machines, including hydraulic punching machines, mechanical punching machines, and CNC punching machines, designed for different applications and production needs.
Our punching machines can effectively handle a variety of materials, including mild steel, stainless steel, aluminum, and other metals, depending on the specific model and tooling used.
The maximum punching capacity varies by model, typically ranging from 20 tons to over 100 tons. Please refer to the technical specifications for detailed information on each machine's capabilities.
Yes, we offer customization options to meet specific production requirements, including modifications in punching capacity, tooling, and additional features.
Our punching machines are equipped with safety features such as emergency stop buttons, safety guards, and overload protection systems to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer complete installation services and training for your staff to ensure that the punching machine is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 60 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your punching machine.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our punching machines.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 500 kg |
|---|---|
| Dimensions | 1600 × 1250 × 1800 mm |
| Brand |
HARSLE |
| Function |
Punching |
| Lead Time |
45 Days |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
1 Year |
