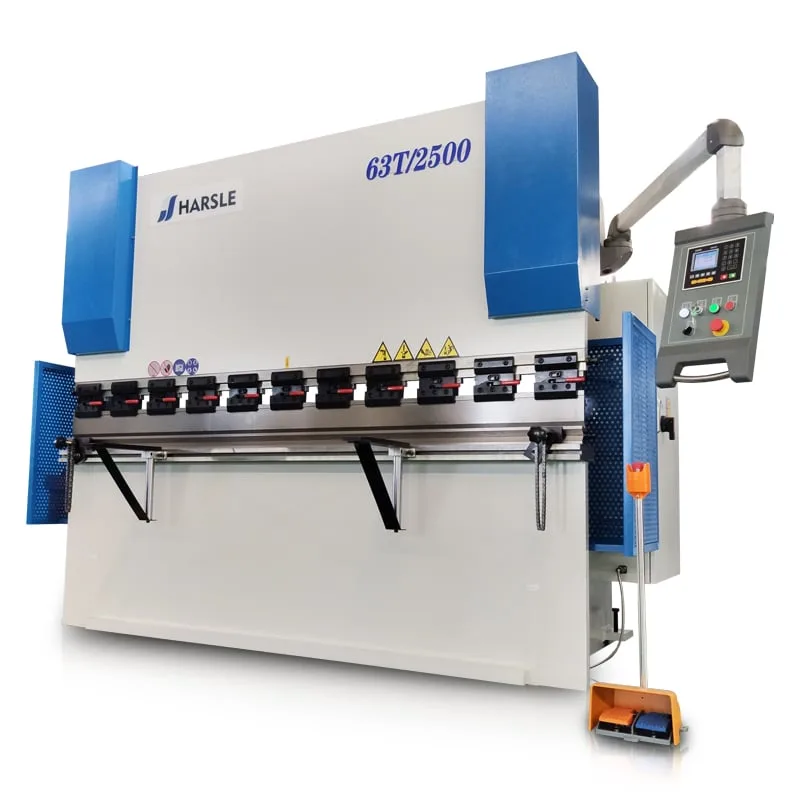

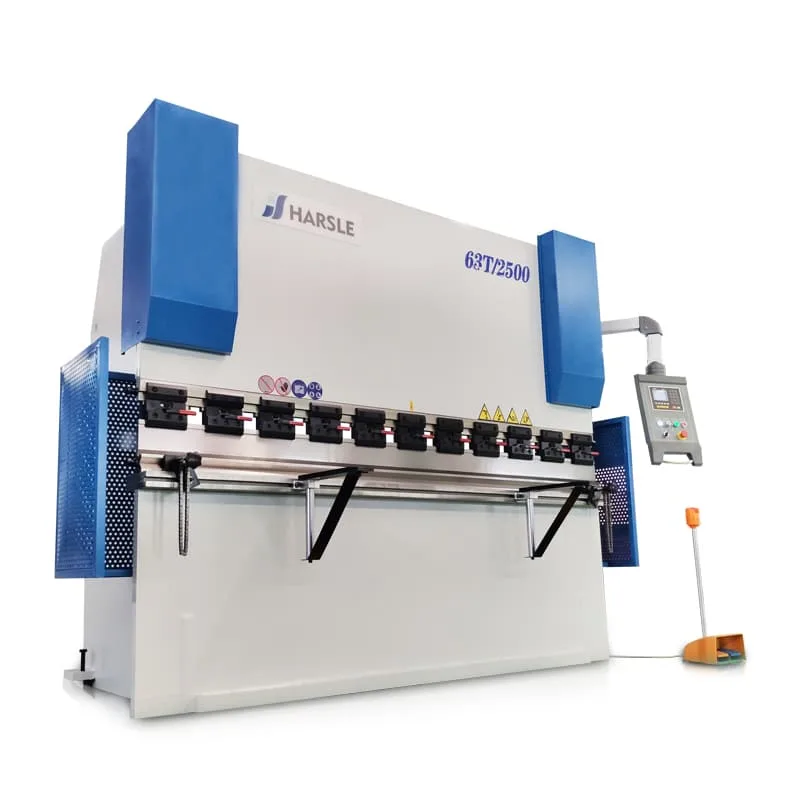

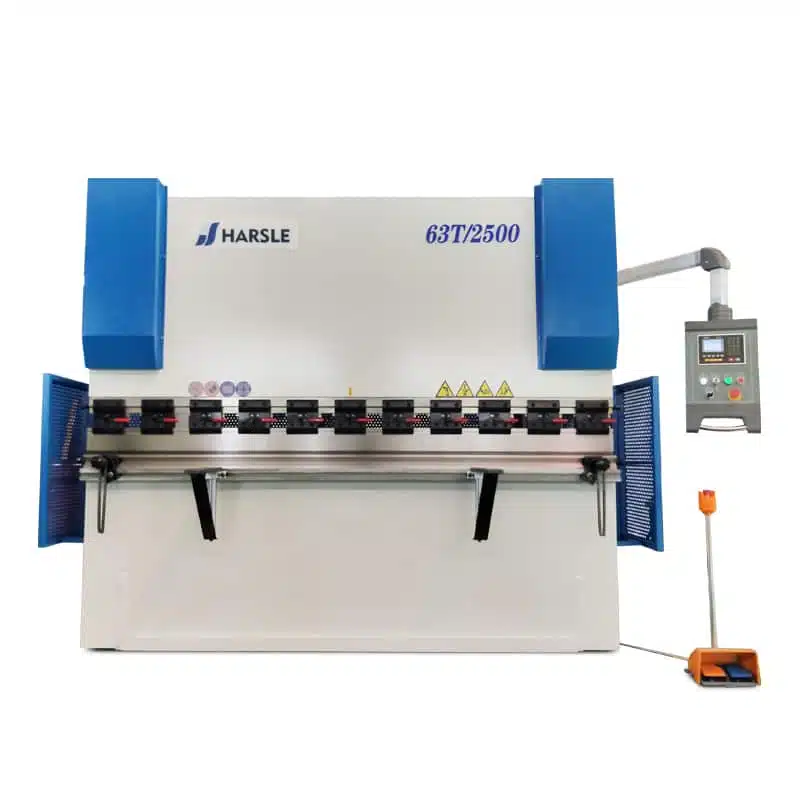

WC67K-63T2500 Hydraulic Press Brake with E200P

WC67K-63T2500 Hydraulic Press Brake with E200P

Name: WC67K-63T2500 Hydraulic Press Brake with E200P | HARSLE
SKU: HS2024118818
Price: 11600 USD
Availability: InStock
Rating: 5.00 (19 reviews)

Rated 5.00 out of 5 based on 19 customer ratings

(19 customer reviews)

The WC67K-63T2500 Hydraulic Press Brake is engineered for precision bending of sheet metal. Equipped with the E200P control system, it offers user-friendly operation and high efficiency. This machine features a robust design for optimal performance, making it ideal for various industrial applications. Its 63-ton capacity and 2500mm bending length ensure versatility for a wide range of projects, ensuring high-quality results every time.

100 in stock

Add to compare

Add to wishlist

QUOTE NOW

NC Press Brake

Item	Unit	30T1200	30T1600	40T1600	40T2000	40T2200	40T2500	50T2000	50T2500	63T1600	63T2500	63T3200	80T2500	80T3200	80T4000	100T2500	100T3200	100T4000	125T2500	125T3200	125T4000	160T2500	160T3200	160T4000	160T5000	160T6000	200T3200	200T4000	200T5000	200T6000	250T3200	250T4000	250T5000	250T6000	300T3200	300T4000	300T5000	300T6000	400T3200	400T4000	400T5000	400T6000
Bending Force	KN	300	300	400	400	400	400	500	500	630	630	630	800	800	800	1000	1000	1000	1250	1250	1250	1600	1600	1600	1600	1600	2000	2000	2000	2000	2500	2500	2500	2500	3000	3000	3000	3000	4000	4000	4000	4000
Bending Length	mm	1200	1600	1600	2000	2200	2500	2000	2500	1600	2500	3200	2500	3200	4000	2500	3200	4000	2500	3200	4000	2500	3200	4000	5000	6000	3200	4000	5000	4000	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000
Column Distance	mm	1000	1200	1200	1600	1800	2100	1600	2100	1200	2100	2600	2100	2600	3200	2100	2600	3200	2100	2600	3200	2100	2600	3200	4000	5000	2600	3200	4000	3200	2600	3200	3200	5000	2600	3200	4000	5200	2600	3200	4200	5200
Throat Depth	mm	250	250	250	250	250	250	250	250	350	350	350	350	350	350	350	350	350	350	350	350	400	400	400	400	400	400	400	400	400	450	450	450	450	500	500	500	500	500	500	500	500
Ram Stroke	mm	100	100	100	100	100	100	100	100	120	120	120	120	120	120	150	150	150	150	150	150	200	200	200	200	200	200	200	200	200	250	250	250	250	300	300	300	300	300	300	300	300
Daylight	mm	360	360	360	360	360	360	360	360	380	380	380	380	380	380	440	440	440	440	440	440	480	480	480	480	480	500	500	500	500	525	525	525	525	575	575	575	575	600	600	600	600
Table Height	mm	750	750	750	750	750	750	750	750	750	750	780	750	820	850	820	820	850	820	820	850	850	850	870	950	980	870	880	920	980	900	920	1000	1050	980	980	1100	1200	1200	1100	1200	1380
Table Width	mm	120	120	140	140	140	140	140	140	160	160	160	200	200	200	200	200	200	200	200	200	250	250	250	250	250	250	240	240	240	260	260	260	260	260	260	260	260	290	290	290	290
Oil Tank	L	85	85	115	115	115	115	115	115	180	180	180	180	180	180	220	220	280	180	220	280	220	220	280	280	280	300	380	380	380	360	450	550	680	360	450	600	780	780	600	760	950
Front Support		2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3
Main AC Motor	KW	4	4	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	7.5	7.5	7.5	7.5	7.5	7.5	7.5	7.5	7.5	11	11	11	11	11	15	15	15	15	18.5	18.5	18.5	18.5	22	22	22	22	30	30	30	30
Down Speed	mm/s	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	100	100	100	100	100	100	100	100	90	90	90	90	90	90	90	90	70	70	70	70	70	70	70	70
Working Speed	mm/s	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-8	0-8	0-8	0-8	0-8	0-6	0-6	0-6
Return Speed	mm/s	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	90	90	90	90	90	90	90	90	80	80	80	80	80	80	80	80	70	70	70	70	70	70	70	70
X-Axis Speed	mm/s	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50
X-Axis Stroke	mm	350	350	350	350	350	350	350	350	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	600	600	600	600	600	600	600	600
X-Axis Accuracy	mm	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Stop Finger		2	2	2	2	2	2	2	2	2	2	3	2	3	4	2	3	4	2	3	4	2	3	4	4	4	3	4	4	4	3	4	4	4	3	4	4	4	3	4	4	4
Weight	kg	1450	1650	2320	2900	3000	3150	2900	3200	3000	3650	4550	4400	5200	6300	5400	5970-8000	6800-8000	5400	5970-7345	6800-8000	7000	7800-10500	10000	12000	14000	9860	12000	14000	18500	11200	13100	17000	22000	18500	17000	20000	24000	20000	22000	29500	31000
Length	mm	1300	1800	1700	2100	2300	2600	1700	1700	2000	2900	3800	2900	3600	4500	2900	3500	4400	2900	3600	4400	2900	3600	4400	5500	6500	3600	4400	5500	6500	3600	4400	4500	6500	3600	4400	5500	6400	3600	4400	5500	6400
Width	mm	1100	1100	1200	1200	1200	1200	1200	1200	1500	1500	1500	1550	1550	1550	1600	1600	1600	1650	1650	1600	1750	1750	1800	1800	1800	1850	1850	1850	1850	1900	1950	2100	2100	1950	1950	2100	2100	2150	2150	2200	2200
Height	mm	1800	1800	1900	1900	1900	1900	1900	1900	2200	2200	2200	2200	2200	2200	2250	2250	2260	2250	2260	2260	2550	2550	2550	2650	2650	2550	2560	2700	2800	2560	2880	2950	2950	1950	2980	3120	3100	3200	3200	3250	3350

6 People watching this product now!

Description

The WC67K-63T2500 Hydraulic Press Brake is designed for high-precision bending in sheet metal fabrication. Equipped with the advanced E200P CNC system, this machine offers unmatched performance and ease of use.

Key Features:

Powerful Performance: 63 tons of bending force with a bending length of 2500 mm.
Advanced Control: The E200P CNC system ensures precise control for accurate bends.
Durability: Robust construction for long-lasting, reliable use in demanding environments.
Versatility: Ideal for various sheet metal bending applications.

Maximize productivity and accuracy with the WC67K-63T2500 Hydraulic Press Brake!
