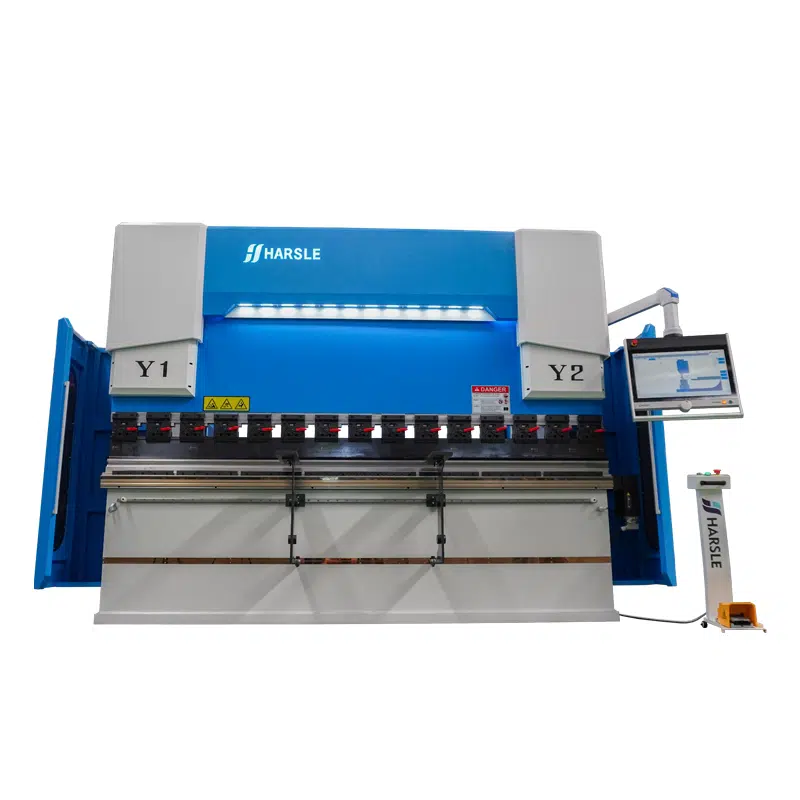

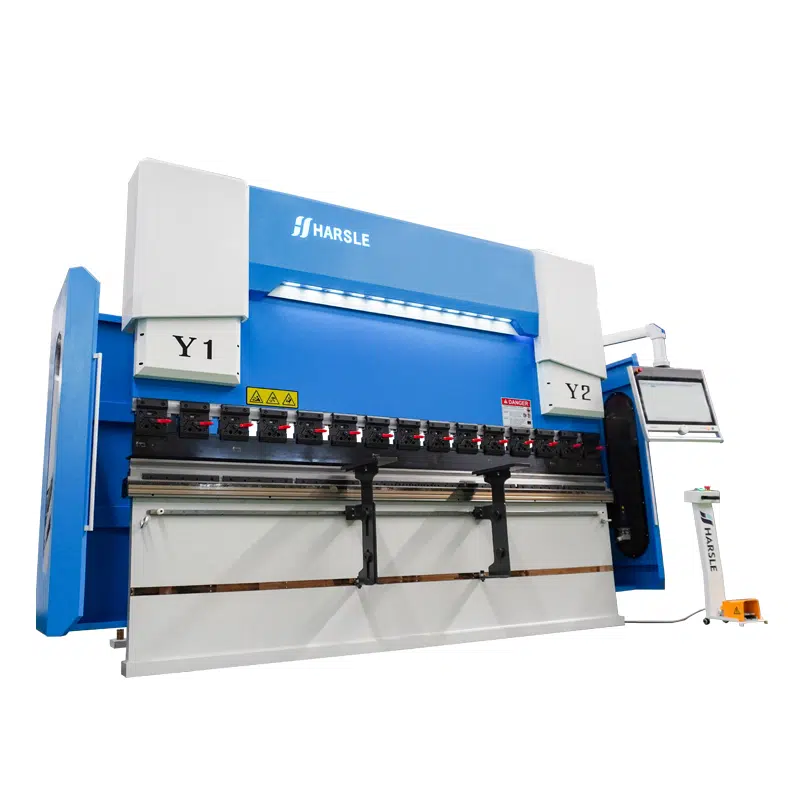

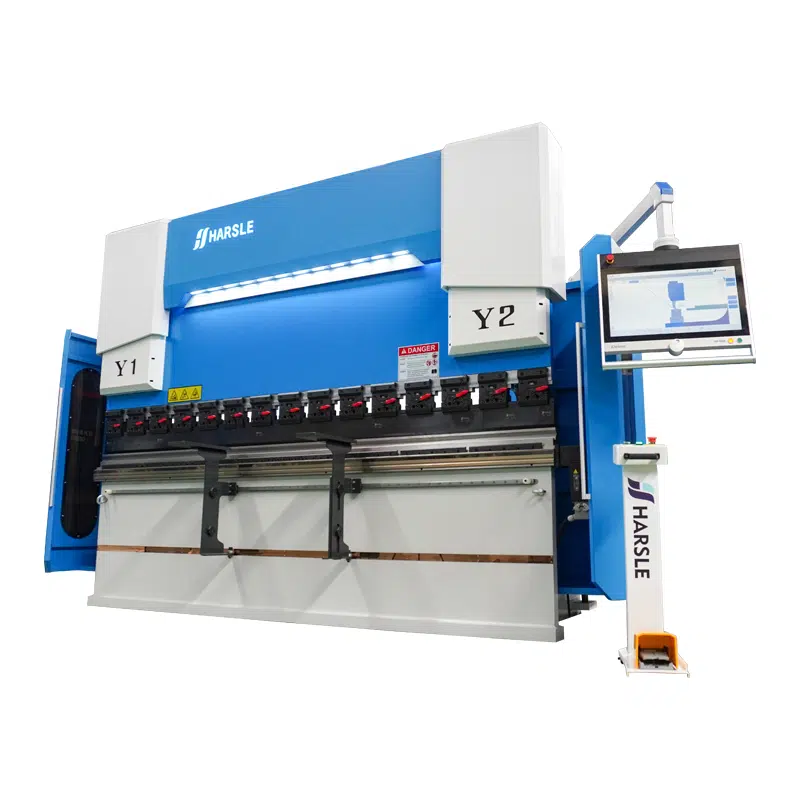

Advanced 8 Axis Press Brake for Complex Bending Tasks

Name: Advanced 8 Axis Press Brake for Complex Bending Tasks | HARSLE
SKU: HS202512103
Price: 43500 USD
Availability: InStock

The 8 Axis Press Brake offers advanced precision and high performance for bending metal sheets. With a powerful control system and innovative design, it ensures accurate results and boosts production efficiency. Ideal for complex operations, this machine supports various bending needs with flexibility and precision. It’s a top choice for industries requiring high-quality metal forming and shaping. Enhance your manufacturing process with this versatile, reliable, and easy-to-operate CNC press brake.

100 in stock

Add to compare

Add to wishlist

QUOTE NOW

Genius Press Brake

Item	Unit	30T1200	30T1500	30T1600	40T1200	40T1500	40T1600	40T2000	40T2200	40T2500	63T1500	63T1600	63T2500	63T3200	80T2500	80T3200	80T4000	100T2500	100T3200	100T4000	125T2500	125T3200	125T4000	160T2500	160T3200	160T4000	160T5000	160T6000	200T3200	200T4000	200T5000	200T6000	250T3200	250T4000	250T5000	250T6000	300T3200	300T4000	300T5000	300T6000	400T3200	400T4000	400T5000	400T6000	500T3200	500T4000	500T5000	500T6000	500T7000	600T4000	600T5000	600T6000	600T7000	600T8000	800T6000	800T7000	800T8000	1000T6000	1000T7000	1000T8000	1200T6000	1200T7000	1200T8000
Bending Force	KN	300	300	300	400	400	400	400	400	400	630	630	630	630	800	800	800	1000	1000	1000	1250	1250	1250	1600	1600	1600	1600	1600	2000	2000	2000	2000	2500	2500	2500	2500	3000	3000	3000	3000	4000	4000	4000	4000	5000	5000	5000	5000	5000	6000	6000	6000	6000	6000	8000	8000	8000	10000	10000	10000	12000	12000	12000
Bending Length	mm	1200	1500	1600	1200	1500	1600	2000	2200	2500	1500	1600	2500	3200	2500	3200	4000	2500	3200	4000	2500	3200	4000	2500	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	7000	4000	5000	6000	7000	8000	6000	7000	8000	6000	7000	8000	6000	70000	80000
Column Distance	mm	900	1100	1200	1000	1100	1200	1600	1800	2100	1100	1200	2100	2600	2100	2600	3200	2100	2600	3200	2100	2600	3200	2100	2600	3200	4000	5000	2600	3200	4000	5000	2600	3200	4000	5000	2600	3200	4000	5000	2600	3200	4000	5000	2500	3000	4000	4800	5600	3000	4000	4800	5600	6800	4800	5600	6800	4800	5500	6500	4800	5600	6500
Throat Depth	mm	250	250	250	250	250	250	250	250	250	300	300	300	300	300	300	300	350	350	350	350	350	350	400	400	400	400	400	400	400	400	400	450	450	450	450	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	600	600	600	600	600	600	600	600	600
Ram Stroke	mm	160	160	160	160	160	160	160	160	160	160	160	160	160	180	180	180	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	250	250	250	250	250	250	250	250	300	300	300	300	300	300	300	300	300	300	300	300	300	300	400	400	400	400	400	400	400	400	400
Daylight	mm	430	430	430	430	430	430	430	430	430	450	450	450	450	450	450	450	480	480	480	480	480	480	480	480	480	480	480	480	480	480	480	525	525	525	525	575	575	575	575	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600
Table Width	mm	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	260	260	260	260	260	260	260	260	260	260	260	260	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
Table Height	mm	750	750	750	750	750	750	750	750	850	850	850	850	880	850	880	880	920	920	920	920	920	920	920	920	920	1000	1050	930	950	1000	1100	1020	1020	1020	1150	1020	1100	1200	1200	1150	1150	1200	1200	1200	1580	1580	1600	1600	1580	1580	1680	1600	1600	1800	1850	1950	2100	2100	2100	2300	2300	2300
Oil Tank	L	85	85	85	85	115	115	115	115	200	200	200	200	220	200	220	220	220	250	320	180	250	320	250	310	390	400	480	310	390	460	550	360	450	520	600	360	450	520	600	600	600	760	950	500	760	760	950	950	760	760	1100	950	950	950	950	950	950	950	950	950	950	950
Front Support		2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3	3	2	2	3	3	3	3	3	3	3	3	3	3	3	3
Servo Motor	KW	3	3	3	5	5	5	5	5	5	6	6	6	6	8.7	8.7	8.7	8.7	8.7	8.7	10.8	10.8	10.8	13.2	13.2	13.2	13.2	13.2	16.7	16.7	16.7	16.7	21.4	21.4	21.4	21.4	26.9	26.9	26.9	26.9	33	33	33	33	45	45	45	45	45	55	55	55	55	55	33+33	33+33	33+33	45+45	45+45	45+45	55+55	55+55	55+55
Pump	ml/r	8	8	8	8	10	10	10	10	10	10	10	10	10	16	16	16	16	16	16	20	20	20	25	25	25	25	25	32	32	32	32	40	40	40	40	50	50	50	50	50	50	50	50	63	63	63	63	63	80	80	80	80	80	50+50	50+50	50+50	63+63	63+63	63+63	80+80	80+80	80+80
Hydraulic Pressure		28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	38	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28
Down Speed	mm/s	200	200	200	200	150	150	150	150	150	160	160	160	160	180	180	180	200	200	200	200	200	200	150	150	150	150	150	120	120	120	120	120	120	120	120	100	100	120	120	90	90	90	90	100	100	100	100	100	80	80	80	80	80	80	80	80	80	80	80	80	80	80
Working Speed	mm/s	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-150	0-15	0-12	0-12	0-12	0-12	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7
Return Speed	mm/s	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	150	150	150	150	150	120	120	150	120	120	120	120	120	90	90	90	90	80	80	80	80	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70
X-Axis Speed	mm/s	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
X-Axis Stroke	mm	400	400	400	400	400	400	400	400	400	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	650	650	650	650	650	650	650	650	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750
R-Axis Speed	mm/s	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200
R-Axis Stroke	mm	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	200	200	200	200	200	200	200	200	200	200	200	200	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/
X Axis Accuracy	mm	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
Stop Finger		2	2	2	2	2	2	2	2	4	2	2	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Weight	kg	2980					3100	3400	3500	3700	3700	3800	4200	4800	5105	5800	7500	6200	7000	8050	6300	7500	8800	8200	9300	10500	12000	14000	10000	12000	14000	16000	12000	13500	15500	18000	12500	14800	16000	22000	22500	26500	28500	31800	26000	32000	39000	42000	50000
Length	mm	1600	1900	2000	1600	1900	2000	2500	2700	2900	1900	2000	2900	3600	2900	3600	4600	2900	3500	4400	2900	3600	4400	2900	3600	4400	5600	6600	3600	4400	5300	6600	3600	4400	5300	6700	3600	4400	5500	6700	3600	4400	5500	6400	3800	4600	5500	6400	7500	4500	5500	6600	7300	8600	6500	7500	8400	6300	7500	8600	6300	7500	8600
Width	mm	1300	1300	1300	1300	1400	1400	1400	1400	1400	1500	1500	1500	1500	1550	1550	1600	1600	1600	1600	1650	1650	1600	1750	1750	1800	1850	1800	1850	1850	1850	1850	1900	1950	1950	1950	1950	1950	2000	2000	1950	2150	2150	2200	2300	2300	2300	2300	2500	2350	2350	2350	2350	2850	2850	2850	2850	3100	3100	3100	3200	3200	3200
Height	mm	2100	2100	2100	2100	2150	2150	2150	2150	2150	2400	2400	2400	2400	2500	2500	2680	2600	2600	2650	2620	2630	2680	2700	2700	2750	2800	2950	2750	2780	2800	2980	2850	2880	2980	3100	2950	2980	3100	3200	3200	3200	3250	3350	3200	3200	3400	3500	4500	4500	4500	4500	4500	4500	5300	5300	5300	6800	6800	6800	7500	7500	7500

8 People watching this product now!

Description

The 8 Axis Press Brake is engineered to provide unparalleled precision and performance in sheet metal forming. This advanced machine features an 8-axis control system that ensures complex bending operations are completed with the utmost accuracy. It is ideal for handling intricate and high-demand bending tasks, making it a perfect choice for industries such as aerospace, automotive, and heavy machinery.

Key Features:

Precision Control: The 8-axis system allows for more complex movements and precise bending angles, improving the accuracy of each part.
Versatile Bending Capabilities: Capable of bending a wide range of materials and thicknesses, making it suitable for various applications.
High Efficiency: The machine’s advanced design and control system reduce setup time, optimize operations, and increase throughput.
User-Friendly Interface: The intuitive control panel makes it easy for operators to program and adjust settings, minimizing training time.
Durability: Built with high-quality components, the 8 Axis CNC Press Brake offers excellent durability and long-term reliability.

This press brake is designed to meet the needs of high-precision sheet metal forming while ensuring efficient operation in any manufacturing environment. Whether working with small batches or large-scale production runs, the 8 Axis CNC Press Brake delivers outstanding performance every time.
