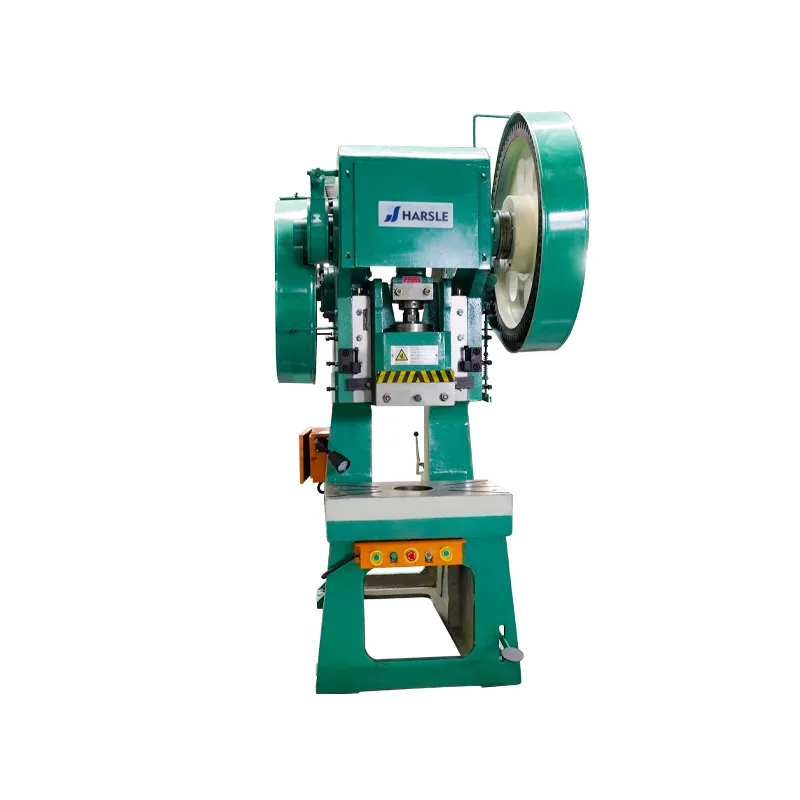

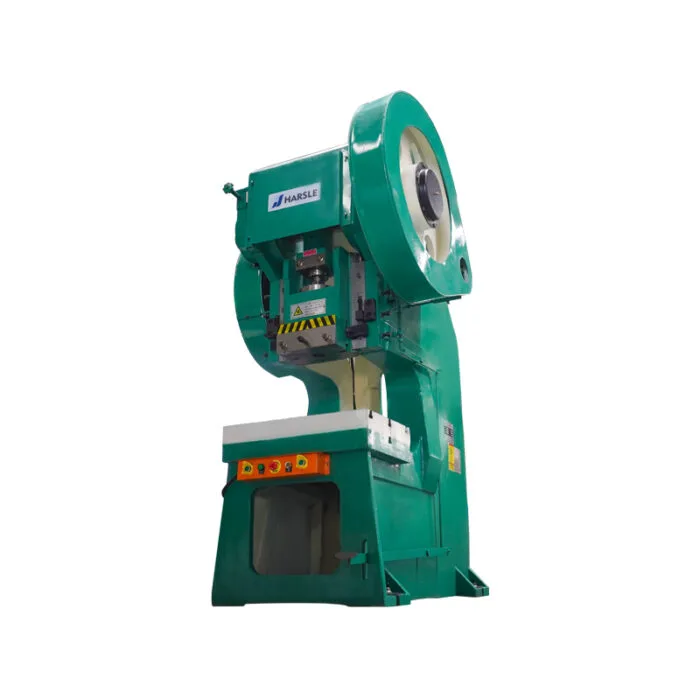

100 Ton Electric Mechanical Power Press Punching Machine
The 100 Ton Electric Mechanical Power Press Punching Machine delivers high precision and powerful performance for sheet metal punching applications. Featuring a robust 100-ton capacity, this machine offers consistent force and accuracy, ideal for mass production of complex metal parts. With an electric mechanical drive system, it ensures energy efficiency, minimal maintenance, and smooth operation, making it a reliable solution for various industrial sectors including automotive, electronics, and metal fabrication.
100 in stock
J21S Deep Throat Punching Machine
| Description | Type | J21S-10T | J21S-16T | J21S-25T | J21S-40T | J21S-63T | J21S-80T | J21S-100T | J21S-125T | J21S-160T |
| Nominal Force | kn | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| Slide Stroke | mm | 50 | 60 | 70 | 100 | 100 | 115 | 130 | 130 | 130 |
| Number of Stroke | Times/min | 140 | 100 | 70 | 50 | 50 | 45 | 40 | 40 | 35 |
| Closed Height | mm | 200 | 250 | 290 | 350 | 380 | 410 | 420 | 420 | 410 |
| Close Height Adjustment | mm | 40 | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 80 |
| Throat Depth | mm | 420 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Column Distance | mm | 170 | 200 | 230 | 320 | 350 | 360 | 400 | 430 | 330 |
| Table Size(FxB) | mm | 230 | 280 | 330 | 420 | 450 | 500 | 600 | 650 | 650 |
| Table Size(LxR) | mm | 370 | 450 | 530 | 640 | 700 | 750 | 900 | 1000 | 1100 |
| Slide Bottom Size(FxB) | mm | 100 | 130 | 170 | 190 | 220 | 250 | 280 | 350 | 340 |
| Slide Bottom Size(LxR) | mm | 145 | 180 | 200 | 250 | 310 | 300 | 325 | 380 | 420 |
| Shouk Dimension(Diameter) | mm | 30 | 35 | 40 | 50 | 50 | 60 | 60 | 70 | 80 |
| Shouk Dimension(Depth) | mm | 50 | 60 | 60 | 100 | 100 | 100 | 100 | 100 | 100 |
| Thickness of Table | mm | 30 | 40 | 45 | 70 | 80 | 90 | 100 | 110 | 120 |
| Dimension(FxB) | mm | 740 | 900 | 1000 | 1400 | 1500 | 1600 | 1800 | 1900 | 1800 |
| Dimension(LxR) | mm | 600 | 780 | 830 | 1100 | 1200 | 1300 | 1300 | 1500 | 1600 |
| Dimension(Height) | mm | 1500 | 1720 | 1950 | 2300 | 2400 | 2600 | 2650 | 2800 | 2900 |
| Motor | kw | 1.1 | 1.5 | 2.2 | 4.0 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Weight | kg | 450 | 850 | 1400 | 2800 | 3700 | 4800 | 5900 | 8300 | 11000 |
8
People watching this product now!
Description
The 100 Ton Electric Mechanical Power Press Punching Machine is designed for high-precision metalworking, ideal for punching, stamping, and forming applications. It delivers powerful performance with a 100-ton capacity, making it perfect for heavy-duty production needs.
Key Features:
- High Efficiency: Fast and accurate punching with minimal downtime.
- Durability: Built to last with a robust, high-quality frame.
- Precision: Excellent for precise metal shaping and stamping.
- Energy-Efficient: Electric mechanism ensures lower operational costs.
This machine is an excellent choice for businesses seeking reliable, cost-effective punching solutions.
WHAT WE OFFER
Product Features Overview
Forged Steel Gear
Precision-forged steel gear ensures durability and power, delivering efficient, reliable performance under heavy-duty conditions.
Fixed Workbench
Stable workbench provides secure support, enhancing accuracy and safety during continuous punching operations.
Closed Height Adjustment
Easy height adjustment offers flexibility, allowing fine-tuning for optimal punching depth and accuracy.
Lighting Equipment
Integrated lighting illuminates the workspace, improving visibility for precise operation and reducing operator strain.
Lubrication System
Automatic lubrication reduces friction, prolongs machine lifespan, and ensures smooth, uninterrupted operation.
Operation Buttons
Ergonomic buttons enable straightforward control, enhancing user comfort and ensuring efficient, safe machine handling.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ 5/5
Exceptional Quality and Performance!
We’ve been using HARSLE’s punching machine for three years and are extremely satisfied with its performance, quality, and outstanding customer service.
Peru
★★★★★ 5/5
Outstanding Service Every Time!
We’ve used HARSLE’s punching machine for three years and are highly satisfied with its quality and excellent after-sales service.
USA
Most Popular Questions
We offer various types of punching machines, including hydraulic punching machines, mechanical punching machines, and CNC punching machines, designed for different applications and production needs.
Our punching machines can effectively handle a variety of materials, including mild steel, stainless steel, aluminum, and other metals, depending on the specific model and tooling used.
The maximum punching capacity varies by model, typically ranging from 20 tons to over 100 tons. Please refer to the technical specifications for detailed information on each machine's capabilities.
Yes, we offer customization options to meet specific production requirements, including modifications in punching capacity, tooling, and additional features.
Our punching machines are equipped with safety features such as emergency stop buttons, safety guards, and overload protection systems to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer complete installation services and training for your staff to ensure that the punching machine is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 60 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your punching machine.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our punching machines.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 3200 × 2500 × 2500 mm |
| Brand |
HARSLE |
| Lead Time |
45 Days |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
3 Years |
| Function |
Punching |
