High-Performance Industrial Tube Deburring Machines
Original price was: $5,600.$4,800Current price is: $4,800.Set
Deburring and Finishing Machine for Metal Parts
Original price was: $5,600.$4,800Current price is: $4,800.Set

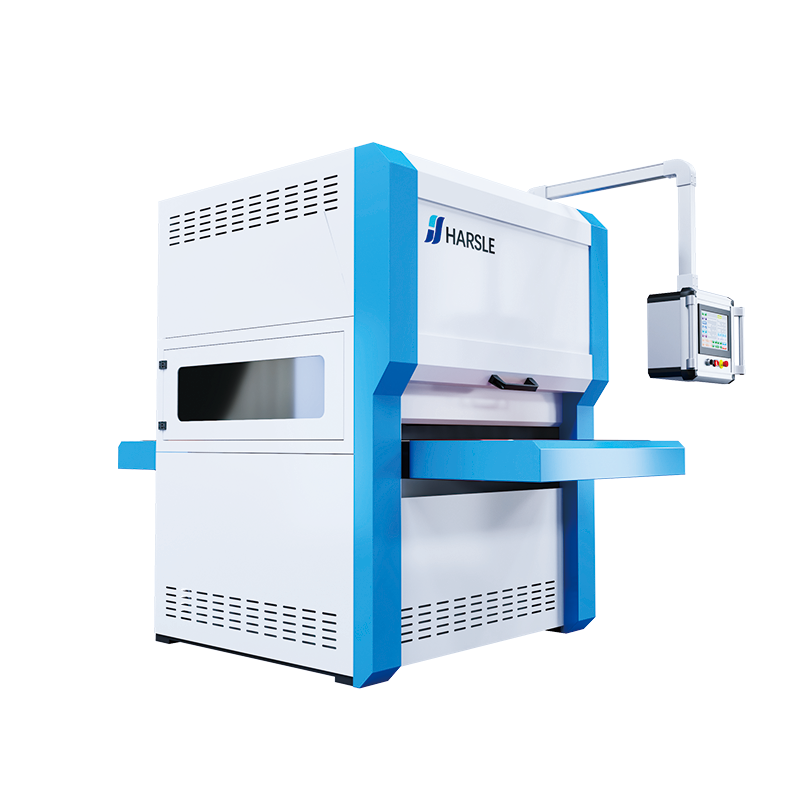

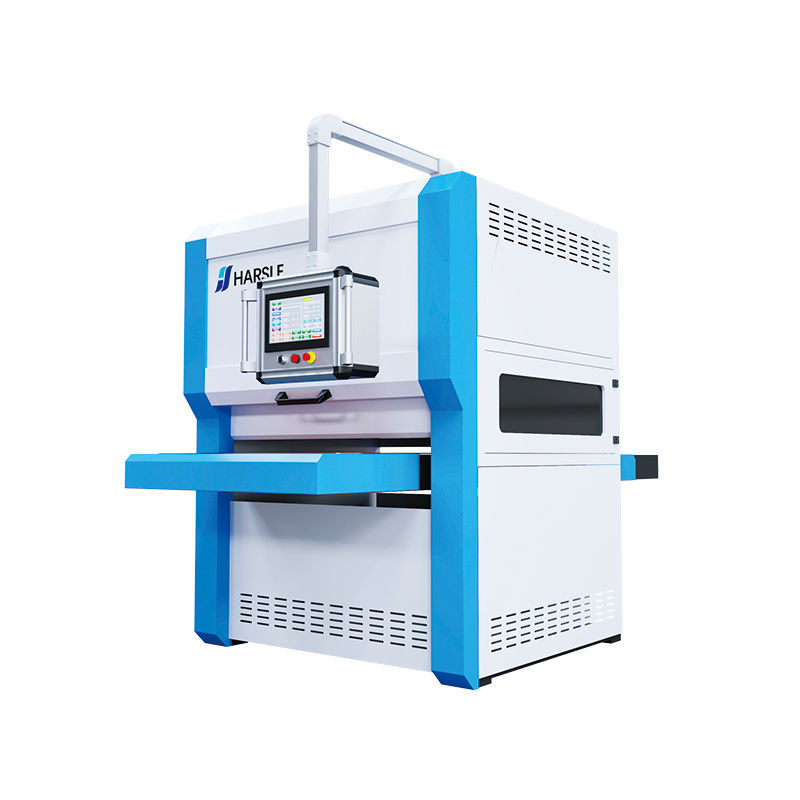

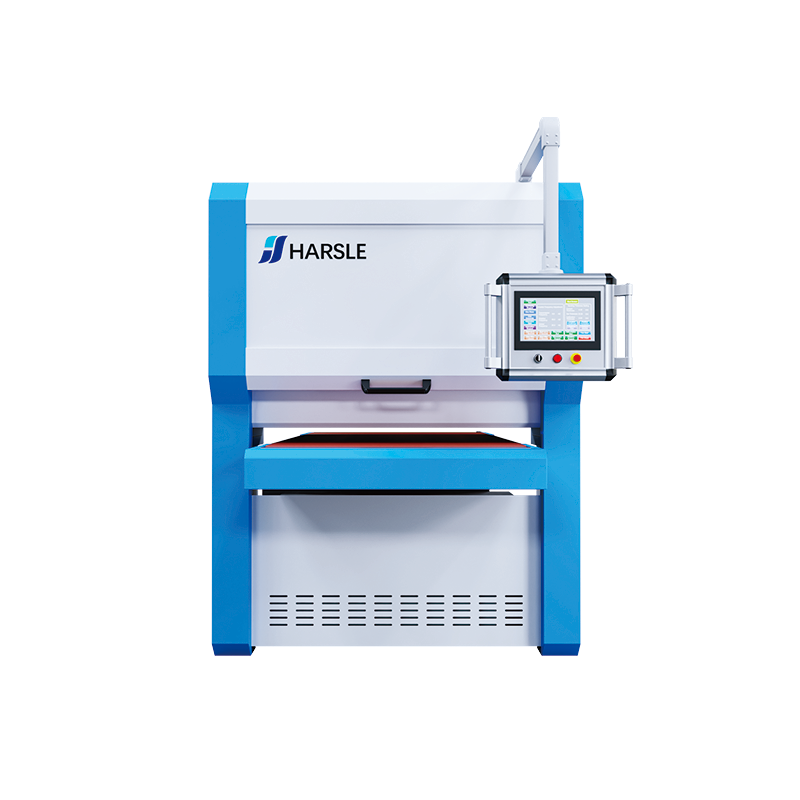

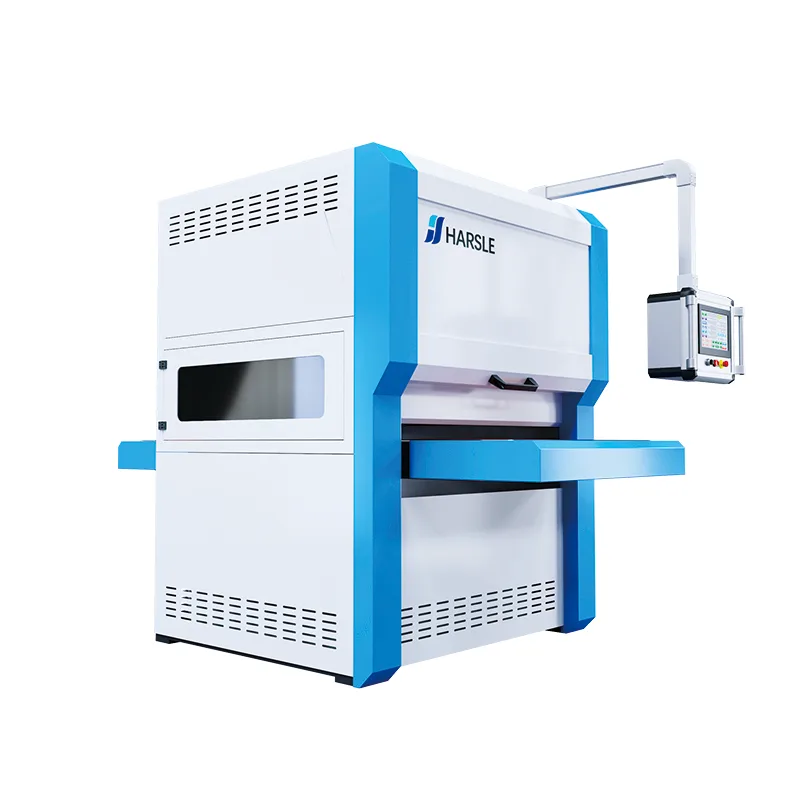

High Speed Metal Chamfering Machine
Original price was: $8,600.$6,700Current price is: $6,700.Set
The metal chamfering machine is designed for precise edge beveling and deburring of metal sheets and plates. It delivers smooth, uniform chamfering results with high efficiency and stable performance. Ideal for steel, stainless steel, and aluminum processing, this machine improves welding quality and product appearance. With adjustable chamfering angles and user-friendly operation, it is widely used in fabrication workshops, manufacturing plants, and industrial production lines.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
EdgePolih
| Item | Unite | M1000 | M1300 | M1600 | V1000 | V1300 | V1600 | MV1000 | MV1300 | MV1600 |
| Processing Width | mm | 1000 | 1300 | 1600 | 1000 | 1300 | 1600 | 1000 | 1300 | 1600 |
| Processing Thickness | mm | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 |
| Minimum Workpiece Size | mm | โฅ50*50*0.5 | โฅ50*50*0.5 | โฅ100*50*0.5 | โฅ50*50*0.5 | โฅ50*50*0.5 | โฅ100*50*0.5 | โฅ50*50*0.5 | โฅ50*50*0.5 | โฅ100*50*0.5 |
| Feeding Speed | m/min | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 |
| Roller Brush Speed | m/min | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Orbital Speed | m/min | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Abrasive Wheel Size | mm | 350*300*28 | 350*300*35 | 350*400*40 | 350*300*28 | 350*300*35 | 350*400*40 | 350*300*28 | 350*300*35 | 350*400*40 |
| Conveyor Table Height | mm | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 |
| Orbital Motor | kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Roller Brush Motor | kw | 2.2*3 | 2.2*3 | 2.2*4 | 2.2*3 | 2.2*3 | 2.2*4 | 2.2*3 | 2.2*3 | 2.2*4 |
| Conveyor Motor | kw | 1.5 | 2.2 | 3 | 1.5 | 2.2 | 3 | 1.5 | 2.2 | 3 |
| Brush Lifting Motor | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Machine Noise Level | dB | โค85 | โค85 | โค85 | โค85 | โค85 | โค85 | โค85 | โค85 | โค85 |
| Chamfering Range | mm | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 |
| Negative Pressure Fan Motor | kw | - | - | - | 11 | 15 | 15 | 11 | 15 | 15 |
| Negative Pressure Fan Dimensions | mm | - | - | - | 1200*850*1000 | 1350*900*1150 | 1350*900*1150 | 1200*850*1000 | 1350*900*1150 | 1350*900*1150 |
| Negative Pressure Fan Weight | kg | - | - | - | 190 | 220 | 220 | 190 | 220 | 220 |
| Machine Dimensions | mm | 1800*1500*2000 | 2200*1900*2200 | 2200*2200*2000 | 1800*1500*2000 | 2200*1900*2200 | 2200*2200*2000 | 1800*1500*2000 | 2200*1900*2200 | 2200*2200*2000 |
| Machine Weight | kg | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 |
5
People watching this product now!
Description
The metal chamfering machine is a reliable solution for creating clean, consistent bevels on metal edges before welding, coating, or assembly. It is specially engineered for sheet metal processing, structural components, and plate fabrication applications where high precision and surface quality are essential.
This machine significantly improves welding preparation by removing sharp edges, burrs, and oxide layers, ensuring better joint strength and smoother finishing results. With its robust frame structure and stable feeding system, the metal chamfering machine ensures accurate angle control and consistent chamfer depth even during continuous operation.
Designed for industrial efficiency, it reduces manual grinding time and enhances overall productivity. The machine is suitable for carbon steel, stainless steel, aluminum, and other metal materials commonly used in manufacturing industries.
Key Features
-
Adjustable chamfering angle for flexible processing
-
High-precision cutting system for smooth bevel surfaces
-
Strong and durable machine structure
-
Easy operation with stable feeding mechanism
-
Suitable for various metal materials and thicknesses
The metal chamfering machine is an essential piece of equipment for fabrication workshops, construction industries, shipbuilding, and heavy machinery manufacturing. It helps improve product quality, reduce labor costs, and ensure consistent processing results across batches.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. Weโre proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
WHAT WE OFFER
Product Features Overview
Holding
The workpiece is securely fixed by magnetic or vacuum holding to ensure stable positioning during processing.
Discharge
The finished workpiece is automatically conveyed out of the machine, ready for the next production step.
Magnetic Conveyor
Designed for ferrous workpieces such as carbon steel and other magnetic, the magnetic conveyor belt securely holds parts during processing.
Magnetic & Vacuum Conveyor*
This combined system is ideal for mixed material applications, handing both magnetic and non-magnetic workpieces on the same line.
Vacuum Conveyor*
The vacuum conveyor belt is suitable for non-magnetic materials such as aluminum and copper. By using vacuum suction.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Valorado con 5 de 5
Exceptional Quality and Performance!
Perfect edge rounding without compromising tolerances. The consistent finish is impressive. Plus, the dust extraction system keeps our workshop clean and healthy. Great for quality and employee safety!
Germany
★★★★★ Valorado con 5 de 5
Outstanding Service Every Time!
Throughput tripled instantly! The dual-sided processing saves immense time. We achieved 300% faster speeds, and labor savings covered the investment in six months. Perfect for high-volume production.
USA
Most Popular Questions
What is a metal deburring machine and how does it work?
A metal deburring machine is designed to remove burrs, sharp edges, slag, and oxide layers from metal parts after cutting, punching, or laser processing. It works by passing workpieces through a series of rotating abrasive brushes, sanding belts, or grinding heads that uniformly smooth all edges and surfaces. The result is clean, safe-to-handle parts with consistent edge quality.
What types of metal deburring machines do you offer?
We offer a full range of metal deburring machines, including sheet metal deburring machines, edge rounding machines, slag removal machines, oxide layer removal machines, and multi-function models that combine deburring, edge rounding, and surface finishing in a single pass. Both wide-belt and planetary head configurations are available to suit different application requirements.
What materials can your deburring machines process?
Our metal deburring machines can process a wide variety of materials including carbon steel, stainless steel, aluminum, copper, brass, galvanized steel, and titanium. They are suitable for parts produced by laser cutting, plasma cutting, flame cutting, stamping, punching, and shearing. The machines handle both thin sheets and medium-thick plates effectively.
What is the maximum working width and thickness capacity?
Our deburring machines are available in working widths from 600 mm to 1,600 mm, with workpiece thickness capacities ranging from 0.5 mm to 80 mm depending on the model. The minimum part size is typically 50 mm ร 50 mm. We can recommend the optimal machine specification based on your part dimensions and production volume.
Can the machine deburr both sides of a part in one pass?
Yes, our dual-sided deburring machines are equipped with processing units on both the top and bottom, allowing simultaneous deburring and edge rounding on both sides of the workpiece in a single pass. This significantly reduces processing time and eliminates the need to flip parts manually, greatly improving production efficiency and consistency.
What are the advantages of using a deburring machine over manual deburring?
Machine deburring offers significant advantages over manual methods: uniform and repeatable edge quality, dramatically faster processing speed (up to 10ร faster), reduced labor costs, improved workplace safety by eliminating hand grinding, and consistent results regardless of operator skill level. Automated deburring also minimizes the risk of part damage and ensures every piece meets the same quality standard.
How does the edge rounding function work?
The edge rounding function uses specially designed abrasive brushes or planetary grinding heads to create a uniform radius on all edges of the workpiece. The rounding radius is adjustable, typically from R0.2 mm to R2.0 mm, to meet different coating and safety requirements. Rounded edges improve paint and powder coating adhesion, prevent coating failure at sharp corners, and make parts safe to handle.
What maintenance is required for the deburring machine?
Routine maintenance mainly involves replacing abrasive belts and brushes when worn, cleaning the dust collection system, and periodic lubrication of mechanical components. Consumable replacement is straightforward and can be done by operators without special tools. We provide maintenance guidelines and recommended replacement schedules to ensure your machine maintains optimal performance with minimal downtime.
What is the typical lead time and warranty period?
The standard production lead time for our metal deburring machines is 15 to 30 days depending on the model and configuration. We provide a 12-month warranty covering manufacturing defects on the entire machine, with extended warranty options available. Spare parts, technical support, and consumable supplies are readily accessible throughout the machine's lifetime.
Do you provide installation, training, and after-sales support?
Yes, we offer comprehensive installation and commissioning services, hands-on operator training, and long-term after-sales support. Our engineers can provide on-site setup or remote guidance via video. We also supply detailed operation manuals, maintenance training, and fast spare parts delivery to ensure your deburring machine operates at peak efficiency throughout its service life.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2020 × 1750 mm |
| Brand | HARSLE |
| Lead Time | 45 Days |
| Function | Deburring |
| Price Term | EXW |
| Warranty | 1 Year |
| Payment Term | LC, TT |
