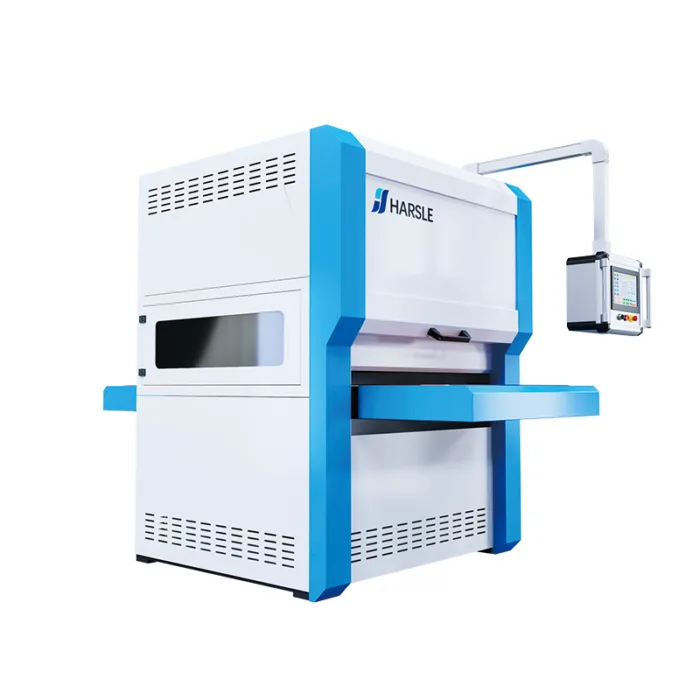

Pneumatic Chamfering Machine for Cut Sheet Metal
HARSLE pneumatic chamfering machine is specially designed for cut sheet metal edge finishing after laser, plasma, or flame cutting. It efficiently removes burrs, sharp edges, and oxidation layers, ensuring smooth and uniform chamfers. Powered by compressed air, the machine offers stable performance, easy operation, and flexible angle adjustment. It is ideal for improving surface quality and safety in sheet metal fabrication workshops.
100 in stock
EdgePolih
| Item | Unite | M1000 | M1300 | M1600 | V1000 | V1300 | V1600 | MV1000 | MV1300 | MV1600 |
| Processing Width | mm | 1000 | 1300 | 1600 | 1000 | 1300 | 1600 | 1000 | 1300 | 1600 |
| Processing Thickness | mm | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 |
| Minimum Workpiece Size | mm | ≥50*50*0.5 | ≥50*50*0.5 | ≥100*50*0.5 | ≥50*50*0.5 | ≥50*50*0.5 | ≥100*50*0.5 | ≥50*50*0.5 | ≥50*50*0.5 | ≥100*50*0.5 |
| Feeding Speed | m/min | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 | 0.5-14 |
| Roller Brush Speed | m/min | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Orbital Speed | m/min | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Abrasive Wheel Size | mm | 350*300*28 | 350*300*35 | 350*400*40 | 350*300*28 | 350*300*35 | 350*400*40 | 350*300*28 | 350*300*35 | 350*400*40 |
| Conveyor Table Height | mm | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 | 860-980 |
| Orbital Motor | kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Roller Brush Motor | kw | 2.2*3 | 2.2*3 | 2.2*4 | 2.2*3 | 2.2*3 | 2.2*4 | 2.2*3 | 2.2*3 | 2.2*4 |
| Conveyor Motor | kw | 1.5 | 2.2 | 3 | 1.5 | 2.2 | 3 | 1.5 | 2.2 | 3 |
| Brush Lifting Motor | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Machine Noise Level | dB | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
| Chamfering Range | mm | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 | R0.1-1 |
| Negative Pressure Fan Motor | kw | - | - | - | 11 | 15 | 15 | 11 | 15 | 15 |
| Negative Pressure Fan Dimensions | mm | - | - | - | 1200*850*1000 | 1350*900*1150 | 1350*900*1150 | 1200*850*1000 | 1350*900*1150 | 1350*900*1150 |
| Negative Pressure Fan Weight | kg | - | - | - | 190 | 220 | 220 | 190 | 220 | 220 |
| Machine Dimensions | mm | 1800*1500*2000 | 2200*1900*2200 | 2200*2200*2000 | 1800*1500*2000 | 2200*1900*2200 | 2200*2200*2000 | 1800*1500*2000 | 2200*1900*2200 | 2200*2200*2000 |
| Machine Weight | kg | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 |
9
People watching this product now!
Description
The HARSLE pneumatic chamfering machine for cut sheet metal is engineered to solve common edge problems after laser cutting, plasma cutting, or flame cutting. Cutting processes often leave burrs, sharp edges, or oxidation residues, which affect product safety, appearance, and assembly accuracy. This machine provides an efficient and reliable solution for post-cut edge finishing.
Powered by compressed air, the pneumatic system ensures stable output and smooth operation with low energy consumption. It is suitable for chamfering and deburring carbon steel, stainless steel, aluminum sheets, and other metal materials. Operators can easily adjust the chamfering angle and depth according to different thickness requirements, making it flexible for various sheet metal applications.
Its compact structure allows easy integration into existing production lines or standalone workshop setups. The machine improves processing efficiency, reduces manual grinding time, and ensures consistent finishing quality across batches.
Key Features:
• Designed for post-cut sheet metal edge finishing
• Removes burrs, sharp edges, and oxidation layers
• Pneumatic power system for stable and efficient performance
• Adjustable chamfer angle and depth
• Suitable for laser-cut, plasma-cut, and flame-cut sheets
• Compact design for workshop-friendly installation
The HARSLE pneumatic chamfering machine helps manufacturers achieve smooth, safe, and professional edges, improving overall product quality and production efficiency.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
WHAT WE OFFER
Product Features Overview

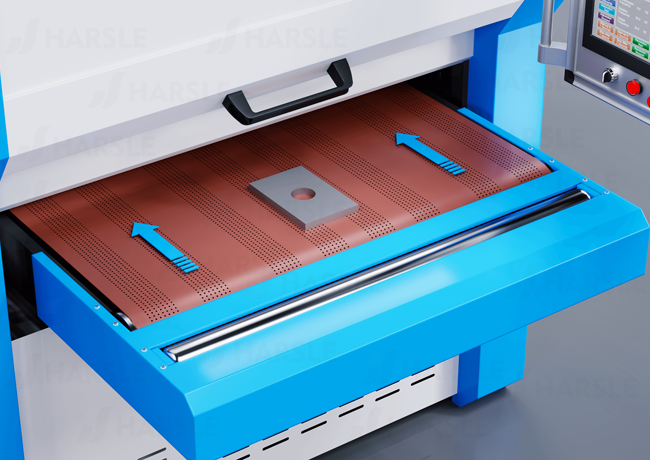

Holding
The workpiece is securely fixed by magnetic or vacuum holding to ensure stable positioning during processing.

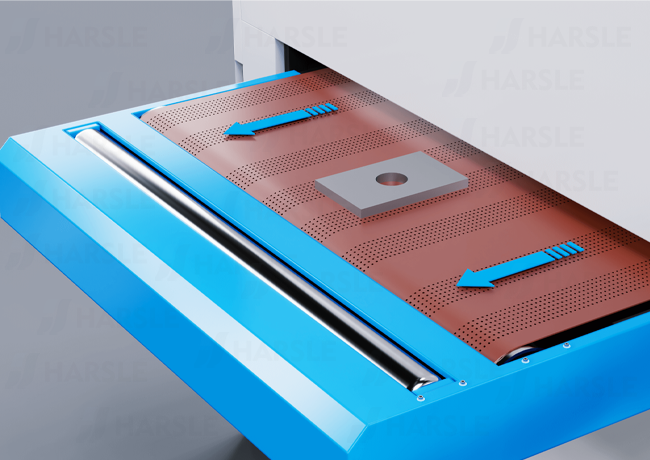

Discharge
The finished workpiece is automatically conveyed out of the machine, ready for the next production step.

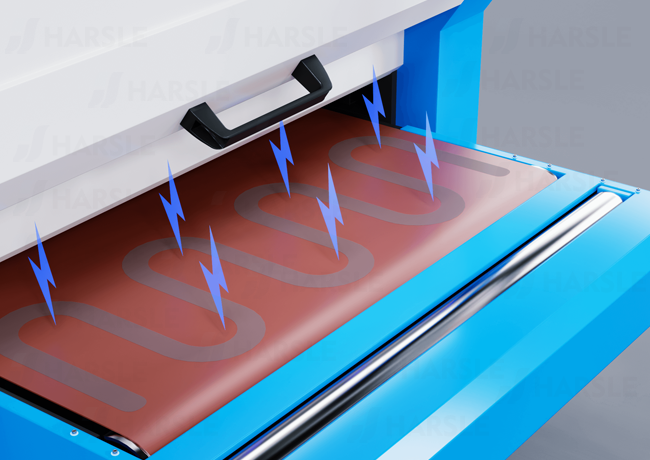

Magnetic Conveyor
Designed for ferrous workpieces such as carbon steel and other magnetic, the magnetic conveyor belt securely holds parts during processing.

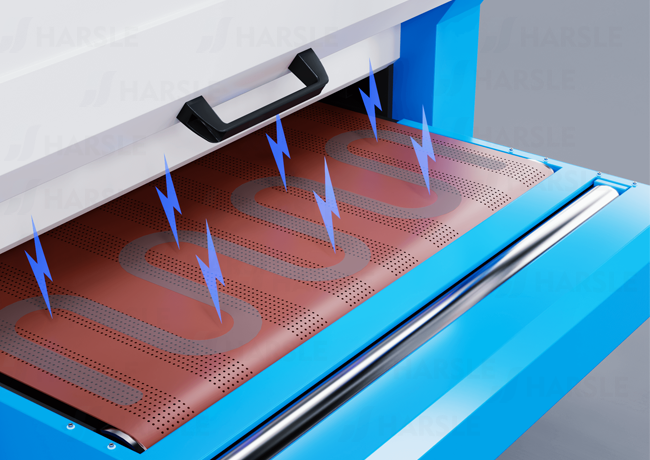

Magnetic & Vacuum Conveyor*
This combined system is ideal for mixed material applications, handing both magnetic and non-magnetic workpieces on the same line.

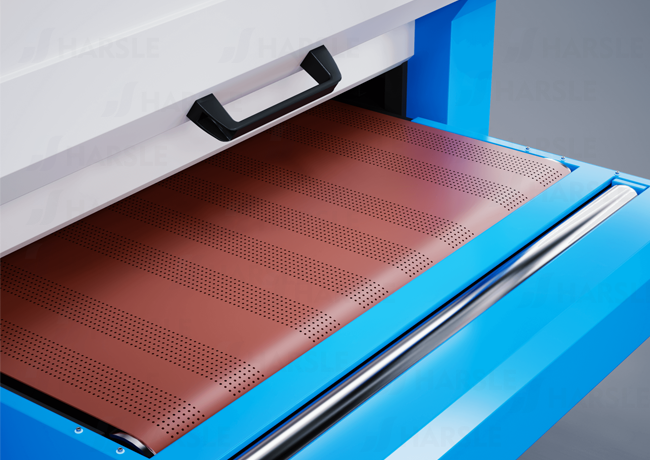

Vacuum Conveyor*
The vacuum conveyor belt is suitable for non-magnetic materials such as aluminum and copper. By using vacuum suction.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Оценка 5 из 5
Exceptional Quality and Performance!
Perfect edge rounding without compromising tolerances. The consistent finish is impressive. Plus, the dust extraction system keeps our workshop clean and healthy. Great for quality and employee safety!
Germany
★★★★★ Оценка 5 из 5
Outstanding Service Every Time!
Throughput tripled instantly! The dual-sided processing saves immense time. We achieved 300% faster speeds, and labor savings covered the investment in six months. Perfect for high-volume production.
USA
Most Popular Questions
It can process various metals including stainless steel, aluminum, carbon steel, copper, and alloys.
No, our precision brushes remove burrs and sharp edges while maintaining the part's original thickness.
Standard models handle plates from 0.5mm up to 100mm, adjustable via the control panel.
Yes, integrated vacuum conveyor belts or magnetic beds securely hold small parts during processing.
Yes, our top-tier models deburr both sides simultaneously, doubling your production efficiency.
Lifespan depends on usage, but typically brushes last for 500–1,000 operating hours.
Yes, an integrated wet or dry dust collector ensures a clean and safe working environment.
Yes, specialized slag-grinding rollers can be added to the first station for heavy removal.
The intuitive PLC touchscreen makes setup simple, requiring minimal training for a single operator.
Mainly cleaning the dust collector, checking belt tension, and lubricating moving joints weekly.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2020 × 1750 mm |
| Brand | HARSLE |
| Lead Time | 45 Days |
| Function | Deburring |
| Price Term | EXW |
| Warranty | 1 Year |
| Payment Term | LC, TT |
