Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
Guillotine Shearing Machine
| Size | Unit | 6X2500 | 6X3200 | 6X4000 | 6X5000 | 6X6000 | 8X2500 | 8X3200 | 8X4000 | 8X5000 | 8X6000 | 10X2500 | 10X3200 | 10X4000 | 10X5000 | 10X6000 | 12X25000 | 12X3200 | 12X4000 | 12X5000 | 12X6000 | 16X2500 | 16X3200 | 16X4000 | 16X5000 | 16X6000 | 20X2500 | 20X3200 | 20X4000 | 20X5000 | 20X6000 |
| Cutting Thickness | mm | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 16 | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 20 | 20 |
| Cutting Length | mm | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 |
| Throat Depth | mm | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Number of Strokes | times/min | 6-11 | 7-16 | 7-14 | 8-12 | 6-12 | 10-16 | 10-15 | 8-14 | 7-12 | 5-10 | 10-16 | 9-15 | 8-13 | 6-12 | 5-10 | 10-16 | 10-15 | 9-14 | 8-13 | 8-12 | 9-14 | 9-13 | 8-12 | 8-11 | 8-10 | 10-14 | 10-13 | 9-13 | 8-11 | 8-10 |
| Cutting Angle | ° | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-3 | 0.5-3 | 0.5-3 | 0.5-3 | 0.5-3 |
| Number of Presser Feet | pcs | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 |
| Number of Blades | pcs | 2 | 3 | 4 | 5 | 6 | 2 | 3 | 4 | 5 | 6 | 2 | 3 | 4 | 5 | 6 | 2 | 3 | 4 | 4 | 6 | 2 | 3 | 4 | 4 | 6 | 2 | 3 | 4 | 4 | 6 |
| Blade Length | mm | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 |
| Table Height | mm | 705 | 750 | 750 | 800 | 850 | 745 | 800 | 800 | 800 | 850 | 760 | 800 | 800 | 800 | 850 | 800 | 850 | 900 | 950 | 1000 | 800 | 850 | 900 | 950 | 1000 | 850 | 900 | 950 | 1000 | 1050 |
| Number of Front Supports | pcs | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 |
| Front Support Length | mm | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 |
| Oil Tank | L | 260 | 300 | 400 | 480 | 550 | 260 | 300 | 400 | 480 | 550 | 260 | 320 | 460 | 480 | 550 | 350 | 450 | 500 | 580 | 600 | 350 | 450 | 500 | 580 | 600 | 350 | 450 | 580 | 600 | 650 |
| Back Stop Distance | mm | 600 | 600 | 600 | 800 | 800 | 600 | 600 | 600 | 800 | 800 | 600 | 600 | 600 | 800 | 800 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Motor Power | KW | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 11 | 11 | 15 | 15 | 15 | 15 | 15 | 18.5 | 18.5 | 15 | 15 | 18.5 | 18.5 | 22 | 18.5 | 18.5 | 22 | 22 | 30 | 22 | 22 | 30 | 30 | 37 |
| Weight | kg | 4500 | 6300 | 8000 | 11000 | 15000 | 5600 | 7000 | 8500 | 10500 | 16000 | 6500 | 8300 | 11000 | 15000 | 21000 | 7600 | 9400 | 12500 | 17000 | 24000 | 9000 | 11000 | 14300 | 20000 | 29500 | 1100 | 15500 | 19000 | 27000 | 38000 |
| Length | mm | 3200 | 3900 | 4700 | 5700 | 6700 | 3200 | 3950 | 4700 | 5700 | 6700 | 3200 | 3650 | 4460 | 5750 | 6750 | 3250 | 3980 | 4800 | 5800 | 6800 | 3280 | 3950 | 4800 | 5800 | 6800 | 3680 | 4000 | 4800 | 5900 | 6900 |
| Width | mm | 1500 | 1600 | 1650 | 1800 | 2000 | 1600 | 1700 | 1750 | 1950 | 2100 | 1700 | 1800 | 1900 | 2250 | 2200 | 1800 | 1900 | 2050 | 2150 | 2250 | 1900 | 2000 | 2100 | 2200 | 2300 | 2050 | 2200 | 2300 | 2400 | 2500 |
| Height | mm | 2000 | 2050 | 2100 | 2300 | 2500 | 2150 | 2250 | 2250 | 2600 | 2550 | 2200 | 2300 | 2400 | 2600 | 2600 | 2250 | 2350 | 2550 | 2600 | 2700 | 2400 | 2500 | 2650 | 2900 | 3150 | 2600 | 2800 | 3100 | 3200 | 3300 |
5
People watching this product now!
Description

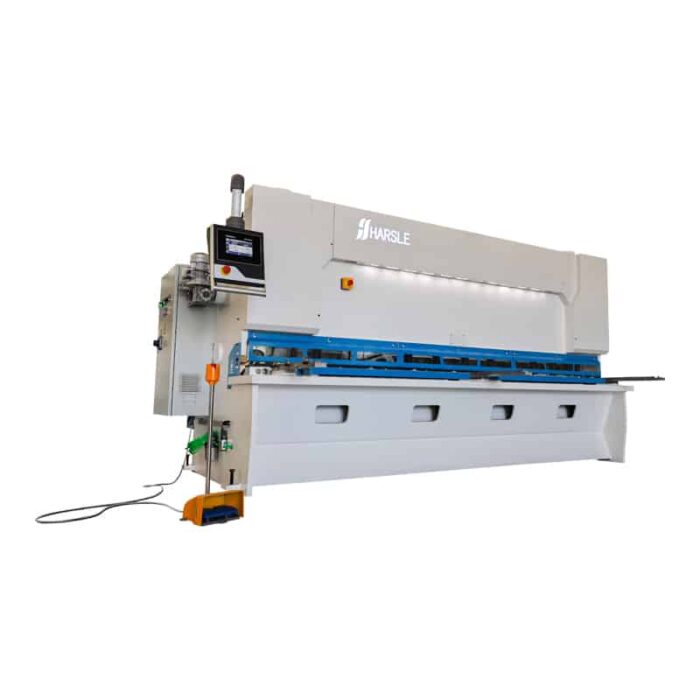

The Advanced QC11K-8X3200 Guillotine Shearing with DAC-360T is a high-efficiency cutting machine designed for precise and fast shearing of sheet metal. Featuring advanced technology, this guillotine shear is ideal for various industrial applications requiring consistent results.
Key Features:
- High Precision Cutting: Powered by the DAC-360T control system for accurate shearing.
- Durable Construction: Built with high-quality materials for extended machine life.
- Efficient Operation: Designed to reduce downtime and improve productivity.
- User-Friendly Interface: Simplified controls for easy operation and setup.
- Versatile Performance: Suitable for a wide range of sheet metal thicknesses and sizes.
This shearing machine ensures maximum efficiency and precision, making it a perfect solution for metalworking shops and manufacturing facilities.
WHAT WE OFFER
Product Features Overview
Machine Body
The durable machine body provides robust support, reducing vibration for accurate, reliable, and long-lasting shearing performance.
Pneumatic Clamp
The pneumatic clamp system holds materials firmly, ensuring precision and efficiency by preventing material movement during cuts.
Pneumatic Rear Support
Pneumatic rear support aids in smooth material handling, enhancing positioning accuracy for large or flexible sheets.
Controller
The user-friendly controller offers precise programming, allowing operators to customize settings for efficient, accurate cuts.
Light Curtain
The integrated light curtain maximizes operator safety by automatically stopping the machine if interference is detected.
Extension Table
The extension table provides additional support for larger workpieces, improving handling and stability during cutting operations.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Our Services
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Rated 5 out of 5
Exceptional Quality and Performance!
We’ve used HARSLE’s shearing machine for three years and are highly satisfied with its quality and excellent after-sales service.
South Korea
★★★★★ Rated 5 out of 5
Outstanding Service Every Time!
We’ve been using HARSLE’s shearing machine for three years, and we’re consistently impressed with its quality and the excellent after-sales service.
Bangladesh
Most Popular Questions
What is a shearing machine and how does it work?
A shearing machine is a metal-cutting tool used to cut sheet metal and plates into desired sizes. It works by using an upper blade and a lower blade to apply shearing force, with one blade fixed and the other moving downward to cut through the material cleanly without forming chips or using burning.
What types of shearing machines do you offer?
We offer a comprehensive range of shearing machines, including hydraulic guillotine shears, swing beam shears, mechanical shears, and CNC shearing machines. Each type is designed for specific applications, from precision thin sheet cutting to heavy-duty thick plate shearing.
What cutting capacity and thickness range can your shearing machines handle?
Our shearing machines can cut mild steel plates from 1 mm to 40 mm in thickness, with cutting lengths ranging from 2,500 mm to 6,000 mm or more. The exact capacity depends on the machine model and the material being cut. We can recommend the ideal configuration for your needs.
What materials can be cut with your shearing machines?
Our shearing machines can process a wide variety of materials, including mild steel, stainless steel, aluminum, copper, brass, and galvanized steel. The maximum cutting thickness varies depending on the material type and its tensile strength.
What is the cutting accuracy of your shearing machines?
Our shearing machines provide high cutting accuracy with straightness tolerance within ±0.05 mm per meter. The adjustable blade clearance and rake angle allow for clean, burr-free cuts. CNC models offer motorized back gauge positioning with accuracy up to ±0.1 mm.
What safety features are included with your shearing machines?
Our shearing machines come with comprehensive safety features, including finger guards, rear safety fences, emergency stop buttons, hydraulic overload protection, and photoelectric safety devices. All machines comply with CE safety standards to protect operators during operation.
Do your shearing machines come with CNC controls?
Yes, we offer CNC-equipped shearing machines with user-friendly touchscreen controllers. The CNC system allows programmable cutting sequences, automatic blade gap adjustment, back gauge positioning, stroke count control, and cutting angle optimization for improved efficiency and repeatability.
How long do the blades last and are they easy to replace?
Our shearing blades are made from high-quality alloy tool steel (e.g. 6CrW2Si or Cr12MoV) and typically feature four cutting edges, allowing you to rotate the blade multiple times before replacement. Blade life depends on usage, but they are designed for easy and quick replacement to minimize downtime.
What is the typical lead time and warranty period?
The standard lead time for shearing machine production is 20 to 45 days depending on the model and specifications. We offer a 12-month warranty covering manufacturing defects, with extended warranty packages and lifetime technical support available upon request.
Do you provide installation, training, and after-sales support?
Yes, we provide full installation services, operator training, and ongoing after-sales support. Our engineers can travel to your site for commissioning, and we offer remote technical assistance, spare parts supply, and maintenance guidance to ensure your shearing machine operates at peak performance.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 3900 × 1700 × 2250 mm |
| Function | Cutting |
| Lead Time | 45 Days |
| Brand | HARSLE |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 3 Years |
