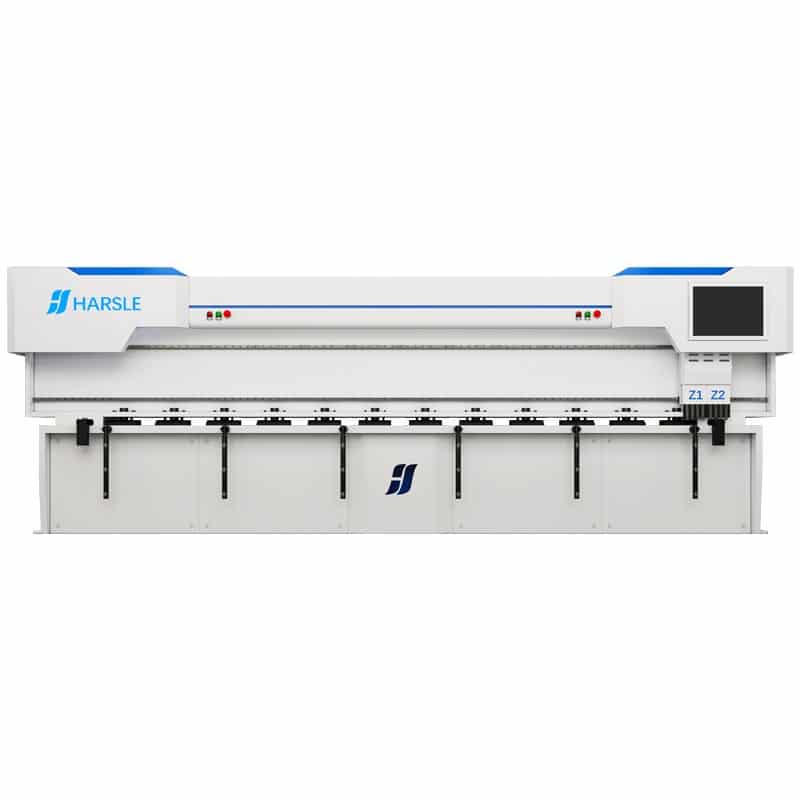

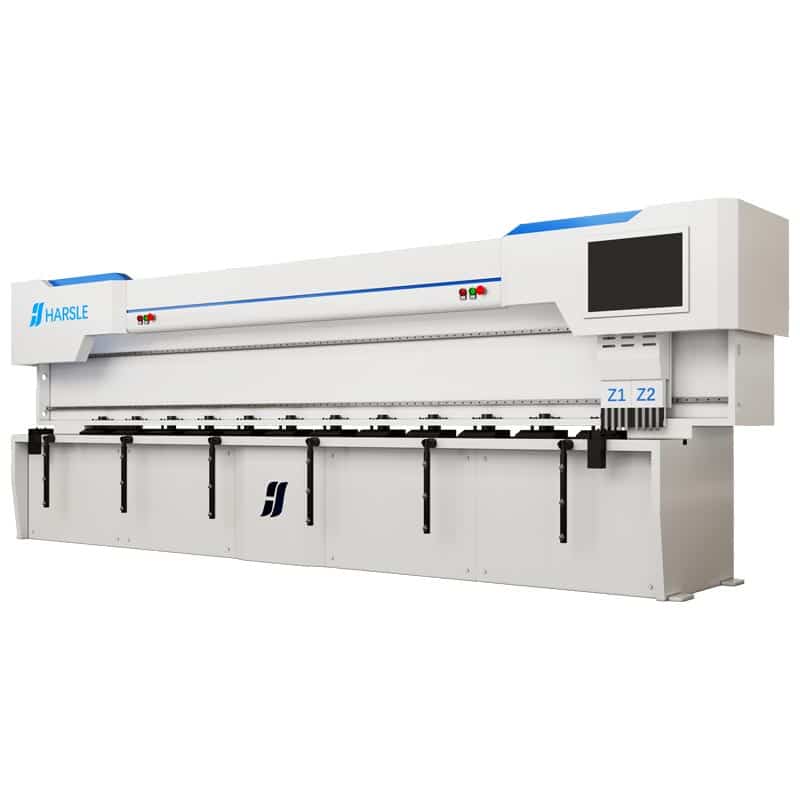

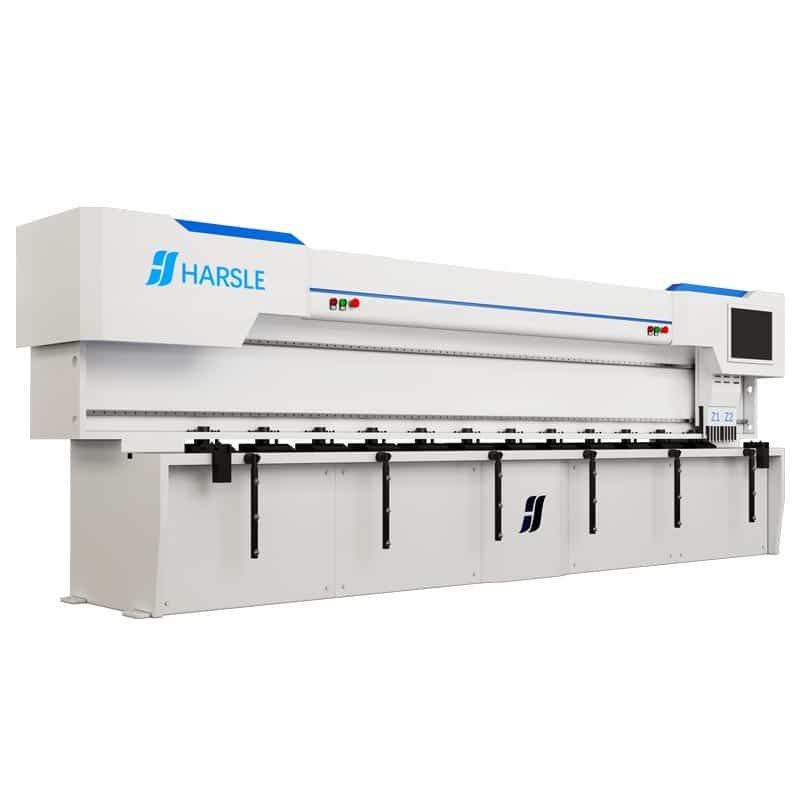

Vertical CNC V-Grooving Machine for Stainless Steel Sheets
The Vertical CNC V-Grooving Machine for Stainless Steel Sheets is designed for precise grooving and slotting of metal materials. Utilizing advanced CNC technology, this machine ensures high accuracy and efficiency, making it ideal for various applications in metal fabrication. Its robust construction and user-friendly interface enhance productivity, while its vertical design allows for easy material handling. Upgrade your workshop with this reliable solution for stainless steel sheet processing.
100 in stock
Vertical CNC V-Grooving Machine
| Item | Unit | 1250/2000 | 1250/2500 | 1500/2000 | 1500/3200 | 1500/4000 | 1500/5000 | 1500/6000 | 1500/8000 | 200/6000 |
| Processing Length | mm | 2000 | 2500 | 2000 | 3200 | 4000 | 5000 | 6000 | 8000 | 6000 |
| Processing Width | mm | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 2000 |
| Processing Thickness | mm | 0.4-8 | 0.4-8 | 0.4-8 | 0.4-8 | 0.4-8 | 0.4-8 | 0.4-8 | 0.4-8 | 0.4-8 |
| Main Knife Holder X-Axis Positioning Accuracy | mm | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 |
| Rear Material Y-Axis Positioning Accuracy | mm | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 |
| Positioning Accuracy Of Tool Holder Z1 Axis | mm | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 |
| Positioning Accuracy Of Tool Holder Z2 Axis | mm | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 |
| Main Tool Holder X-Axis Machining Speed | m/min | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Rear Material Y-Axis Processing Speed | m/min | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Tool Holder Z1, Z2 Axis Machining Speed | m/min | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Workbench Parallelism | mm | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 | ยฑ0.01 |
| Parallelism Of The Tool Holder Crossbeam Guide Rail | mm | ยฑ0.05 | ยฑ0.05 | ยฑ0.05 | ยฑ0.05 | ยฑ0.05 | ยฑ0.05 | ยฑ0.05 | ยฑ0.05 | ยฑ0.05 |
| Parallelism Of The Rear Material Guide Rail | mm | / | / | / | / | / | / | / | / | / |
| Pressure Cylinder Diameter | mm | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Weight | kg | 5000 | 6000 | 5000 | 8000 | 9000 | 12000 | 14000 | 18000 | 15000 |
| Length | mm | 3400 | 4100 | 3400 | 4800 | 5600 | 6600 | 7600 | 9600 | 5600 |
| Width | mm | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Height | mm | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 |
6
People watching this product now!
Description
The Vertical CNC V-Grooving Machine for Stainless Steel Sheets offers precise and efficient grooving for stainless steel materials. Designed for high-quality performance, this machine is perfect for industries that require precision grooving for sheet metal fabrication.
Key Features:
- High Precision: Provides accurate V-grooves for stainless steel sheets.
- Advanced CNC Control: Ensures smooth operation and precise cuts.
- Durability: Built with high-quality materials for long-lasting reliability.
- User-Friendly: Easy to operate with a modern control interface.
- Versatile: Capable of handling a wide range of sheet thicknesses.
Ideal for companies looking for an efficient and reliable solution for stainless steel grooving.
WHAT WE OFFER
Product Features Overview
CNC Controller
Advanced CNC controller ensures precise operation, offering intuitive programming and real-time monitoring for optimal performance.
Tool Holder
Robust tool holder securely positions tools, minimizing vibration and ensuring accurate, high-quality grooves during operation.
Precision Blades
High-quality precision blades provide clean, accurate grooves, ensuring smooth, reliable cutting results and minimal wear.
Hydraulic Clamp
The hydraulic clamp securely holds materials, preventing slippage and ensuring stable, precise cutting during operation.
Back Support Device
Back support device maintains material stability, reducing deflection and enhancing cutting accuracy during the V-grooving process.
Foldable Supporter
Foldable supporter offers space-saving convenience, providing flexible support for larger materials during cutting and easy storage.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. Weโre proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ 5/5
Exceptional Quality and Performance!
Weโve used HARSLEโs V-grooving machine for three years and are extremely satisfied with its quality and excellent after-sales service.
Germany
★★★★★ 5/5
Outstanding Service Every Time!
Weโve been using HARSLEโs V-grooving machine for three years and are very satisfied with its quality and the excellent customer service provided.
USA
Most Popular Questions
We offer various types of V grooving machines, including manual and automatic models, designed for different materials and production needs.
Our V grooving machines can effectively handle materials such as aluminum, stainless steel, and mild steel, as well as composite materials, depending on the specific model.
The maximum grooving depth and width vary by model. Please refer to the technical specifications for detailed information on each V grooving machine's capabilities.
Yes, we offer customization options to meet specific production requirements, including modifications in grooving dimensions and additional features.
Our V grooving machines are equipped with safety features such as emergency stop buttons, safety guards, and programmable safety settings to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects to ensure customer satisfaction.
We offer complete installation services and training for your staff to ensure that the V grooving machine is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 60 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your V grooving machine.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our V grooving machines.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 3900 × 2750 × 2100 mm |
| Function |
Grooving |
| Lead Time |
45 Days |
| Brand |
HARSLE |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
3 Years |
