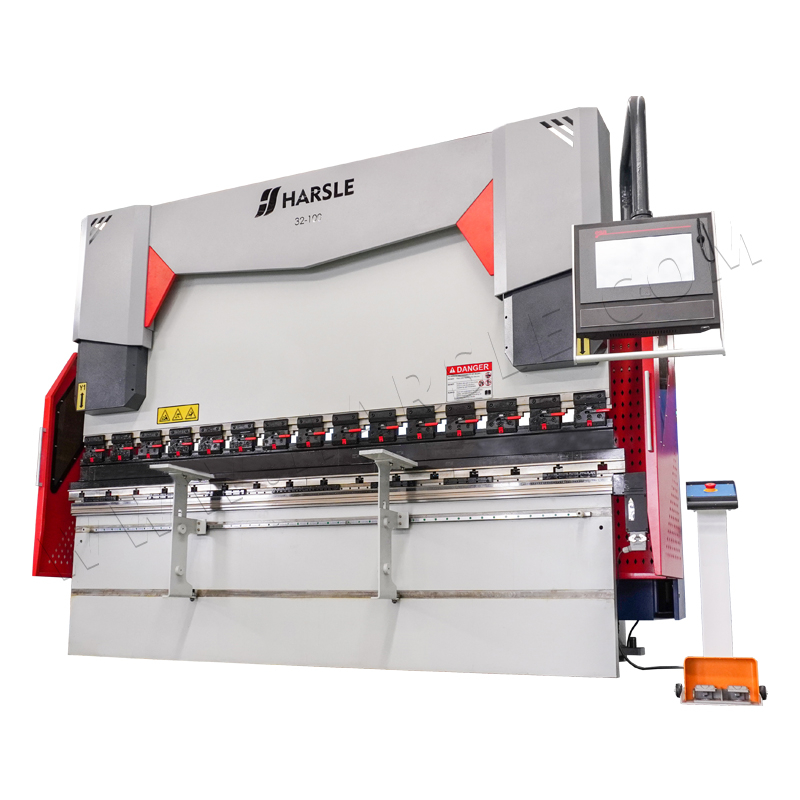

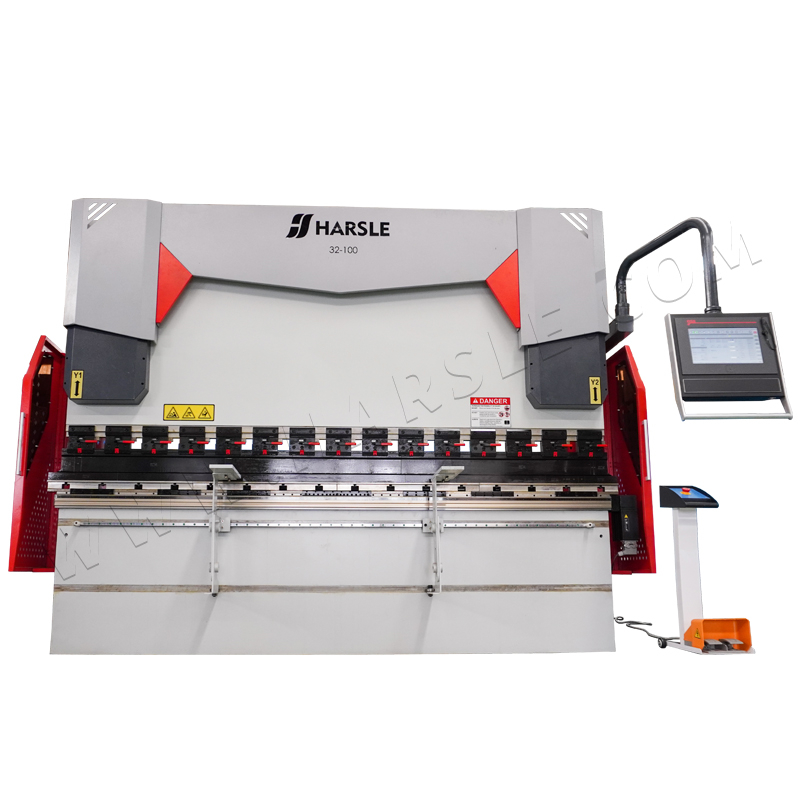

WE67K
HARSLE
Smart Press Brake
| Quantity: | |
|---|---|
Product Description
The press brake is a type of machine that bends and shapes metal sheets into desired shapes and angles. The CNC (Computer Numerical Control) system enables the operator to input specific commands and instructions into the machine through a computer program, allowing for precise and repeatable bending operations.
The S640 controller is a high-performance control system designed for press brake machines. It features a user-friendly interface with a color touch screen display, allowing for easy programming and operation. The S640 controller also includes advanced features such as automatic angle correction, automatic crowning compensation, and dynamic hydraulic crowning, ensuring consistent and accurate bends throughout the entire bending process.
Main Features
● The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the CNC press brake.
● WE67K Series CNC press brake is redesigned based on users’ preference to increase productivity and keep the costs at minimum level with high bending accuracy and low-cost maintenance.
● High quality and repetitive bending accuracy is obtained by using synchronized cylinder and proportional valves
● Bending angle calculation and back gauge position calculation can be achieve by inputting metal sheet material information, sheet size and punch and die size.
● Crowning system can work with CNC controller automatically to achieve higher bending accuracy and linearity. Hydraulic crowning and motorized crowing system are optional.
● CNC back gauge with several axes can work with different shape work-pieces well.
Technical Parameters
| No. | Item | Unit | 100T/3200 |
| 1 | Bending force | Kn | 1000 |
| 2 | Bending Length | mm | 3200 |
| 3 | Columns distance | mm | 2700 |
| 4 | Throat depth | mm | 400 |
| 5 | Cylinder stroke(Y1,Y2) | mm | 200 |
| 6 | Die loading height(Daylight) | mm | 420 |
| 7 | Y-axis down speed | mm/sce | 180 |
| 8 | Y-axis return speed | mm/sce | 120 |
| 9 | Y-axis working speed | mm/sce | 4~15（adjustable) |
| 10 | Y-axis accuracy | mm | ±0.01 |
| 11 | Work-piece linearity | mm | 0.3/m |
| 12 | Max. Back gauge distance | mm | 500 |
| 13 | X-axis and R-axis speed | mm/sec | 400 |
| 14 | X-axis and R-axis accuracy | mm | ±0.01 |
| 15 | Front sliding arms | pcs | 2 |
| 16 | Bending angle accuracy | (') | ≤±18 |
| 17 | Back gauge finger stopper | pcs | 4 |
| 18 | Main motor | KW | 7.5 |
| 19 | Dimension | Length(mm) | 3300 |
| Width(mm) | 1580 | ||
| Height(mm) | 2400 | ||
| 20 | Weight | kg | 8500 |
