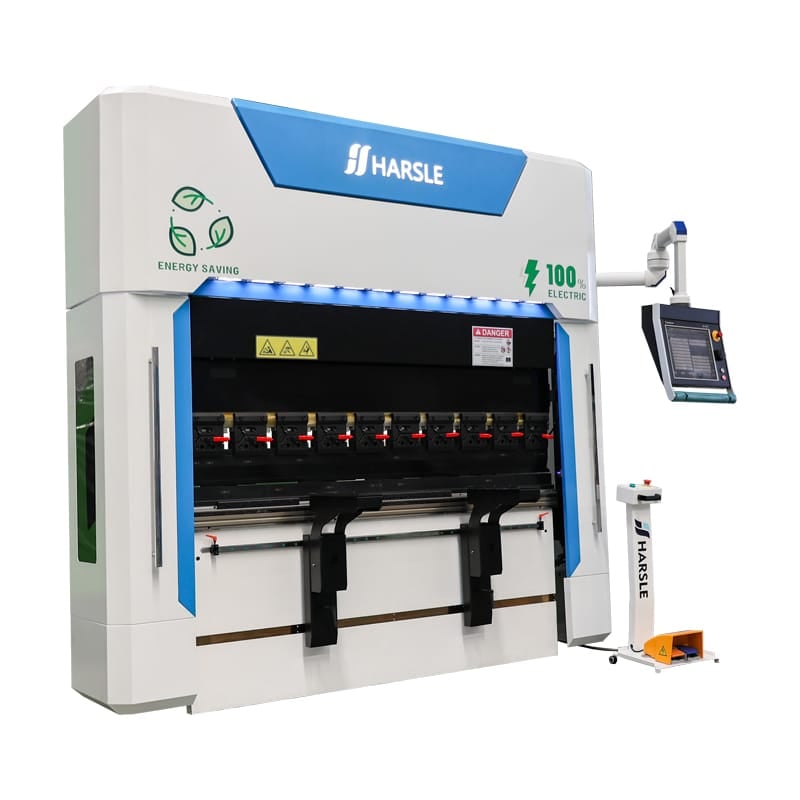

High-Performance EP 43T2000 Electric Press Brake with DA66S
Original price was: $43,500.$42,500Current price is: $42,500.Set
The High-Performance 43T2000 Electric Press Brake with DA66T features advanced technology for precise bending operations. Designed for efficiency, this machine ensures high accuracy and durability, making it ideal for metal fabrication. With its user-friendly interface and robust construction, the 43T2000 delivers exceptional performance, enhancing productivity in any workshop environment. Upgrade your bending capabilities with this reliable and powerful press brake.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
eBend Press Brake
| Item | Unit | 35T1250 | 43T2000 | 65T2500 | 100T3200 |
| Bending Force | KN | 350 | 430 | 650 | 1000 |
| Bending Length | mm | 1250 | 2000 | 2500 | 3200 |
| Colimns Distance | mm | 1130 | 1400 | 2100 | 2800 |
| Throat Depth | mm | 410 | 410 | 410 | 350 |
| Daylight | mm | 470 | 470 | 470 | 470 |
| Front Support | set | 1 | 1 | 1 | 1 |
| Y Axis Servo Motor Motor | KW | 7.5*2 | 11*2 | 15*2 | 30*2 |
| Y-axis Stroke | mm | 200 | 200 | 200 | 200 |
| X-axis Stroke | mm | 500 | 500 | 500 | 600 |
| R-axis Stroke | mm | 140 | 140 | 140 | 200 |
| Z1/Z2-axis Stroke | mm | 400 | 600 | 900 | 2500 |
| Y-axis Down Speed | mm/sec | 135 | 180 | 160 | 150 |
| Y-axis Return Speed | mm/sec | 135 | 180 | 165 | 180 |
| Y-axis Working Speed | mm/sec | 50 | 50 | 50 | 50 |
| X-axis Moving Speed | mm/sec | 500 | 500 | 500 | 500 |
| R-axis Moving Spees | mm/sec | 200 | 200 | 200 | 200 |
| Z1/Z2-axis Moving Speed | mm/sec | 1000 | 1000 | 1000 | 1000 |
| Y-axis Accuracy | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| X-axis Accuracy | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| R-axis Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Z1/Z2-zxis Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Length | mm | 1475 | 2020 | 2520 | 3600 |
| Width | mm | 1358 | 1388 | 1700 | 1722 |
| Height | mm | 2439 | 2439 | 2664 | 2664 |
7
People watching this product now!
Description
The High-Performance EP 43T2000 Electric Press Brake with DA66T is a cutting-edge machine designed for efficient and precise sheet metal bending. Equipped with the advanced DA66T CNC controller, it offers high accuracy and versatility for complex bending operations.
Key Features:
- Precision Bending: DA66T controller ensures accurate bends and smooth operation.
- Energy Efficient: Electric drive system reduces energy consumption while maintaining power.
- Versatile Performance: Capable of handling a wide variety of bending tasks.
- User-Friendly Interface: Simplified control for easy operation and quick setup.
- Robust Durability: Built to last with high-quality materials for long-term performance.
Ideal for manufacturers seeking reliable, energy-efficient bending solutions with superior control and flexibility.
WHAT WE OFFER
Product Features Overview
Machine Body
The robust machine body ensures structural integrity, reducing vibrations and enhancing the overall precision and stability.
Fast Clamp
The fast clamp system enables quick and easy tooling changes, maximizing productivity and minimizing setup time.
Backgauge
Equipped with a high-precision backguage, ensuring accurate positioning and repeatability for complex bending tasks.
Controller
The intuitive controller provides precise control and programmable features, streamlining operations for enhanced productivity and accuracy.
Toolings
GENIUS press brake accommodates various toolings, offering flexibility for different bending applications and ensuring optimal bending quality.
Crowning
The automatic crowning system compensates for deflection, guaranteeing even, high-quality bends across the entire workpiece length.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Heat-Treated Frame
Our frames undergo heat treatment for long-lasting precision and durability.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Rated 5 out of 5
Exceptional Quality and Performance!
Our HARSLE press brake has been in use for five years without any issues. We’re extremely satisfied with its performance and reliability. Highly recommend!
Germany
★★★★★ Rated 5 out of 5
Outstanding Service Every Time!
We are extremely satisfied with our HARSLE press brake and punching machine. The on-site installation and training provided by their engineers were excellent and very helpful!
USA
Most Popular Questions
What is a press brake and how does it work?
A press brake is a machine tool used for bending sheet metal and plate. It works by clamping the workpiece between a matching punch and die, applying force through a hydraulic, electric, or mechanical system to create precise bends at predetermined angles.
What bending capacity and tonnage options are available?
Our press brakes are available in a wide range of tonnage options, typically from 40 tons to over 1,000 tons, with bending lengths ranging from 4 feet to 40 feet. We can help you select the right capacity based on your material type, thickness, and bending requirements.
What materials can be bent with your press brakes?
Our press brakes can process a variety of materials, including mild steel, stainless steel, aluminum, copper, brass, and other alloys. The maximum bendable thickness depends on the material type and the tonnage of the machine selected.
What safety features are included with your press brakes?
Our press brakes include comprehensive safety features such as laser light curtains, rear safety guards, emergency stop buttons, two-hand operation controls, and AKAS (Active Knock-out Anti-collision System). All machines comply with CE safety standards.
Do you provide installation and operator training?
Yes, we provide professional installation services and comprehensive operator training. Our engineers can travel to your facility to install the machine, calibrate it for optimal performance, and train your operators on safe and efficient use of the press brake.
What types of press brakes do you offer?
We offer a comprehensive range of press brakes, including hydraulic press brakes, CNC press brakes, servo-electric press brakes, and tandem press brakes. Each type is designed for specific applications, from light-duty sheet metal work to heavy-duty plate bending.
What is the bending accuracy of your press brakes?
Our CNC press brakes achieve a bending accuracy of ±0.5° or better, with positioning accuracy up to ±0.01 mm on the back gauge. Advanced crowning systems and real-time angle measurement ensure consistent results across the full bending length.
Do your press brakes come with CNC controls?
Yes, most of our press brakes are equipped with advanced CNC control systems featuring user-friendly touchscreen interfaces, 2D/3D bend simulation, automatic tool setup, and program storage. We offer controllers from leading brands such as Delem, ESA, and Cybelec.
What is the typical lead time and warranty period?
The standard lead time for press brake production is 30 to 60 days depending on the model and configuration. We offer a 12-month warranty covering manufacturing defects, and extended warranty packages are available upon request.
Can you customize a press brake to meet our specific needs?
Absolutely. We offer extensive customization options including special tonnage and bending length configurations, custom back gauge systems, specialized tooling, additional axes, robotic integration, and tailored CNC software to match your unique production requirements.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2020 × 1388 × 2439 mm |
| Function | Bending |
| Lead Time | 45 Days |
| Brand | HARSLE |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 3 Years |
