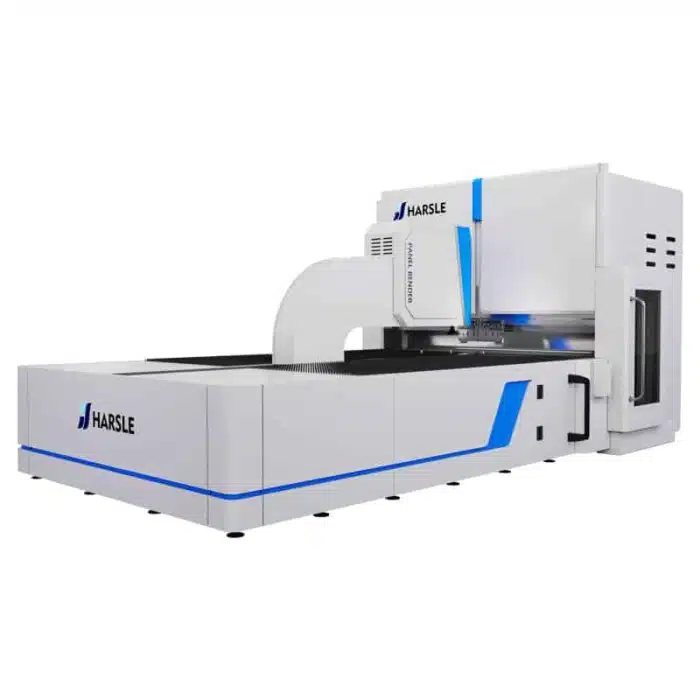

Automatic CNC Metal Sheet Panel Bender
100 in stock
Panel Bender
| Item | Unit | PB-1400 | PB-1400 Pro | PB-1600 | PB-1600 Pro | PB-2000 | PB-2000 Pro | PB-2000 Max | PB-2500 | PB-2500 Por | PB-2500 Max | PB-3000 Max |
| Max. Bending Length | mm | 1400 | 1400 | 1600 | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 | 3000 |
| Max. Bending Width | mm | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Max. Bending Height | mm | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 110 |
| Min. Bending Height | mm | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Min. Bending Radius | mm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Bending Angle | ° | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 |
| Bending Thickness (Stainless Steel) | mm | 1 | 1.5 | 1 | 1.5 | 1 | 1.5 | 2 | 1 | 1.5 | 2 | 1.5 |
| Bending Thickness (Carbon steel) | mm | 1.5 | 2 | 1.5 | 2 | 1.5 | 2 | 2.5 | 1.5 | 2 | 2 | 2 |
| Bending Thickness (Aluminum plate) | mm | 2.5 | 3.5 | 2.5 | 3.5 | 2.5 | 3.5 | 3.5 | 2.5 | 3.5 | 3.5 | 3.5 |
| Min. Material Thickness | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Min. Indide Size (Four-Side) | mm | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 160*280 | 160*280 |
| Min. Working Accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Max. Bending Speed | s/bending | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max. Feeding Speed | m/min | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Feeding Structure | / | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm |
| Worktable Structure | / | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball |
| Motor Power | kw | 44.5 | 60 | 61 | 82 | 61 | 93 | 213 | 68 | 93 | 214.5 | 216 |
| Average Working Power | kw | 2.2 | 3.0 | 3.1 | 4.1 | 3.1 | 4.7 | 10.7 | 3.4 | 4.7 | 10.7 | 10.8 |
| Length | mm | 4600 | 5000 | 4800 | 5000 | 5150 | 5800 | 5800 | 6100 | 6300 | 6300 | 6900 |
| Width | mm | 2600 | 2800 | 2800 | 2800 | 3200 | 3170 | 3170 | 3800 | 3700 | 3700 | 4300 |
| Height | mm | 2400 | 2480 | 2300 | 2480 | 2300 | 2500 | 2500 | 2320 | 2500 | 2500 | 2800 |
5
People watching this product now!
Description
The Automatic CNC Metal Sheet Panel Bender is a cutting-edge machine designed for efficient, precise bending of metal sheets. This fully automated system enhances production speed and accuracy, making it ideal for high-demand manufacturing environments.
Key Features:
- Precision Bending: Delivers accurate and consistent bends for metal sheets.
- Fully Automated: Reduces manual labor and increases efficiency.
- Versatile: Suitable for various sheet metal applications.
- User-Friendly: Easy-to-use CNC control system for seamless operation.
- Durability: Built to withstand heavy-duty usage for long-lasting performance.
Perfect for companies seeking high productivity and minimal errors in sheet metal bending.
WHAT WE OFFER
Product Features Overview
Main Frame
The main frame provides exceptional rigidity, ensuring stable, precise bending performance with minimal deformation.
Servo System
High-performance servo system delivers smooth, precise movements, enhancing bending accuracy and reducing energy consumption.
Operating System
The intuitive operating system streamlines user control, providing easy programming and efficient operation for complex tasks.
CNC Axes
Multiple CNC axes enable precise positioning and movement, allowing for intricate, high-precision bending operations.
Automatic Tool Change
Automatic tool change increases productivity by quickly adapting tools, minimizing downtime between bending processes.
Auxiliary Bending Tooling
Auxiliary tooling offers versatile bending capabilities, expanding the machine’s functionality for complex bending applications.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ 5/5
Exceptional Quality and Performance!
We’ve used HARSLE’s Panel Bender for three years and are highly satisfied with its quality and the exceptional after-sales service.
Germany
★★★★★ 5/5
Outstanding Service Every Time!
We’ve used HARSLE’s Panel Bender for three years and are consistently impressed with its quality and the excellent after-sales service.
USA
Most Popular Questions
We offer various types of panel benders, including automatic, semi-automatic, and manual models, each designed for different production needs and material types.
Our panel benders can process a range of materials, including aluminum, stainless steel, and mild steel, depending on the specific model and configuration.
The maximum bending length and thickness vary by model. Please refer to the technical specifications for detailed information on each panel bender's capabilities.
Yes, we offer customization options to meet unique production requirements, including modifications in bending capacity, tooling, and additional features.
Our panel benders are equipped with several safety features, such as emergency stop buttons, safety guards, and programmable safety parameters to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering manufacturing defects and ensuring customer satisfaction.
We offer complete installation services and training for your staff to ensure that the panel bender is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your panel bender.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our panel benders.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 3900 × 3200 × 2300 mm |
| Function |
Bending |
| Lead Time |
45 Days |
| Brand |
HARSLE |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
3 Years |
