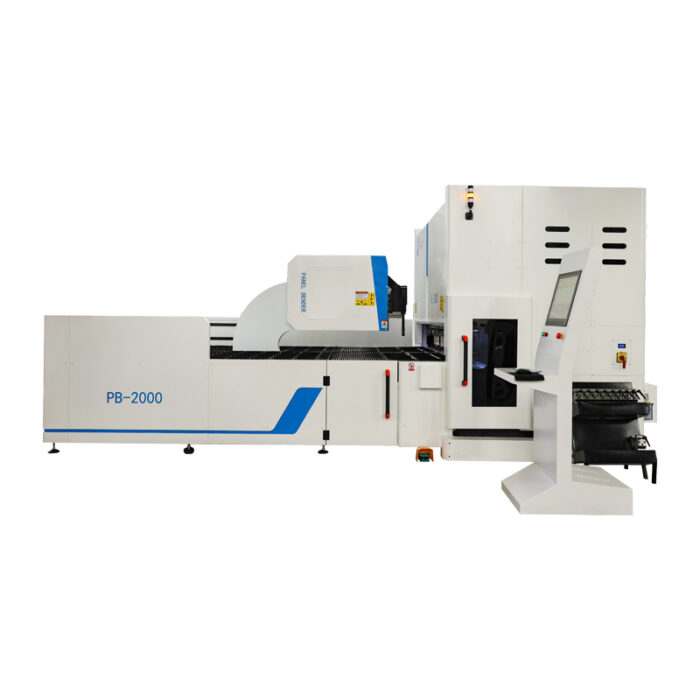

Panel Bender for Furniture Industry Solutions

Name: Panel Bender for Furniture Industry Solutions | HARSLE
SKU: HS202511045
Price: 66800 USD
Availability: InStock

Original price was: $72,000.Current price is: $66,800.Set

The Panel Bender for Furniture Industry by HARSLE delivers high-precision and efficient bending for metal panels used in modern furniture production. Designed for flexibility and automation, it ensures perfect edge forming and consistent results across large-scale operations. With intelligent programming and servo-driven accuracy, this machine reduces manual labor while improving bending quality, making it ideal for manufacturers producing cabinets, wardrobes, and office furniture.

100 in stock

Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.

Compare

Add to wishlist

SEND INQUIRY

Panel Bender

Item	Unit	PB-1400	PB-1400 Pro	PB-1600	PB-1600 Pro	PB-2000	PB-2000 Pro	PB-2000 Max	PB-2500	PB-2500 Por	PB-2500 Max	PB-3000 Max
Max. Bending Length	mm	1400	1400	1600	1600	2000	2000	2000	2500	2500	2500	3000
Max. Bending Width	mm	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250
Max. Bending Height	mm	170	170	170	170	170	170	170	170	170	170	110
Min. Bending Height	mm	4	4	4	4	4	4	4	4	4	4	4
Min. Bending Radius	mm	2	2	2	2	2	2	2	2	2	2	2
Bending Angle	°	±180	±180	±180	±180	±180	±180	±180	±180	±180	±180	±180
Bending Thickness (Stainless Steel)	mm	1	1.5	1	1.5	1	1.5	2	1	1.5	2	1.5
Bending Thickness (Carbon steel)	mm	1.5	2	1.5	2	1.5	2	2.5	1.5	2	2	2
Bending Thickness (Aluminum plate)	mm	2.5	3.5	2.5	3.5	2.5	3.5	3.5	2.5	3.5	3.5	3.5
Min. Material Thickness	mm	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Min. Indide Size (Four-Side)	mm	140*260	140*260	140*260	140*260	140*260	140*260	140*260	140*260	140*260	160*280	160*280
Min. Working Accuracy	mm	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01
Max. Bending Speed	s/bending	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Max. Feeding Speed	m/min	120	120	120	120	120	120	120	120	120	120	120
Feeding Structure	/	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm	Pressing Arm
Worktable Structure	/	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball	Brush and Roller Ball
Motor Power	kw	44.5	60	61	82	61	93	213	68	93	214.5	216
Average Working Power	kw	2.2	3.0	3.1	4.1	3.1	4.7	10.7	3.4	4.7	10.7	10.8
Length	mm	4600	5000	4800	5000	5150	5800	5800	6100	6300	6300	6900
Width	mm	2600	2800	2800	2800	3200	3170	3170	3800	3700	3700	4300
Height	mm	2400	2480	2300	2480	2300	2500	2500	2320	2500	2500	2800

8 People watching this product now!

Description

The HARSLE Panel Bender for Furniture Industry is an advanced bending solution tailored for furniture manufacturers seeking automation, precision, and consistency. This machine combines servo-driven technology and intelligent control systems to handle complex bending tasks effortlessly, supporting a wide range of sheet thicknesses and materials used in furniture production.

Its adaptive tooling system ensures minimal setup time and maximum flexibility, enabling quick transitions between different panel sizes or shapes. The automatic panel positioning and integrated angle measurement system deliver accurate and repeatable results, significantly enhancing productivity and product quality.

Key Features:

Smart Control System: User-friendly interface with automatic bending sequence programming.
High Accuracy: Servo-driven axes ensure precise positioning and angle control.
Flexible Tooling: Adaptable bending tools for multiple panel sizes and shapes.
Labor Efficiency: Reduces manual handling and speeds up production cycles.
Ideal for Furniture Manufacturing: Perfect for producing metal furniture panels, cabinet doors, and decorative components.

By integrating this panel bender into your furniture production line, you can achieve seamless automation, superior bending quality, and significant cost savings — making it the perfect choice for modern furniture fabrication.

WHAT WE OFFER

Product Features Overview

Trusted Global Partners

Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.

Why Choose HARSLE

Direct Manufacturer

Factory direct, no middlemen, ensuring the best prices for our customers.

3-Year Warranty

Enjoy peace of mind with a three-year warranty and free parts replacement.

Multilingual Support

Our multilingual team ensures efficient communication for all your needs.

Timely Delivery

The machines are delivered on time, ensuring our customers receive them promptly.

Quality Assurance

Comprehensive quality checks guarantee the quality of every machine.

Localized Service

We provide prompt, localized service in multiple countries for your convenience.

Testimonials

Hear What Our Customers Say

At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.

Classificado como 5 de 5

Exceptional Quality and Performance!

We’ve used HARSLE’s Panel Bender for three years and are highly satisfied with its quality and the exceptional after-sales service.

Eli Chase

Germany

Classificado como 5 de 5

Outstanding Service Every Time!

We’ve used HARSLE’s Panel Bender for three years and are consistently impressed with its quality and the excellent after-sales service.

Max Stone

USA

Most Popular Questions

What is a panel bender and how does it differ from a press brake?

A panel bender is an automated sheet metal bending machine that uses a bending blade to fold the material while the sheet is held in place by a blank holder. Unlike a press brake that requires manual repositioning of the workpiece for each bend, a panel bender automatically manipulates the sheet, enabling faster cycle times and consistent accuracy across complex multi-bend parts.

What materials and thicknesses can a panel bender process?

Our panel benders can process a wide range of materials, including mild steel, stainless steel, aluminum, copper, and galvanized sheet. Depending on the model, the machines handle material thicknesses from 0.4 mm up to 3.2 mm, with maximum bending lengths ranging from 2,000 mm to 4,000 mm.

What level of bending accuracy can I expect?

Our panel benders deliver exceptional bending accuracy of ±0.3° or better on angle precision, with a repositioning accuracy of ±0.05 mm. The CNC-controlled bending blade and automatic crowning compensation ensure uniform results across the entire bending length, even on long panels.

Is the panel bender fully automatic or does it require manual loading?

We offer both semi-automatic and fully automatic panel bender configurations. Semi-automatic models require manual sheet loading, while fully automatic versions can be integrated with loading/unloading systems, conveyors, and robotic stacking for lights-out production with minimal operator intervention.

What safety features are included with your panel benders?

Our panel benders are equipped with comprehensive safety systems including light curtains, safety fencing, emergency stop buttons, safety interlocks on access doors, and CE-compliant control systems. Optional safety laser scanners can be added for enhanced operator protection in semi-automatic setups.

What types of parts are best suited for a panel bender?

Panel benders excel at producing parts with multiple bends on all four sides, such as electrical enclosures, elevator panels, cabinet doors, HVAC components, appliance housings, and architectural panels. They are ideal for medium to high-volume production of complex panel-type parts that would require many repositioning steps on a press brake.

How fast is the bending cycle compared to traditional methods?

Panel benders significantly reduce cycle times compared to manual press brake bending. A part that takes 2–3 minutes on a press brake can often be completed in 30–60 seconds on a panel bender. The automatic sheet manipulation eliminates manual handling time, boosting overall productivity by 3 to 5 times.

What CNC control system do your panel benders use?

Our panel benders feature advanced CNC control systems with intuitive touchscreen interfaces, 3D part simulation, automatic bend sequence optimization, and offline programming capability. The controller supports importing files from major CAD/CAM software, streamlining the transition from design to production.

What is the typical lead time and warranty period?

The standard lead time for panel bender production and delivery is approximately 60 to 90 days, depending on the model and configuration options selected. We provide a 12-month warranty covering manufacturing defects, with extended warranty and service packages available upon request.

Do you provide installation, training, and after-sales support?

Yes, we provide full turnkey service including on-site installation, machine commissioning, operator training, and programming support. Our after-sales team offers remote diagnostics, spare parts supply, preventive maintenance programs, and 24/7 technical assistance to keep your production running smoothly.
