Advanced Panel Bender for Door Production
Original price was: $72,000.$66,800Current price is: $66,800.Set

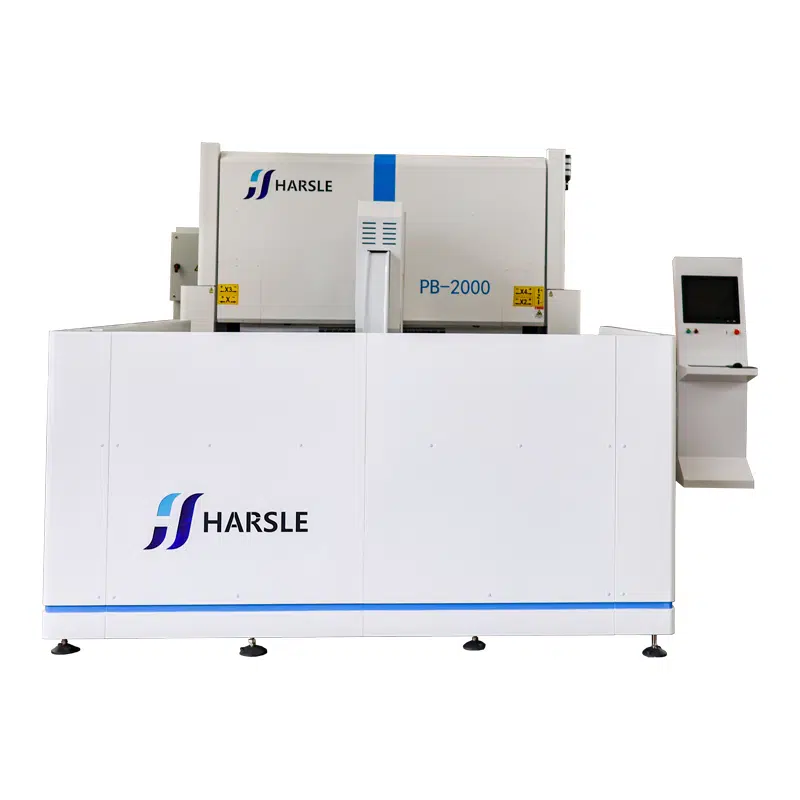

The HARSLE Panel Bender for Door Production is designed to deliver efficient and accurate metal bending for various door types. With advanced servo control and automated panel folding, it ensures consistent precision, short cycle times, and minimal operator effort. Ideal for metal door manufacturers seeking high productivity and superior surface finish, this machine combines flexibility, speed, and long-term reliability to optimize your door fabrication process.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
Panel Bender
| Item | Unit | PB-1400 | PB-1400 Pro | PB-1600 | PB-1600 Pro | PB-2000 | PB-2000 Pro | PB-2000 Max | PB-2500 | PB-2500 Por | PB-2500 Max | PB-3000 Max |
| Max. Bending Length | mm | 1400 | 1400 | 1600 | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 | 3000 |
| Max. Bending Width | mm | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Max. Bending Height | mm | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 110 |
| Min. Bending Height | mm | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Min. Bending Radius | mm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Bending Angle | ° | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 |
| Bending Thickness (Stainless Steel) | mm | 1 | 1.5 | 1 | 1.5 | 1 | 1.5 | 2 | 1 | 1.5 | 2 | 1.5 |
| Bending Thickness (Carbon steel) | mm | 1.5 | 2 | 1.5 | 2 | 1.5 | 2 | 2.5 | 1.5 | 2 | 2 | 2 |
| Bending Thickness (Aluminum plate) | mm | 2.5 | 3.5 | 2.5 | 3.5 | 2.5 | 3.5 | 3.5 | 2.5 | 3.5 | 3.5 | 3.5 |
| Min. Material Thickness | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Min. Indide Size (Four-Side) | mm | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 160*280 | 160*280 |
| Min. Working Accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Max. Bending Speed | s/bending | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max. Feeding Speed | m/min | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Feeding Structure | / | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm |
| Worktable Structure | / | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball |
| Motor Power | kw | 44.5 | 60 | 61 | 82 | 61 | 93 | 213 | 68 | 93 | 214.5 | 216 |
| Average Working Power | kw | 2.2 | 3.0 | 3.1 | 4.1 | 3.1 | 4.7 | 10.7 | 3.4 | 4.7 | 10.7 | 10.8 |
| Length | mm | 4600 | 5000 | 4800 | 5000 | 5150 | 5800 | 5800 | 6100 | 6300 | 6300 | 6900 |
| Width | mm | 2600 | 2800 | 2800 | 2800 | 3200 | 3170 | 3170 | 3800 | 3700 | 3700 | 4300 |
| Height | mm | 2400 | 2480 | 2300 | 2480 | 2300 | 2500 | 2500 | 2320 | 2500 | 2500 | 2800 |
8
People watching this product now!
Description

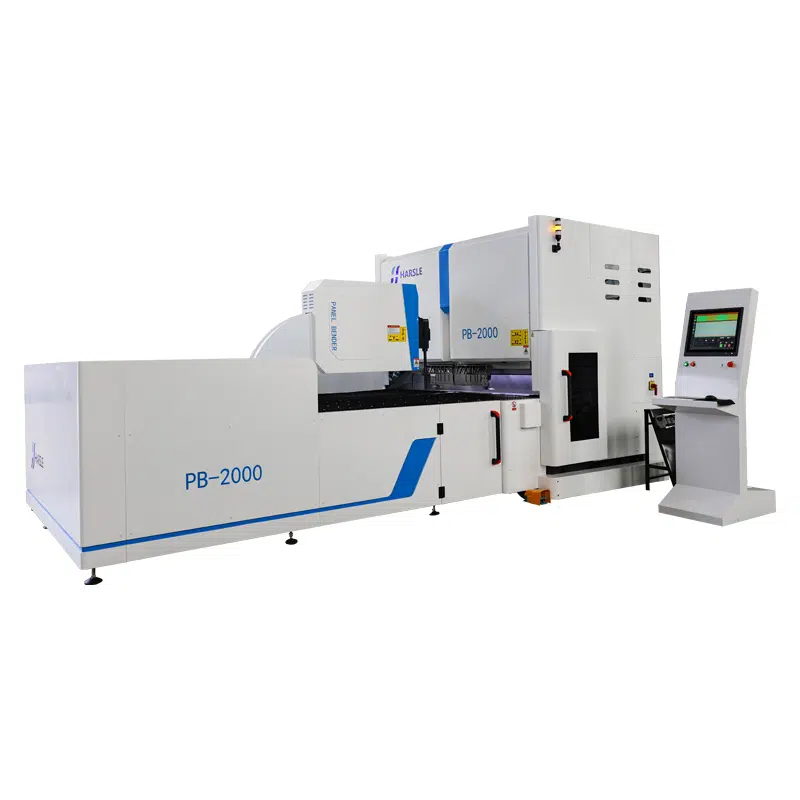

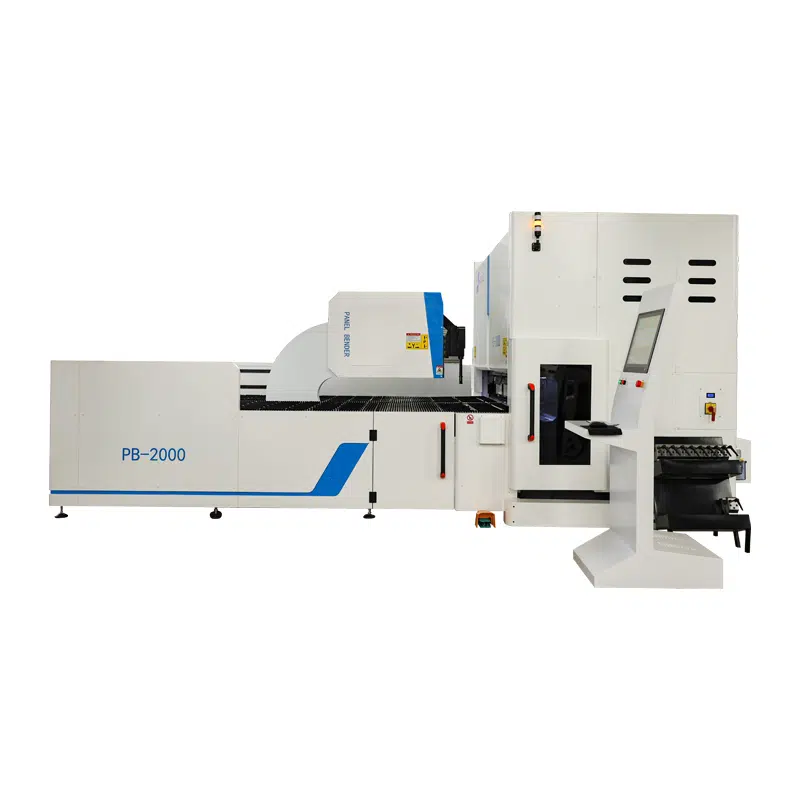

The HARSLE Panel Bender for Door Production provides an intelligent and efficient solution for fabricating metal doors with complex shapes and high accuracy. Engineered for industrial applications, it supports bending operations on mild steel, stainless steel, and aluminum sheets, making it a versatile tool for door panel manufacturing.
This panel bender integrates advanced servo-electric technology and automatic tool adjustment, allowing for quick setup and repeatable precision in every bend. The user-friendly CNC interface simplifies operation and reduces manual errors, ensuring consistent results even with customized door designs. Its compact structure and energy-efficient design make it suitable for high-volume production lines.
Key Features:
-
Smart Control System: Intuitive CNC interface for easy programming and repeat accuracy.
-
Servo-Driven Efficiency: Ensures high bending speed and precise positioning.
-
Flexible Bending Capability: Handles a wide range of door panel sizes and materials.
-
Durable Construction: Rigid frame and long-life components for industrial reliability.
-
Low Maintenance: Simple structure and automatic lubrication system reduce downtime.
The HARSLE Panel Bender is the perfect choice for manufacturers aiming to achieve precision, speed, and cost-effective door production while maintaining the highest quality standards.
WHAT WE OFFER
Product Features Overview
Main Frame
The main frame provides exceptional rigidity, ensuring stable, precise bending performance with minimal deformation.
Servo System
High-performance servo system delivers smooth, precise movements, enhancing bending accuracy and reducing energy consumption.
Operating System
The intuitive operating system streamlines user control, providing easy programming and efficient operation for complex tasks.
CNC Axes
Multiple CNC axes enable precise positioning and movement, allowing for intricate, high-precision bending operations.
Automatic Tool Change
Automatic tool change increases productivity by quickly adapting tools, minimizing downtime between bending processes.
Auxiliary Bending Tooling
Auxiliary tooling offers versatile bending capabilities, expanding the machine’s functionality for complex bending applications.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Valorado con 5 de 5
Exceptional Quality and Performance!
We’ve used HARSLE’s Panel Bender for three years and are highly satisfied with its quality and the exceptional after-sales service.
Germany
★★★★★ Valorado con 5 de 5
Outstanding Service Every Time!
We’ve used HARSLE’s Panel Bender for three years and are consistently impressed with its quality and the excellent after-sales service.
USA
Most Popular Questions
What is a panel bender and how does it differ from a press brake?
A panel bender is an automated sheet metal bending machine that uses a bending blade to fold the material while the sheet is held in place by a blank holder. Unlike a press brake that requires manual repositioning of the workpiece for each bend, a panel bender automatically manipulates the sheet, enabling faster cycle times and consistent accuracy across complex multi-bend parts.
What materials and thicknesses can a panel bender process?
Our panel benders can process a wide range of materials, including mild steel, stainless steel, aluminum, copper, and galvanized sheet. Depending on the model, the machines handle material thicknesses from 0.4 mm up to 3.2 mm, with maximum bending lengths ranging from 2,000 mm to 4,000 mm.
What level of bending accuracy can I expect?
Our panel benders deliver exceptional bending accuracy of ±0.3° or better on angle precision, with a repositioning accuracy of ±0.05 mm. The CNC-controlled bending blade and automatic crowning compensation ensure uniform results across the entire bending length, even on long panels.
Is the panel bender fully automatic or does it require manual loading?
We offer both semi-automatic and fully automatic panel bender configurations. Semi-automatic models require manual sheet loading, while fully automatic versions can be integrated with loading/unloading systems, conveyors, and robotic stacking for lights-out production with minimal operator intervention.
What safety features are included with your panel benders?
Our panel benders are equipped with comprehensive safety systems including light curtains, safety fencing, emergency stop buttons, safety interlocks on access doors, and CE-compliant control systems. Optional safety laser scanners can be added for enhanced operator protection in semi-automatic setups.
What types of parts are best suited for a panel bender?
Panel benders excel at producing parts with multiple bends on all four sides, such as electrical enclosures, elevator panels, cabinet doors, HVAC components, appliance housings, and architectural panels. They are ideal for medium to high-volume production of complex panel-type parts that would require many repositioning steps on a press brake.
How fast is the bending cycle compared to traditional methods?
Panel benders significantly reduce cycle times compared to manual press brake bending. A part that takes 2–3 minutes on a press brake can often be completed in 30–60 seconds on a panel bender. The automatic sheet manipulation eliminates manual handling time, boosting overall productivity by 3 to 5 times.
What CNC control system do your panel benders use?
Our panel benders feature advanced CNC control systems with intuitive touchscreen interfaces, 3D part simulation, automatic bend sequence optimization, and offline programming capability. The controller supports importing files from major CAD/CAM software, streamlining the transition from design to production.
What is the typical lead time and warranty period?
The standard lead time for panel bender production and delivery is approximately 60 to 90 days, depending on the model and configuration options selected. We provide a 12-month warranty covering manufacturing defects, with extended warranty and service packages available upon request.
Do you provide installation, training, and after-sales support?
Yes, we provide full turnkey service including on-site installation, machine commissioning, operator training, and programming support. Our after-sales team offers remote diagnostics, spare parts supply, preventive maintenance programs, and 24/7 technical assistance to keep your production running smoothly.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2020 × 1750 × 2439 mm |
| Brand | HARSLE |
| Function | Bending |
| Lead Time | 45 Days |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 3 Years |
