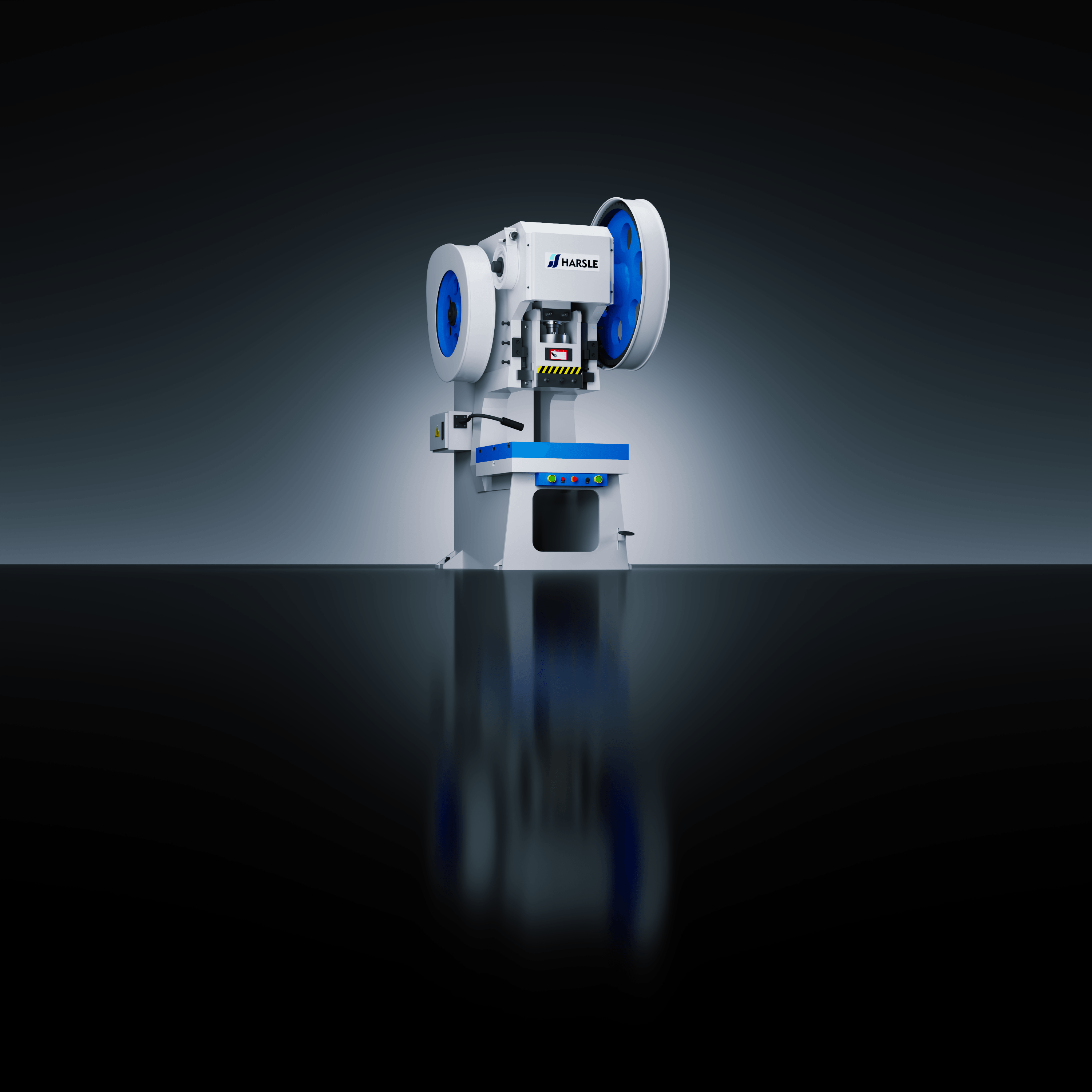

DeepPunch

Designed for fast, stable punching performance.

background image
Extended Reach

Deep Throat

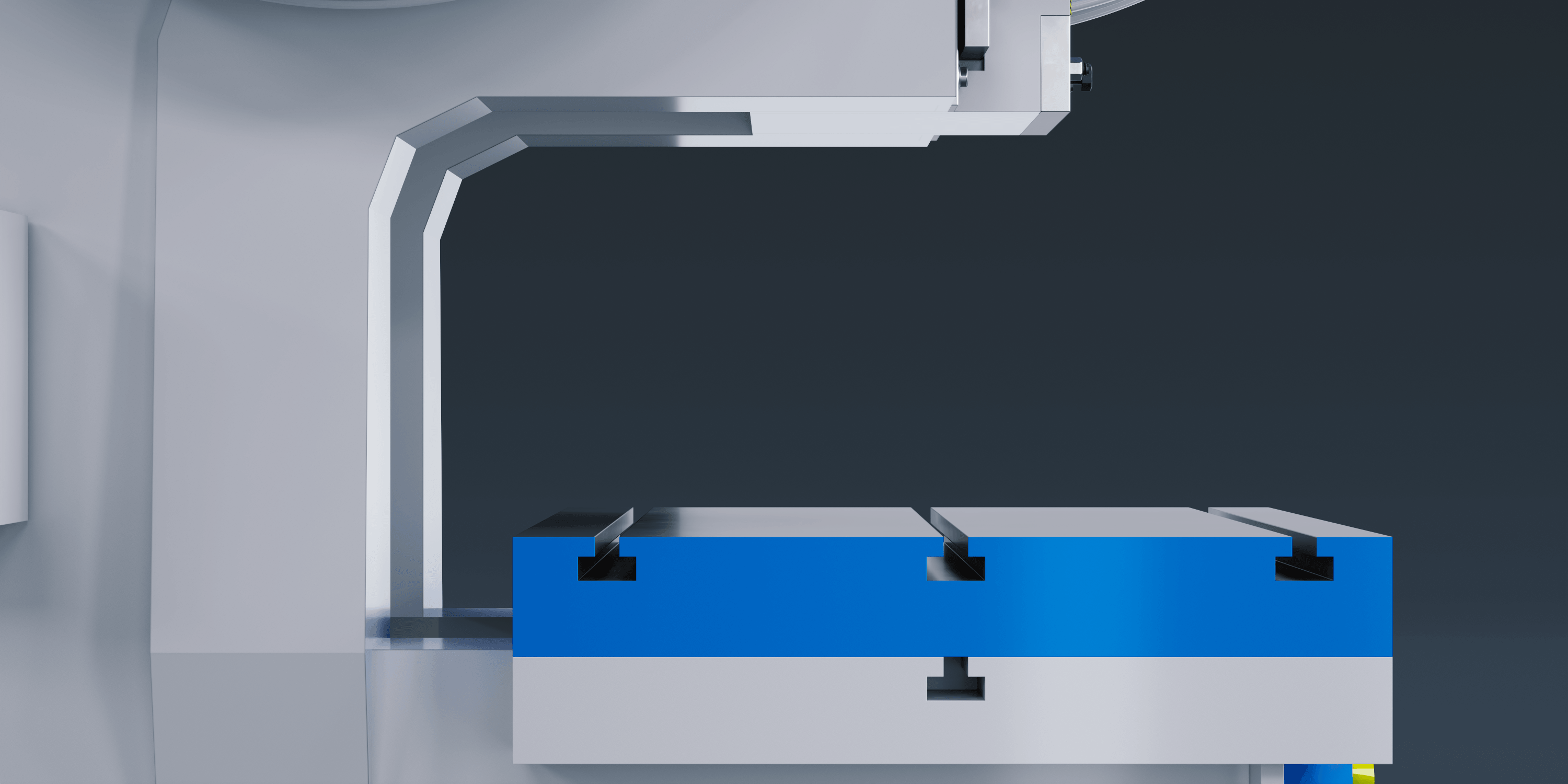

The deep throat design provides increased working depth, allowing easy processing of large or offset workpieces with greater flexibility.

deep throat
Detail Image 1

The deep throat C-frame design provides extended working space, making it easier to handle large or offset workpieces.

Detail Image 2

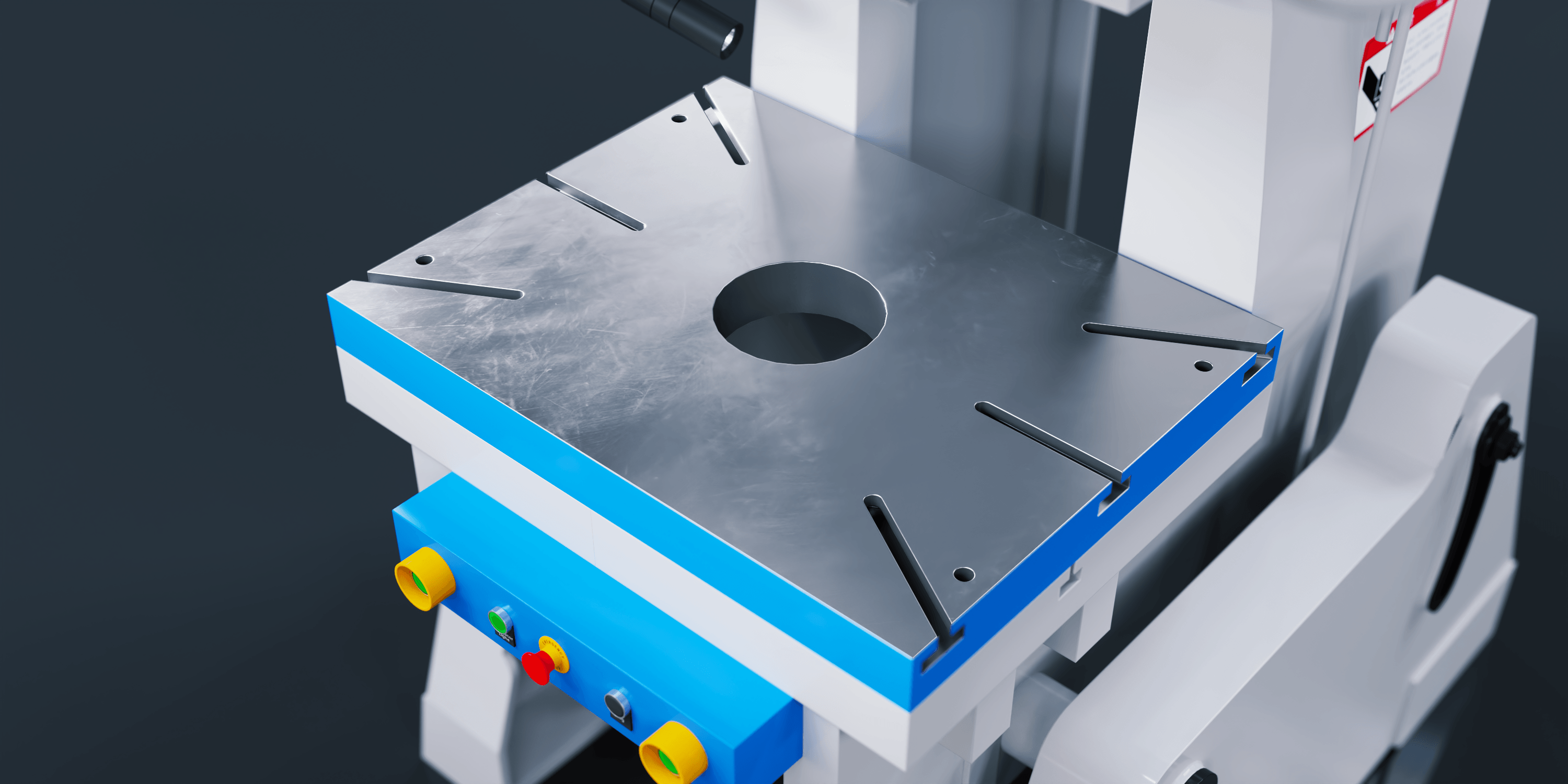

The reinforced working table offers reliable support for large workpieces, ensuring stable positioning and consistent accuracy.

background photo
background photo
background photo
Stable Motion

Reliable Drive

Precision Slider
Crankshaft System
Braking System

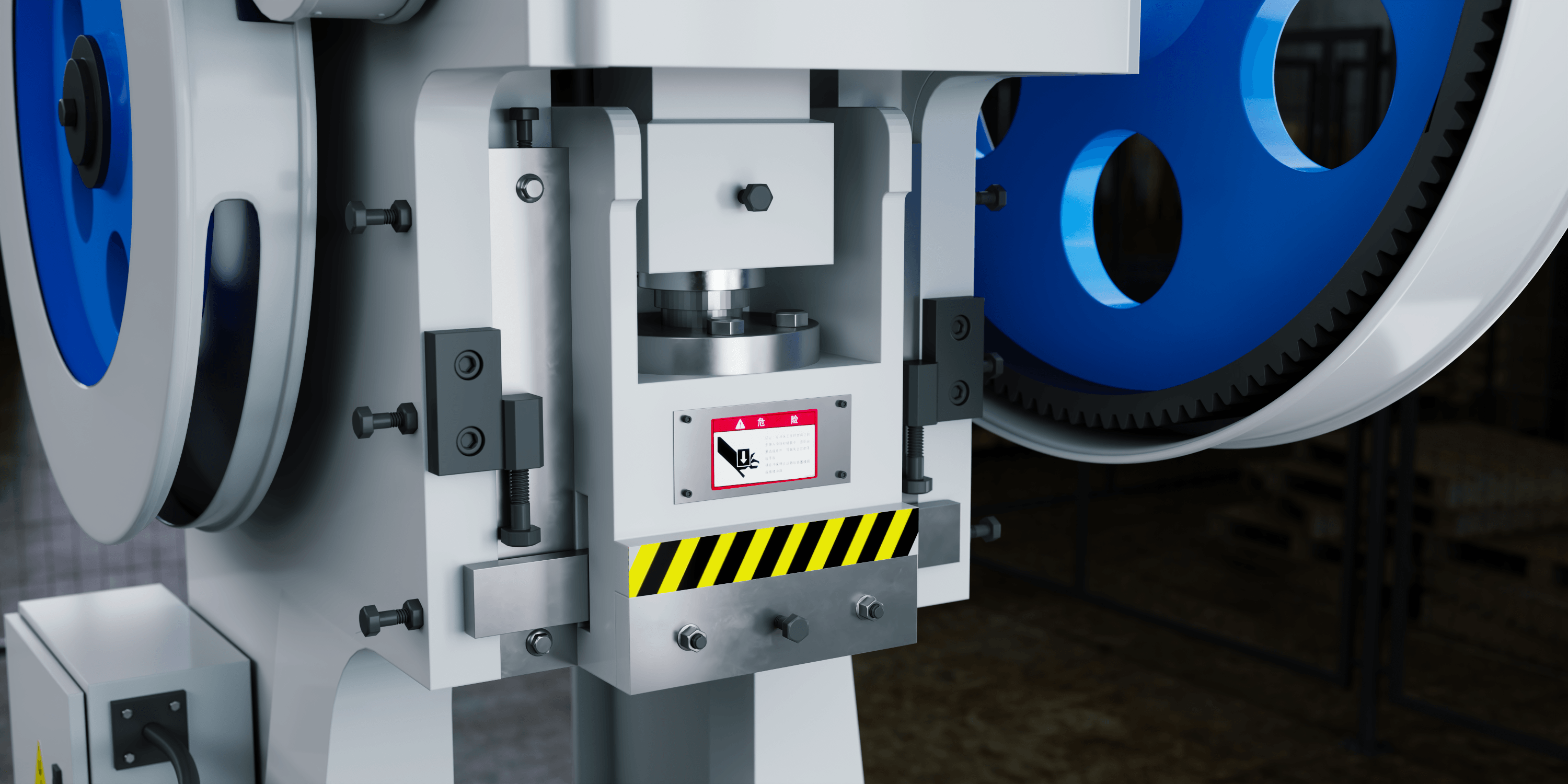

The slider ensures stable movement and reliable pressing accuracy during continuous operation.

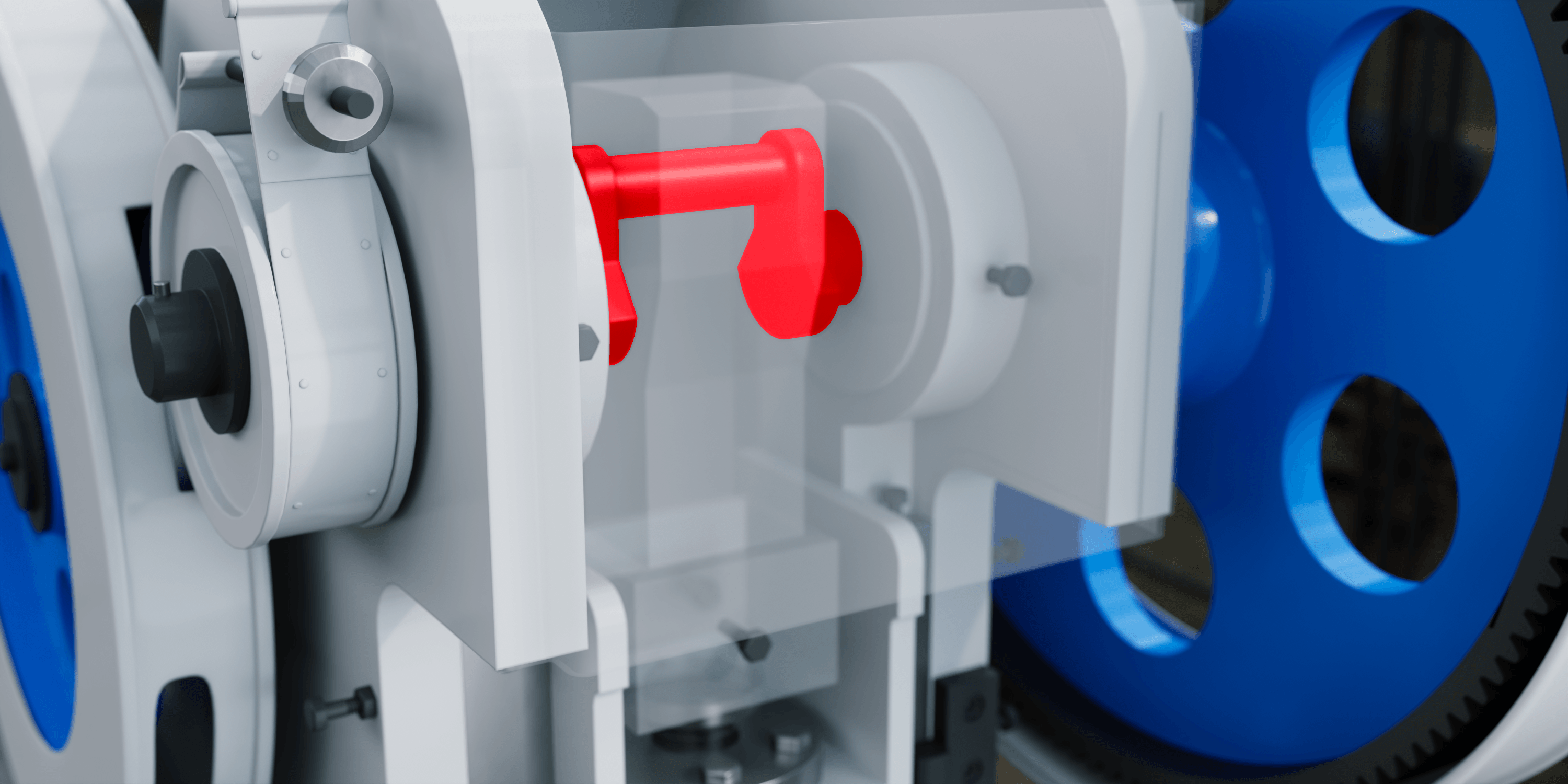

The crankshaft system delivers efficient power transmission and stable punching performance.

The braking system provides fast stopping response for safer and more controlled operation.

background image
Stable Drive

Power Transfer

The optimized transmission system ensures smooth power delivery and stable operation, supporting consistent punching performance in deep throat applications.

Power Transfer
background image
Dual Safety

Safe Control

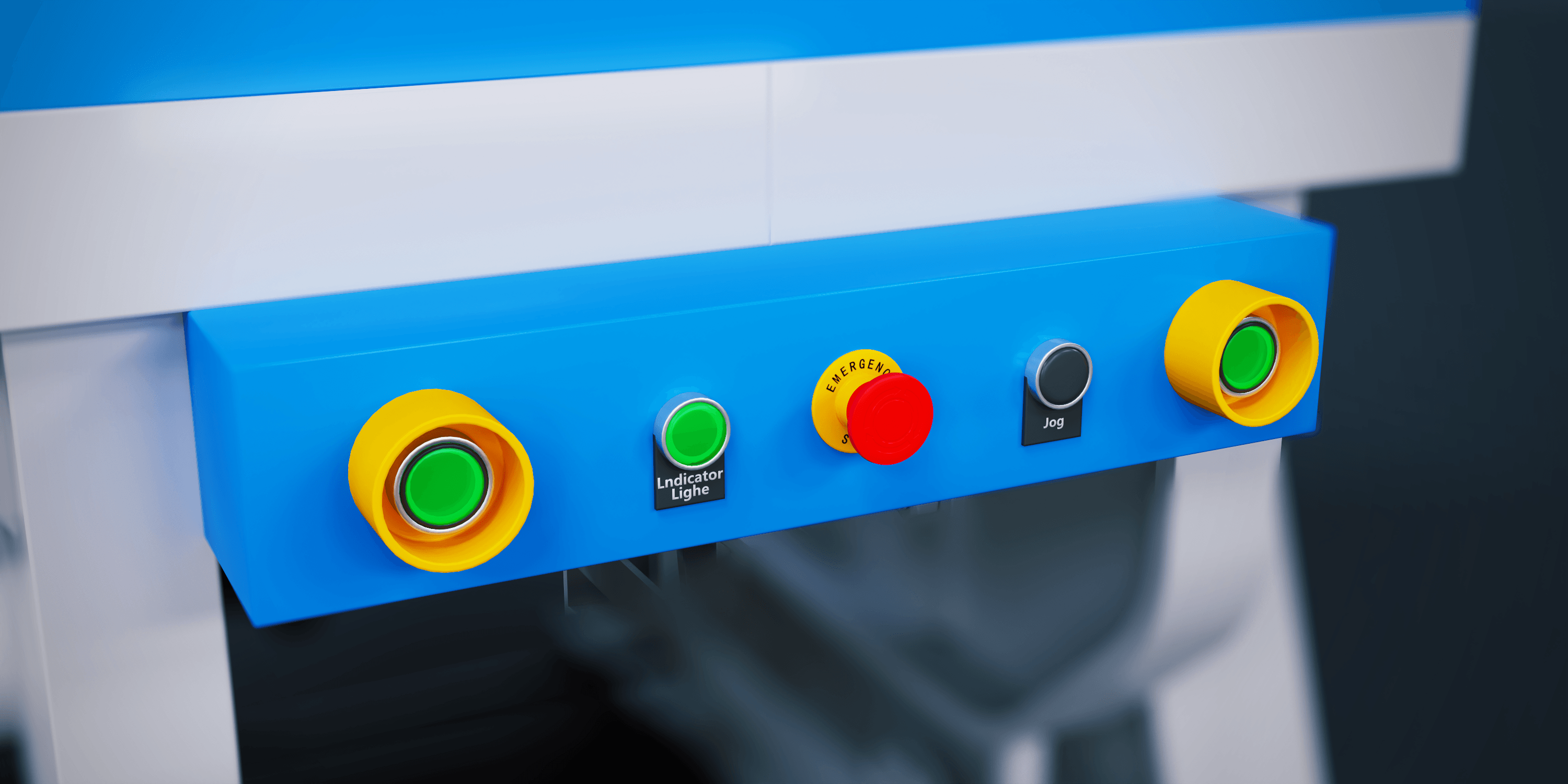

The control panel is designed with dual-button operation to enhance operator safety, reduce accidental activation, and ensure more reliable pressing control.

Control Panel Section
Detail Image 1

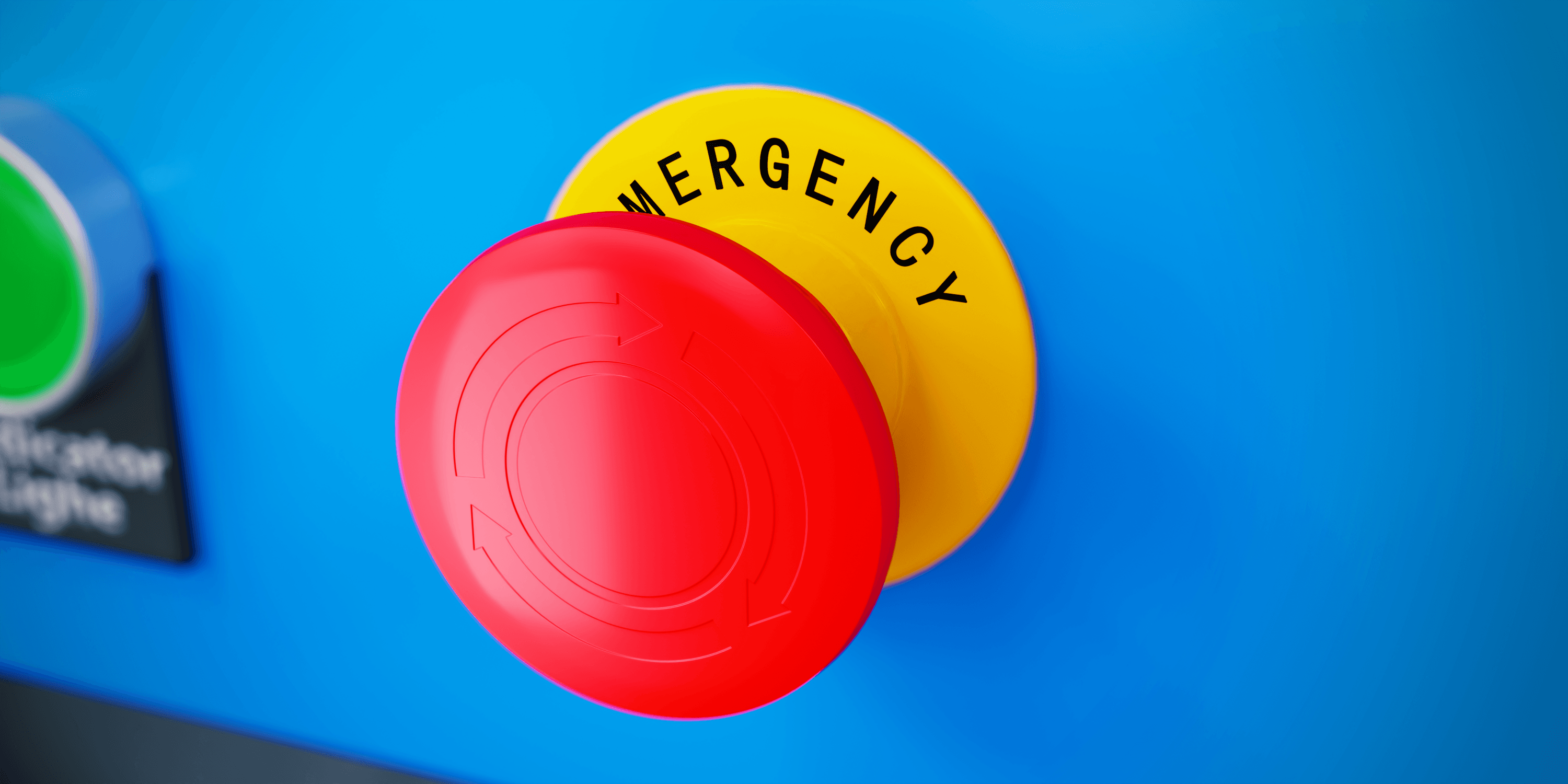

Immediate stop helps reduce operational risks

Detail Image 2

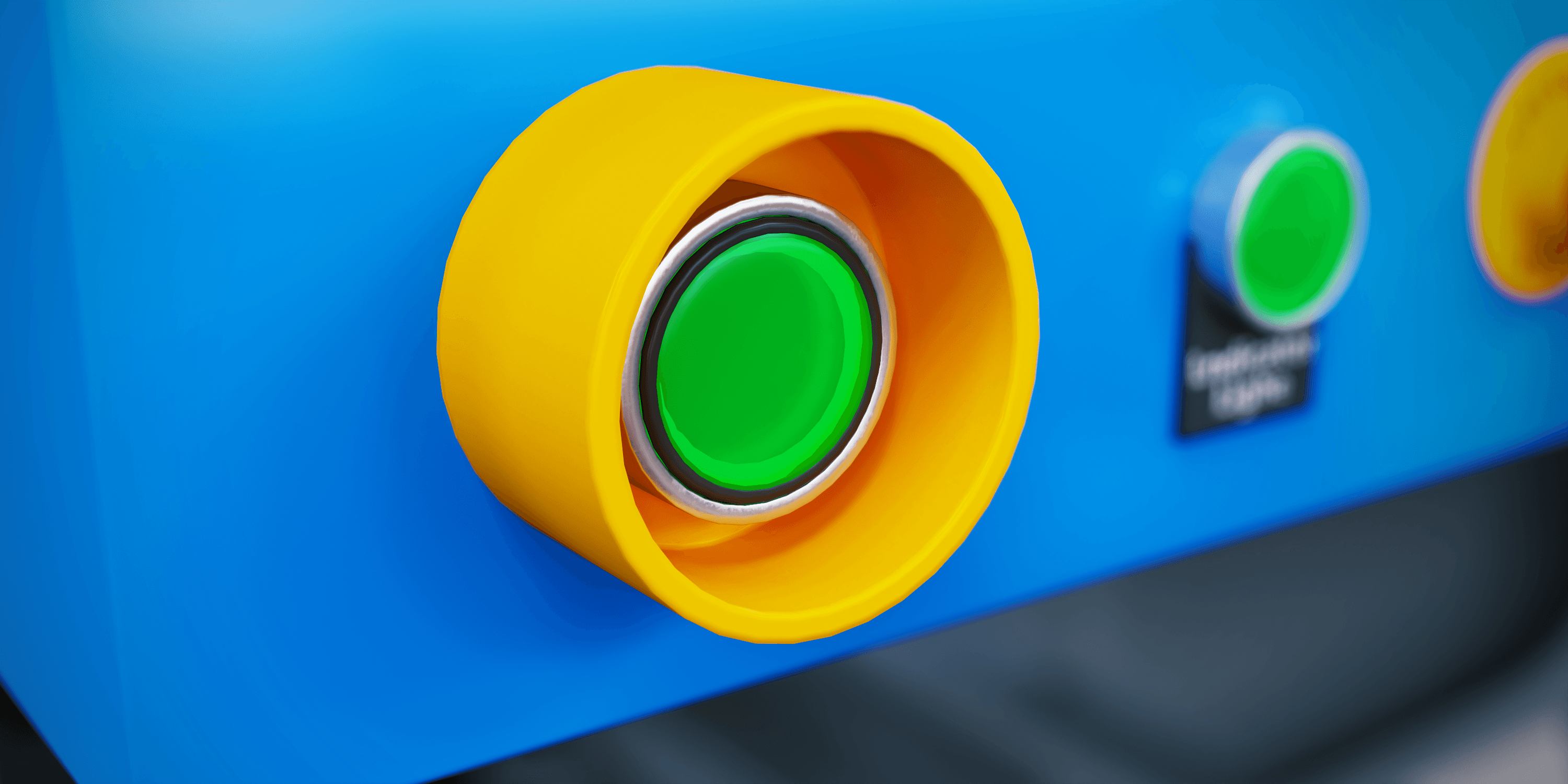

Two-hand operation greatly enhances operator protection

Industries We Serve

Powering Metal Fabrication
Across Every Sector

HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.

Automotive industry applications
Automotive
Automotive View Applications
Aerospace industry press brake applications
Aerospace
Aerospace View Applications
Construction and electronics press brake applications
Construction & Electronics
Construction & Electronics View Applications
Energy and power press brake applications
Energy & Power
Energy & Power View Applications
Machinery applications
Wide Range Machinery
Wide Range Machinery View Applications
HVAC ventilation press brake applications
HVAC & Ventilation
HVAC & Ventilation View Applications
Technical Data

Specifications

All models at a glance — compare side by side

DeepPunch
25T
DeepPunch
63T
DeepPunch
125T
DeepPunch
200T
250 kN
Nominal Force
630 kN
Nominal Force
1250 kN
Nominal Force
2000 kN
Nominal Force
70 mm
Slide Stroke
100 mm
Slide Stroke
130 mm
Slide Stroke
140 mm
Slide Stroke
70 Times/min
Number of Stroke
50 Times/min
Number of Stroke
40 Times/min
Number of Stroke
35 Times/min
Number of Stroke
270 mm
Closed Height
360 mm
Closed Height
400 mm
Closed Height
490 mm
Closed Height
200 mm
Max. Die Set Height
260 mm
Max. Die Set Height
270 mm
Max. Die Set Height
350 mm
Max. Die Set Height
40 mm
Die Height Adjustment
60 mm
Die Height Adjustment
80 mm
Die Height Adjustment
100 mm
Die Height Adjustment
500 mm
Throat Depth
500 mm
Throat Depth
500 mm
Throat Depth
500 mm
Throat Depth
2.2 KW
Motor
4 KW
Motor
11 KW
Motor
18.5 KW
Motor
1370*950*1950 mm
Dimension (L*W*H)
1970*1200*2400 mm
Dimension (L*W*H)
2360*1450*2770 mm
Dimension (L*W*H)
2350*1740*3050 mm
Dimension (L*W*H)
