Y27 Four-Column Single-Movement Hydraulic Press Machine for Sheet Metal Deep Drawing

5 61 Reviews

1. Manual/ Single/ Cycle mode
2. High rigidity machine structure
3. Overseas installation is available
4. Integrated cartridge hydraulic valve

Model:
Y27
Brand:
HARSLE

Availability:

Quantity:



Inquire Add to Basket

Features

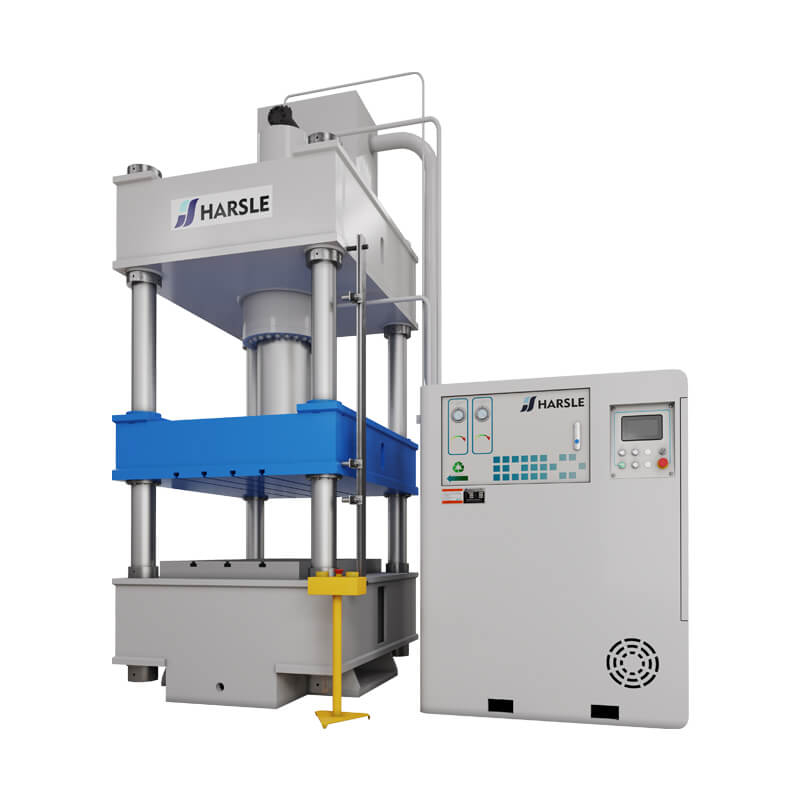

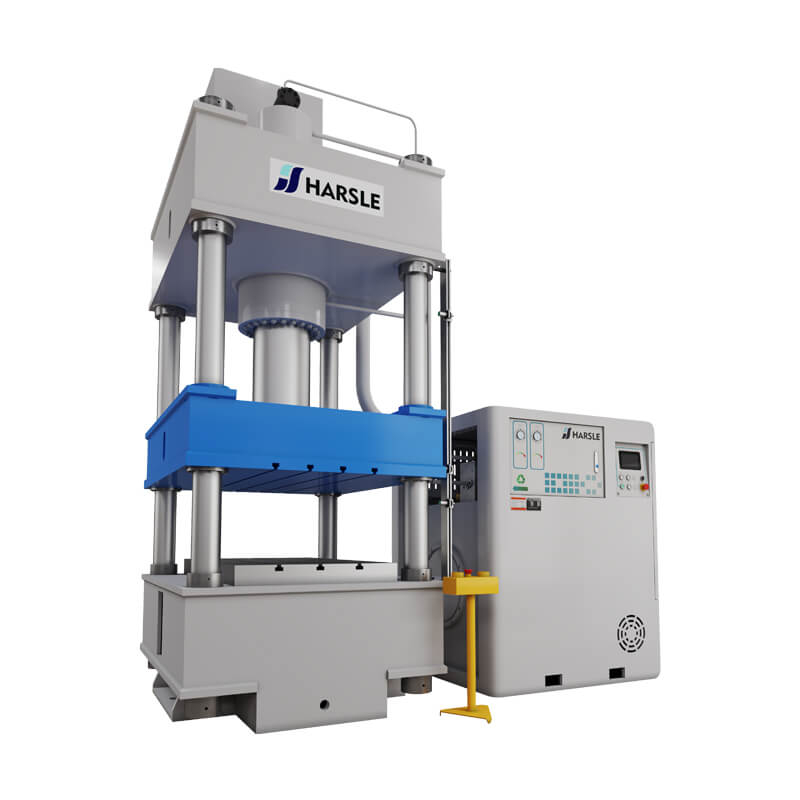

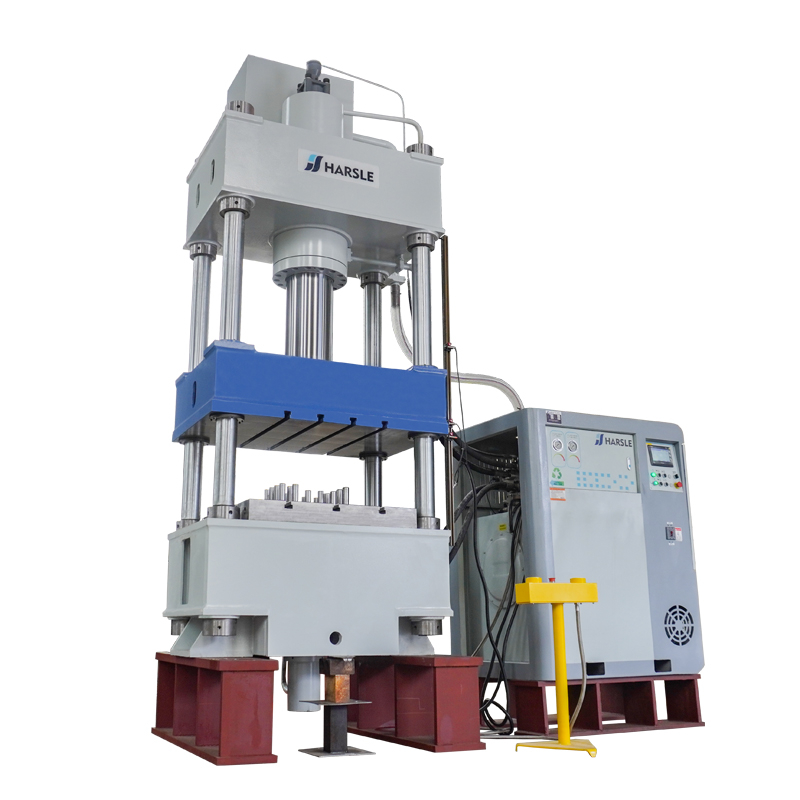

Y27 four-column single-movement hydraulic press machine for sheet metal deep drawing adopts a counter-stretching process and the hydraulic pad can be installed in or outside the table. The hydraulic system uses cartridge valves and the electrical system is automatically controlled by PLC. It is equipped with point-action and semi-automatic operation functions, and the stroke, pressure and speed of each moving part are independently adjustable within a certain range to meet the needs of metal products forming parts. It can also be equipped with beating device, moving table, punching and cutting buffer device, grating safety protection device and man-machine interface according to the user's needs.

Product Description

single movement press sheet deep drawing press deep drawing press machine

Specification

Item			Unit	Y27-200	Y27-250	Y27-315	Y27-400	Y27-500	Y27-630	Y27-800
Nominal			KN	2000	2500	3150	4000	5000	6300	8000
Return force			KN	240	400	600	500	900	850	900
Working pressure			Mpa	25	25	25	25	25	25	25
Cushion pressure			KN	400	400	630	630	1600	2000	2000
Daylight of slide			mm	1120	1120	1200	1250	1500	1500	1500
Stroke	Ram		mm	710	710	800	800	900	900	900
Stroke	Cushion		mm	250	250	300	300	300	350	300
Table size	L-R		mm	900	1000	1200	1200	1400	1600	3200
Table size	F-B		mm	900	1000	1200	1200	1400	1600	2200
Cushion size	L-R		mm	660	700	800	800	900	1120	2550
Cushion size	F-B		mm	600	600	650	650	900	1120	1700
Speed of slide	descent		mm/s	80	100	100	100	100	100	300
	Pressing		mm/s	5-12	4-10	5-12	4-10	4-10	5-12	8-22
	Return		mm/s	70	60	60	60	50	60	200
Table height above floor			mm	700	700	750	750	700	500	500
Overall dimensions		L-R	mm	2450	2600	2850	2850	5800	4150	5400
Overall dimensions		F-B	mm	1300	1300	1500	1500	2600	2600	2900
Motor power			KW	15	15	22	22	22	2×22	96

Item			Unit	Y27-1000	Y27-1000A	Y27-1250	Y27-1600	Y27-2000	Y27-2500	Y27-3000
Nominal force			KN	10000	10000	12500	16000	20000	25000	30000
Return force			KN	1250	1250	1250	2000	2000	2250	2250
Working pressure			Mpa	25	25	25	25	25	25	25
Cushion pressure			KN	1600	1600	1600	2400	2400	3000	3000
Daylight of slide			mm	1800	2200	1800	2000	2100	2000	2500
Stroke	Ram		mm	1000	1500	1000	1200	1300	1100	1600
Stroke	Cushion		mm	365	500	400	400	350	400	400
Table size	L-R		mm	3200	4000	4000	4000	4500	4500	4500
Table size	F-B		mm	2300	2300	2500	2500	2500	2500	2500
Cushion size	L-R		mm	2550	3500	3370	3820	3750	3820	3820
Cushion size	F-B		mm	1800	1800	1870	1870	1800	1700	1600
Speed of slide	Descent		mm/s	300	300	350	350	350	350	350
	Pressing		mm/s	12-30	12-30	12-30	12-30	12-30	12-30	12-30
	Return		mm/s	250	250	300	300	300	300	300
Table height above floor			mm	900	400	400	400	350	350	350
Overall dimensions		L-R	mm	5400	6200	6200	6200	6700	6700	6700
Overall dimensions		F-B	mm	3000	5200	3200	3200	3300	3300	3300
Motor power			KW	160	160	160	200	380	410	500
