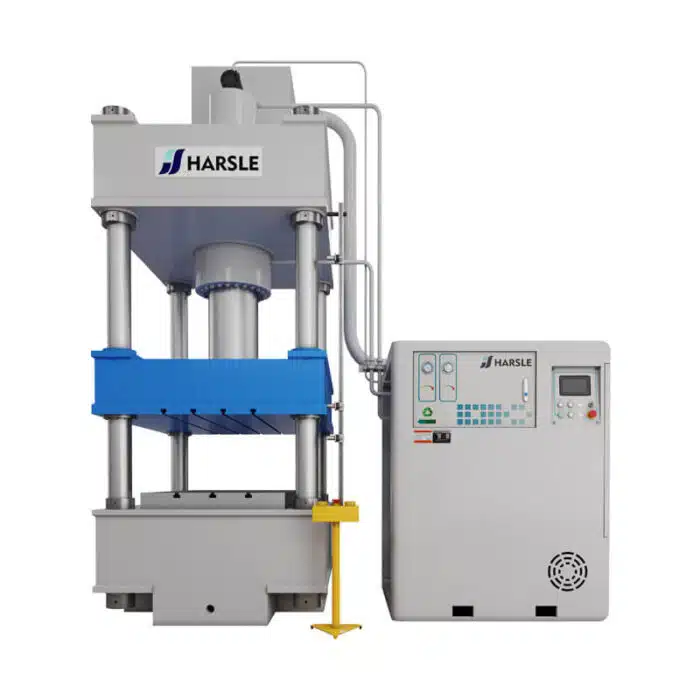

Y27 Four-Column Hydraulic Press for Deep Drawing
The Y27 Four-Column Hydraulic Press is engineered for sheet metal deep drawing applications. With its robust four-column design, this press ensures stable and precise operation, making it ideal for various metal forming processes. The machine’s single-movement functionality enhances efficiency, allowing for quick and accurate shaping of metal sheets. Built for durability and reliability, the Y27 is perfect for both industrial and workshop environments, providing exceptional performance in deep drawing and metal forming tasks.
100 in stock
Y27 Four-Column Single-Movement Hydraulic Press
| Item | Unit | Y27-200T | Y27-250T | Y27-315T | Y27-400T | Y27-500T | Y27-630T | Y27-800T | Y27-1000T | Y27-1250T | Y27-1600T | Y27-2000T | Y27-2500T | Y27-3000T |
| Nominal Force | KN | 2000 | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 25000 | 30000 |
| Return Force | KN | 240 | 400 | 600 | 500 | 900 | 850 | 900 | 1250 | 1250 | 2000 | 2000 | 2250 | 2250 |
| Cushion Pressure | KN | 400 | 400 | 630 | 630 | 1600 | 2000 | 2000 | 1600 | 1600 | 2400 | 2400 | 3000 | 3000 |
| Cushion Stroke | mm | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 365 | 400 | 400 | 350 | 400 | 400 |
| Daylight | mm | 1120 | 1120 | 1200 | 1250 | 1500 | 1500 | 1500 | 1800 | 1800 | 2000 | 2100 | 2000 | 2500 |
| Slide Stroke | mm | 710 | 710 | 800 | 800 | 900 | 900 | 900 | 1000 | 1000 | 1200 | 1300 | 1100 | 1600 |
| Table Height | mm | 700 | 700 | 750 | 750 | 700 | 500 | 500 | 900 | 400 | 400 | 350 | 350 | 350 |
| T Slot | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Type | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | |
| Servo Motor Power | KW | 15 | 15 | 22 | 22 | 30 | 48 | 48 | 60 | 72 | 92 | 94 | 110 | 150 |
| Worktable Size(L-R) | mm | 900 | 1000 | 1200 | 1200 | 1400 | 1600 | 3200 | 3200 | 4000 | 4000 | 4500 | 4500 | 4500 |
| Worktable Size(F-B) | mm | 900 | 1000 | 1200 | 1200 | 1400 | 1600 | 2200 | 2300 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Cushion(L-R) | mm | 660 | 700 | 800 | 820 | 900 | 1120 | 2250 | 2250 | 3370 | 3820 | 3750 | 3820 | 3820 |
| Cushion(F-B) | mm | 600 | 600 | 650 | 650 | 900 | 1120 | 1700 | 1800 | 1870 | 1870 | 1800 | 1700 | 1600 |
| Descent Speed | mm/s | 80 | 100 | 100 | 100 | 100 | 100 | 300 | 300 | 350 | 350 | 350 | 350 | 350 |
| Pressing Speed | mm/s | 5-12 | 4-10 | 5-12 | 4-10 | 4-10 | 5-12 | 8-22 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 |
| Return Speed | mm/s | 70 | 60 | 60 | 60 | 50 | 60 | 200 | 250 | 300 | 300 | 300 | 300 | 300 |
| Length(L-R) | mm | 2450 | 2600 | 2850 | 3150 | 3800 | 4150 | 5400 | 5400 | 6200 | 6200 | 6700 | 6700 | 6700 |
| Width(F-B) | mm | 1300 | 1300 | 1500 | 2300 | 2600 | 2600 | 2900 | 3000 | 3200 | 3200 | 3300 | 3300 | 3300 |
| Weight | T | 9.5 | 11 | 15.5 | 26 | 39 | 84 | 106 | 158 | 187 | 220 | 275 | 345 |
8
People watching this product now!
Description
The Y27 Four-Column Hydraulic Press is designed for deep drawing applications, offering precision and reliability for metal forming. This machine ensures high performance with its robust four-column structure, providing stable pressure distribution and enhanced safety.
Key Features:
- Durable Construction: Built with high-quality materials for long-lasting durability.
- Efficient Operation: Provides consistent force and excellent performance for deep drawing tasks.
- User-Friendly Control System: Easy to operate, ensuring maximum productivity and minimal downtime.
Perfect for industries requiring high precision and versatility in metalworking.
WHAT WE OFFER
Product Features Overview
Slider
The precise slider movement ensures stable, accurate pressing, enhancing product consistency and reducing wear.
Oil Cylinder
The durable oil cylinder provides powerful, reliable force, ensuring efficient and stable hydraulic operations.
Touch Screen
User-friendly touch screen offers intuitive control, enabling easy operation and real-time monitoring of parameters.
IOT Module
The IOT module enables remote monitoring and diagnostics, ensuring timely maintenance and reducing downtime.
Automatic Lubrication System
The automatic lubrication system ensures consistent performance, reducing friction and extending component lifespan.
Hydraulic Cushion
Hydraulic cushion optimizes force distribution, providing enhanced precision and minimizing deformation in complex press operations.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ 5/5
Exceptional Quality and Performance!
We’ve been using HARSLE’s hydraulic press for three years and are very satisfied with its quality and the excellent after-sales service.
Germany
★★★★★ 5/5
Outstanding Service Every Time!
We’ve used HARSLE’s hydraulic press for three years and are very satisfied with both the quality and the exceptional after-sales service.
USA
Most Popular Questions
We offer a variety of hydraulic presses, including four-column presses, C-frame presses, and servo-controlled presses, each designed for different applications and industries.
The maximum tonnage capacity varies by model, ranging from small presses suitable for light applications to heavy-duty presses capable of handling up to several hundred tons.
Our hydraulic presses can process various materials, including metals, plastics, rubber, and composites, depending on the specific application and tooling used.
Yes, we offer customization options to meet specific production requirements, including modifications in size, force, and additional features.
Our hydraulic presses are equipped with several safety features, such as emergency stop buttons, safety guards, and pressure sensors to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer installation services and comprehensive training for your staff to ensure that the hydraulic press is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your hydraulic press.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our hydraulic presses.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2450 × 1300 × 3890 mm |
| Function |
Forming |
| Lead Time |
45 Days |
| Brand |
HARSLE |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
3 Years |
Reviews (11)
Nhan –
Very well packed, fast delivery. Looks great. Satisfied with purchase and recommended.
Fredrik –
The machine was received. The quality is very good, the workmanship is fine, and the operation is simple.
Ike –
The machine was selected after comparing and inspecting several companies. I am very satisfied with it. It has high efficiency and low noise.
Ikaika –
The hydraulic press has been received, a big brand! trustworthy! The effect is super good!
Saviour –
The equipment has been installed and the mold test was very successful. The attitude of the merchant is also very good and the service is excellent. I look forward to continuing our cooperation next time.
Pharrell –
The equipment is very easy to use and the service attitude of the seller is really good. I will buy it again if necessary in the future.
Carlile –
The machine was received, shipped quickly, has a great appearance, reasonable design, and was installed in a timely manner. I am very satisfied.?
Vondell –
Used it as soon as I received it. It is very good, the quality is super good, the operation is stable and reliable, and the noise is very small.
Hemmi –
I have started using the equipment and it is pretty good. The quality is very good and the noise is very low. It is very good.
Yoandry –
The equipment has been received, debugging is completed, and the operation is stable and fast.
Raulin –
I recently purchased a hydraulic press machine for my manufacturing business, and I must say, it has been a game-changer. HARSLE hydraulic press machine is incredibly versatile and robust, making it suitable for a wide range of manufacturing and fabrication processes. One aspect that impressed me the most is its efficiency in exerting pressure.
