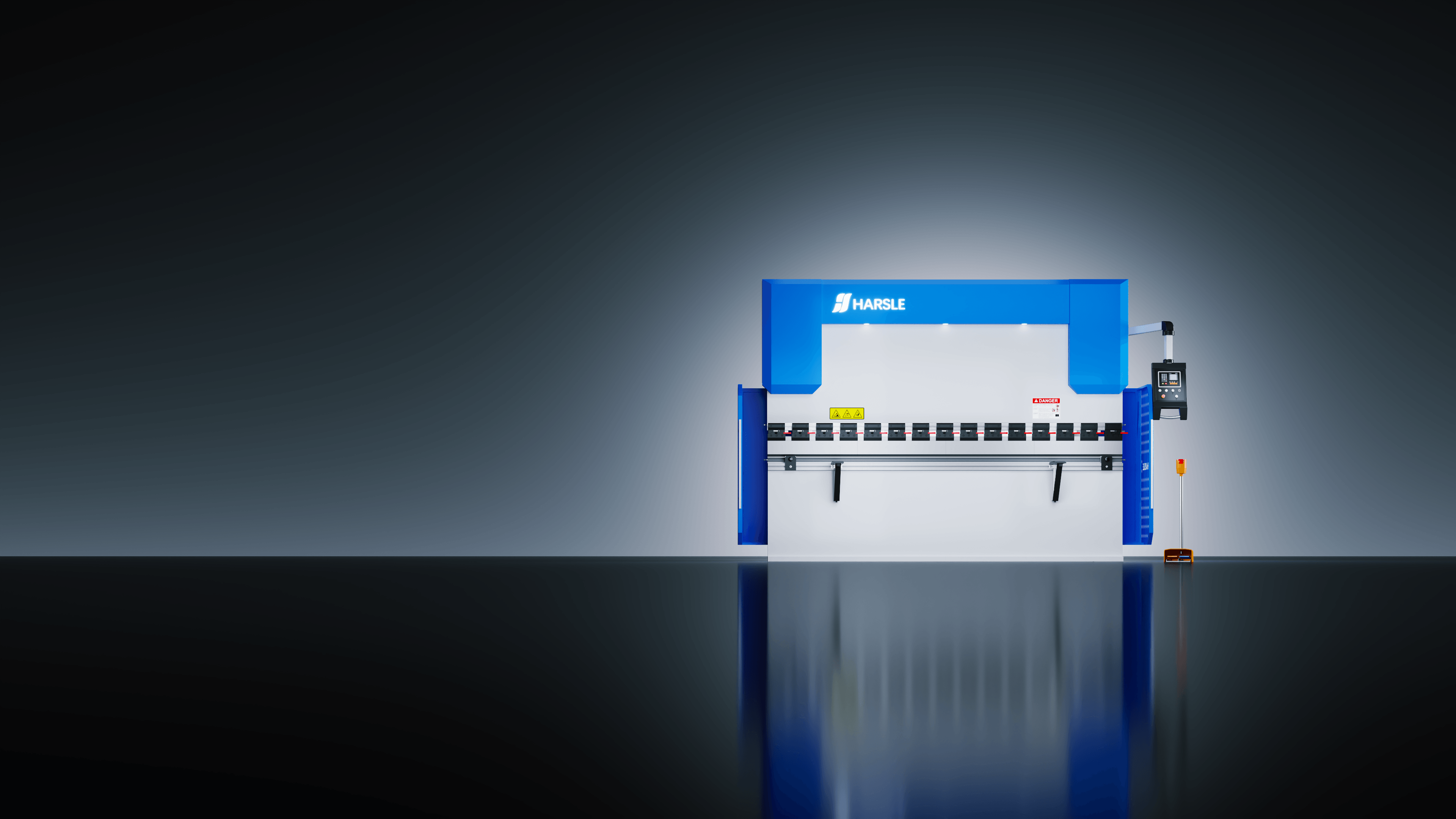

EasyBend
User-friendly design meets stable performance. Engineered for daily efficiency.
Rigid Transmission
Rack
Rack
Drive System
Gear and rack transmission ensures stable synchronization, strong rigidity, and reliable long-term performance.
Powered Software
Intelligent Control
Built-In Reliability
Standard Features
Equipped with essential high-quality components, ensuring stable performance, safe operation, and dependable results for everyday bending tasks.
Quick Locking
Fast Release Clamp
Enables rapid tool changes with secure locking, reducing downtime and improving overall production efficiency.
Smooth Motion
Linear Guide & Ball Screw
High-precision linear guides and ball screws ensure smooth movement, accurate positioning, and long-lasting stability.
Secure Operation
Safety Door Switch
Automatically stops machine operation when the safety door is opened, protecting operators and ensuring compliance with safety standards.
01 / 03
Precise Positioning
Backgauge System
Designed for accurate and repeatable positioning, the backgauge system ensures consistent bending results while improving efficiency and reducing manual adjustments.
Standrad
Manual R-axis
Prevent deformation of long sheets during bending while ensuring high precision, smooth handling, and efficient operation across various sheet sizes.
Standrad
Stop Fingers
Provides firm and accurate positioning points, ensuring consistent alignment and improved repeatability during bending operations.
Optional
Automatic R-axis
Automatically adjusts height for different bending requirements, enhancing precision, reducing setup time, and enabling efficient batch production.
01 / 03
Optional Accessories
Upgrade Options
Laser-based safety device mounted on the ram provides a narrow detection zone close to the tooling point. Allows faster approach speeds while maintaining the highest level of operator protection.
Infrared light curtain safety system provides full-length protection along the bending zone. Instantly halts ram movement when the safety field is breached, ensuring operator safety during every cycle.
High-visibility laser line projection for accurate workpiece positioning, reducing setup time and operator error.
Simply Powerful
Easy to use, built to perform
Tooling System
Precision Press Brake Tooling
A complete range of punches, dies, and clamping systems from HARSLE.
Punches & Dies
Gooseneck, acute, radius, hemming, multi-V — 58-62 HRC hardened.
Quick-Clamp Systems
Tool changes under 3 min. WILA, Amada, Euro compatible.
±0.01mm Precision
CNC precision-ground for repeatable bending angles.
Technical Data
Specifications
All models at a glance — compare side by side
EasyBend
6325
6325
EasyBend
20032
20032
EasyBend
25040
25040
EasyBend
40060
40060
630 kN
Bending Force
2000 kN
Bending Force
2500 kN
Bending Force
4000 kN
Bending Force
2500 mm
Bending Length
3200 mm
Bending Length
4000 mm
Bending Length
6000 mm
Bending Length
2100 mm
Column Distance
2600 mm
Column Distance
3200 mm
Column Distance
5200 mm
Column Distance
350 mm
Throat Depth
400 mm
Throat Depth
450 mm
Throat Depth
500 mm
Throat Depth
120 mm
Ram Stroke
200 mm
Ram Stroke
250 mm
Ram Stroke
300 mm
Ram Stroke
380 mm
Daylight
500 mm
Daylight
525 mm
Daylight
600 mm
Daylight
5.5 KW
Servo Motor
15 KW
Servo Motor
18.5 KW
Servo Motor
30 KW
Servo Motor
120 mm/s
Down Speed
90 mm/s
Down Speed
90 mm/s
Down Speed
70 mm/s
Down Speed
2900*1500*2200 mm
Dimension (L*W*H)
3600*1850*2550 mm
Dimension (L*W*H)
4400*1950*2880 mm
Dimension (L*W*H)
6400*2200*3350 mm
Dimension (L*W*H)
