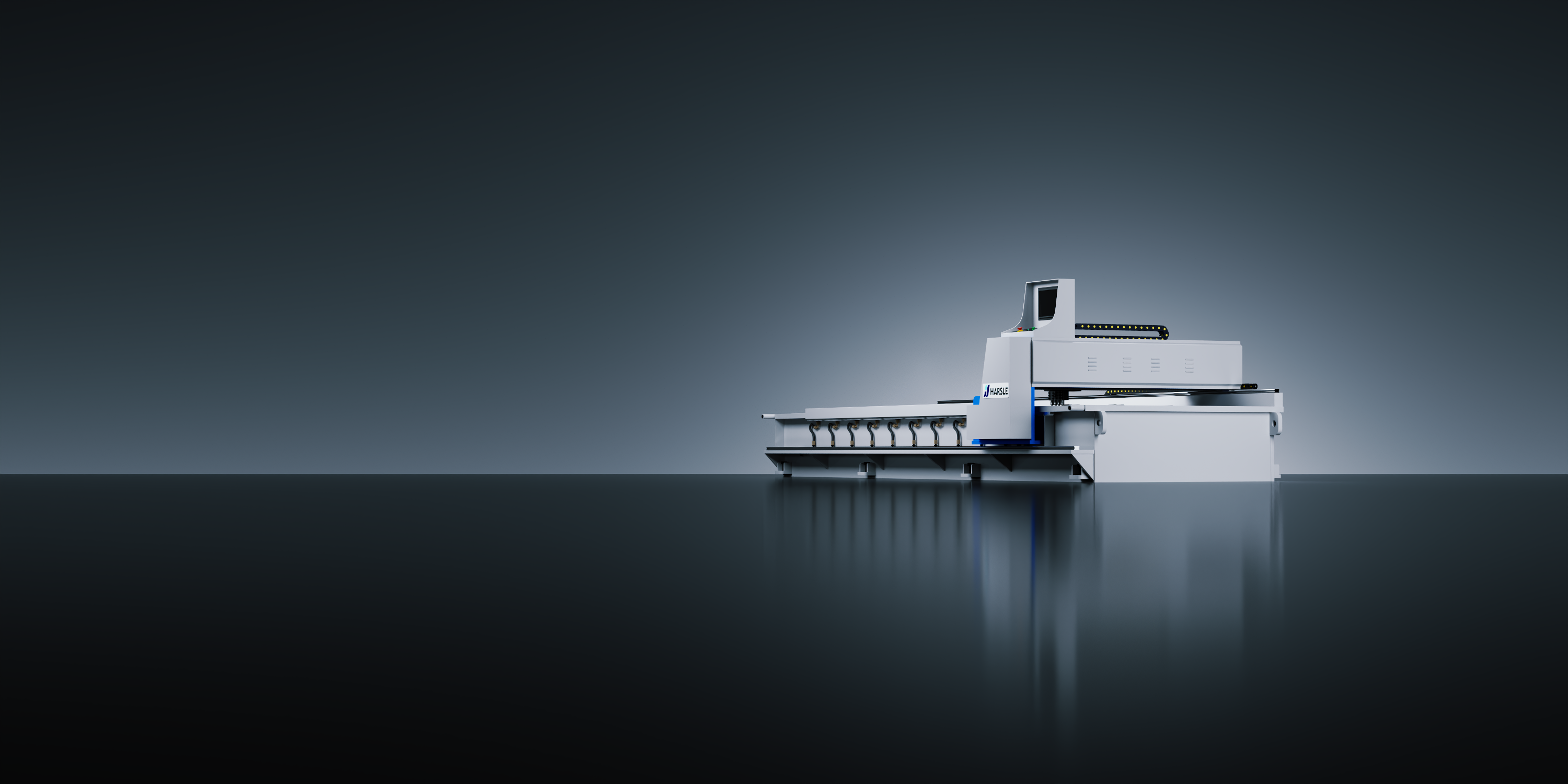

EcoGroove

Designed for efficient large-sheet grooving with strong structure and smooth processing.

background image
Robust Framework

Stable Structure

The gantry structure offers superior stability and support, ensuring smooth operation and precise grooving, even under heavy workloads.

Stable Structure
background image
background image
background image
background image
Precise Movement

MultipleCNC Axis

Y1 axis: Positioning axis
Y2 axis: Clamping axis
X axis: Grooving axis
Z axis: Feeding axis
background image
Higher Efficiency

Four Blades

The four-blade design improves processing efficiency and supports continuous grooving operation.

Four Blades
Detail Image 1

Four coordination improves overall stability and reduces vibration during operation.

Detail Image 2

Enhances production speed by optimizing movement and reducing setup time.

background image
background image
Stable Holdingt

Hydraulic Clamping

Quick Locking

Quick Locking

Secures the sheet firmly from the front side, ensuring fast positioning and stable grooving performance.

Lateral Clamp

Lateral Clamp

Provides additional support from the side, helping maintain sheet stability and improve processing consistency.

background image
Precision and Versatility

Four-Side Grooving

The four-sided groover ensures uniform surface finishing on all sides of the workpiece, providing consistent and high-quality results, ideal for complex cutting tasks.

four-Side
Detail Image 1

The three-jaw chuck ensures secure and precise clamping of tubes, minimizing material shift during high-speed cutting for enhanced accuracy.

Detail Image 2

The three-jaw chuck offers quick and efficient tube clamping, reducing setup time and optimizing cutting speed for faster production.

Industries We Serve

Powering Metal Fabrication
Across Every Sector

HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.

Automotive industry applications
Automotive
Automotive View Applications
Aerospace industry press brake applications
Aerospace
Aerospace View Applications
Construction and electronics press brake applications
Construction & Electronics
Construction & Electronics View Applications
Energy and power press brake applications
Energy & Power
Energy & Power View Applications
Machinery applications
Wide Range Machinery
Wide Range Machinery View Applications
HVAC ventilation press brake applications
HVAC & Ventilation
HVAC & Ventilation View Applications
Technical Data

Specifications

All models at a glance — compare side by side

EcoGroove
1232
EcoGroove
1260
EcoGroove
1532
EcoGroove
1560
3200 mm
Machining Capacity Length
6000 mm
Machining Capacity Length
3200 mm
Machining Capacity Length
6000 mm
Machining Capacity Length
1250 mm
Machining Capacity Width
1250 mm
Machining Capacity Width
1500 mm
Machining Capacity Width
1500 mm
Machining Capacity Width
0.4-5 mm
Machining Capacity Thickness
0.4-5 mm
Machining Capacity Thickness
0.4-5 mm
Machining Capacity Thickness
0.4-5 mm
Machining Capacity Thickness
90 m/min
X Axis Max Speed
90 m/min
X Axis Max Speed
90 m/min
X Axis Max Speed
90 m/min
X Axis Max Speed
30 m/min
Z Axis Max Speed
30 m/min
Z Axis Max Speed
30 m/min
Z Axis Max Speed
30 m/min
Z Axis Max Speed
±0.03 mm
Worktable Flatness
±0.03 mm
Worktable Flatness
±0.03 mm
Worktable Flatness
±0.03 mm
Worktable Flatness
±0.05 mm
Tool-holder Plate Guide Rail Flatness
±0.05 mm
Tool-holder Plate Guide Rail Flatness
±0.05 mm
Tool-holder Plate Guide Rail Flatness
±0.05 mm
Tool-holder Plate Guide Rail Flatness
45 mm
Clamping Cylinder Diameter
45 mm
Clamping Cylinder Diameter
45 mm
Clamping Cylinder Diameter
45 mm
Clamping Cylinder Diameter
5500*2300*1680 mm
Dimension (L*W*H)
8300*2300*1680 mm
Dimension (L*W*H)
5400*2500*1680 mm
Dimension (L*W*H)
8300*2600*1680 mm
Dimension (L*W*H)
