In my experience with various machinery, I have come to appreciate the importance of foot switches and their working principles. Understanding how foot switches operate is crucial for ensuring safe and efficient machine use, as they serve as vital controls in many industrial applications. Over the years, I’ve identified five key aspects of foot switch working principles that can help operators maximize their effectiveness and maintain safety standards. In this article, I will share these insights, providing valuable information that can enhance your understanding of foot switches and improve your operational practices.

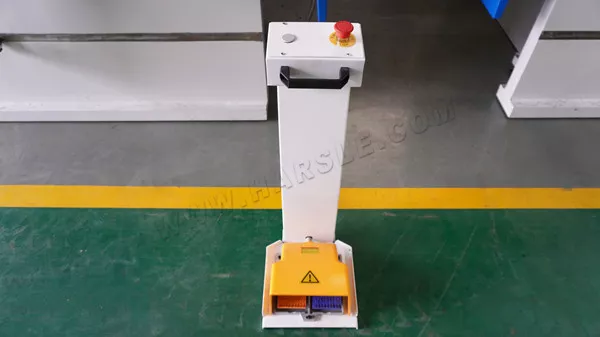

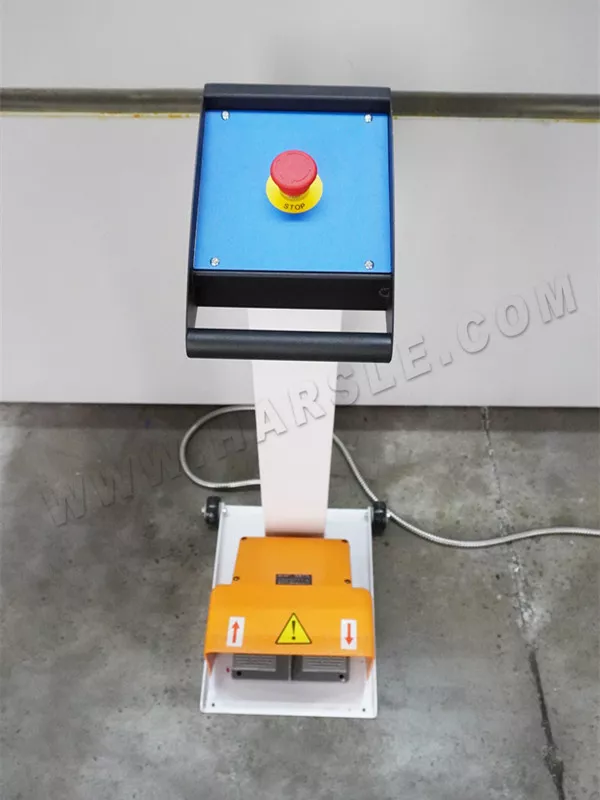

Foot Switch

It is a switch that can be used to operate the circuit by stepping on or stepping on it, and it can also be used to control the size of the output current. A foot switch is a switch that controls the on-off of a circuit by stepping on or stepping on it. It is used in a control circuit that cannot be touched by both hands to replace hands to achieve the purpose of operation.

What is The Principle of The Foot Switch?

A foot switch is a switch that controls the on-off of a circuit by stepping on or stepping on it. It is used in a control circuit that cannot be touched by both hands to replace hands to achieve the purpose of operation. A simple foot switch is actually a built-in travel switch. When the foot pedal gives a signal, the switch is executed. But in the field of welding, the function of the foot switch also plays the role of controlling the output current.

What Are The Types of Foot Switches?

There are mainly two types of mechanical foot switches and inductive foot switches. Among them, the mechanical foot switch is a traditional rack and pinion drive, and the induction type is based on the principle of electromagnetic induction. Foot switch HRF-M series, HRF-H series, H-type (15A/250V opening and closing capacity) and M-type (10A/250V opening and closing capacity) are distinguished in terms of structure and function, and flame-retardant engineering plastics are distinguished in terms of material , steel plate, aluminum alloy.

Materials and Durability

The longevity and reliability of a foot switch are heavily influenced by the materials used in its construction. Key considerations include:

Pedal Materials

• Metal vs. Plastic: Metal pedals offer greater durability and can withstand heavy use, making them suitable for industrial or professional settings. Plastic pedals, while lighter and often more affordable, are better suited for lighter applications.
• Non-Slip Surfaces: Many foot switches feature textured or rubberized pedal surfaces to prevent slipping, ensuring safe and accurate operation.

Internal Components

• Contact Quality: High-quality conductive materials reduce wear and tear, maintaining consistent electrical performance over time.
• Spring Mechanisms: Durable springs ensure that the pedal returns to its default position reliably after each press.

Investing in a foot switch made from robust materials can save costs in the long run by reducing the need for frequent replacements and ensuring uninterrupted operation.

What Are The Characteristics of The Foot Switch?

1. The surface is spray-coated with excellent impact resistance, wear resistance and high temperature resistance (180 degrees).

2. There is a cable head at the lead-out part of the cable, so the waterproof, oil-proof and impact-proof effects are outstanding.

3. The standard configuration of cable lead-out length is 2 meters, M type is 0.5 square meters; H type is 0.75 square meters.

4. The built-in micro switch has obtained UL, VDE, TUV, CE, CCC certification.

5. The built-in micro switch contacts are plated with 24K gold.

6. “H” type achieves IP65 protection level.

7.All models have passed CE certification and obtained China product safety CCC certification.

Conclusion

Foot switches are invaluable tools across various domains, offering hands-free control that enhances efficiency and convenience. By understanding the working principle of foot switches, including their basic structure, electrical operation, types, material durability, and integration capabilities, you can make informed decisions when selecting the right foot switch for your needs. Whether you’re a musician looking to streamline your performance setup, a medical professional requiring precise equipment control, or involved in industrial operations where efficiency is key, mastering the fundamentals of foot switch operation can significantly improve your workflow and overall experience.

Investing in a quality foot switch tailored to your specific application ensures reliable performance, durability, and seamless integration, ultimately contributing to greater productivity and satisfaction in your endeavors.
