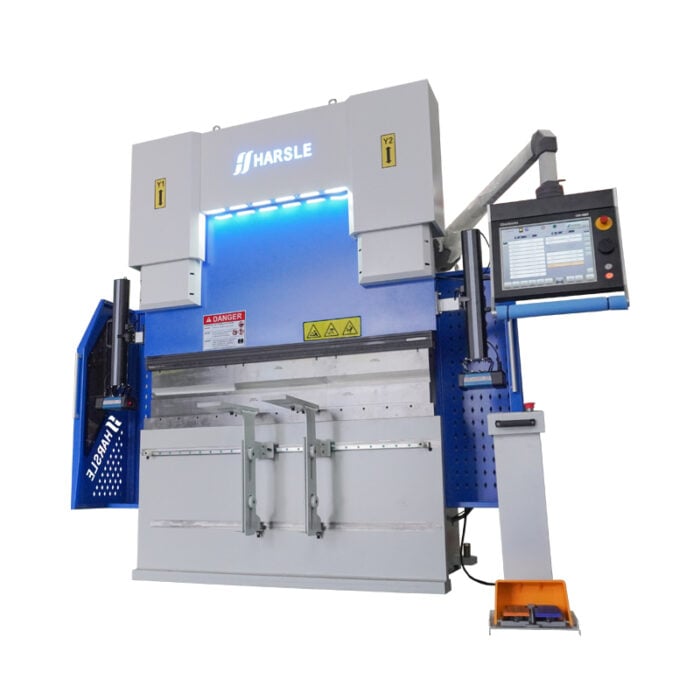

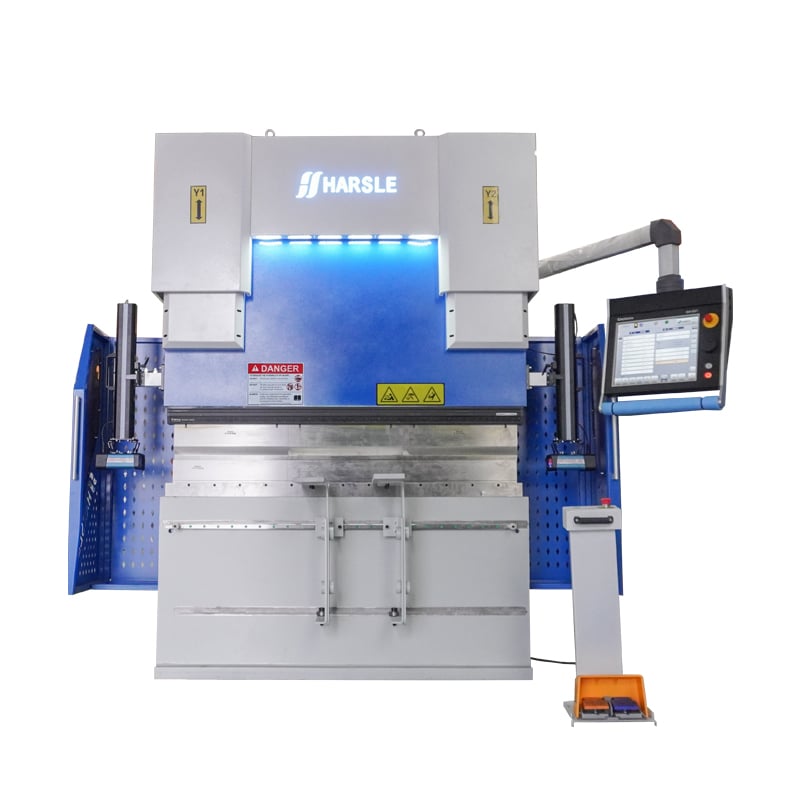

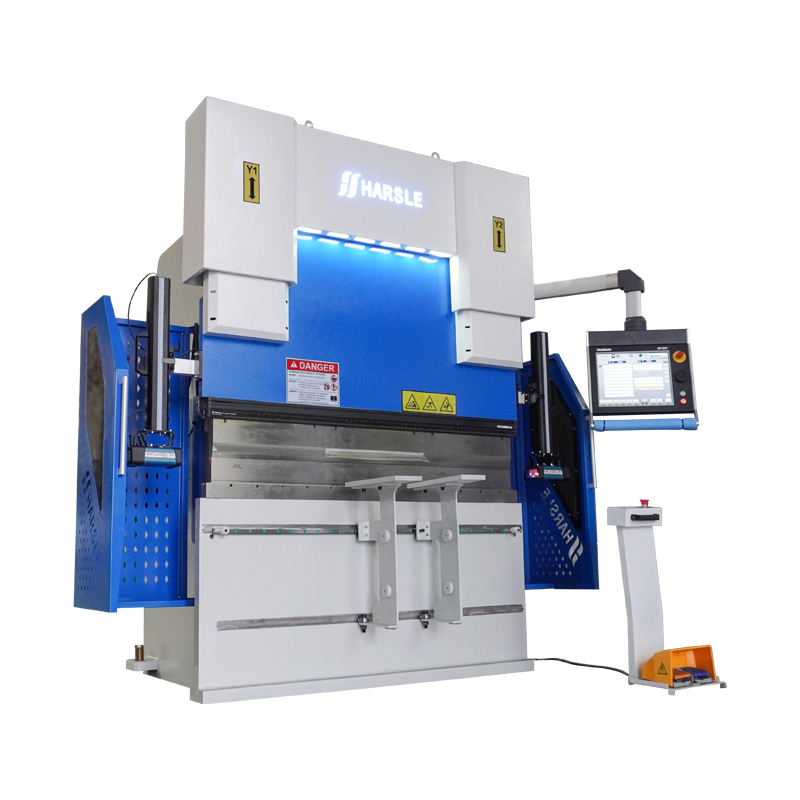

40T Mini Hydraulic Press Brake for Sheet Metal with DA-66T

40T Mini Hydraulic Press Brake for Sheet Metal with DA-66T

Name: 40T Mini Hydraulic Press Brake for Sheet Metal with DA-66T
SKU: HS20241104
Price: 33300 USD
Availability: InStock

The 40T Mini Hydraulic Press Brake is a compact, high-performance machine ideal for precise sheet metal bending. Equipped with the DA-66T controller, it delivers accurate results while saving space in smaller workshops. Durable and efficient, it’s the perfect choice for professional use in tight spaces.

100 in stock

Add to compare

Add to wishlist

QUOTE NOW

Genius Press Brake

Item	Unit	30T1200	30T1500	30T1600	40T1200	40T1500	40T1600	40T2000	40T2200	40T2500	63T1500	63T1600	63T2500	63T3200	80T2500	80T3200	80T4000	100T2500	100T3200	100T4000	125T2500	125T3200	125T4000	160T2500	160T3200	160T4000	160T5000	160T6000	200T3200	200T4000	200T5000	200T6000	250T3200	250T4000	250T5000	250T6000	300T3200	300T4000	300T5000	300T6000	400T3200	400T4000	400T5000	400T6000	500T3200	500T4000	500T5000	500T6000	500T7000	600T4000	600T5000	600T6000	600T7000	600T8000	800T6000	800T7000	800T8000	1000T6000	1000T7000	1000T8000	1200T6000	1200T7000	1200T8000
Bending Force	KN	300	300	300	400	400	400	400	400	400	630	630	630	630	800	800	800	1000	1000	1000	1250	1250	1250	1600	1600	1600	1600	1600	2000	2000	2000	2000	2500	2500	2500	2500	3000	3000	3000	3000	4000	4000	4000	4000	5000	5000	5000	5000	5000	6000	6000	6000	6000	6000	8000	8000	8000	10000	10000	10000	12000	12000	12000
Bending Length	mm	1200	1500	1600	1200	1500	1600	2000	2200	2500	1500	1600	2500	3200	2500	3200	4000	2500	3200	4000	2500	3200	4000	2500	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	3200	4000	5000	6000	7000	4000	5000	6000	7000	8000	6000	7000	8000	6000	7000	8000	6000	70000	80000
Column Distance	mm	900	1100	1200	1000	1100	1200	1600	1800	2100	1100	1200	2100	2600	2100	2600	3200	2100	2600	3200	2100	2600	3200	2100	2600	3200	4000	5000	2600	3200	4000	5000	2600	3200	4000	5000	2600	3200	4000	5000	2600	3200	4000	5000	2500	3000	4000	4800	5600	3000	4000	4800	5600	6800	4800	5600	6800	4800	5500	6500	4800	5600	6500
Throat Depth	mm	250	250	250	250	250	250	250	250	250	300	300	300	300	300	300	300	350	350	350	350	350	350	400	400	400	400	400	400	400	400	400	450	450	450	450	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	600	600	600	600	600	600	600	600	600
Ram Stroke	mm	160	160	160	160	160	160	160	160	160	160	160	160	160	180	180	180	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	250	250	250	250	250	250	250	250	300	300	300	300	300	300	300	300	300	300	300	300	300	300	400	400	400	400	400	400	400	400	400
Daylight	mm	430	430	430	430	430	430	430	430	430	450	450	450	450	450	450	450	480	480	480	480	480	480	480	480	480	480	480	480	480	480	480	525	525	525	525	575	575	575	575	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600
Table Width	mm	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100	260	260	260	260	260	260	260	260	260	260	260	260	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
Table Height	mm	750	750	750	750	750	750	750	750	850	850	850	850	880	850	880	880	920	920	920	920	920	920	920	920	920	1000	1050	930	950	1000	1100	1020	1020	1020	1150	1020	1100	1200	1200	1150	1150	1200	1200	1200	1580	1580	1600	1600	1580	1580	1680	1600	1600	1800	1850	1950	2100	2100	2100	2300	2300	2300
Oil Tank	L	85	85	85	85	115	115	115	115	200	200	200	200	220	200	220	220	220	250	320	180	250	320	250	310	390	400	480	310	390	460	550	360	450	520	600	360	450	520	600	600	600	760	950	500	760	760	950	950	760	760	1100	950	950	950	950	950	950	950	950	950	950	950
Front Support		2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3	2	2	2	3	3	2	2	3	3	3	3	3	3	3	3	3	3	3	3
Servo Motor	KW	3	3	3	5	5	5	5	5	5	6	6	6	6	8.7	8.7	8.7	8.7	8.7	8.7	10.8	10.8	10.8	13.2	13.2	13.2	13.2	13.2	16.7	16.7	16.7	16.7	21.4	21.4	21.4	21.4	26.9	26.9	26.9	26.9	33	33	33	33	45	45	45	45	45	55	55	55	55	55	33+33	33+33	33+33	45+45	45+45	45+45	55+55	55+55	55+55
Pump	ml/r	8	8	8	8	10	10	10	10	10	10	10	10	10	16	16	16	16	16	16	20	20	20	25	25	25	25	25	32	32	32	32	40	40	40	40	50	50	50	50	50	50	50	50	63	63	63	63	63	80	80	80	80	80	50+50	50+50	50+50	63+63	63+63	63+63	80+80	80+80	80+80
Hydraulic Pressure		28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	38	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28	28
Down Speed	mm/s	200	200	200	200	150	150	150	150	150	160	160	160	160	180	180	180	200	200	200	200	200	200	150	150	150	150	150	120	120	120	120	120	120	120	120	100	100	120	120	90	90	90	90	100	100	100	100	100	80	80	80	80	80	80	80	80	80	80	80	80	80	80
Working Speed	mm/s	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-15	0-150	0-15	0-12	0-12	0-12	0-12	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7
Return Speed	mm/s	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	150	150	150	150	150	120	120	150	120	120	120	120	120	90	90	90	90	80	80	80	80	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70	70
X-Axis Speed	mm/s	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
X-Axis Stroke	mm	400	400	400	400	400	400	400	400	400	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	550	650	650	650	650	650	650	650	650	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750
R-Axis Speed	mm/s	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200
R-Axis Stroke	mm	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	200	200	200	200	200	200	200	200	200	200	200	200	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/
X Axis Accuracy	mm	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
Stop Finger		2	2	2	2	2	2	2	2	4	2	2	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Weight	kg	2980					3100	3400	3500	3700	3700	3800	4200	4800	5105	5800	7500	6200	7000	8050	6300	7500	8800	8200	9300	10500	12000	14000	10000	12000	14000	16000	12000	13500	15500	18000	12500	14800	16000	22000	22500	26500	28500	31800	26000	32000	39000	42000	50000
Length	mm	1600	1900	2000	1600	1900	2000	2500	2700	2900	1900	2000	2900	3600	2900	3600	4600	2900	3500	4400	2900	3600	4400	2900	3600	4400	5600	6600	3600	4400	5300	6600	3600	4400	5300	6700	3600	4400	5500	6700	3600	4400	5500	6400	3800	4600	5500	6400	7500	4500	5500	6600	7300	8600	6500	7500	8400	6300	7500	8600	6300	7500	8600
Width	mm	1300	1300	1300	1300	1400	1400	1400	1400	1400	1500	1500	1500	1500	1550	1550	1600	1600	1600	1600	1650	1650	1600	1750	1750	1800	1850	1800	1850	1850	1850	1850	1900	1950	1950	1950	1950	1950	2000	2000	1950	2150	2150	2200	2300	2300	2300	2300	2500	2350	2350	2350	2350	2850	2850	2850	2850	3100	3100	3100	3200	3200	3200
Height	mm	2100	2100	2100	2100	2150	2150	2150	2150	2150	2400	2400	2400	2400	2500	2500	2680	2600	2600	2650	2620	2630	2680	2700	2700	2750	2800	2950	2750	2780	2800	2980	2850	2880	2980	3100	2950	2980	3100	3200	3200	3200	3250	3350	3200	3200	3400	3500	4500	4500	4500	4500	4500	4500	5300	5300	5300	6800	6800	6800	7500	7500	7500

8 People watching this product now!

Description

The 40T Mini Hydraulic Press Brake for Sheet Metal with DA-66T is designed for precision bending in a compact size. Perfect for small workshops, it offers high performance and efficiency.

Key Features:

Powerful 40T Capacity: Ideal for a range of sheet metal applications.
Advanced DA-66T Controller: Ensures accurate and smooth bending operations.
Compact Design: Space-saving and easy to integrate into smaller workspaces.
Durable Construction: Built for long-lasting performance with minimal maintenance.

This versatile press brake combines power and precision, making it an excellent choice for professionals seeking quality in a small footprint.

WHAT WE OFFER

Product Features Overview

Trusted Global Partners

Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.

Why Choose HARSLE

Direct Manufacturer

Factory direct, no middlemen, ensuring the best prices for our customers.

3-Year Warranty

Enjoy peace of mind with a three-year warranty and free parts replacement.

Multilingual Support

Our multilingual team ensures efficient communication for all your needs.

Heat-Treated Frame

Our frames undergo heat treatment for long-lasting precision and durability.

Quality Assurance

Comprehensive quality checks guarantee the quality of every machine.

Localized Service

We provide prompt, localized service in multiple countries for your convenience.

Testimonials

Hear What Our Customers Say

At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.

★★★★★ 5/5

Exceptional Quality and Performance!

Our HARSLE press brake has been in use for five years without any issues. We’re extremely satisfied with its performance and reliability. Highly recommend!

Rosetta Capristo

Germany

★★★★★ 5/5

Outstanding Service Every Time!

We are extremely satisfied with our HARSLE press brake and punching machine. The on-site installation and training provided by their engineers were excellent and very helpful!

Mario Gurrola

USA

Most Popular Questions

What types of press brakes do you manufacture?

We manufacture a variety of press brakes, including hydraulic, CNC, and mechanical models, suitable for different bending needs and materials.

What is the maximum bending capacity of your press brakes?

Our press brakes can accommodate a bending capacity ranging from 30 tons to over 2000 tons, depending on the specific model and configuration.

Can your press brakes handle different materials?

Yes, our press brakes can handle a wide range of materials, including steel, aluminum, and other alloys, with varying thicknesses depending on the model.

What are the customization options available?

We offer customization options for bending lengths, tooling, and controls to meet specific production requirements.

Do you provide training for operating the press brakes?

Yes, we provide comprehensive training for operators, including on-site training and user manuals, to ensure safe and efficient operation.

How long does it take to deliver a press brake after placing an order?

Delivery time varies based on the model and customization; typically, it ranges from 4 to 12 weeks after the order is confirmed.

What support do you offer after purchase?

We offer ongoing technical support, spare parts availability, and maintenance services to ensure your press brake operates smoothly.

Are your press brakes compliant with international standards?

Yes, our press brakes comply with international quality and safety standards, including CE and ISO certifications.

Can I see a demonstration of the press brake before purchase?

Absolutely! We can arrange for a demonstration of our press brakes at our facility or a trade show, allowing you to see the machine in action.

What is the warranty period for your press brakes?

Our press brakes come with a standard warranty of 36 months, covering parts and labor for manufacturing defects.

Get Your Custom Quote Today!

Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!

QUOTE NOW

Additional information
