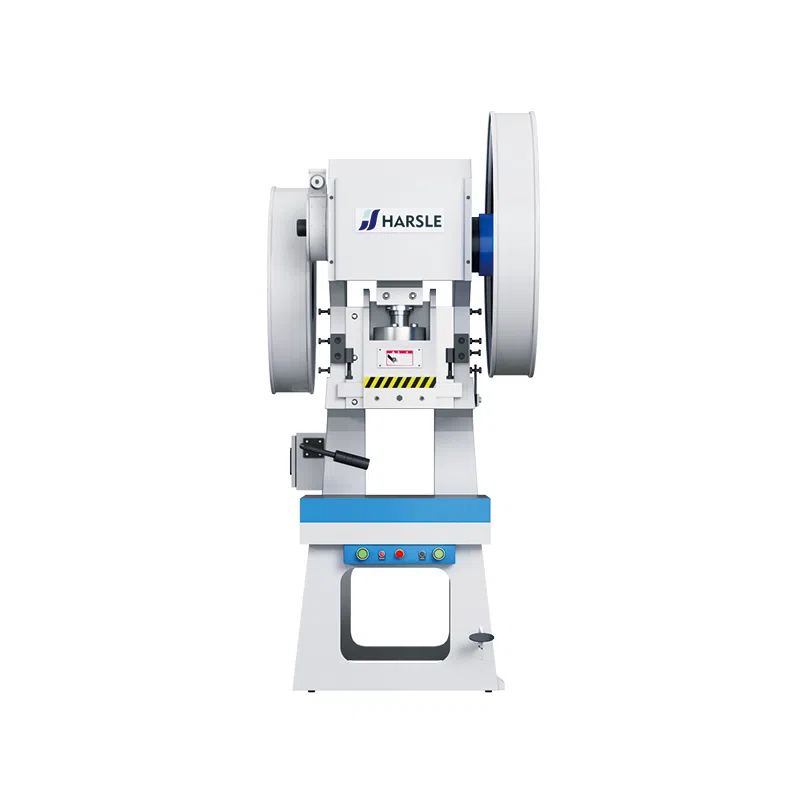

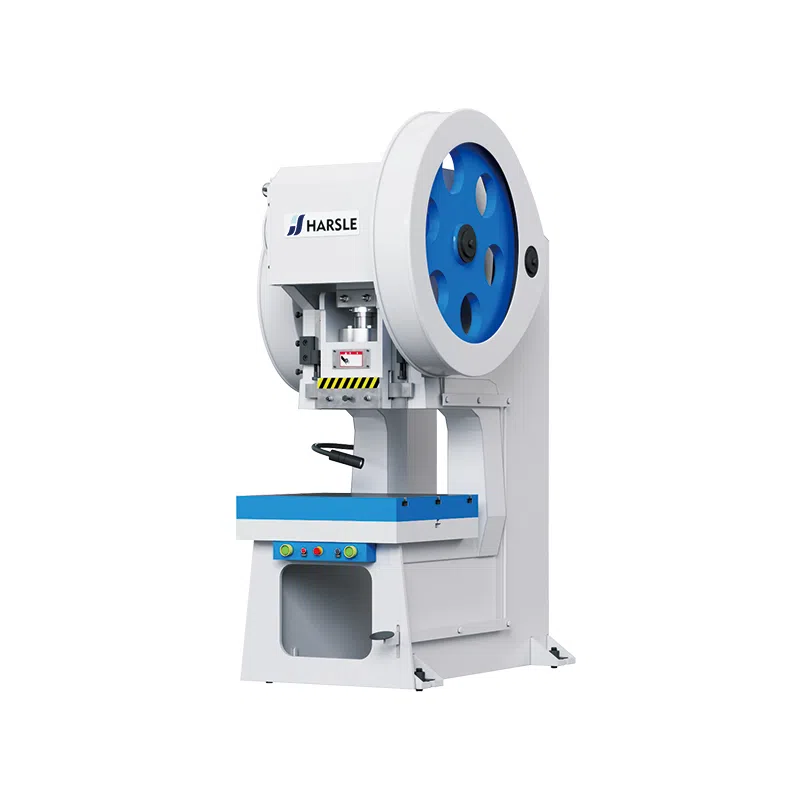

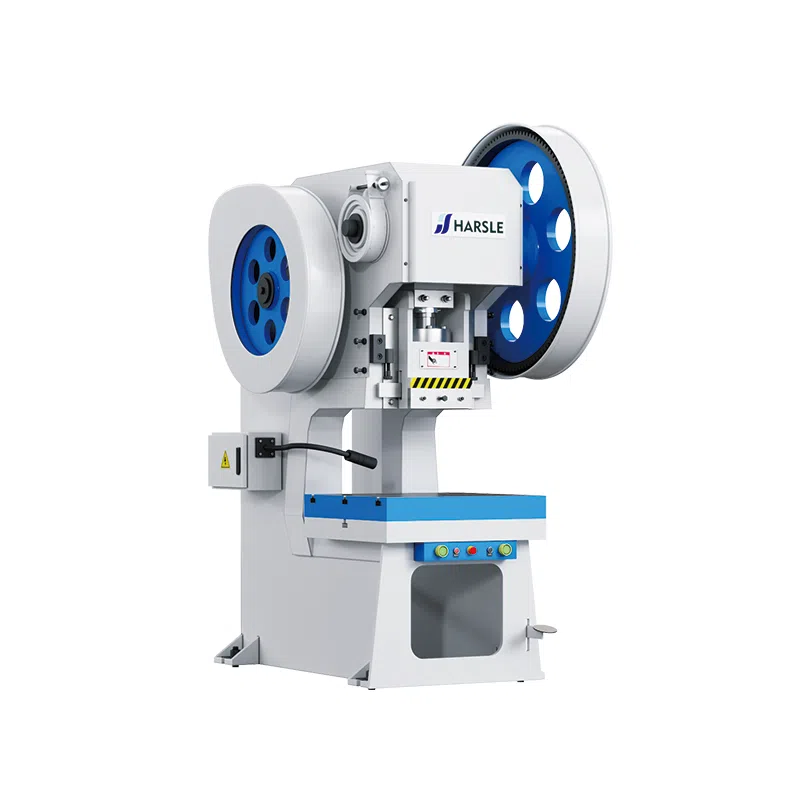

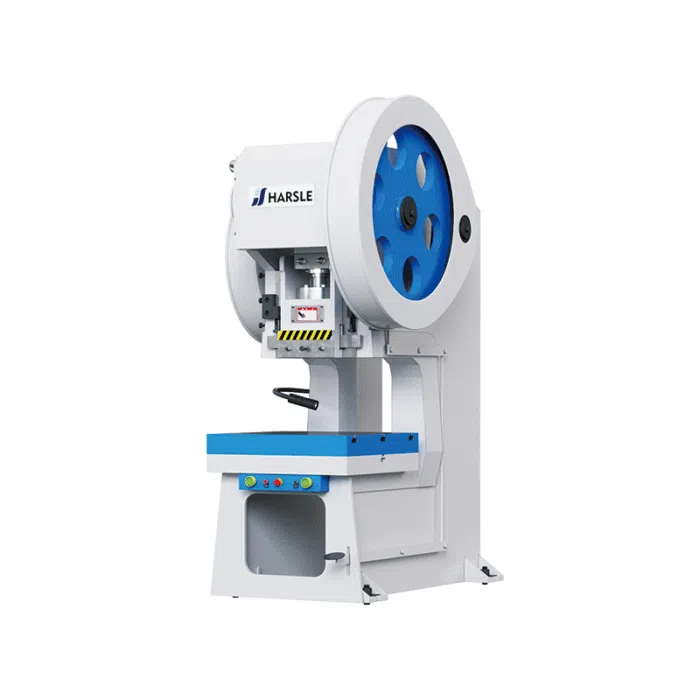

High Precision 50 Ton Punching Press Machine

Name: High Precision 50 Ton Punching Press Machine | HARSLE
SKU: HS20257214
Price: 5250 USD
Availability: InStock

Original price was: $5,950.Current price is: $5,250.Set

The 50 ton punching press from HARSLE is designed for high-efficiency sheet metal punching and forming tasks. Ideal for metal stamping applications, this machine delivers strong punching force, stable performance, and long service life. With a compact structure and user-friendly controls, it is widely used in industrial manufacturing fields such as automotive, appliances, and enclosures.

100 in stock

Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.

Compare

Add to wishlist

SEND INQUIRY

J21S Deep Throat Punching Machine

Description	Type	J21S-10T	J21S-16T	J21S-25T	J21S-40T	J21S-63T	J21S-80T	J21S-100T	J21S-125T	J21S-160T
Nominal Force	kn	100	160	250	400	630	800	1000	1250	1600
Slide Stroke	mm	50	60	70	100	100	115	130	130	130
Number of Stroke	Times/min	140	100	70	50	50	45	40	40	35
Closed Height	mm	200	250	290	350	380	410	420	420	410
Close Height Adjustment	mm	40	40	40	60	60	60	60	60	80
Throat Depth	mm	420	500	500	500	500	500	500	500	500
Column Distance	mm	170	200	230	320	350	360	400	430	330
Table Size(FxB)	mm	230	280	330	420	450	500	600	650	650
Table Size(LxR)	mm	370	450	530	640	700	750	900	1000	1100
Slide Bottom Size(FxB)	mm	100	130	170	190	220	250	280	350	340
Slide Bottom Size(LxR)	mm	145	180	200	250	310	300	325	380	420
Shouk Dimension(Diameter)	mm	30	35	40	50	50	60	60	70	80
Shouk Dimension(Depth)	mm	50	60	60	100	100	100	100	100	100
Thickness of Table	mm	30	40	45	70	80	90	100	110	120
Dimension(FxB)	mm	740	900	1000	1400	1500	1600	1800	1900	1800
Dimension(LxR)	mm	600	780	830	1100	1200	1300	1300	1500	1600
Dimension(Height)	mm	1500	1720	1950	2300	2400	2600	2650	2800	2900
Motor	kw	1.1	1.5	2.2	4.0	5.5	7.5	7.5	11	15
Weight	kg	450	850	1400	2800	3700	4800	5900	8300	11000

5 People watching this product now!

Description

The 50 ton punching press from HARSLE is a powerful and reliable machine built for precision sheet metal stamping and punching applications. Engineered with a robust frame and high-quality components, this press ensures stable performance and excellent durability under continuous operation.

Key Features:

High Punching Force:
With a rated capacity of 50 tons, the press can handle a wide range of metal thicknesses and stamping requirements.
Precision and Stability:
The machine is equipped with advanced mechanical or hydraulic systems to ensure consistent punching accuracy and minimal vibration.
Versatile Applications:
Suitable for punching, blanking, embossing, and forming tasks, the press is widely used in the automotive, electrical cabinet, appliance, and hardware industries.
Durable Construction:
The welded steel frame offers rigidity and long-term structural integrity, even under heavy-duty workloads.
User-Friendly Operation:
Features such as an easy-access control panel, foot pedal activation, and safety protection systems make it efficient and safe to use.

Whether you’re operating a high-volume production line or a custom fabrication workshop, the HARSLE 50 ton punching press delivers the precision, power, and efficiency your business needs.

WHAT WE OFFER

Product Features Overview

Trusted Global Partners

Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.

Why Choose HARSLE

Direct Manufacturer

Factory direct, no middlemen, ensuring the best prices for our customers.

3-Year Warranty

Enjoy peace of mind with a three-year warranty and free parts replacement.

Multilingual Support

Our multilingual team ensures efficient communication for all your needs.

Timely Delivery

The machines are delivered on time, ensuring our customers receive them promptly.

Quality Assurance

Comprehensive quality checks guarantee the quality of every machine.

Localized Service

We provide prompt, localized service in multiple countries for your convenience.

Testimonials

Hear What Our Customers Say

At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.

Rated 5 out of 5

Exceptional Quality and Performance!

We’ve been using HARSLE’s punching machine for three years and are extremely satisfied with its performance, quality, and outstanding customer service.

Finn Drake

Peru

Rated 5 out of 5

Outstanding Service Every Time!

We’ve used HARSLE’s punching machine for three years and are highly satisfied with its quality and excellent after-sales service.

Cole Knight

USA

Most Popular Questions

What is a CNC punching machine and how does it work?

A CNC punching machine (also known as a turret punch press) uses a set of punch and die tooling driven by hydraulic, mechanical, or servo-electric power to create holes, shapes, and forms in sheet metal. The CNC system precisely positions the sheet under the turret and selects the appropriate tool automatically, enabling high-speed, accurate, and repeatable punching operations.

What types of punching machines do you offer?

We offer a full range of punching machines including CNC turret punch presses, servo-electric punching machines, hydraulic punching machines, and combined punch-laser machines. Our models are available in various tonnage capacities and turret station configurations to suit different production volumes and part complexity requirements.

What materials and thicknesses can your punching machines process?

Our CNC punching machines can process a wide range of sheet metals including carbon steel, stainless steel, aluminum, copper, brass, and galvanized steel. Typical maximum punching thickness ranges from 3 mm to 6 mm depending on the model and tonnage, with maximum sheet sizes up to 1,250 mm × 5,000 mm or larger on extended table configurations.

What is the punching speed and accuracy of your machines?

Our CNC turret punch presses achieve hit rates of up to 600 hits per minute (hpm) on servo-electric models and up to 400 hpm on hydraulic models. Positioning accuracy is ±0.05 mm with repeatability of ±0.03 mm. High-speed servo drives and precision ball screws ensure fast sheet positioning and consistent hole quality across the entire work area.

What operations can a CNC punching machine perform besides punching holes?

Beyond standard hole punching, our CNC punching machines can perform forming, louver cutting, embossing, countersinking, tapping, engraving, and nibbling for complex contours. With the right tooling, you can also do bending flanges, card guides, and stiffening ribs directly on the machine, reducing secondary operations and overall production time.

What are the advantages of servo-electric vs. hydraulic punching machines?

Servo-electric punching machines offer higher hit rates, lower energy consumption (up to 50% savings), reduced noise levels, and virtually no hydraulic oil maintenance. Hydraulic models provide higher tonnage capacity and are well-suited for thicker materials and heavy forming operations. We can help you choose the best drive type based on your production needs and material range.

How many tool stations does your turret punch press have?

Our turret punch presses are available with configurations ranging from 24 to 48+ tool stations, supporting standard round, square, rectangular, and special-shaped tooling in various sizes. Auto-index stations allow 360° tool rotation for maximum flexibility. The thick turret or Wiedemann-style tooling system ensures quick tool changes and broad versatility for complex parts.

What CNC control system and software do your punching machines use?

Our CNC punching machines are equipped with advanced control systems such as Fanuc, Siemens, or proprietary controllers with user-friendly touchscreen interfaces. The software supports DXF/DWG file import, automatic tool path optimization, nesting, and tool management. Programming is simple and efficient, with offline CAM software available for complex part design and production planning.

What is the typical lead time and warranty period?

Standard production lead time for our CNC punching machines is 30 to 60 days depending on the model and configuration. We offer a 12-month warranty covering manufacturing defects on the entire machine, with extended warranty packages available. Spare parts, tooling supply, and lifetime technical support are included as part of our after-sales commitment.

Do you provide installation, training, and after-sales service?

Yes, we provide complete installation and commissioning services, hands-on operator and programmer training, and comprehensive after-sales support. Our engineers can travel to your site for machine setup and training. We also offer remote technical assistance via video call, regular maintenance guidance, and fast spare parts delivery to keep your punching machine running at peak efficiency.
