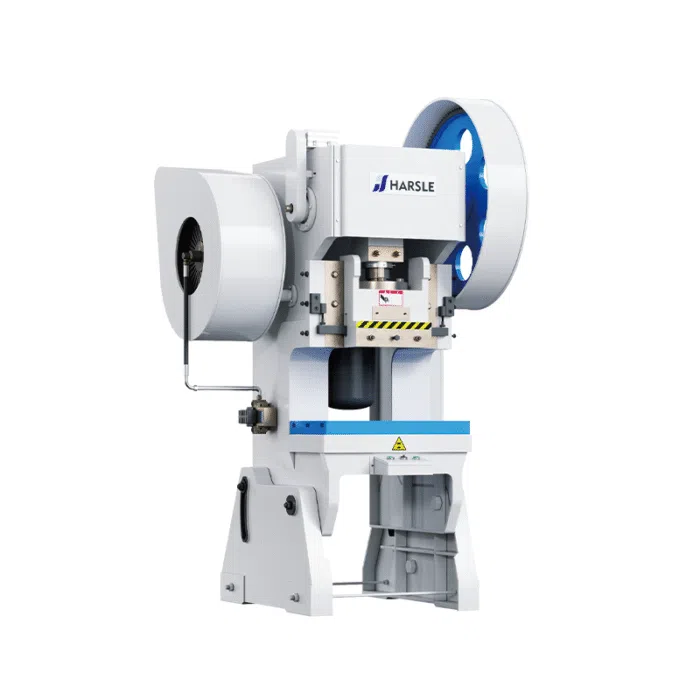

Versatile 60 Ton Punching Machine for Custom Applications
The versatile 60 ton punching machine is ideal for custom metal applications. Designed for high strength and precision, it can handle a variety of materials and shapes. With adjustable stroke, durable structure, and user-friendly operation, it’s the perfect choice for small-batch and special-purpose punching tasks across industries.
100 in stock
JE23 Mechanical Eccentric Punching Machine
| Description | Type | JE23-10T | JE23-16T | JE23-25T | JE23-40T | JE23-63T | JE23-80T | JE21-100T | JE21-125T | JE21-160T |
| Nominal Force | kn | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| Slide Stroke | mm | 0-50 | 0-60 | 0-70 | 0-100 | 0-100 | 0-120 | 0-120 | 0-130 | 0-130 |
| Number of Stroke | Times/min | 150 | 120 | 70 | 50 | 50 | 48 | 45 | 35 | 40 |
| Closed Height | mm | 230 | 260 | 285 | 320 | 340 | 370 | 410 | 400 | 480 |
| Close Height Adjustment | mm | 40 | 40 | 60 | 70 | 70 | 80 | 80 | 100 | 100 |
| Throat Depth | mm | 120 | 160 | 190 | 220 | 250 | 280 | 300 | 350 | 380 |
| Column Distance | mm | 180 | 210 | 240 | 260 | 310 | 360 | 380 | 410 | 410 |
| Table Size(FxB) | mm | 220 | 290 | 330 | 410 | 440 | 500 | 570 | 590 | 630 |
| Table Size(LxR) | mm | 360 | 460 | 520 | 640 | 670 | 770 | 900 | 900 | 1050 |
| Slide Bottom Size(FxB) | mm | 110 | 150 | 190 | 230 | 230 | 270 | 292 | 380 | 400 |
| Slide Bottom Size(LxR) | mm | 110 | 170 | 210 | 260 | 320 | 300 | 350 | 540 | 540 |
| Shouk Dimension(Diameter) | mm | 30 | 35 | 40 | 50 | 50 | 60 | 60 | 70 | 70 |
| Shouk Dimension(Depth) | mm | 50 | 60 | 60 | 80 | 80 | 80 | 80 | 80 | 80 |
| Thickness of Table | mm | 35 | 40 | 50 | 70 | 80 | 80 | 90 | 90 | 100 |
| Dimension(FxB) | mm | 900 | 1100 | 1200 | 1500 | 1600 | 1750 | 1900 | 2100 | 2100 |
| Dimension(LxR) | mm | 600 | 850 | 900 | 1000 | 1150 | 1320 | 1700 | 1300 | 1500 |
| Dimension(Height) | mm | 1600 | 1750 | 2000 | 2400 | 2420 | 2500 | 2700 | 3100 | 3100 |
| Motor | kw | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | 11 | 15 |
| Weight | kg | 300 | 600 | 1100 | 2100 | 2800 | 3900 | 5200 | 7000 | 10000 |
5
People watching this product now!
Description
The Versatile 60 Ton Punching Machine is engineered to deliver reliable performance for custom punching applications across different industries. It is built for strength, flexibility, and accuracy, making it suitable for sheet metal processing, structural steel work, and specialized manufacturing environments.
Key Features:
-
60 Ton Punching Force
Capable of handling thick and high-strength materials with ease. -
Customizable Applications
Ideal for non-standard, irregular, or small-batch parts that require flexible tooling and stroke control. -
High Precision Operation
Ensures consistent punching depth and clean edges, reducing the need for post-processing. -
Heavy-Duty Frame
Rigid and durable structure minimizes vibration and increases working life. -
User-Friendly Interface
Simple controls and optional CNC upgrades make it easy to operate, even for new users. -
Energy Efficient Design
Engineered with efficient hydraulic systems to reduce power consumption during operation.
This punching machine is the go-to solution for fabricators, component manufacturers, and metal part workshops looking to improve productivity without sacrificing flexibility. Whether you’re working with aluminum, stainless steel, or mild steel, this 60 ton press offers the power and adaptability your operations need.
WHAT WE OFFER
Product Features Overview
Forged Steel Gear
High-strength forged steel gear ensures durability and delivers precise, stable punching performance.
Inclinable Structure
Adjustable incline structure aids in efficient part removal, optimizing workflow and production speed.
Stroke Adjustment
Versatile stroke adjustment adapts easily to various material thicknesses, enhancing processing flexibility.
Opening Adjustment
Adjustable opening feature accommodates diverse workpieces, providing versatility across applications.
Lubrication System
Automatic lubrication system reduces wear, ensuring smooth operation and extending machine lifespan.
Operation Buttons
User-friendly control buttons streamline operations, enhancing safety and ease of use for operators.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Valutazione 5 su 5
Exceptional Quality and Performance!
We’ve been using HARSLE’s punching machine for three years and are extremely satisfied with its performance, quality, and outstanding customer service.
Peru
★★★★★ Valutazione 5 su 5
Outstanding Service Every Time!
We’ve used HARSLE’s punching machine for three years and are highly satisfied with its quality and excellent after-sales service.
USA
Most Popular Questions
We offer various types of punching machines, including hydraulic punching machines, mechanical punching machines, and CNC punching machines, designed for different applications and production needs.
Our punching machines can effectively handle a variety of materials, including mild steel, stainless steel, aluminum, and other metals, depending on the specific model and tooling used.
The maximum punching capacity varies by model, typically ranging from 20 tons to over 100 tons. Please refer to the technical specifications for detailed information on each machine's capabilities.
Yes, we offer customization options to meet specific production requirements, including modifications in punching capacity, tooling, and additional features.
Our punching machines are equipped with safety features such as emergency stop buttons, safety guards, and overload protection systems to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer complete installation services and training for your staff to ensure that the punching machine is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 60 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your punching machine.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our punching machines.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 500 kg |
|---|---|
| Dimensions | 1600 × 1250 × 1800 mm |
| Brand |
HARSLE |
| Function |
Punching |
| Lead Time |
45 Days |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
1 Year |
