Industrial Chamfering Machine for Metal Edge Finishing

Name: Industrial Chamfering Machine for Metal Edge Finishing | HARSLE
SKU: HS20262104
Price: 6700 USD
Availability: InStock

Original price was: $8,600.Current price is: $6,700.Set

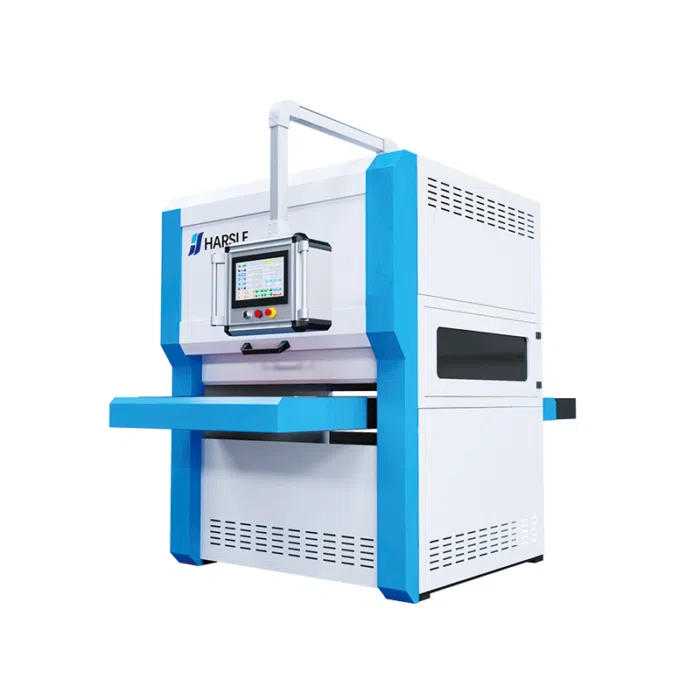

The HARSLE chamfering machine is designed for efficient and precise edge finishing of metal parts. It removes sharp edges, burrs, and welding residues while creating smooth, uniform chamfers. Suitable for steel, stainless steel, and aluminum, this machine improves product safety, appearance, and assembly quality. With stable performance and easy operation, HARSLE chamfering machines are widely used in metal fabrication workshops, machining centers, and industrial production lines requiring consistent edge preparation.

100 in stock

Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.

Compare

Add to wishlist

SEND INQUIRY

EdgePolih

Item	Unite	M1000	M1300	M1600	V1000	V1300	V1600	MV1000	MV1300	MV1600
Processing Width	mm	1000	1300	1600	1000	1300	1600	1000	1300	1600
Processing Thickness	mm	0.5-50	0.5-50	0.5-50	0.5-50	0.5-50	0.5-50	0.5-50	0.5-50	0.5-50
Minimum Workpiece Size	mm	≥50500.5	≥50500.5	≥100500.5	≥50500.5	≥50500.5	≥100500.5	≥50500.5	≥50500.5	≥100500.5
Feeding Speed	m/min	0.5-14	0.5-14	0.5-14	0.5-14	0.5-14	0.5-14	0.5-14	0.5-14	0.5-14
Roller Brush Speed	m/min	8-20	8-20	8-20	8-20	8-20	8-20	8-20	8-20	8-20
Orbital Speed	m/min	8-12	8-12	8-12	8-12	8-12	8-12	8-12	8-12	8-12
Abrasive Wheel Size	mm	35030028	35030035	35040040	35030028	35030035	35040040	35030028	35030035	35040040
Conveyor Table Height	mm	860-980	860-980	860-980	860-980	860-980	860-980	860-980	860-980	860-980
Orbital Motor	kw	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75
Roller Brush Motor	kw	2.2*3	2.2*3	2.2*4	2.2*3	2.2*3	2.2*4	2.2*3	2.2*3	2.2*4
Conveyor Motor	kw	1.5	2.2	3	1.5	2.2	3	1.5	2.2	3
Brush Lifting Motor	kw	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Machine Noise Level	dB	≤85	≤85	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Chamfering Range	mm	R0.1-1	R0.1-1	R0.1-1	R0.1-1	R0.1-1	R0.1-1	R0.1-1	R0.1-1	R0.1-1
Negative Pressure Fan Motor	kw	-	-	-	11	15	15	11	15	15
Negative Pressure Fan Dimensions	mm	-	-	-	12008501000	13509001150	13509001150	12008501000	13509001150	13509001150
Negative Pressure Fan Weight	kg	-	-	-	190	220	220	190	220	220
Machine Dimensions	mm	180015002000	220019002200	220022002000	180015002000	220019002200	220022002000	180015002000	220019002200	220022002000
Machine Weight	kg	1500	2000	2500	1500	2000	2500	1500	2000	2500

10 People watching this product now!

Description

A chamfering machine plays a critical role in metal fabrication by preparing clean, safe, and accurate edges before assembly, welding, or surface treatment. HARSLE chamfering machines are engineered to deliver stable chamfering performance for various metal workpieces, including plates, bars, tubes, and profiles. By removing burrs and sharp corners, they help improve product quality, reduce handling risks, and enhance overall manufacturing efficiency.

Designed with industrial reliability in mind, HARSLE chamfering machines support continuous operation in demanding workshop environments. Adjustable chamfer angles and cutting depth allow operators to meet different processing requirements, whether for light deburring or precise edge beveling. The rigid machine structure ensures vibration-free cutting, resulting in smooth and consistent chamfer surfaces.

HARSLE focuses on user-friendly operation and low maintenance. The machine layout allows easy access to tooling and quick setup, reducing downtime between jobs. With high-quality components and optimized cutting systems, HARSLE chamfering machines deliver long service life and reliable performance for small workshops and large-scale production lines alike.

Key Features:

Suitable for chamfering steel, stainless steel, and aluminum
Consistent edge finishing with smooth chamfer surfaces
Adjustable chamfer angle and cutting depth
Rigid structure for stable and vibration-free operation
Easy operation and low maintenance design
Improves safety, appearance, and assembly quality of metal parts

Trusted Global Partners

Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.

Industrial Chamfering Machine for Metal Edge Finishing

Why Choose HARSLE

Direct Manufacturer

Factory direct, no middlemen, ensuring the best prices for our customers.

3-Year Warranty

Enjoy peace of mind with a three-year warranty and free parts replacement.

Multilingual Support

Our multilingual team ensures efficient communication for all your needs.

Timely Delivery

The machines are delivered on time, ensuring our customers receive them promptly.

Quality Assurance

Comprehensive quality checks guarantee the quality of every machine.

Localized Service

We provide prompt, localized service in multiple countries for your convenience.

WHAT WE OFFER

Product Features Overview

Testimonials

Hear What Our Customers Say

At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.

Valorado con 5 de 5

Exceptional Quality and Performance!

Perfect edge rounding without compromising tolerances. The consistent finish is impressive. Plus, the dust extraction system keeps our workshop clean and healthy. Great for quality and employee safety!

Rosetta Capristo

Germany

Valorado con 5 de 5

Outstanding Service Every Time!

Throughput tripled instantly! The dual-sided processing saves immense time. We achieved 300% faster speeds, and labor savings covered the investment in six months. Perfect for high-volume production.

Mario Gurrola

USA

Most Popular Questions

What is a metal deburring machine and how does it work?

A metal deburring machine is designed to remove burrs, sharp edges, slag, and oxide layers from metal parts after cutting, punching, or laser processing. It works by passing workpieces through a series of rotating abrasive brushes, sanding belts, or grinding heads that uniformly smooth all edges and surfaces. The result is clean, safe-to-handle parts with consistent edge quality.

What types of metal deburring machines do you offer?

We offer a full range of metal deburring machines, including sheet metal deburring machines, edge rounding machines, slag removal machines, oxide layer removal machines, and multi-function models that combine deburring, edge rounding, and surface finishing in a single pass. Both wide-belt and planetary head configurations are available to suit different application requirements.

What materials can your deburring machines process?

Our metal deburring machines can process a wide variety of materials including carbon steel, stainless steel, aluminum, copper, brass, galvanized steel, and titanium. They are suitable for parts produced by laser cutting, plasma cutting, flame cutting, stamping, punching, and shearing. The machines handle both thin sheets and medium-thick plates effectively.

What is the maximum working width and thickness capacity?

Our deburring machines are available in working widths from 600 mm to 1,600 mm, with workpiece thickness capacities ranging from 0.5 mm to 80 mm depending on the model. The minimum part size is typically 50 mm × 50 mm. We can recommend the optimal machine specification based on your part dimensions and production volume.

Can the machine deburr both sides of a part in one pass?

Yes, our dual-sided deburring machines are equipped with processing units on both the top and bottom, allowing simultaneous deburring and edge rounding on both sides of the workpiece in a single pass. This significantly reduces processing time and eliminates the need to flip parts manually, greatly improving production efficiency and consistency.

What are the advantages of using a deburring machine over manual deburring?

Machine deburring offers significant advantages over manual methods: uniform and repeatable edge quality, dramatically faster processing speed (up to 10× faster), reduced labor costs, improved workplace safety by eliminating hand grinding, and consistent results regardless of operator skill level. Automated deburring also minimizes the risk of part damage and ensures every piece meets the same quality standard.

How does the edge rounding function work?

The edge rounding function uses specially designed abrasive brushes or planetary grinding heads to create a uniform radius on all edges of the workpiece. The rounding radius is adjustable, typically from R0.2 mm to R2.0 mm, to meet different coating and safety requirements. Rounded edges improve paint and powder coating adhesion, prevent coating failure at sharp corners, and make parts safe to handle.

What maintenance is required for the deburring machine?

Routine maintenance mainly involves replacing abrasive belts and brushes when worn, cleaning the dust collection system, and periodic lubrication of mechanical components. Consumable replacement is straightforward and can be done by operators without special tools. We provide maintenance guidelines and recommended replacement schedules to ensure your machine maintains optimal performance with minimal downtime.

What is the typical lead time and warranty period?

The standard production lead time for our metal deburring machines is 15 to 30 days depending on the model and configuration. We provide a 12-month warranty covering manufacturing defects on the entire machine, with extended warranty options available. Spare parts, technical support, and consumable supplies are readily accessible throughout the machine's lifetime.

Do you provide installation, training, and after-sales support?

Yes, we offer comprehensive installation and commissioning services, hands-on operator training, and long-term after-sales support. Our engineers can provide on-site setup or remote guidance via video. We also supply detailed operation manuals, maintenance training, and fast spare parts delivery to ensure your deburring machine operates at peak efficiency throughout its service life.
