Reliable Laser Cutting Machine Supplier
Original price was: $18,900.$17,000Current price is: $17,000.Set
High Power Laser Cutting Machine for Metal Fabrication
Original price was: $18,900.$17,000Current price is: $17,000.Set
High-Precision China Laser Cutting Machine
Original price was: $18,900.$17,000Current price is: $17,000.Set

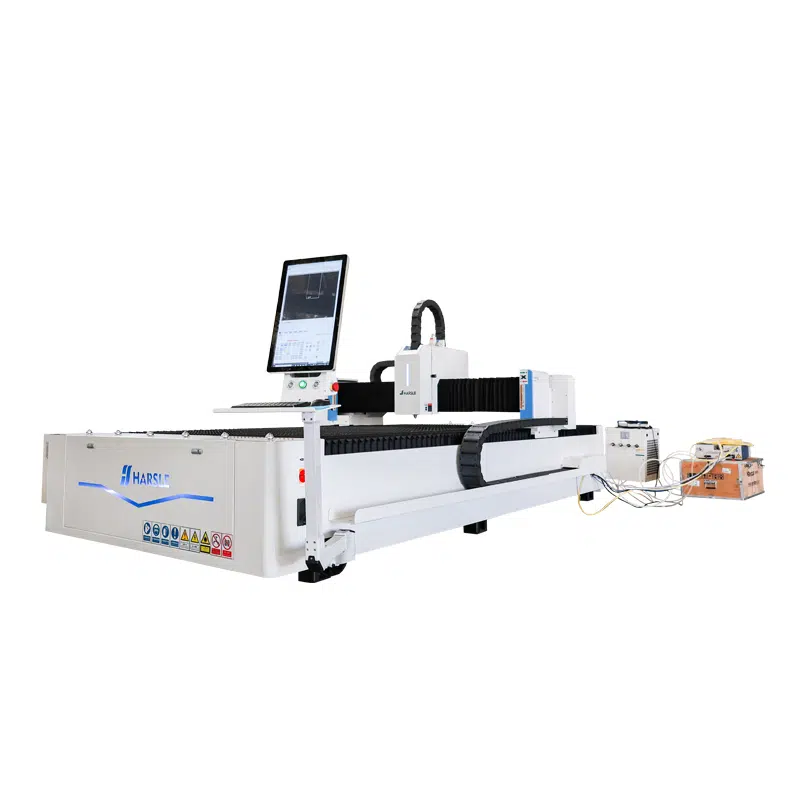

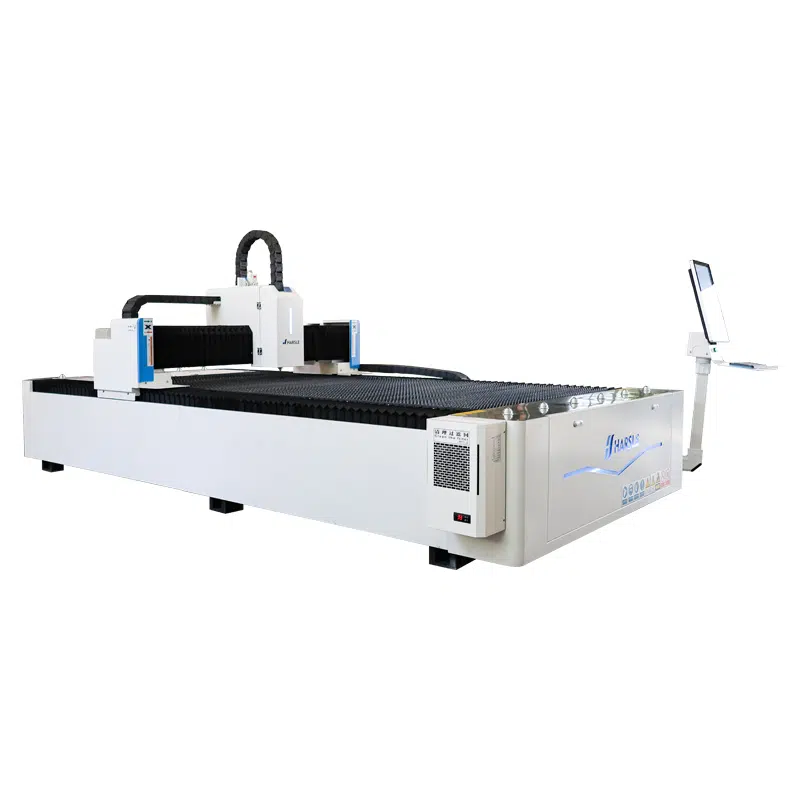

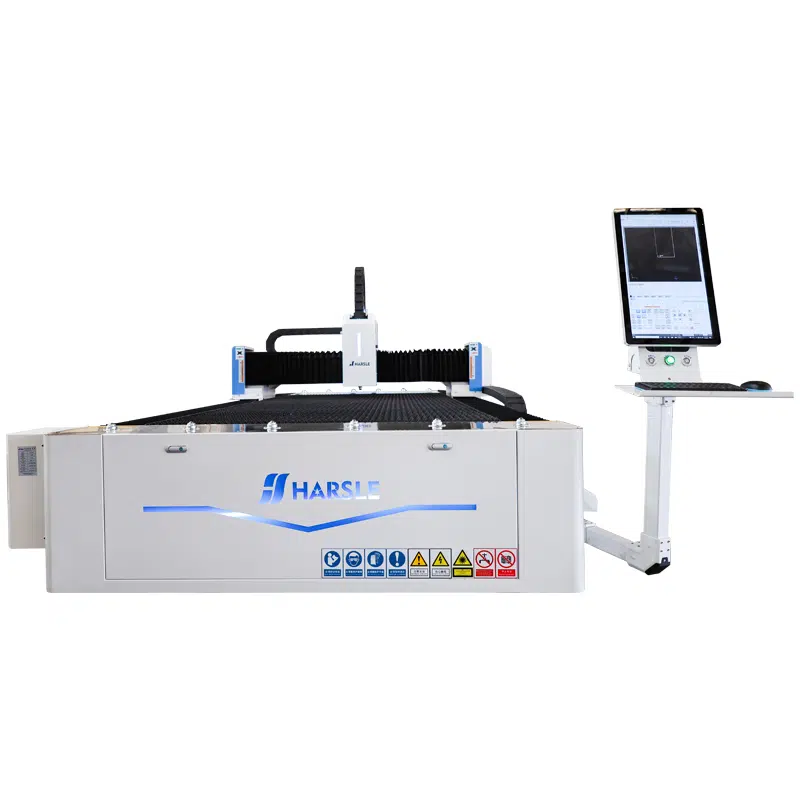

Discover the HARSLE China laser cutting machine, designed for precise and efficient metal processing. With advanced CNC controls, robust construction, and high-speed cutting capabilities, it ensures clean edges and minimal material waste. Perfect for stainless steel, aluminum, and carbon steel, this machine suits small to large-scale fabrication. Its reliable performance, easy operation, and low maintenance make it an ideal solution for workshops, manufacturing plants, and industrial applications seeking quality, accuracy, and productivity in one compact system.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
Single Table Laser Cutting Machine
| Table | Unit | 3015 | 4015 | 4020 | 6015 | 6020 | 6025 |
| X-Axis Travel | mm | 1520 | 1520 | 2020 | 1520 | 2020 | 2520 |
| X-Axis Positioning Accuracy | mm | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| X-Axis Repeat Positioning Accuracy | mm | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| X-Axis Idle Speed | m/min | 80 | 80 | 130 | 130 | 130 | 130 |
| Y-Axis Travel | mm | 3080 | 4080 | 4080 | 6100 | 6100 | 6100 |
| Y-Axis Positioning Accuracy | mm | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Y-Axis Repeat Positioning Accuracy | mm | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Y-Axis Idle Accuracy | m/min | 80 | 80 | 130 | 130 | 130 | 130 |
| Z-Axis Travel | mm | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum Acceleration | G | 0.8 | 0.8 | 1.2 | 1.2 | 1.2 | 1.2 |
| Load | kg | 706 | 942 | 1256 | 1413 | 1884 | 2355 |
| Weight | kg | 1500 | 2000 | 2600 | 3100 | 3450 | 3950 |
| Length | mm | 4400 | 5400 | 5700 | 7900 | 7900 | 7900 |
| Width | mm | 2236 | 2236 | 2900 | 2400 | 2900 | 3445 |
| Height | mm | 1900 | 1900 | 2048 | 2048 | 2048 | 2048 |
7
People watching this product now!
Description
The HARSLE China laser cutting machine combines cutting-edge technology with durable design to deliver high-performance metal fabrication solutions. Engineered for precision, it offers smooth, accurate cuts on a wide range of metals including stainless steel, aluminum, and carbon steel. Its advanced CNC system provides automated control, reducing human error and improving production efficiency.
Key Features:
- High Precision Cutting: Achieve tight tolerances with minimal kerf width for quality results.
- Versatile Material Compatibility: Cuts stainless steel, aluminum, carbon steel, and other sheet metals.
- Robust Construction: Heavy-duty frame ensures stability, reducing vibration and improving cut accuracy.
- User-Friendly CNC Control: Easy programming interface for quick setup and efficient operation.
- High-Speed Performance: Fast cutting speeds increase productivity without compromising quality.
- Low Maintenance: Reliable components reduce downtime and extend service life.
- Energy Efficient: Optimized power usage minimizes operational costs.
Ideal for workshops, industrial production lines, and custom metal fabrication businesses, this China laser cutting machine ensures consistent results for both simple and complex cutting projects. HARSLE’s commitment to quality and after-sales support guarantees a long-lasting solution, enabling manufacturers to achieve higher productivity, cleaner cuts, and a superior finish.
WHAT WE OFFER
Product Features Overview
Machine Bed
Rigid machine bed design enhances stability, ensuring precise, vibration-free cutting for high-quality results.
Laser Sources
High-performance laser sources deliver powerful, consistent output, enabling fast, accurate cutting across various materials.
Laser Cutting Head
Advanced laser cutting head offers precise focus control, ensuring sharp, clean cuts with minimal waste.
Aviation Beam
Lightweight aviation beam provides high rigidity, allowing smooth, accurate movement and increased cutting efficiency.
Air Compressor
The air compressor maintains optimal air pressure, supporting consistent cutting quality and operational efficiency.
Water Chiller
Efficient water chiller regulates laser temperature, preventing overheating and ensuring continuous, reliable performance.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Rated 5 out of 5
Exceptional Quality and Performance!
We’ve used HARSLE’s laser cutting machine for three years and are extremely satisfied with its performance, quality, and exceptional customer service.
Germany
★★★★★ Rated 5 out of 5
Outstanding Service Every Time!
We’ve been using HARSLE’s laser cutting machine for three years and are consistently impressed with its quality and the excellent customer service provided.
USA
Most Popular Questions
What is a laser cutting machine and how does it work?
A laser cutting machine uses a high-powered focused laser beam to melt, burn, or vaporize material along a programmed path. The beam is generated by a laser source (typically fiber or CO2), guided through optics, and focused onto the workpiece. An assist gas (such as nitrogen or oxygen) blows away molten material, producing clean, precise cuts with minimal heat-affected zones.
What types of laser cutting machines do you offer?
We offer a comprehensive range of laser cutting machines, including fiber laser cutters, CO2 laser cutters, tube and pipe laser cutting machines, and dual-platform exchange table models. Laser power options range from 1,000W to 30,000W and above, suitable for everything from thin sheet precision cutting to heavy-duty thick plate processing.
What materials can be cut with your laser cutting machines?
Our fiber laser cutting machines can process a wide range of metals including carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, and titanium. CO2 laser machines can additionally cut non-metal materials such as acrylic, wood, and fabric. The maximum cutting thickness depends on the laser power and material type.
What cutting thickness can your laser machines handle?
Cutting thickness depends on laser power and material. For example, a 6,000W fiber laser can cut up to 20 mm carbon steel and 10 mm stainless steel, while a 12,000W model can handle over 30 mm carbon steel. Higher power options (20,000W–30,000W) can cut even thicker plates. We can recommend the right power level based on your specific requirements.
What is the cutting accuracy and speed of your machines?
Our laser cutting machines achieve positioning accuracy of ±0.03 mm and repeatability of ±0.02 mm. Maximum cutting speed can reach up to 100 m/min on thin sheets, depending on the laser power and material. The combination of high-speed servo motors, precision linear guides, and advanced CNC systems ensures consistently accurate and fast performance.
What are the advantages of fiber laser over CO2 laser?
Fiber lasers offer several advantages over CO2 lasers for metal cutting: higher electrical efficiency (up to 30% vs 10%), faster cutting speeds on thin and medium materials, lower operating and maintenance costs, longer laser source lifespan (over 100,000 hours), and the ability to cut highly reflective metals like copper and brass. Fiber lasers also require no laser gas or mirror alignment.
What safety features are included with your laser cutters?
Our laser cutting machines include comprehensive safety features such as fully enclosed protective covers with safety interlocks, laser-rated observation windows, fume extraction systems, emergency stop buttons, and anti-collision cutting head protection. All machines comply with CE safety standards and relevant laser safety regulations to ensure operator protection.
What CNC control system and software do your machines use?
Our laser cutting machines are equipped with advanced CNC control systems from leading brands such as Cypcut, Beckhoff, and FScut. The software supports DXF/DWG file import, automatic nesting, lead-in/lead-out optimization, common edge cutting, and real-time process monitoring. The user-friendly interface makes programming and operation straightforward.
What is the typical lead time and warranty period?
The standard lead time for laser cutting machine production is 15 to 45 days depending on the model and configuration. We offer a 24-month warranty on the laser source and a 12-month warranty on the overall machine covering manufacturing defects. Extended warranty packages and lifetime technical support are available upon request.
Do you provide installation, training, and after-sales service?
Yes, we provide full installation and commissioning services, comprehensive operator training, and ongoing after-sales support. Our engineers can travel to your facility for on-site setup and training. We also offer remote technical assistance, spare parts supply, and preventive maintenance guidance to ensure your laser cutting machine runs at peak performance.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2020 × 1750 × 2439 mm |
| Brand | HARSLE |
| Function | Cutting |
| Lead Time | 45 Days |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 1 Year |
