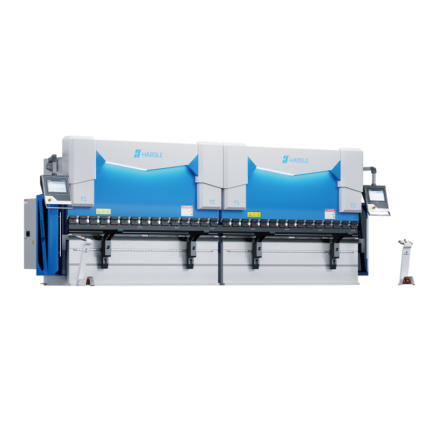

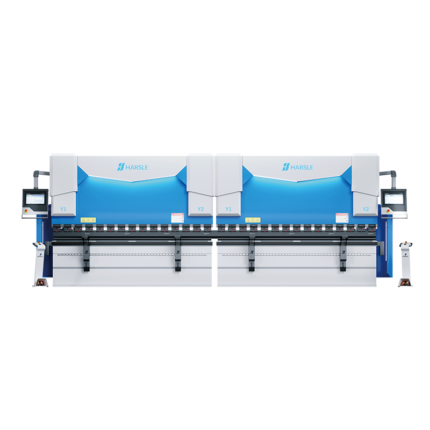

High-Power SyncBend 50060 Press Brake with DA66T Control
Original price was: $196,000.$179,000Current price is: $179,000.Set
High-Performance EP 43T2000 Electric Press Brake with DA66S
Original price was: $43,500.$42,500Current price is: $42,500.Set
EcoGroove 4012 Horizontal Grooving Machine for Precision
Original price was: $25,000.$22,000Current price is: $22,000.Set
The EcoGroove 4012 Horizontal Grooving Machine is designed for precise and efficient sheet metal grooving. With a processing capacity of up to 4000mm x 1200mm, this machine ensures high-precision grooving for a variety of industries, including metal fabrication and signage. Its advanced design offers stable operation, improved efficiency, and durable performance, making it ideal for large-scale production environments. Enhance your grooving operations with this top-tier machine from HARSLE.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
CNC Horizontal V-Grooving Machine
| Item | Unit | 1250/3200 | 1250/4000 | 1500/4000 | 1500/5000 | 1500/6000 |
| Processing Length | mm | 3200 | 4000 | 4000 | 5000 | 6000 |
| Processing Width | mm | 1250 | 1250 | 1500 | 1500 | 1500 |
| Processing Thickness | mm | 0.4-5 | 0.4-5 | 0.4-5 | 0.4-5 | 0.4-5 |
| Main Knife Holder X-Axis Positioning Accuracy | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Rear Material Y-Axis Positioning Accuracy | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Positioning Accuracy Of Tool Holder Z Axis | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Main Tool Holder X-Axis Machining Speed | m/min | 90 | 90 | 90 | 90 | 90 |
| Tool Holder Z Axis Machining Speed | m/min | 30 | 30 | 30 | 30 | 30 |
| Workbench Parallelism | mm | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Parallelism Of The Tool Holder Crossbeam Guide Rail | mm | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Pressure Cylinder Diameter | mm | 45 | 45 | 45 | 45 | 45 |
| Weight | kg | 6500 | 8000 | 9000 | 10000 | 12500 |
| Length | mm | 5500 | 6300 | 6300 | 7300 | 8300 |
| Width | mm | 2300 | 2300 | 2600 | 2600 | 2600 |
| Height | mm | 1680 | 1680 | 1680 | 1680 | 1680 |
10
People watching this product now!
Description
The EcoGroove 4012 Horizontal Grooving Machine is a state-of-the-art solution for precise and efficient sheet metal grooving. This high-performance machine offers a maximum processing size of 4000mm x 1200mm, making it ideal for industries such as metal fabrication, elevator manufacturing, signage production, and kitchen equipment. The EcoGroove 4012 excels at creating accurate grooves on sheet metals, ensuring a cleaner, more precise bending process.
Key Features:
- High Precision Grooving: Ensures clean, accurate grooves for flawless bending results
- Large Capacity: Maximum sheet size of 4000mm x 1200mm for versatile applications
- Stable Operation: Horizontal design provides smooth material feeding and stable performance
- Durable and Reliable: Built with high-quality materials for long-lasting performance in industrial environments
- Increased Efficiency: Faster processing times and reduced manual labor for enhanced productivity
Whether you’re working with stainless steel, aluminum, or other metal types, the EcoGroove 4012 ensures consistent and high-quality grooving results every time. Trust HARSLE for reliable, efficient, and cutting-edge machinery to elevate your manufacturing processes.
WHAT WE OFFER
Product Features Overview
CNC Controller
Advanced CNC controller ensures precise operation, offering intuitive programming and real-time monitoring for optimal performance.
Tool Holder
Robust tool holder securely positions tools, minimizing vibration and ensuring accurate, high-quality grooves during operation.
Precision Blades
High-quality precision blades provide clean, accurate grooves, ensuring smooth, reliable cutting results and minimal wear.
Hydraulic Clamp
The hydraulic clamp securely holds materials, preventing slippage and ensuring stable, precise cutting during operation.
Frame
Back support device maintains material stability, reducing deflection and enhancing cutting accuracy during the V-grooving process.
CNC Axes
Foldable supporter offers space-saving convenience, providing flexible support for larger materials during cutting and easy storage.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Rated 5 out of 5
Exceptional Quality and Performance!
We’ve used HARSLE’s V-grooving machine for three years and are extremely satisfied with its quality and excellent after-sales service.
Germany
★★★★★ Rated 5 out of 5
Outstanding Service Every Time!
We’ve been using HARSLE’s V-grooving machine for three years and are very satisfied with its quality and the excellent customer service provided.
USA
Most Popular Questions
What is a V grooving machine and how does it work?
A V grooving machine (also called a V cutting or V scoring machine) is used to cut precise V-shaped grooves into sheet metal without cutting all the way through. The CNC-controlled tool carriage moves along the workpiece, removing material in a V-profile so the sheet can be bent at sharp, clean angles with minimal radius — ideal for decorative panels, elevator doors, cabinets, and enclosures.
What types of V grooving machines do you offer?
We offer CNC V grooving machines in various configurations, including vertical and horizontal models, with working lengths from 1,250 mm to 6,000 mm. Options range from economical manual-positioning models to fully automatic CNC machines with multi-axis servo control, automatic sheet clamping, and programmable grooving patterns for high-volume production.
What materials can be grooved with your machines?
Our V grooving machines can process a wide range of metals, including stainless steel, carbon steel, aluminum, copper, brass, and galvanized steel sheets. They are also suitable for composite panels and other flat materials. The grooving depth and speed are adjusted based on the material type and thickness.
What is the maximum grooving thickness and depth?
Our V grooving machines can handle sheet thicknesses from 0.5 mm to 6 mm (depending on the model). The V groove depth is adjustable and can reach up to 4 mm, leaving a minimum remaining thickness as low as 0.3 mm. The groove angle is typically 30°, 45°, 60°, or 90°, and can be set according to the required bending angle.
What is the grooving accuracy and surface finish quality?
Our CNC V grooving machines achieve grooving depth accuracy of ±0.02 mm and positioning accuracy of ±0.05 mm. The grooved surface is smooth and consistent, ensuring a clean, sharp edge after bending with no cracking. This level of precision makes our machines ideal for visible architectural and decorative metalwork where surface quality is critical.
What are the advantages of V grooving before bending?
V grooving before bending offers several key advantages: it produces extremely sharp bend radii with clean edges, reduces the bending force required by up to 50%, prevents surface cracking on brushed or mirror-finished sheets, eliminates the need for welding on visible corners, and enables complex multi-bend enclosures from a single sheet. It is widely used in elevator panels, signage, kitchen equipment, and architectural cladding.
What safety features are included with your V grooving machines?
Our V grooving machines include comprehensive safety features such as protective covers over the cutting area, emergency stop buttons, automatic clamping systems that secure the sheet during operation, overload protection, and safety interlocks. All machines comply with CE safety standards to ensure safe and reliable operation for your team.
What CNC control system does your V grooving machine use?
Our CNC V grooving machines are equipped with user-friendly touchscreen controllers that support programmable grooving patterns, automatic tool positioning, multi-line grooving in a single setup, and depth compensation. The system allows you to store and recall programs for repeat jobs, significantly improving production efficiency and consistency.
What is the typical lead time and warranty period?
The standard lead time for V grooving machine production is 15 to 40 days depending on the model and configuration. We offer a 12-month warranty covering manufacturing defects, with extended warranty packages and lifetime technical support available upon request.
Do you provide installation, training, and after-sales support?
Yes, we provide full installation and commissioning services, operator training, and ongoing after-sales support. Our engineers can travel to your facility for on-site setup and training. We also offer remote technical assistance, spare parts supply, and preventive maintenance guidance to ensure your V grooving machine operates at peak performance.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 1000 × 1750 × 2439 mm |
| Brand | HARSLE |
| Function | Grooving |
| Lead Time | 45 Days |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 1 Year |
