Top CNC Bending Machine Manufacturer for Precision Metalwork
Original price was: $27,500.$23,000Current price is: $23,000.Set
Fixed Angle Cutter for Metal Precision Cutting
Original price was: $3,800.$3,500Current price is: $3,500.Set

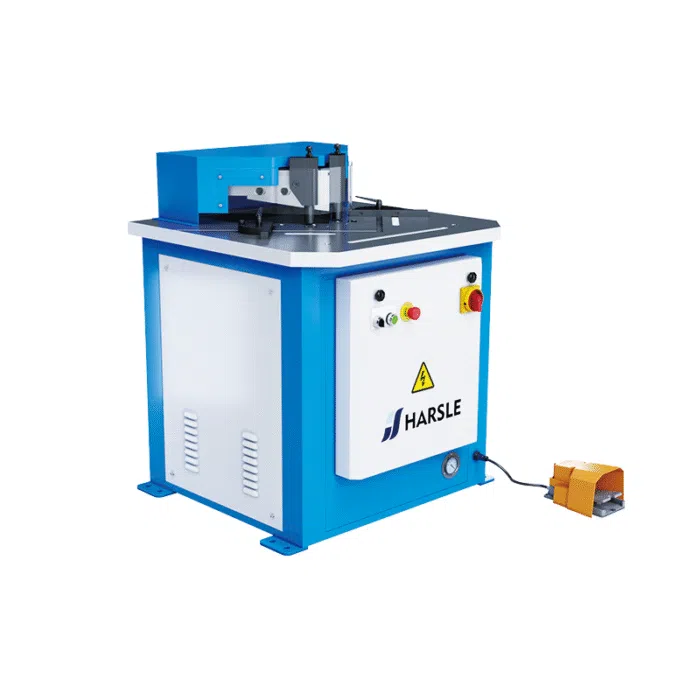

Fixed Angle Notcher Machine for Precision Cutting
Original price was: $3,800.$3,500Current price is: $3,500.Set
The Fixed Angle Notcher Machine is designed for precise cutting and notching of sheet metal at fixed angles. This machine offers high accuracy and efficiency, making it ideal for industrial metal fabrication. Its robust construction ensures long-lasting performance and minimal maintenance. Whether you’re working with mild steel, stainless steel, or other metals, this machine guarantees reliable results for your metalworking needs.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
Notching Machine EcoNotch
| Item | Unite | EcoNotch 3150 | EcoNotch 4200 | EcoNotch 6250 |
| Notching Angle | ° | 90 | 90 | 90 |
| Blade Length | mm | 155 | 205 | 255 |
| Maximum Notching Thickness | mm | 3 | 4 | 6 |
| Maximum Notching Length | mm | 150 | 200 | 250 |
| Number of Stroke | times/min | 30 | 30 | 30 |
| Worktable Dimensions | mm | 500*500*40 | 650*650*45 | 750*750*50 |
| Worktable Height | mm | 850 | 850 | 850 |
| Power | kw | 1.5 | 3 | 3 |
| RPM | r/min | 1440 | 1440 | 1440 |
| Oil Tank | L | 20 | 40 | 50 |
| Hydraulic Working Pressure | Mpa | 20 | 20 | 20 |
| Dimensions (LxWxH) | mm | 550*550*1100 | 700*700*1200 | 800*800*1200 |
7
People watching this product now!
Description
The Fixed Angle Notcher Machine is a versatile and reliable tool for cutting and notching sheet metal at fixed angles. Built with precision and durability in mind, this machine is perfect for a wide range of industrial metalworking applications. It provides clean and accurate notches, ideal for various metal forming processes.
Key Features:
-
Precision Cutting: Delivers highly accurate notches, ensuring clean edges and precise results for every operation.
-
Fixed Angle Design: Offers fixed angle settings for consistent and repeatable cuts, reducing setup time and increasing productivity.
-
Durability: Constructed with high-quality materials for long-term performance, ensuring reliability in demanding work environments.
-
Versatile Application: Suitable for a wide range of metals including mild steel, stainless steel, and aluminum, making it ideal for various industries such as automotive, construction, and manufacturing.
-
Ease of Use: User-friendly controls and settings for easy operation, even for less experienced operators.
Whether you’re working with thin or thick sheets, the Fixed Angle Notcher Machine is designed to meet your needs, providing exceptional performance and efficiency. It’s the perfect addition to any workshop focused on improving production rates and achieving high-quality results.
WHAT WE OFFER
Product Features Overview
Sheet Metal Clamp
Secure clamping ensures stability and precision during the notching process for all sheet sizes.
Upper and Bottom Blade
Durable, sharp blades deliver accurate, clean cuts on various metal thicknesses.
Oil Lubrication
Efficient lubrication system enhances blade longevity and reduces wear during operation.
Foot Switch
Convenient foot switch control enables safe, hands-free operation for increased efficiency.
Fast Positioning System
Quick positioning system for rapid and precise alignment of metal sheets.
Discharge Port
Efficient discharge port removes scraps, keeping the workspace clean and obstruction-free.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Classificado como 5 de 5
Exceptional Quality and Performance!
We’ve used HARSLE’s notching machine for three years and are very satisfied with its quality and the exceptional after-sales service provided.
Germany
★★★★★ Classificado como 5 de 5
Outstanding Service Every Time!
We’ve been using HARSLE’s notching machine for three years and are extremely satisfied with its quality and outstanding customer service.
USA
Most Popular Questions
What is a notching machine and how does it work?
A notching machine is a metalworking tool designed to cut notches, corners, or angular sections from sheet metal and plates. It works by driving a blade or punch downward against a fixed die to remove material at precise angles—commonly 90° fixed notches or variable-angle notches—enabling clean corner cuts for subsequent bending and fabrication.
What types of notching machines do you offer?
We offer a comprehensive range of notching machines, including fixed-angle notching machines (90° or other preset angles), variable-angle notching machines with adjustable blades, hydraulic notching machines for heavy-duty applications, and motorized notching machines for high-volume production. Each type is suited for different material thicknesses and production requirements.
What is the maximum cutting thickness and notch size?
Our notching machines can handle mild steel from 1 mm up to 12 mm in thickness, depending on the model. Maximum notch dimensions typically range from 200×200 mm to 250×250 mm. For stainless steel and other high-strength alloys, the capacity is reduced accordingly. We can recommend the right model based on your specific material and size requirements.
What materials can be processed with your notching machines?
Our notching machines can process a wide variety of sheet metals, including mild steel, stainless steel, aluminum, copper, brass, and galvanized steel. The maximum thickness capacity varies depending on the material's tensile strength—softer metals like aluminum allow for thicker cuts compared to stainless steel.
What notching angle range is available?
Our fixed-angle notching machines provide precise 90° cuts, ideal for box and enclosure fabrication. Our variable-angle models offer adjustable notch angles ranging from 30° to 140° (or wider on select models), giving you the flexibility to create a variety of corner profiles for different sheet metal forming applications.
What safety features are included with your notching machines?
Our notching machines are equipped with comprehensive safety features, including blade guards, emergency stop buttons, two-hand operation controls, and anti-repeat stroke mechanisms. All machines comply with CE safety standards, ensuring maximum operator protection during cutting operations.
How accurate are the notch cuts?
Our notching machines deliver high cutting accuracy with clean, burr-free edges. The angle accuracy is typically within ±0.5°, and the dimensional accuracy of the notch is within ±0.1 mm. Precision-ground blades and rigid machine frames ensure consistent, repeatable results across production runs.
How long do the blades last and are replacement blades available?
Our notching blades are made from high-quality alloy tool steel, providing excellent durability and long service life. Blade longevity depends on usage intensity and material being cut, but they are designed for easy replacement with minimal downtime. We supply original replacement blades and can provide resharpening recommendations.
What is the typical lead time and warranty period?
The standard lead time for notching machine production is 15 to 30 days depending on the model and configuration. We offer a 12-month warranty covering manufacturing defects, with extended warranty packages and lifetime technical support available upon request.
Do you provide installation, training, and after-sales support?
Yes, we provide full installation guidance, operator training, and ongoing after-sales support. Our engineers can assist with on-site commissioning, and we offer remote technical assistance, spare parts supply, and maintenance guidance to ensure your notching machine operates at peak performance throughout its service life.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 1600 × 1600 × 2300 mm |
| Brand | HARSLE |
| Function | Notching |
| Lead Time | 45 Days |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 1 Year |
