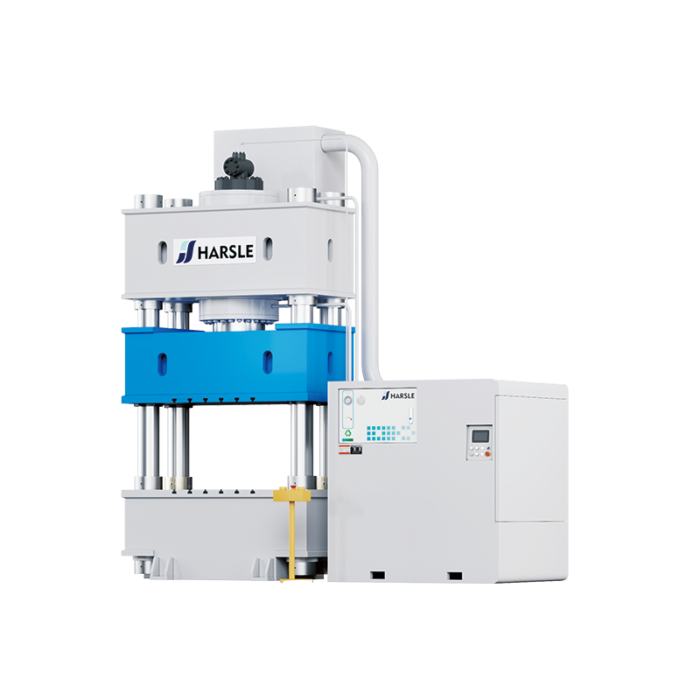

Industrial Hydraulic Press for Metal Forming

Name: Industrial Hydraulic Press for Metal Forming | HARSLE
SKU: HS20266151
Price: 58500 USD
Availability: InStock

Original price was: $64,000.Current price is: $58,500. Set

The Industrial Hydraulic Press is designed for demanding metal forming, stamping, punching, deep drawing, straightening, and assembly applications. Built with a robust frame structure and advanced hydraulic system, it delivers high pressing force, reliable performance, and excellent accuracy. Suitable for automotive, aerospace, construction, and manufacturing industries, this hydraulic press offers customizable tonnage, working table sizes, and control systems to meet diverse production requirements while ensuring long-term durability and operational efficiency.

100 in stock

Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.

Compare

Add to wishlist

SEND INQUIRY

Y32 Four-Column Hydraulic Press

Item	Unit	Y32-63T	Y32-100T	Y32-160T	Y32-200T	Y32-250T	Y32-315T	Y32-400T	Y32-500T	Y32-630T	Y32-800T	Y32-1000T	Y32-1250T	Y32-1600T	Y32-2000T	Y32-2500T	Y32-3000T
Nominal Force	KN	630	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500	16000	20000	25000	30000
Knock-out Pressure	KN	160	250	250	400	400	630	630	1000	1600	2000	2000	2000	2500	3150	4000	5000
Daylight	mm	700	800	800	1120	1120	1250	1250	1500	1500	1500	1600	1500	1600	1800	2000	2000
Slide Stroke	mm	500	500	650	710	710	800	800	900	900	900	1000	900	1000	1200	1200	1200
Knock-out Stroke	mm	200	200	200	250	250	300	300	360	360	360	450	400	450	450	500	500
Table Height	mm	550	550	550	550	550	700	700	715	500	300	300	200	200	200	200	200
T Slot		Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Type		Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Capacity	KW	7.5	7.5	7.5	13	13	13	22	30	35	48	60	72	92	94	110	150
Table Size(L-R)	mm	550	630	800	900	1000	1200	1400	1400	1600	2000	2000	2500	2500	2500	3000	4000
Table Size(F-B)	mm	630	630	800	900	1000	1200	1200	1400	1600	1600	1800	2000	2000	2000	2500	2600
Descent Speed	mm/s	38	38	40	80	80	120	100	＞100	＞100	＞100	＞150	＞150	＞150	＞150	＞150	＞150
Pressing Speed	mm/s	10	10	8	5-12	5-12	5-12	4-10	4-10	5-12	5-12	4-10	4-10	4-10	4-10	4-10	5-12
Return Speed	mm/s	95	70	65	70	70	65	50	50	60	90	100	85	＞100	60	＞100	120
Dimension(L-R)	mm	1150	2200	2370	2450	2450	2830	3070	3300	3600	4800	7010	5890	6500	6870	7630	8530
Dimension(F-B)	mm	800	900	1200	1300	1300	1500	1500	1500	1800	2854	3000	3450	3900	2500	5000	4000
Height	mm	2600	2770	2800	3650	3650	4300	4850	5400	5300	5400	5740	6980	7500	7500	7840	8500
Weight	T	1.8	2.7	4.5	6.7	7	13	17	21	31	52	59	80	110	140	154	172

6 People watching this product now!

Description

The Industrial Hydraulic Press is a powerful and versatile machine engineered for a wide range of metal processing operations. It is widely used for forming, stamping, bending, punching, deep drawing, assembling, and straightening metal components across various industries. Designed with a heavy-duty frame and precision hydraulic system, this press provides stable pressure output, consistent performance, and excellent production reliability.

Manufactured with high-quality steel structures and premium hydraulic components, the machine ensures long service life and reduced maintenance costs. Its advanced control system allows operators to adjust pressure, stroke, and working speed according to different production needs, improving flexibility and productivity.

The Industrial Hydraulic Press can be customized with different capacities, table dimensions, daylight openings, and automation options, making it suitable for both small workshops and large-scale industrial manufacturing facilities. Whether processing steel, aluminum, stainless steel, or other metal materials, the machine delivers accurate and repeatable results.

Key Features

Heavy-duty welded frame for maximum structural strength and stability
High-precision hydraulic system for smooth and reliable operation
Adjustable pressure, stroke length, and pressing speed
Available in multiple tonnage capacities to meet various applications
User-friendly control system with optional PLC or CNC integration
Energy-efficient hydraulic design for lower operating costs
Enhanced safety protection with emergency stop and safety devices
Customizable worktable size, stroke, and automation solutions

The Industrial Hydraulic Press is an ideal solution for manufacturers seeking high productivity, precision forming capabilities, and dependable long-term performance in metal fabrication and industrial production environments.

WHAT WE OFFER

Product Features Overview

Trusted Global Partners

Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.

Why Choose HARSLE

Direct Manufacturer

Factory direct, no middlemen, ensuring the best prices for our customers.

3-Year Warranty

Enjoy peace of mind with a three-year warranty and free parts replacement.

Multilingual Support

Our multilingual team ensures efficient communication for all your needs.

Timely Delivery

The machines are delivered on time, ensuring our customers receive them promptly.

Quality Assurance

Comprehensive quality checks guarantee the quality of every machine.

Localized Service

We provide prompt, localized service in multiple countries for your convenience.

Testimonials

Hear What Our Customers Say

At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.

Classificado como 5 de 5

Exceptional Quality and Performance!

We’ve been using HARSLE’s hydraulic press for three years and are very satisfied with its quality and the excellent after-sales service.

Noah Blake

Germany

Classificado como 5 de 5

Outstanding Service Every Time!

We’ve used HARSLE’s hydraulic press for three years and are very satisfied with both the quality and the exceptional after-sales service.

Liam Reed

USA

Most Popular Questions

What is a hydraulic press and how does it work?

A hydraulic press is a machine that uses hydraulic cylinders to generate a compressive force. It operates based on Pascal's principle, where pressure applied to a confined fluid is transmitted equally in all directions. This allows a small force on a small-area piston to produce a much larger force on a large-area piston, enabling powerful forming, stamping, and pressing operations.

What tonnage options are available for your hydraulic presses?

Our hydraulic presses are available in a wide range of tonnage capacities, typically from 20 tons to over 10,000 tons. We can recommend the optimal tonnage based on your specific application, material type, part geometry, and production volume requirements.

What types of hydraulic presses do you offer?

We offer a comprehensive range including four-column hydraulic presses, C-frame hydraulic presses, H-frame hydraulic presses, deep drawing hydraulic presses, and servo hydraulic presses. Each type is designed for specific applications such as stamping, forging, molding, straightening, and deep drawing operations.

What materials can be processed with your hydraulic presses?

Our hydraulic presses can process a wide variety of materials, including mild steel, stainless steel, aluminum, copper, brass, titanium, composites, rubber, and plastics. The pressing force and tooling can be tailored to suit the specific material properties and forming requirements.

What safety features are included with your hydraulic presses?

Our hydraulic presses are equipped with comprehensive safety features, including light curtains, two-hand operation controls, emergency stop buttons, overload protection, safety interlocks, and protective guards. All machines are designed to comply with CE and other international safety standards.

What applications are hydraulic presses commonly used for?

Hydraulic presses are widely used for metal forming, stamping, punching, deep drawing, forging, powder compaction, rubber and plastic molding, straightening, and assembly press-fitting. They serve industries including automotive, aerospace, appliance manufacturing, and general metalworking.

Can your hydraulic presses be customized for our specific needs?

Absolutely. We offer extensive customization options, including custom tonnage, stroke length, table size, daylight opening, speed settings, die cushion systems, heating platens, and PLC/CNC control integration. Our engineering team will work with you to design a press that perfectly matches your production requirements.

What is the typical lead time and warranty period?

The standard lead time for hydraulic press production is typically 30 to 90 days, depending on the model, tonnage, and level of customization. We provide a 12-month warranty covering manufacturing defects, with extended warranty packages available upon request.

Do you provide installation and operator training?

Yes, we provide professional on-site installation, commissioning, and comprehensive operator training. Our experienced engineers will ensure the press is properly set up, calibrated, and your team is fully trained on safe operation, routine maintenance, and troubleshooting procedures.

What after-sales support and spare parts service do you offer?

We offer comprehensive after-sales support, including 24/7 technical assistance, remote diagnostics, on-site repair services, and a readily available inventory of spare parts such as hydraulic seals, valves, cylinders, and electrical components to minimize downtime and keep your press running efficiently.
