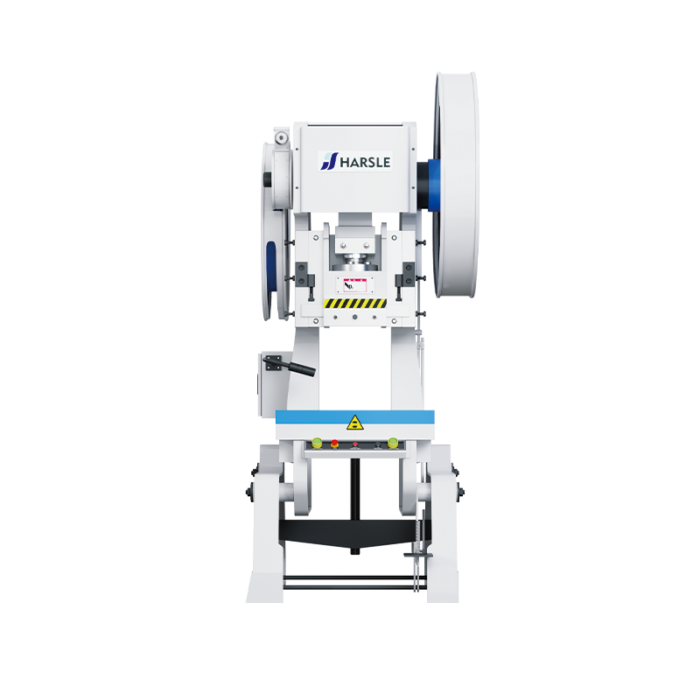

J23 Inclinable Punching Machine
| Description | Type | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J21-100T | J21-125T | J21-160T |
| Nominal Force | kn | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| Slide Stroke | mm | 50 | 60 | 70 | 100 | 100 | 115 | 130 | 130 | 130 |
| Number of Stroke | Times/min | 140 | 100 | 70 | 50 | 50 | 45 | 40 | 40 | 35 |
| Closed Height | mm | 200 | 250 | 290 | 350 | 380 | 410 | 420 | 420 | 410 |
| Close Height Adjustment | mm | 40 | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 80 |
| Throat Depth | mm | 130 | 180 | 200 | 250 | 280 | 280 | 320 | 320 | 360 |
| Column Distance | mm | 170 | 200 | 230 | 320 | 350 | 360 | 400 | 430 | 330 |
| Table Size(FxB) | mm | 230 | 280 | 330 | 420 | 450 | 500 | 600 | 650 | 650 |
| Table Size(LxR) | mm | 370 | 450 | 530 | 640 | 700 | 750 | 900 | 1000 | 1100 |
| Slide Bottom Size(FxB) | mm | 100 | 130 | 170 | 190 | 220 | 250 | 280 | 350 | 340 |
| Slide Bottom Size(LxR) | mm | 145 | 180 | 200 | 250 | 310 | 300 | 325 | 380 | 420 |
| Shouk Dimension(Diameter) | mm | 30 | 35 | 40 | 50 | 50 | 60 | 60 | 70 | 80 |
| Shouk Dimension(Depth) | mm | 50 | 60 | 60 | 100 | 100 | 100 | 100 | 100 | 100 |
| Thickness of Table | mm | 30 | 40 | 45 | 70 | 80 | 90 | 100 | 110 | 120 |
| Dimension(FxB) | mm | 740 | 900 | 1000 | 1400 | 1500 | 1600 | 1800 | 1900 | 1800 |
| Dimension(LxR) | mm | 600 | 780 | 830 | 1100 | 1200 | 1300 | 1300 | 1500 | 1600 |
| Dimension(Height) | mm | 1500 | 1720 | 1950 | 2300 | 2400 | 2600 | 2650 | 2800 | 2900 |
| Motor | kw | 1.1 | 1.5 | 2.2 | 4.0 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Weight | kg | 350 | 700 | 1100 | 2400 | 3100 | 4000 | 5000 | 7300 | 9600 |
5
People watching this product now!
Description
A punching machine for HVAC manufacturing is an essential solution for producing air ducts, ventilation panels, and sheet metal components with high precision and efficiency. HARSLE punching machines are developed to meet the requirements of HVAC manufacturers who need reliable equipment for continuous metal forming and punching operations.
Designed for processing materials such as galvanized steel, stainless steel, and aluminum sheets, the machine delivers stable punching performance with accurate positioning and consistent results. It is suitable for HVAC production lines, duct fabrication workshops, and metalworking factories that require fast and flexible sheet metal processing.
With advanced technology and a durable structure, HARSLE punching machines help reduce production time while maintaining excellent processing quality. The equipment can be customized according to different HVAC manufacturing requirements, including material thickness, punching patterns, tooling options, and automation solutions.
Key Features:
- High Precision Punching Performance
Provides accurate hole positioning and repeatable punching results for HVAC ducts, covers, and ventilation components. - Efficient Sheet Metal Processing
Improves production efficiency by enabling fast punching operations and reducing manual labor requirements. - Flexible Material Compatibility
Suitable for processing galvanized steel, stainless steel, aluminum, and other common HVAC sheet materials. - Durable Industrial Structure
Built with reliable components to ensure stable operation and long service life in demanding manufacturing environments. - Customizable Solutions
Supports different tooling configurations and production requirements to meet various HVAC manufacturing applications.
HARSLE punching machines provide HVAC manufacturers with a cost-effective and dependable solution for improving production efficiency, product consistency, and overall manufacturing capability.
