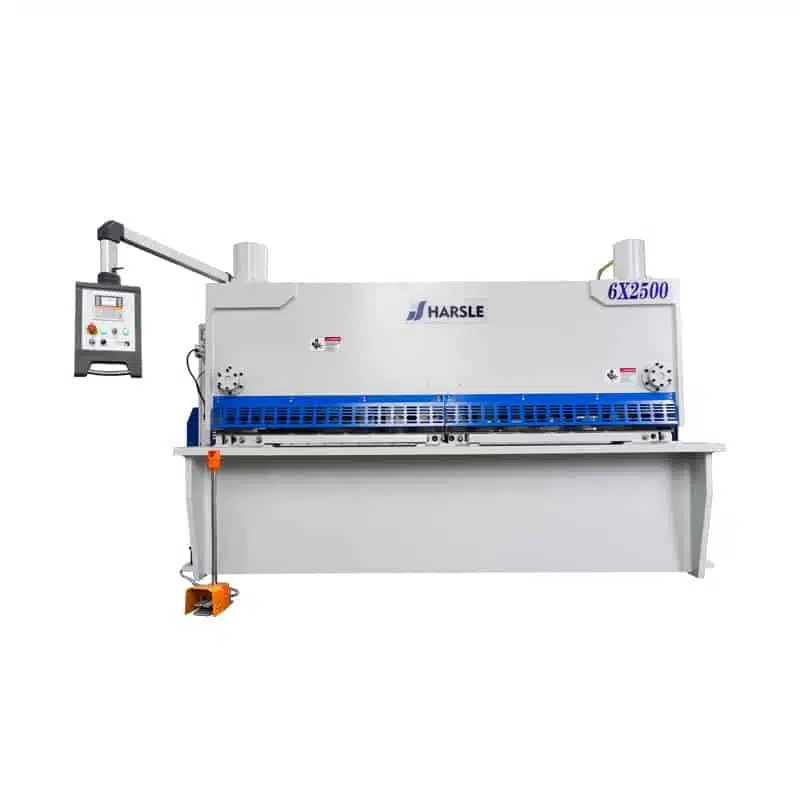

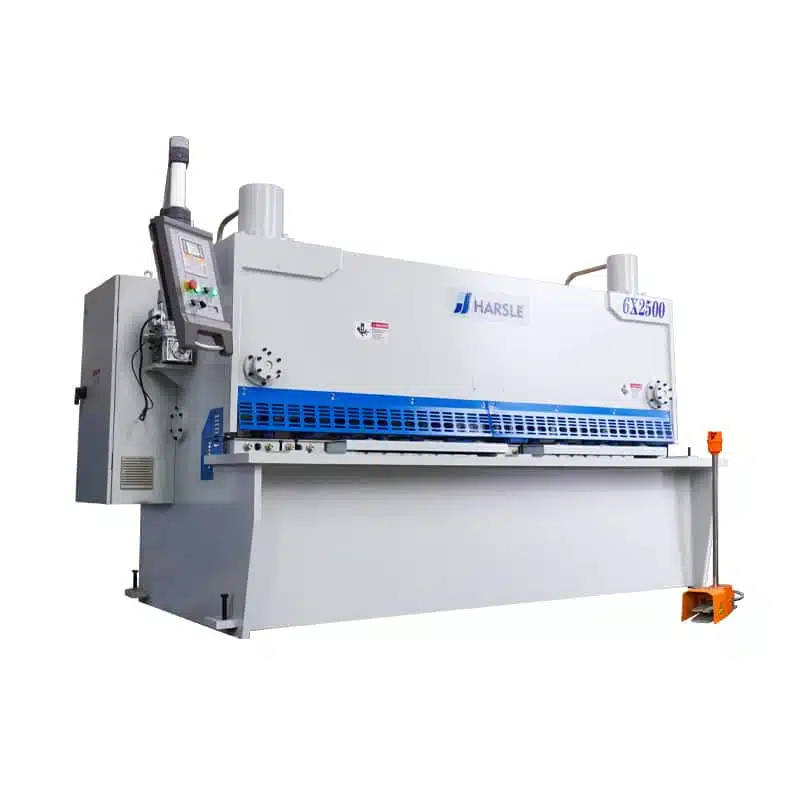

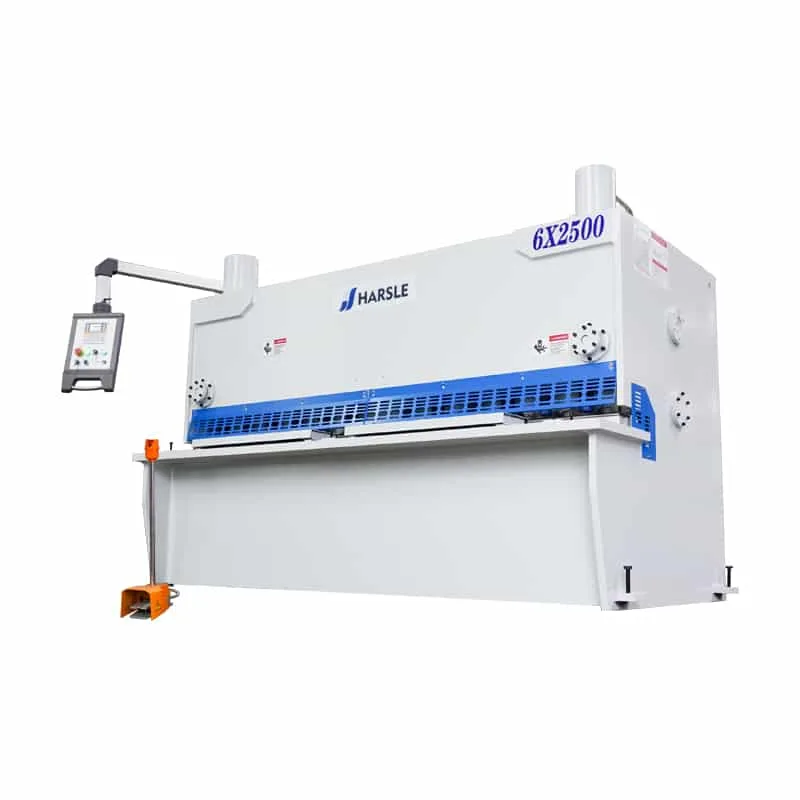

CNC Hydraulic Guillotine Shearing Machine with ELGO P40
The CNC Hydraulic Guillotine Shearing Machine with ELGO P40 is designed for efficient and precise metal sheet cutting. With advanced hydraulic technology, it ensures clean and accurate cuts for sheets of various thicknesses. The user-friendly ELGO P40 control system enhances operational efficiency, making it suitable for both industrial and commercial applications. Upgrade your metal processing capabilities with this reliable and high-performance shearing machine.
10 in stock
Guillotine Shearing Machine
| Size | Unit | 6X2500 | 6X3200 | 6X4000 | 6X5000 | 6X6000 | 8X2500 | 8X3200 | 8X4000 | 8X5000 | 8X6000 | 10X2500 | 10X3200 | 10X4000 | 10X5000 | 10X6000 | 12X25000 | 12X3200 | 12X4000 | 12X5000 | 12X6000 | 16X2500 | 16X3200 | 16X4000 | 16X5000 | 16X6000 | 20X2500 | 20X3200 | 20X4000 | 20X5000 | 20X6000 |
| Cutting Thickness | mm | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 16 | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 20 | 20 |
| Cutting Length | mm | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 | 5000 | 6000 |
| Throat Depth | mm | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Number of Strokes | times/min | 6-11 | 7-16 | 7-14 | 8-12 | 6-12 | 10-16 | 10-15 | 8-14 | 7-12 | 5-10 | 10-16 | 9-15 | 8-13 | 6-12 | 5-10 | 10-16 | 10-15 | 9-14 | 8-13 | 8-12 | 9-14 | 9-13 | 8-12 | 8-11 | 8-10 | 10-14 | 10-13 | 9-13 | 8-11 | 8-10 |
| Cutting Angle | ° | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-3 | 0.5-3 | 0.5-3 | 0.5-3 | 0.5-3 |
| Number of Presser Feet | pcs | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 | 10 | 12 | 18 | 22 | 26 |
| Number of Blades | pcs | 2 | 3 | 4 | 5 | 6 | 2 | 3 | 4 | 5 | 6 | 2 | 3 | 4 | 5 | 6 | 2 | 3 | 4 | 4 | 6 | 2 | 3 | 4 | 4 | 6 | 2 | 3 | 4 | 4 | 6 |
| Blade Length | mm | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 | 1300 | 1100 | 1025 | 1025 | 1025 |
| Table Height | mm | 705 | 750 | 750 | 800 | 850 | 745 | 800 | 800 | 800 | 850 | 760 | 800 | 800 | 800 | 850 | 800 | 850 | 900 | 950 | 1000 | 800 | 850 | 900 | 950 | 1000 | 850 | 900 | 950 | 1000 | 1050 |
| Number of Front Supports | pcs | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 | 3 | 4 | 4 | 4 | 6 |
| Front Support Length | mm | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 | 500 | 500 | 500 | 800 | 800 |
| Oil Tank | L | 260 | 300 | 400 | 480 | 550 | 260 | 300 | 400 | 480 | 550 | 260 | 320 | 460 | 480 | 550 | 350 | 450 | 500 | 580 | 600 | 350 | 450 | 500 | 580 | 600 | 350 | 450 | 580 | 600 | 650 |
| Back Stop Distance | mm | 600 | 600 | 600 | 800 | 800 | 600 | 600 | 600 | 800 | 800 | 600 | 600 | 600 | 800 | 800 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Motor Power | KW | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 11 | 11 | 15 | 15 | 15 | 15 | 15 | 18.5 | 18.5 | 15 | 15 | 18.5 | 18.5 | 22 | 18.5 | 18.5 | 22 | 22 | 30 | 22 | 22 | 30 | 30 | 37 |
| Weight | kg | 4500 | 6300 | 8000 | 11000 | 15000 | 5600 | 7000 | 8500 | 10500 | 16000 | 6500 | 8300 | 11000 | 15000 | 21000 | 7600 | 9400 | 12500 | 17000 | 24000 | 9000 | 11000 | 14300 | 20000 | 29500 | 1100 | 15500 | 19000 | 27000 | 38000 |
| Length | mm | 3200 | 3900 | 4700 | 5700 | 6700 | 3200 | 3950 | 4700 | 5700 | 6700 | 3200 | 3650 | 4460 | 5750 | 6750 | 3250 | 3980 | 4800 | 5800 | 6800 | 3280 | 3950 | 4800 | 5800 | 6800 | 3680 | 4000 | 4800 | 5900 | 6900 |
| Width | mm | 1500 | 1600 | 1650 | 1800 | 2000 | 1600 | 1700 | 1750 | 1950 | 2100 | 1700 | 1800 | 1900 | 2250 | 2200 | 1800 | 1900 | 2050 | 2150 | 2250 | 1900 | 2000 | 2100 | 2200 | 2300 | 2050 | 2200 | 2300 | 2400 | 2500 |
| Height | mm | 2000 | 2050 | 2100 | 2300 | 2500 | 2150 | 2250 | 2250 | 2600 | 2550 | 2200 | 2300 | 2400 | 2600 | 2600 | 2250 | 2350 | 2550 | 2600 | 2700 | 2400 | 2500 | 2650 | 2900 | 3150 | 2600 | 2800 | 3100 | 3200 | 3300 |
6
People watching this product now!
Description
The CNC Hydraulic Guillotine Shearing Machine with ELGO P40 is designed for precise and efficient sheet metal cutting. Equipped with advanced ELGO P40 control system, it ensures accurate operation and high productivity. Ideal for various industries, this machine offers smooth, clean cuts with minimal distortion.
Key Features:
- Precision Control: ELGO P40 system for accurate positioning.
- Efficient Performance: Fast cutting speed with reliable hydraulics.
- Durability: Robust construction ensures long-lasting performance.
- Versatility: Ideal for a variety of sheet metal thicknesses.
This shearing machine delivers high efficiency and precision, making it a great addition to your workshop.
WHAT WE OFFER
Product Features Overview
Machine Body
The durable machine body provides robust support, reducing vibration for accurate, reliable, and long-lasting shearing performance.
Pneumatic Clamp
The pneumatic clamp system holds materials firmly, ensuring precision and efficiency by preventing material movement during cuts.
Pneumatic Rear Support
Pneumatic rear support aids in smooth material handling, enhancing positioning accuracy for large or flexible sheets.
Controller
The user-friendly controller offers precise programming, allowing operators to customize settings for efficient, accurate cuts.
Light Curtain
The integrated light curtain maximizes operator safety by automatically stopping the machine if interference is detected.
Extension Table
The extension table provides additional support for larger workpieces, improving handling and stability during cutting operations.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Our Services
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ 5/5
Exceptional Quality and Performance!
We’ve used HARSLE’s shearing machine for three years and are highly satisfied with its quality and excellent after-sales service.
South Korea
★★★★★ 5/5
Outstanding Service Every Time!
We’ve been using HARSLE’s shearing machine for three years, and we’re consistently impressed with its quality and the excellent after-sales service.
Bangladesh
Most Popular Questions
We offer various types of shearing machines, including hydraulic shearing machines, mechanical shearing machines, and CNC shearing machines, each designed for different applications and material thicknesses.
Our shearing machines can cut a wide range of materials, including mild steel, stainless steel, aluminum, and various alloys, depending on the model and specifications.
The maximum cutting thickness and width vary by model. Please refer to the specific machine's technical specifications for detailed information.
Yes, we offer customization options to meet specific customer requirements, including modifications in size, cutting capacity, and additional features.
Our shearing machines are equipped with safety features such as emergency stop buttons, protective guards, and overload protection systems to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer comprehensive installation services and user training to ensure that your shearing machine is installed correctly and operated efficiently.
The lead time typically ranges from 30 to 60 days, depending on the model and order specifications. We will provide an estimated delivery date upon confirmation of your order.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and the availability of spare parts to ensure the longevity of your machine.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our shearing machines.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 3200 × 1500 × 2100 mm |
| Function |
Cutting |
| Lead Time |
45 Days |
| Brand |
HARSLE |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
3 Years |
