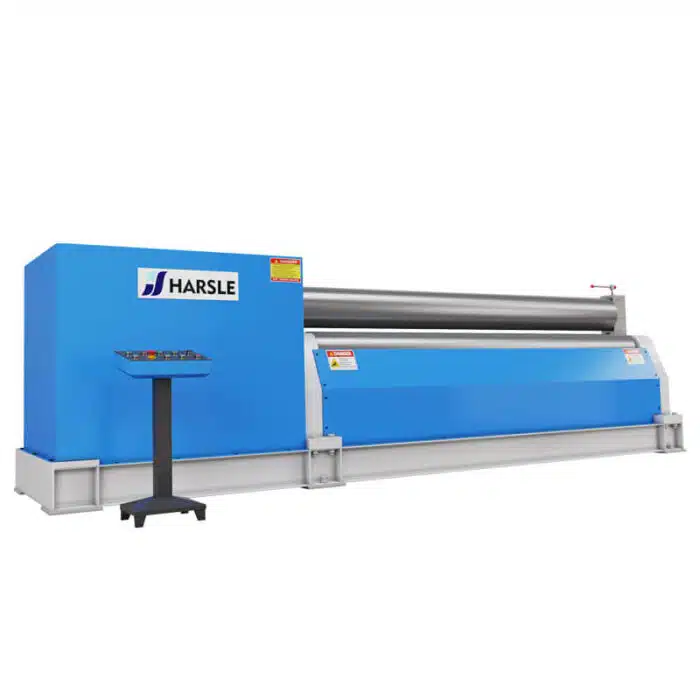

W11 Three-Roller Rolling Machine
The W11 Three-Roller Rolling Machine is designed for precision rolling of metal sheets. Featuring a robust three-roller configuration, this machine ensures uniform and consistent bending of various materials. Ideal for both industrial and workshop applications, it offers easy operation and durability, making it suitable for high-volume production. Enhance your metal forming capabilities with this reliable rolling solution.
100 in stock
W11 Three-Roller Mechanical Metal Sheet Rolling Machine
Item | Unit | W11-6X1500 | W11-6X2000 | W11-6X2500 | W11-6X3200 | W11-8X2000 | W11-8X2500 | W11-12X2000 | W11-12X2500 | W11-12X3000 | W11-16X2000 | W11-16X2500 | W11-16X3200 | W11-20X2000 | W11-20X2500 | W11-25X2000 | W11-25X2500 | W11-30X2000 | W11-30X2500 | W11-30X3000 | W11-30X3200 | W11-40X2000 | W11-40X2500 | W11-40X3000 | W11-50X3000 | W11-60X3000 |
Max Rolling Thickness | mm | 6 | 6 | 6 | 6 | 8 | 8 | 12 | 12 | 12 | 16 | 16 | 16 | 20 | 20 | 25 | 25 | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 50 | 60 |
Max Rolling Width | mm | 1500 | 2000 | 2500 | 3200 | 2000 | 2500 | 2000 | 2500 | 3000 | 2000 | 2500 | 3200 | 2000 | 2500 | 2000 | 2500 | 2000 | 2500 | 3000 | 3200 | 2000 | 2500 | 3000 | 3000 | 3000 |
Plate Yield Limit | Mpa | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 | 265 |
Rolling Speed | m/min | 7.16 | 7.16 | 7.16 | 6.46 | 7.16 | 6.46 | 6.46 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 4.5 | 4.5 | 4.34 | 5 | 5 | 5 | 5 | 4.37 | 4 | 4 |
Minimum Coil Loaded Diameter | mm | 380 | 380 | 500 | 500 | 450 | 500 | 500 | 750 | 650 | 750 | 750 | 900 | 750 | 850 | 850 | 900 | 900 | 1100 | 1200 | 1200 | 1200 | 1400 | 1600 | 2000 | 2000 |
Upper Shaft Diameter | mm | 180 | 180 | 190 | 240 | 190 | 240 | 240 | 260 | 280 | 260 | 280 | 340 | 280 | 340 | 340 | 380 | 380 | 460 | 480 | 500 | 480 | 500 | 500 | 600 | 700 |
Under Shaft Diameter | mm | 160 | 160 | 170 | 200 | 170 | 200 | 200 | 220 | 240 | 220 | 240 | 280 | 240 | 280 | 280 | 300 | 300 | 380 | 400 | 400 | 400 | 400 | 425 | 480 | 560 |
Two Lower Shaft Center Distance | mm | 210 | 210 | 260 | 310 | 260 | 310 | 310 | 330 | 360 | 330 | 360 | 440 | 360 | 440 | 440 | 490 | 490 | 600 | 600 | 600 | 600 | 600 | 650 | 700 | 800 |
Motor | KW | 5.5 | 5.5 | 7.5 | 11 | 7.5 | 11 | 11 | 15 | 22 | 15 | 22 | 30 | 22 | 30 | 30 | 37 | 37 | 45 | 45 | 45 | 45 | 45 | 60 | 75 | 90 |
Weight | T | 2.6 | 3.1 | 4.6 | 7.2 | 4.1 | 6.7 | 6.7 | 6.3 | 12.1 | 5.8 | 8.5 | 15.6 | 7.8 | 14.7 | 13.2 | 24.7 | 23 | 25 | 32 | 35.2 | 28.7 | 34.2 | 36 | 71.5 | 87 |
Length | mm | 3310 | 3810 | 4310 | 5200 | 3810 | 4500 | 4050 | 5000 | 5500 | 4500 | 5000 | 6300 | 4500 | 5600 | 5100 | 6700 | 5500 | 6900 | 7400 | 7600 | 6400 | 6900 | 8000 | 9900 | 9700 |
Width | mm | 1210 | 1210 | 1210 | 1400 | 1210 | 1420 | 1420 | 1500 | 1500 | 1500 | 1500 | 1600 | 1500 | 1600 | 1600 | 1600 | 1460 | 2300 | 2300 | 2300 | 2300 | 2300 | 1980 | 3100 | 3200 |
Height | mm | 1330 | 1330 | 1330 | 1200 | 1330 | 1610 | 1610 | 1300 | 1300 | 1300 | 1300 | 1900 | 1300 | 1900 | 1900 | 2150 | 2150 | 2800 | 2600 | 2600 | 2800 | 2800 | 2250 | 3500 | 2700 |
The W11 Three-Roller Rolling Machine is designed for precision sheet metal bending, offering consistent performance and durability. This machine is perfect for rolling various metal sheets with a high level of accuracy.
Key Features:
- Advanced Three-Roller Design: Ensures smooth and precise bending.
- High Efficiency: Reduces production time and increases output.
- Durability: Built with high-quality materials for long-lasting performance.
- User-Friendly Operation: Simple control interface for ease of use.
Ideal for industries such as construction, automotive, and metalworking, the W11 provides reliable results in heavy-duty applications.
WHAT WE OFFER
Product Features Overview
Controller System
User-friendly controller system ensures precise rolling operations, offering easy adjustments for complex bending tasks.
Electric Parts
High-quality electric components provide reliable performance and durability, ensuring consistent machine operation and safety.
Release Device
Efficient release device allows easy removal of finished products, improving workflow and enhancing productivity.
Roller
Precision rollers ensure smooth, accurate bending, capable of handling various material thicknesses with ease.
Side Support
Sturdy side support stabilizes materials, maintaining alignment for precise and consistent rolling results.
Vertical Support
Vertical support enhances stability during rolling, especially for larger materials, improving overall accuracy and control.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
3-Year Warranty
Multilingual Support
Timely Delivery
Quality Assurance
Localized Service
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
Exceptional Quality and Performance!
We’ve been using HARSLE’s rolling machine for three years and are very satisfied with its quality and excellent customer service throughout this period.
Germany
Outstanding Service Every Time!
We’ve used HARSLE’s rolling machine for three years and are consistently impressed with its quality and excellent customer service.
USA
Most Popular Questions
We offer various types of rolling machines, including three-roll and four-roll plate rolling machines, as well as specialized models for different applications and material types.
Our rolling machines can effectively handle a range of materials, including mild steel, stainless steel, aluminum, and other metals, depending on the specific model and configuration.
The maximum rolling thickness and width vary by model. Please refer to the technical specifications for detailed information on each rolling machine's capabilities.
Yes, we offer customization options to meet specific production needs, including modifications in rolling capacity, size, and additional features tailored to your requirements.
Our rolling machines are equipped with safety features such as emergency stop buttons, safety guards, and overload protection systems to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer complete installation services and training for your staff to ensure that the rolling machine is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your rolling machine.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our rolling machines.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Weight | 999 kg |
---|---|
Dimensions | 3900 × 1420 × 1610 mm |
Function |
Rolling |
Lead Time |
45 Days |
Brand |
HARSLE |
Payment Term |
LC ,TT |
Price Term |
EXW |
Warranty |
3 Years |
