Mastering DELEM DA-53T Product Programming is a crucial skill for anyone involved in the efficient operation of press brake machines. If you’re seeking to enhance your programming capabilities with the DELEM DA-53T, you’re in the right place.

In this guide, I’ll provide you with the essential insights needed to understand and excel in DELEM DA-53T Product Programming. You’ll learn how to navigate the programming interface, optimize machine operations, and achieve precise bending outcomes. Whether you’re a novice looking to gain foundational skills or an experienced operator aiming to refine your techniques, this article will equip you with valuable knowledge to enhance your metalworking processes.

Navigating the Program Mode

To master DELEM DA-53T Product Programming, begin by selecting a product from the Products overview to edit an existing CNC program or choose ‘New Program’ for a fresh start. After setting the main product properties and tool setup, you’ll enter the programming mode.

The screen will display the current numerical program or prompt you to begin a new bend. Use the bend selector at the top for easy navigation and tap the desired bends to adjust the data accordingly. Command buttons on the side offer quick access to various views and functions, streamlining your programming process. Embracing these tools will enhance your efficiency and precision with the DELEM DA-53T.

Funções

Following modes / functions are available:

Understanding Key Programming Parameters

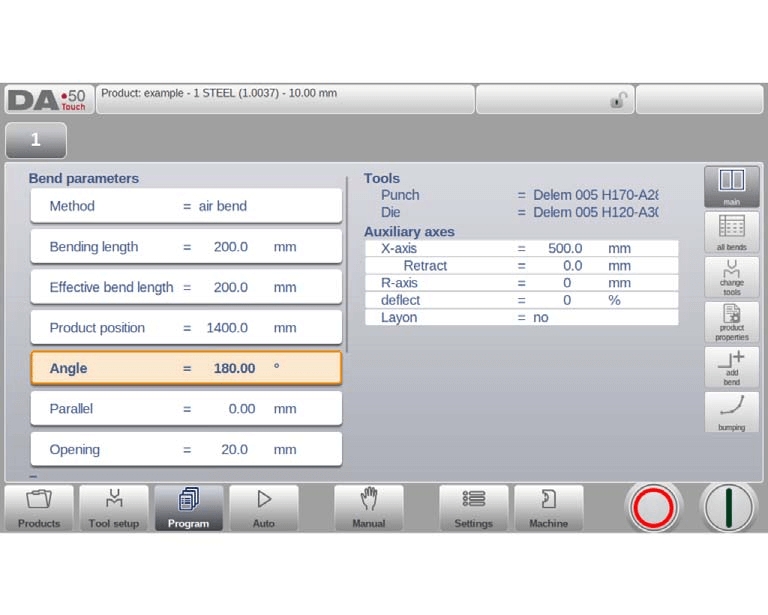

A tela principal mostra as dobras disponíveis e, a partir desta tela principal, de cada dobra disponível, parâmetros específicos podem ser visualizados e editados.

The product ID and product description are displayed in the top row on the screen.

Bend Parameters

Each bend in your program can be tailored by adjusting specific parameters such as angle, length, and radius. These adjustments ensure that your final product meets precise specifications.

Bend Methods

1. Curva de ar:
   • Bend to the programmed angle by adjusting the punch depth.
   • Y-axis position is calculated for precision.
2. Bottoming:
   • Sheet pressed between punch and die.
   • Y-axis end position depends on force; limited by calculated position.
3. Hemming:
   • Fold sheet in two after a sharp bend.
   • Y-axis position includes die surface plus twice the sheet thickness.
   • ‘Hem opening’ for Y-axis adjustments.
4. Hemming & Bottoming:
   • Combines hemming with pressing between punch and die.
   • Assumes top of die as Y-axis position.

Note 1: The hemming bends are shown here with a special hemming punch, but this is not required.

Note 2: When bottoming operation is selected, the end of bend position of the Y-axis beam depends on the working force. If however the force is sufficient for the beam to go to the calculated Y-axis end of bend position, the beam stroke will be limited by the position value.

Comprimento de curvatura: Length between tools; crucial for force and crowning calculations.

Effective Bend Length: Used for force calculations; sum of individual bend line lengths.

Product Position: Set the absolute position in the Z-direction starting at the left machine side’s reference zero. This ensures accurate alignment.

Ângulo: Program the required bend angle when angle programming is selected, especially for air bending, to ensure precision.

Abertura da bainha: Determine the opening distance between flanges during hemming. This impacts the beam position calculation and defaults to the Settings mode’s value.

Y-axis (Bend Position): Define the bend’s Y-axis position for absolute programming and methods like bottoming, affecting the bend’s precision.

Mute: Set the point where the Y-axis transitions from fast closing to pressing speed. This is programmable based on the sheet distance or die defaults.

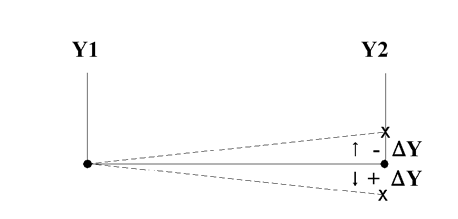

Parallel: Adjust for differences between left and right cylinder sides (Y1 and Y2) to maintain uniformity in bending.

Abertura: Control the gap between punch and die after bending. Adjust this to reduce handling time, either above or below Mute.

Setting Force and Speed

Vigor: Força máxima ajustada durante a prensagem (calculada automaticamente).

Tempo de permanência: Tempo de retenção do punção no ponto de flexão.

Descompressão: Decompression distance after the bending to release the working pressure from the system.

Velocidade: Working speed (pressing speed). Initially, the value for this parameter is copied from the parameter Default Pressing Speed in the Settings mode.

Decomp speed: The decompression speed is the programmable speed of the beam during the decompression distance.

Exploring Additional Functions

Explore the available functions within the DELEM DA-53T programming interface. These functions allow for further customization of your program, enhancing productivity and flexibility.

1. Repetition:
   • 0: Bending is skipped.
   • 1-99: Specifies the number of repetitions for the bend.
2. Wait for Retract:
   • Options to control Y-axis behavior during retract:
     • No: Y-axis moves on, starting retract as it passes the clamping point.
     • Yes: Y-axis halts at clamping point until retract is complete, then proceeds.
3. Code:
   • Manages when new parameter values become active. Options include:
     • 0: Change at end of decompression.
     • 1: Change at muting position.
     • 2: Change at upper dead point.
     • 3: Stop at upper dead point with no axis movement.
     • 4: External signal changes step without beam movement.
     • 5: External signal at upper dead point allowing beam and retract function.
4. Delay Time:
   • Sets delay before step change (0-30 seconds).

Utilizing these parameters in DELEM DA-53T Product Programming optimizes control and efficiency during bending operations.

Fine-Tuning Product Properties and Tool Configurations

Editing Product Properties

From the main screen, product properties like ID and description can be modified to keep your catalog organized and accessible.

Espessura: The thickness of the sheet.

Material: The material of the product.

Tool Adjustments and Changes

The choice and configuration of tools are pivotal. In the DELEM DA-53T interface, tool changes and adjustments can be made seamlessly, allowing for quick adaptability to different projects.

1. Tool Setup:
   • Tools can be viewed and modified from the Tool Setup menu.
   • Use “Change Tools” for specific tool selection per bend.
   Punch:
   • Displays the name (ID) of the selected punch.
   • Tap “Change Tools” to modify or select from the punch library.
   Die:
   • Displays the name (ID) of the selected die.
   • Tap “Change Tools” to modify or select from the die library.
   • “Change Tools” provides an overview of available tools in the library.
2. Auxiliary Axis:
   • Displays position of the selected axis.
   Retract:
   • Defines the retract distance for the selected axis in the current bend.”Backgauge retract” initiates when the beam pinches the sheet.
   Speed:
   • Speed of the selected axis during the current bend.Programmable as a percentage of maximum possible speed.
   Layon:
   • Toggle option to lay the surface on the finger or not.
   • Available only if an R-axis is present in your machine.

By mastering the DELEM DA-53T Product Programming tool setup and auxiliary axes configuration, you can achieve precise and effective bending operations.

Enhancing Workflow with Edit and View Modes

Reviewing All Bends

When the function All Bends is pressed, a complete overview of the bends within the DELEM DA-53T Product Programming appears.

From this screen, the entire CNC program can be edited. All bend parameters can be modified within the table, and bends can be swapped, moved, added, and deleted. The available columns can be scrolled by finger movement/swipe.

Funções

1. Edit: Edit the DELEM DA-53T Product Programming with the following commands:

• Insert bend

• Mark bend

• Delete bend

When the Edit function is pressed, a new temporary button bar appears with additional functions:

2. Insert Bend:
Insert a new bend between existing bends. When pressed, the current bend is copied and added before the current bend.

3. Mark Bend:
Mark the current bend to prepare for another action, like move or swap.

4. Delete Bend:
Delete the currently selected bend.

Additional Functions for Marked Bends

When a bend is marked with the function key Mark Bend, several other functions become available:

1. Move Bend:
   In the DELEM DA-53T Product Programming table overview, change the bend order by moving a bend. Select and mark the bend, choose the right place in the sequence, and press Move Bend to insert it.

2. Swap Bends:
Swap two bends in the sequence. Mark the first bend, then move the cursor to the second required bend and press Swap Bends. To cancel, press the function Abort Mark during the procedure.

3. Abort Mark:
Remove the mark from the currently marked bend. A bend is no longer marked when the mark is aborted, after an action is finished, or when this menu is exited.

4. Copy Column
Copy the value of the selected parameter in the current bend to all other bends.

5. Chain Bendsteps
Chain bend steps by setting the number of steps in the chain (Repetition) and the backgauge position offset (X offset). The relative offset value can be positive or negative for flexible chaining in DELEM DA-53T Product Programming.

Change tools

To change the tools in DELEM DA-53T Product Programming, use the Tool Setup menu. If you need to modify the setup for just one bend step, use the Change Tools button. The system will prompt whether you want to apply changes to the entire setup or only a single bend. If the entire tool setup is needed, the system will automatically switch to the Tool Setup menu.

Product properties

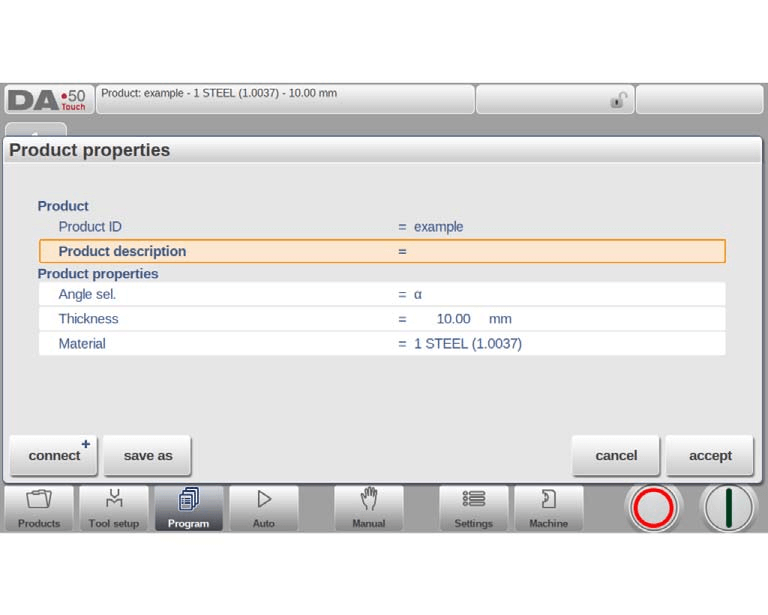

To change the main product properties, tap Product Properties. These parameters are consistent for every bend in the program, forming the main data.

Parameter Explanation:

1. ID do produto:
   • A unique identifier for a product program in DELEM DA-53T Product Programming.
   • Maximum length: 25 characters, including letters and numbers.
2. Descrição do produto:
   • A number or description for the program, aiding in identification.
   • Maximum length: 25 characters, including letters and numbers.
3. Angle sel.:
   • Selects the programming mode for the Y-axis.
     • 0 = absolute: Program the absolute Y-axis position for a bend.
     • 1 = α: Program the angle to bend; computes required Y-axis position.
   • Determines if the parameter Angle or Bend Position appears in a bend step.
4. Grossura:
   • Defines the sheet thickness in DELEM DA-53T Product Programming.
5. Material:
   • Select from programmed materials used for calculating bending depths.
   • The system includes 6 pre-programmed materials, with a capacity for 99 total, programmable in the Materials page under Settings mode.

Funções:

• Connect: Allows the connection of certain programs. Useful for creating 3-dimensional products out of two programs.
• +Connect Program:
  • Enables 3-dimensional product creation by automatically executing bend sequences in different directions.
  • Steps to connect programs:
    1. Create the product in one direction.
    2. Create it in another direction, resulting in two bend programs.
    3. Connect these programs via Product Library, Program Mode, and Product Properties.
    4. Select the desired program directions and complete the cycle for multi-program execution.
  • For executing more than two programs, ensure sequential connection, with the last program always referring back to the first.

• Production Process with Connected Programs:

1. Select the first program in DELEM DA-53T Product Programming.
2. Choose the Automatic mode.
3. Set the quantity to produce using the ‘stock count’ parameter.
4. Press the Start key to initiate. After finishing, the next program starts automatically, tracked by the program counter.

• +Disconnect Program: Stops the sequence of connected programs.
• Salvar como: Copies the current product. Upon pressing, enter a new product ID for the copied program.

Add bend

To add a new bend after the last bend. When pressed, the last bend is copied and added after the last bend.

Bumping

From pure numerical programs a single bend step can be changed into a bumping bend.

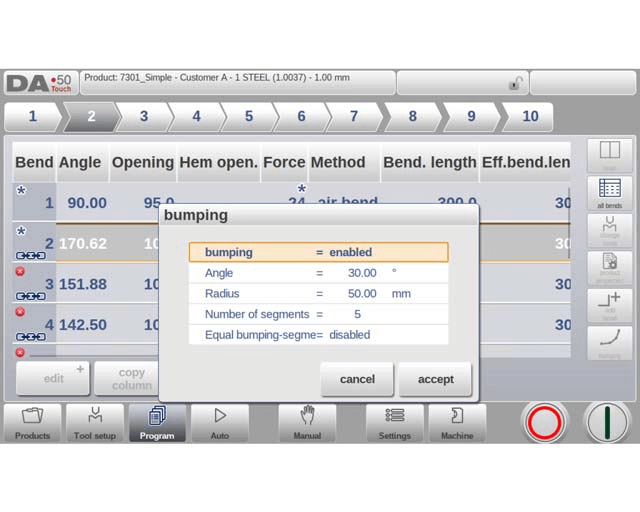

When Bumping has been selected in the Main view of the DELEM DA-53T Product Programming, a pop-up window is shown where the following parameters can be programmed:

1. Bumping
   • Disabled: Functions as a normal air bend with a defined angle and preferred radius.
   • Enabled: Creates a large radius through different steps of air bending.
2. Ângulo: Specifies the angle value to bend.
3. Raio: Indicates the intended radius to be programmed.
4. Número de segmentos
   • Divides the radius into several segments.
   • Number of bends in the radius equals the number of segments plus one.
   • More segments lead to more precise bends for a smaller tolerance.
   • A higher number of segments requires a smaller V-die opening for proper bending.
5. Segmentos de colisão iguais
   • Computes segment size based on the user-defined number of segments.
   • Standard calculation uses half-size for first and last segments for better results.
   • If die selection for small segments is problematic, equal segment sizes can be calculated.
     • Disabled (no equal sizes): Includes half-size segments.
     • Enabled (equal sizes): All segments are uniform in size.
   • If the V-die opening size is problematic in Disabled mode, re-calculation with equal segments may be prompted.

Bumping corrections can be accessed in Automatic mode, aiding users in distributing corrections over related bends within the DELEM DA-53T Product Programming framework.

Programming parameters

In DELEM DA-53T Product Programming, parameters in program mode can be input individually, and their effects on other parameters are automatically computed.

The interplay between parameters is visually represented with symbols and background colors:

Information Symbol:

Appears when a parameter changes due to a recently edited input. This indicates the interdependency of parameters.

Star Symbol:

Displayed when a parameter value differs from the control’s calculated value. This is useful for identifying values that are intentionally set differently or constrained by parameter limits.

Error Symbol:

Shown when a parameter’s value is incorrect based on current programming. For example, this occurs when a hemming bend is programmed without appropriate hemming tools.

These symbols and their color backgrounds enhance user understanding of parameter relationships and ensure accuracy in programming within the DELEM DA-53T framework.
