Design and development of Punching Die &Feeder Mechanism
In my journey through metal fabrication, I have become deeply involved in the design and development of punching die and feeder mechanisms. These components are essential for ensuring precision and efficiency in the punching process, allowing for consistent production of high-quality parts. Understanding the intricate relationship between the die and the feeder mechanism has enabled me to optimize designs and enhance overall performance. In this article, I will explore the key considerations and innovations in the design and development of punching die and feeder mechanisms, sharing insights that can benefit both new and experienced professionals in the industry.
Abstract
Today in the rapid competition of the industries to get the best quality of the product in the minimum required time is the main aim of industries. To get the best quality and maximum production most advanced machines are used. But there are no facts that use only the advanced machines, to maintain their performance is real requirement of the industries, also to give proper facilities to the workers with good environmental condition and to reduce their efforts is one of the objects to achieve the best quality and high production. So we have done design and development in existing punching die with a new die which having more production capacity as per requirement to meet production value and also design feeder mechanism for effective product handling and ease of working to the operator.
Introduction
The press is a metal forming machine tool, designed to shape or cut metal by applying mechanical force or pressure with help of press tool. The metal is formed to desired shape without removal of chips. Press tools are exclusively intended for mass production work. Sheet metal operation plays an important role in engineering works. Press tool are made to produce a particular component in very large numbers, mainly out of sheet metal. The principle press tool operations are cutting and forming operations of sheet metal. Sheet metal components such as automobile parts, parts of house hold appliances and electronic equipment’s are produced by press tools. Nowadays lot of sheet metals parts are being utilized in lot of sectors irrespective of particular fields like mechanical, electrical, electronics, computers. Sheet metal components are mainly used for the followings
● Lesser in weight
● Less Expensive
● Replaceable and better aesthetics
1.1 Problem Statement
● To design for die and punch which are highly efficient.
● To develop a punching die along with its feeder to improve production rate of product by minimizing human efforts and machining time.
● Design and simulate of die and punch for metal rod on round bending.
1.2 Scope
The objective of this project is to develop an assistive technology device that will enable individuals with severe disabilities to excel in the workplace. This will be done by identifying and understanding a process where a need for improvement exists and designing a device in that manner.
For the main purpose of this research, the following scopes are created:
● Improving productivity, job performance and reducing the process time.
● Develop the most efficient and simple design of the punch and die so that they are easy to manufacture; complex shape and sizes are not recommended.
● The next scope is geometry measurement which involves the dimensions of a design including the length, width, thickness, height, angle between lines, diameter etc. The dimensions of the design of the die and punch are measured to form a .3-D view to get clearer picture.
● Perform analysis by F.E.A and validation. Validation is the process of checking if something satisfies a certain criterion. Validation is important because it disallows data that cannot possibly be either true or real to be entered into a database or computer system. Develop the methodology of the proposed design.
2. Important Considerations for Design of A Punching Die Set
● Cost of manufacturing depends on the life of die set, so selection of material should be done carefully keeping strength and wear resistant properties in mind.
● Die is normally hardened by heat treatment so design should accommodate all precautions and allowances to overcome the ill effects of heat treatment.
● Accuracy of production done by a die set directly depends on the accuracy of die set components. Design should be focused on maintaining accurate dimensions and 1tight tolerances.
● The process should be shock proof, if it is unavoidable, shock resistant properties should also is consider while selecting the material of components of die set.
● Along with the important design consideration one should also know about the proper material selection for components of a die set various types of tool steels with their suitability for components of die set.
● Material or selected tool steel should be very hard to resist wear and strong to her load to the same time die set components may have very complicated shape, design and need very accurate sizing. Most of them are manufactured by machining and finishing operations. Their manufacturing involves processing of tool steel to make these components, and then these are hardened by different hardening methods like water hardening, oil hardening, air hardening and hard coatings while selecting a die set component material following factors should be taken in care.
● Life of the die set component as required.
● Ability to bear wear, shock and load (type of process subjected).
● Their costs, both initial cost and operating costs.
3. Importance of Springback Effect
The evaluation of forming performance is a great necessity when large-sized complex parts like automobile panels are press formed to control the forming defects to get precise parts. Shape fixability is one of the main indices to assess sheet formability. Shape fixability is defined as the fixation degree of size and shape of the formed part. During bending, the load is applied to bend the part in the desired shape. After bending, when the load is removed, the total strain on the work part is reduced due to elastic recovery. This causes a shape discrepancy in the work part referred to as springback. The maintenance of geometric tolerances in the finished part is an important challenge in air bending process. This issue is related to spring back which is the outcome of the interaction of various parameters such as properties of the material, geometry of the part, tooling and process parameters. During bending, the bend force is the force needed to deform the sheet metal to the required shape. The bend force-punch travel relations can be compared with bending model results and necessary corrections can be made to achieve better in process control.
4. Material Selection
4.1 For punching die
Material Selected: WPS
Steel Grade: Die steel D3/1.2080
Model Number: 1.2080/D3/Cr12
Technique: Cold Drawn
Annealed Hardness: 269-217 HBS
Special Properties:
● Good wear resistance and compressive strength
● Resistance to plastic deformation
● Good hardenability
4.2 For Feeder Mechanism
Material Selected: Mild Steel
Model Number: 1.0401
Elongation: 10-14% Min
Technique: Cold drawn
Special Properties:
● High ultimate strength
● Low in cost
● Less wear and tear property
5. Bending Calculations
5.1 Nomenclature
Tensile strength = Ft = 300 N/mm2
Thickness = T = 5 mm
Width = W = 50 mm
Transverse Length = L = 27 mm
5.2 V-Bend Calculations

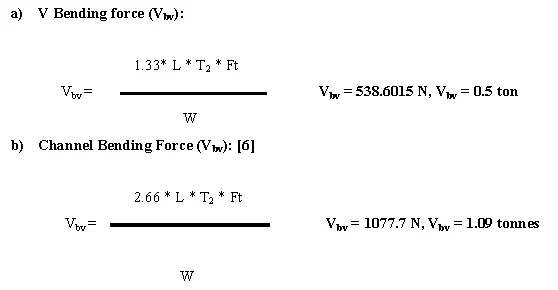

5.3 Force Calculations

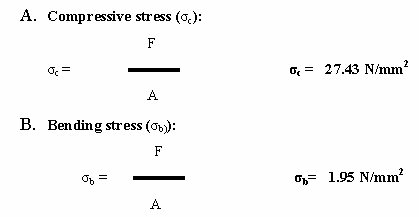

5.4 Stress Calculations
