QC11K
HARSLE
| Quantity: | |
|---|---|
Product Description

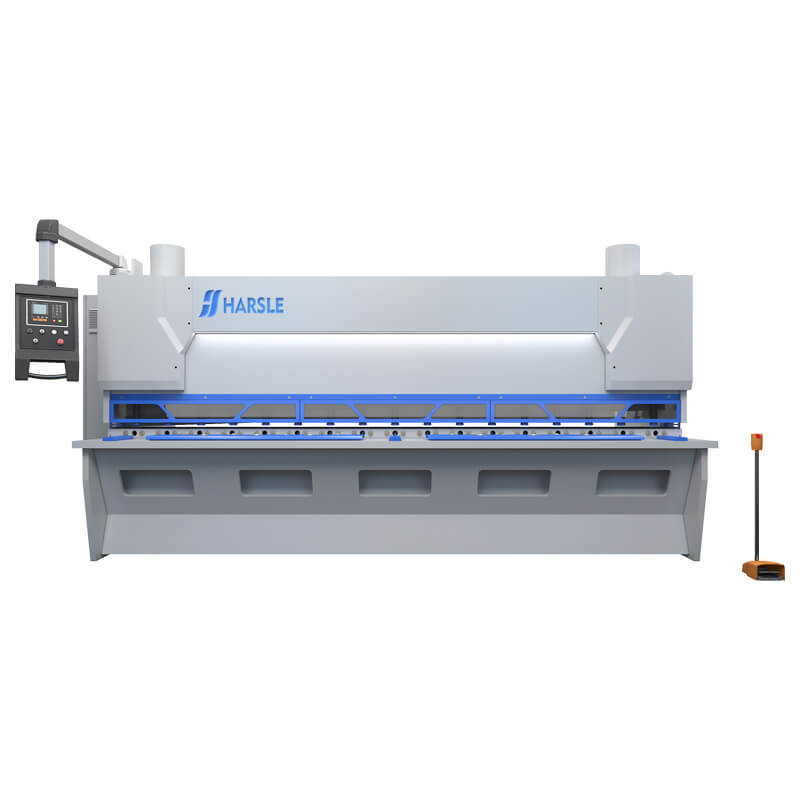

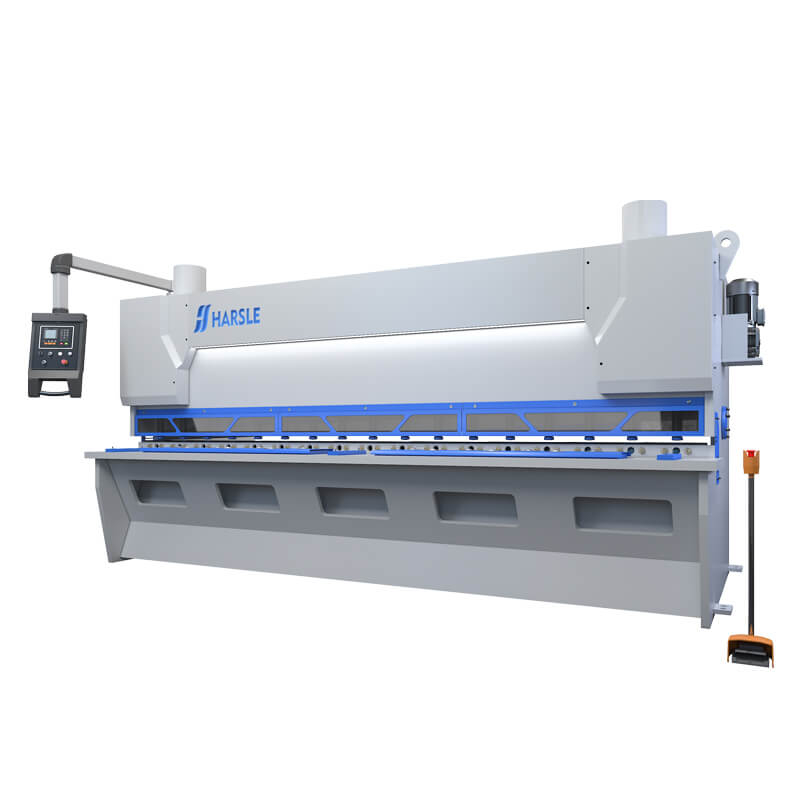

HARSLE QC11K-10X3200 guillotine shearing machine offers several advantages that make them popular choices for cutting sheet materials in various industrial and fabrication settings. Clean and straight cuts, high cutting capacity, low maintenance, and so on.
Main Features
The motors for the backgauge are controlled by an inverter, which can achieve a high positioning accuracy of 0.05mm of the backgauge by changing the frequency and voltage of the motor.
The backgauge and cutting angle can be programmed by the E21S controller, the blade gap can be motorized and controlled. Hydraulic overload can be protected by an overflow valve, and knife rack returns by Nitrogen cylinders.
A foot switch with an emergency button can stop the machine immediately when an accident happens.
The new design of equipment modeling is simple and novel, with smooth lines, blue and white soft color scheme, a delicate process, and an overall simple, modern, technological aesthetic, in line with the user's aesthetics. HARSLE helps create more value and achieve more efficient bending solutions.
Technical Parameters
| No. | Item | Unit | 10*3200 | |
| 1 | Max cutting thickness | mm | 10 | |
| 2 | Max cutting length | mm | 3200 | |
| 3 | Throat depth | mm | 200 | |
| 4 | Cutting angle(adjustable) | mm | 30'-2° | |
| 5 | Cutting speed | Cutting times/minutes | 12~25 | |
| 6 | Cutting Blade | length | mm | 1100*3 |
| quantity | pcs | 3(upper)+3(bottom) | ||
| 7 | Backgauge | travel | mm | 500 |
| speed | mm/sec | 180 | ||
| accuracy | mm | ±0.02 | ||
| 8 | Front arms | length | mm | 800 |
| quantity | pcs | 3 | ||
| 9 | Spring pressure cylinder | pcs | 12 | |
| 10 | Main motor | KW | 11 | |
| 11 | Control system | / | E21S | |
| 12 | Dimension | (L*W*H)mm | 3860*2000*1700 | |
| 13 | Weight | kg | 8000 | |
Product Details
