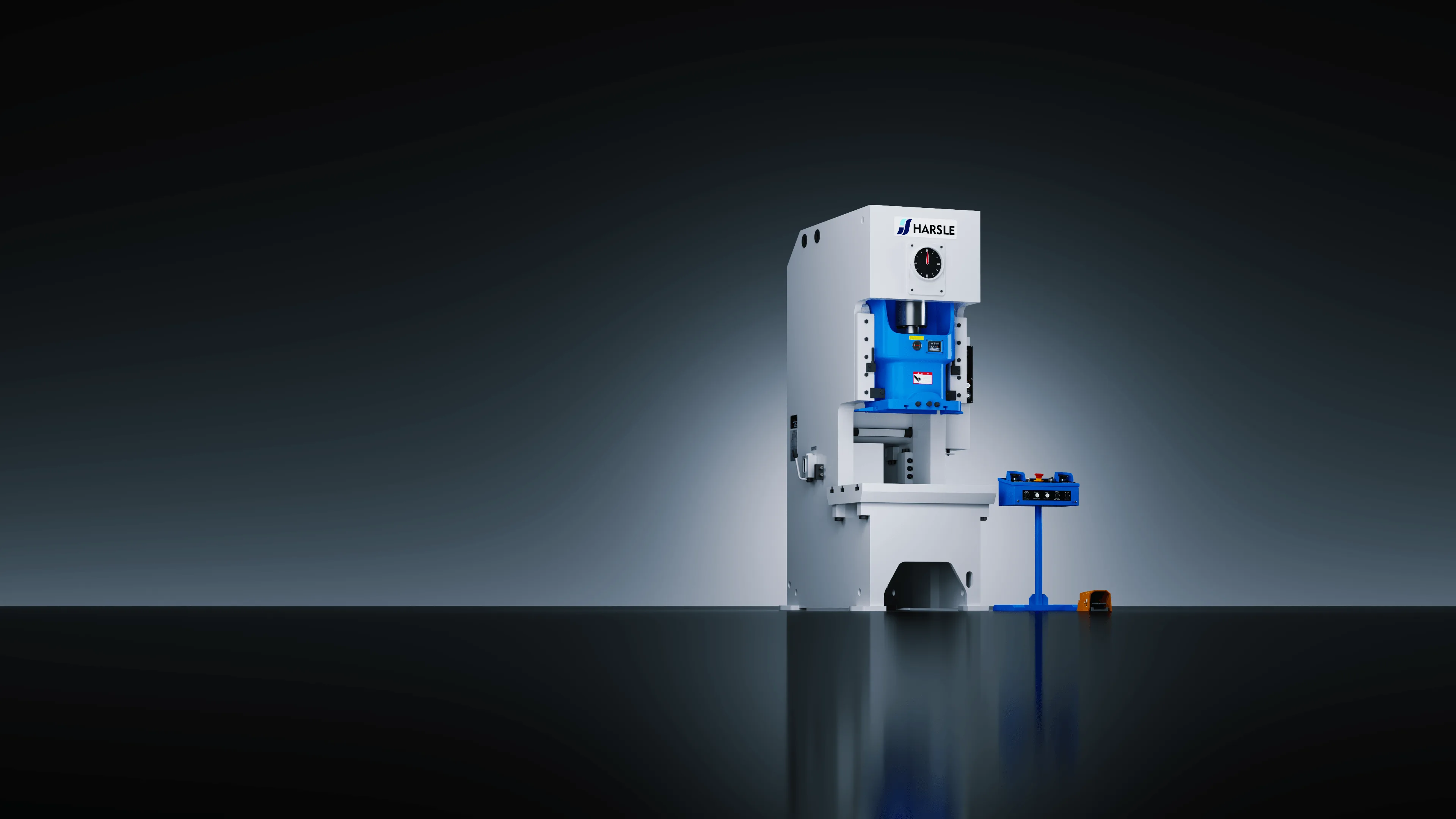

AirPunch
Built for high-speed, reliable punching.
Sturdy Body
Robust Frame
The pneumatic press features a high-strength frame design that ensures stability and durability, providing reliable performance during high-speed and heavy-duty operations.
The clear dial design allows for easy monitoring and precise adjustments, enabling operators to control the pressing process with accuracy and confidence.
The reinforced working table offers solid support for various workpieces, ensuring stability and consistent positioning during punching operations.
Responsive Input
Operator Control
Designed for intuitive input and precise response, the control interface ensures smooth operation and accurate command execution.
Direct Control
Manual Panel
The hand control panel provides intuitive operation with clear buttons, enabling precise and convenient control during punching tasks.
Hands Free
Foot Switch
The foot switch enables hands-free operation, allowing operators to focus on positioning while maintaining efficient control.
Easy Control
Control System
The control system simplifies operation and supports reliable production performance.
The support arm control system allows flexible positioning, making operation more convenient and improving overall workflow efficiency.
The hanging arm control system provides wider movement range, allowing operators to adjust the control position freely for different working needs.
Stable Motion
Reliable Drive
The wet friction clutch-brake ensures quick response, smooth transmission, and reliable stopping performance.
The slider ensures stable movement and reliable pressing accuracy during continuous operation.
The crankshaft system delivers efficient power transmission and stable punching performance.
Precise Feeding
Efficient Feed System
The advanced feeding system ensures smooth and accurate material feeding, improving production efficiency and reducing manual handling.
Smooth Unwinding
Leveling Decoiler
The Leveling Decoiler ensures precise coil unwinding and leveling, providing a smooth material surface for efficient processing and improved product quality.
Precise Feeding
Auto Feeder
The Auto Feeder ensures consistent, high-speed material feeding, improving accuracy and reducing manual handling for faster production cycles.
Industries We Serve
Powering Metal Fabrication
Powering Metal Fabrication
Across Every Sector
HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.
Automotive
Automotive
View Applications
Aerospace
Aerospace
View Applications
Construction & Electronics
Construction & Electronics
View Applications
Energy & Power
Energy & Power
View Applications
Wide Range Machinery
Wide Range Machinery
View Applications
HVAC & Ventilation
HVAC & Ventilation
View Applications
Technical Data
Specifications
All models at a glance — compare side by side
AirPunch
16T
16T
AirPunch
63T
63T
AirPunch
100T
100T
AirPunch
200T
200T
160 kN
Nominal Force
630 kN
Nominal Force
1000 kN
Nominal Force
2000 kN
Nominal Force
10-60 mm
Slide Stroke
20-100 mm
Slide Stroke
10-130 mm
Slide Stroke
20-140 mm
Slide Stroke
140 Times/min
Number of Stroke
50 Times/min
Number of Stroke
40 Times/min
Number of Stroke
35 Times/min
Number of Stroke
190 mm
Closed Height
360 mm
Closed Height
390 mm
Closed Height
490 mm
Closed Height
180 mm
Max. Die Set Height
340 mm
Max. Die Set Height
380 mm
Max. Die Set Height
470 mm
Max. Die Set Height
40 mm
Die Height Adjustment
60 mm
Die Height Adjustment
60 mm
Die Height Adjustment
100 mm
Die Height Adjustment
160 mm
Throat Depth
255 mm
Throat Depth
320 mm
Throat Depth
350 mm
Throat Depth
1.5 KW
Motor
4 KW
Motor
7.5 KW
Motor
18.5 KW
Motor
1000*820*1750 mm
Dimension (L*W*H)
1710*1200*2500 mm
Dimension (L*W*H)
1920*1320*2770 mm
Dimension (L*W*H)
2175*1740*3150 mm
Dimension (L*W*H)
